Descripción

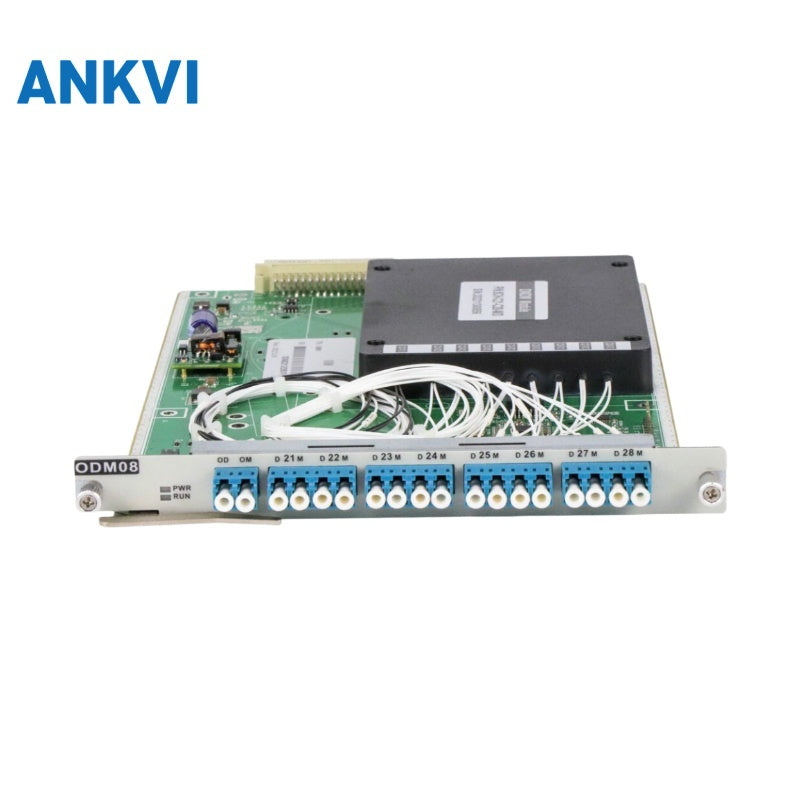

8ch DWDM MUX&DEMUX（ODM）

Product Description

MUX & DEMUX is a wavelength division multiplexing (WDM) based combiner/demultiplexer card, which multiplexes multiple standard DWDM or CWDM wavelengths on the same optical fiber for transmission. The demultiplexing card is used to demultiplex multiple standard DWDM or CWDM wavelengths transmitted on a single fiber

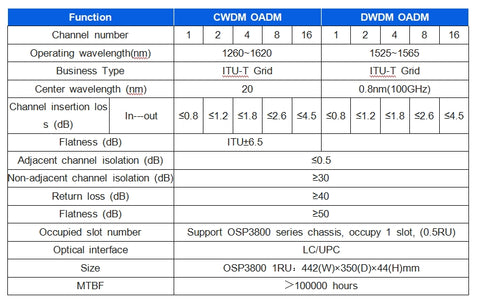

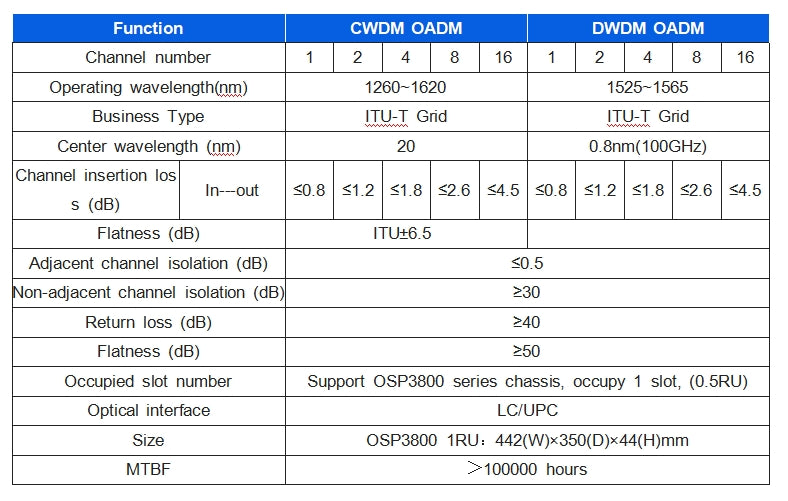

Technical specifications

Function

CWDM OADM

DWDM OADM

Channel number

1

2

4

8

16

1

2

4

8

16

Operating wavelength(nm)

1260~1620

1525~1565

Business Type

ITU-T Grid

ITU-T Grid

Center wavelength (nm)

20

0.8nm(100GHz)

Channel insertion loss (dB)

In---out

≤0.8

≤1.2

≤1.8

≤2.6

≤4.5

≤0.8

≤1.2

≤1.8

≤2.6

≤4.5

Flatness (dB)

ITU±6.5



Adjacent channel isolation (dB)

≤0.5

Non-adjacent channel isolation (dB)

≥30

Return loss (dB)

≥40

Flatness (dB)

≥50

Occupied slot number

Support OSP3800 series chassis, occupy 1 slot, (0.5RU)

Optical interface

LC/UPC

Size

OSP3800 1RU：442(W)×350(D)×44(H)mm

MTBF

＞100000 hours
