Descripción

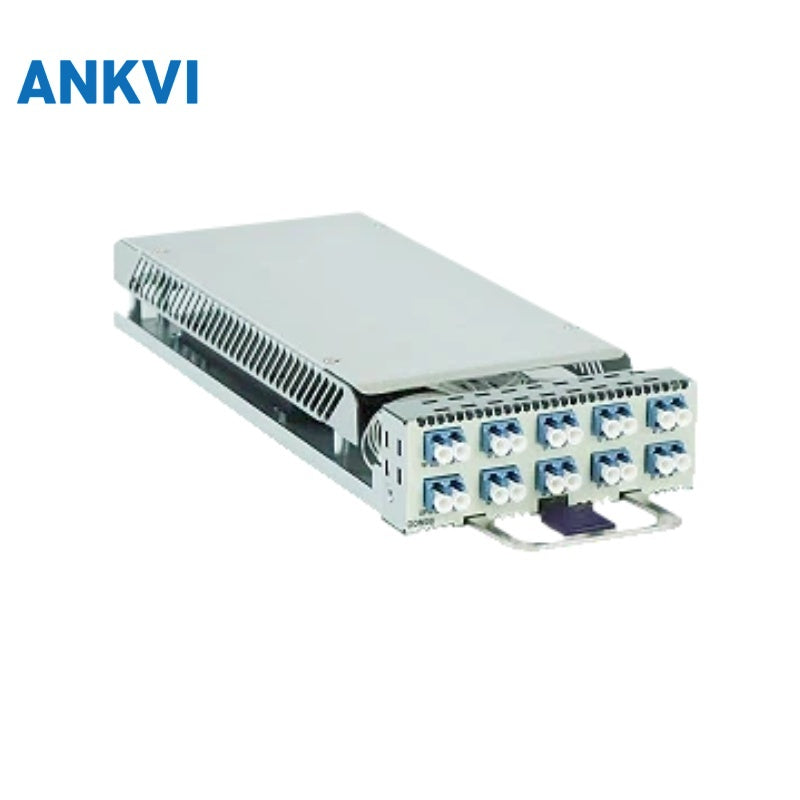

OMD08 Card

Product Description

The passive MUX device for signal splitting operates.The card occupies only 1/4 standard slot capacity.

Technical specifications

Function

Description



Basic Function

The 8-channel DWDM100GHz interval signal combining and splitting function is realized.

The wavelength range of the 8th odd-numbered wave is 1528.773nm～1566.314nm in C-band.

The odd-numbered wavelength range of 8 is C-band 1529.163nm～1566.723nm.

Split Wave Function

The combined wave direction: The even-numbered wave 8/48/96-channel single-wavelength optical signal is multiplexed into a single optical fiber, amplified by an amplifier disk, and then transmitted via the line.

The splitting direction: 1 multi-wavelength optical signal is divided into 8 even-numbered wavelengths.

Online Monitoring Feature

The system provides an online monitoring port, which can be connected to a spectrometer to monitor the spectral performance of the optical signals input and output by the line without interrupting the service.
