| Parameter | Specification |
|---|---|
| Nominal Voltage | 12V |
| Rated Capacity (10 hour rate) | 65.0 Ah |
| Rated Capacity (5 hour rate) | 58.0 Ah |
| Rated Capacity (1 hour rate) | 40.8 Ah |
| Length | 350 ± 2 mm (13.8 inches) |
| Width | 169 ± 2 mm (6.65 inches) |
| Height | 179 ± 2 mm (7.05 inches) |
| Total Height | 179 ± 2 mm (7.05 inches) |
| Weight (Approx.) | 20.3 kg (44.75 lbs) ± 4% |
| Internal Resistance (Full Charged) | 6.5 mΩ |
| Self‑Discharge (3 months) | 91% capacity remaining |
| Self‑Discharge (6 months) | 82% capacity remaining |
| Self‑Discharge (12 months) | 64% capacity remaining |
| Self‑Discharge (Monthly) | < 3% at 25℃ |
| Charge Voltage (Cycle Use) | 14.50 – 14.90 V |
| Charge Voltage (Float Use) | 13.50 – 13.80 V |
| Max Initial Charging Current | ≤ 16.2 A |
| Capacity at 40℃ (10hr rate) | 102% |
| Capacity at 25℃ (10hr rate) | 100% |
| Capacity at 0℃ (10hr rate) | 85% |
| Capacity at -15℃ (10hr rate) | 65% |
| Design Life | RN series: 10 years |
| Battery Type | VRLA / AGM Sealed Lead Acid |
| Applications | UPS, Solar/Wind Power, Telecom, Medical, Security, Electric Tools, Toys, Emergency Lighting |
Sales@fibernice.com

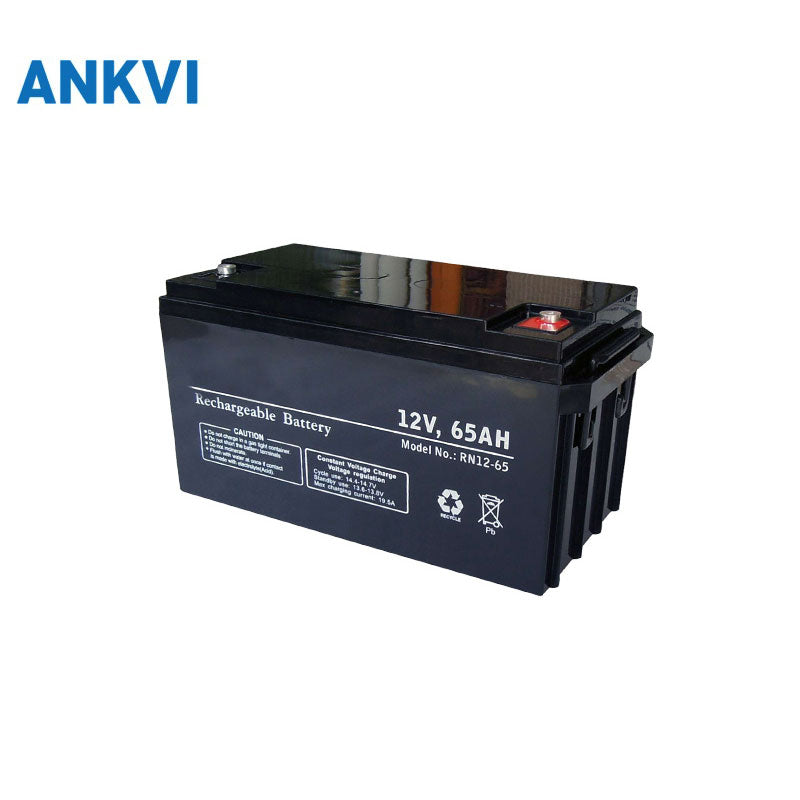

12V 65AH Rechargeable Battery VRLA AGM 20.3kg 6.5mΩ Internal Resistance for Telecom Equipment
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
