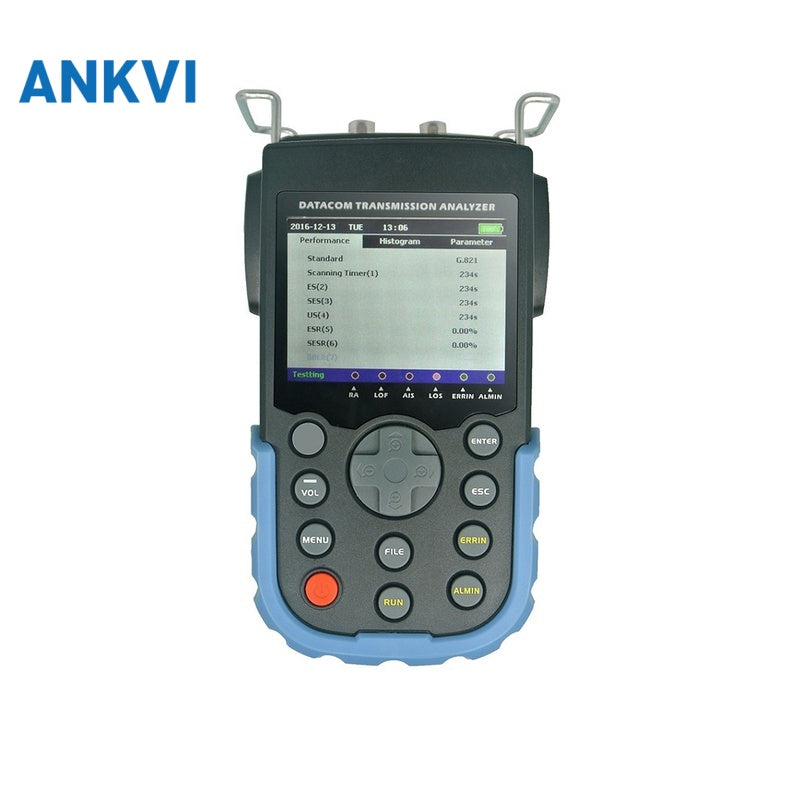

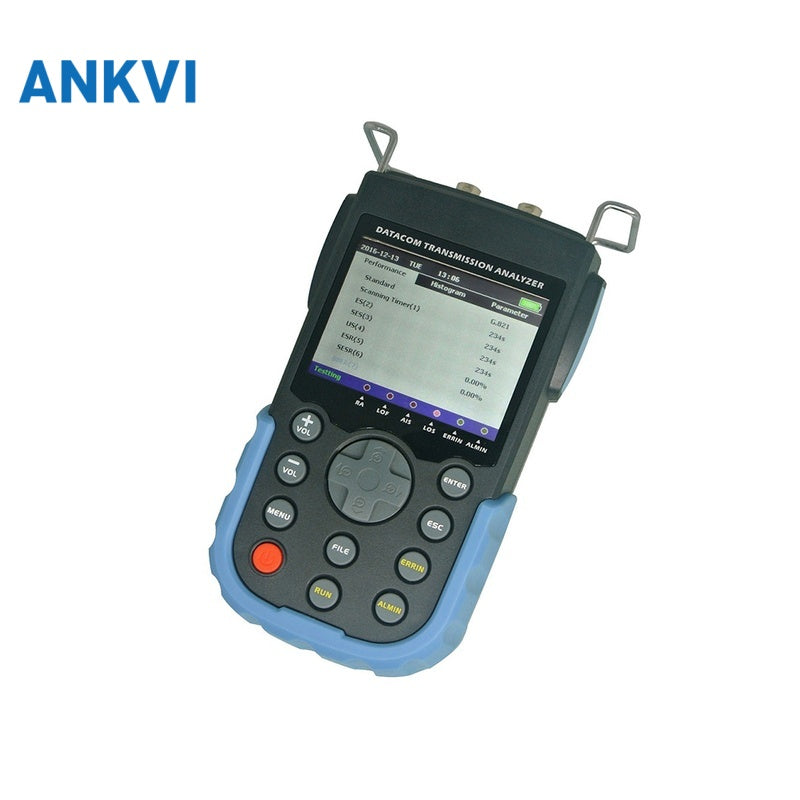

E1 BER Tester DEB101E
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Error bit insertion
One time slot and real-time clock
Out of service/in-service test
Framed and unframed test
2Mb/s, N*64Kb/s test
Results analysis conforms to the ITU-T G.821,826 and M.2100
Data storage and transfer to PC
| Bit Rate | 2084kb/s ± 50ppm |
| Connector | Standard: 75 ohms unbalanced; high resistance input impedance Optional: 120 ohms balanced |
| Input Sensitivity | 0dB~-43dB |
| Frame Type | Framed N*64Kbps/ unframed, PCM30, PCM30C, PCM31, PCM31C |
| Test Pattern | Random pseudo code: 2^15-1, 2^11-1, 2^7-1
Fixed code: 1111,0000,1010 |
| Alarm Insertion | LOS, LOF, AIS, RA |
| Error Code Insertion | Single,10E-3,10E-5,10E-7 |
| Result Analysis | G.821, G.826 and M.2100 |

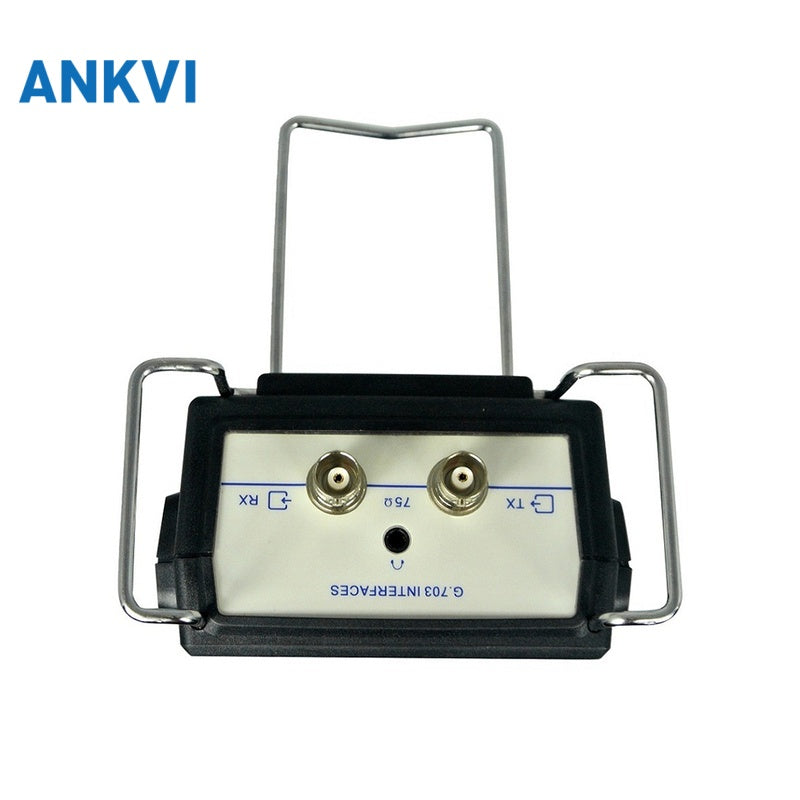

| Port | Standard: BNC |
| Line Coding | HDB3 |
| LCD | 3.5-inch color LCD |
| Measuring Standard | G.821, G.826, M2100 |
| Clock Source Selection | Internal Clock (Internal), Receive Clock (Receive) |
| Bit Rate | 2048kb/s ± 50ppm |
| Data Storage | 4GB storage 100000 results, SD card |

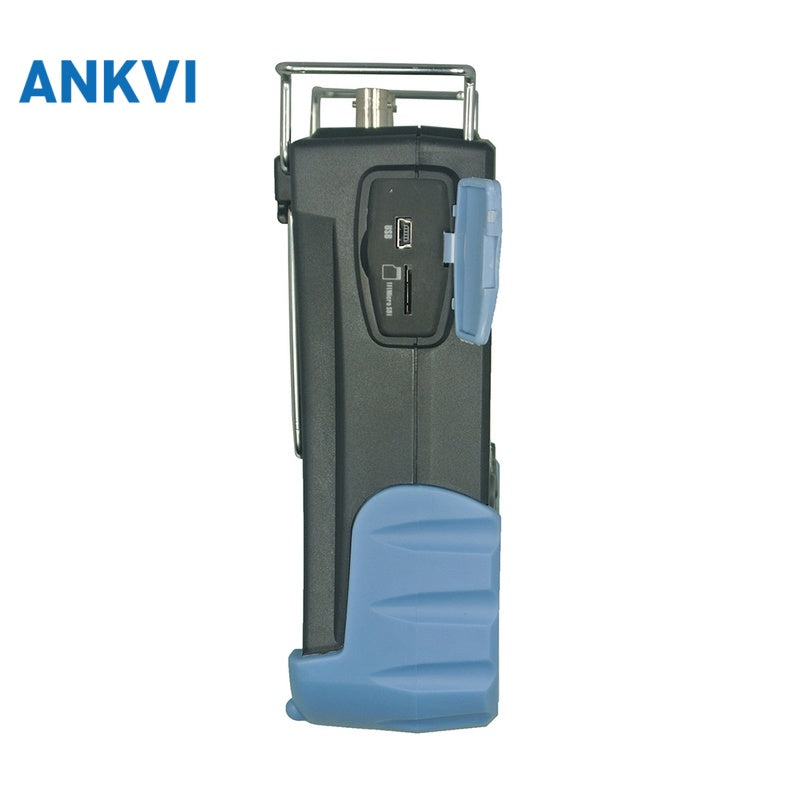

| Interface | USB |

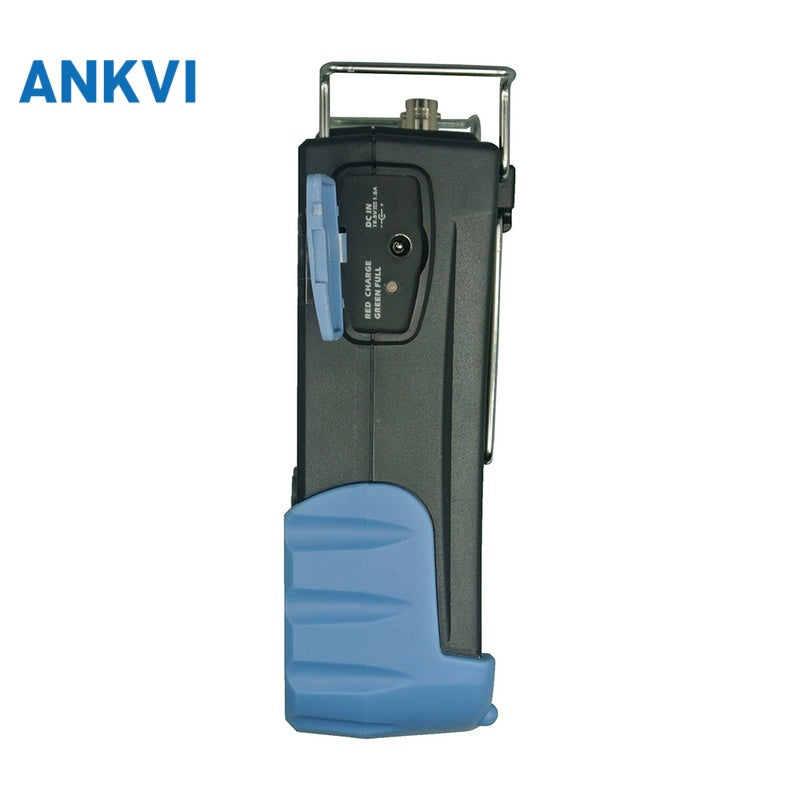

| Power Supply, Operating Time | Built-in Lithium-ion rechargeable battery, 8hrs operation (15hrs standby) |
| Size (mm) | 195 x 110 x 60 |
| Weight (g) | Approx. 500 |
| Storage/ Operating Temperature/ Relative Humidity | -20°C to +60°C/ -10°C to +50°C/ 90%RH |

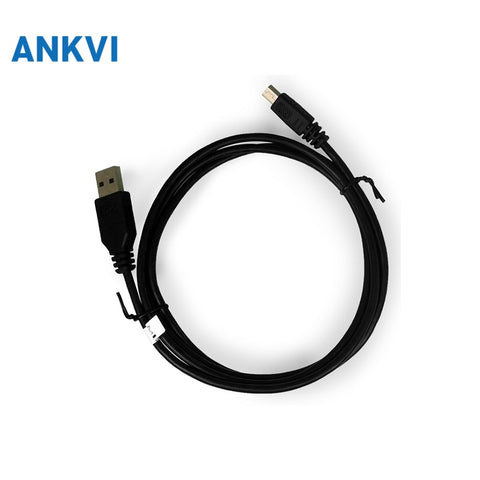

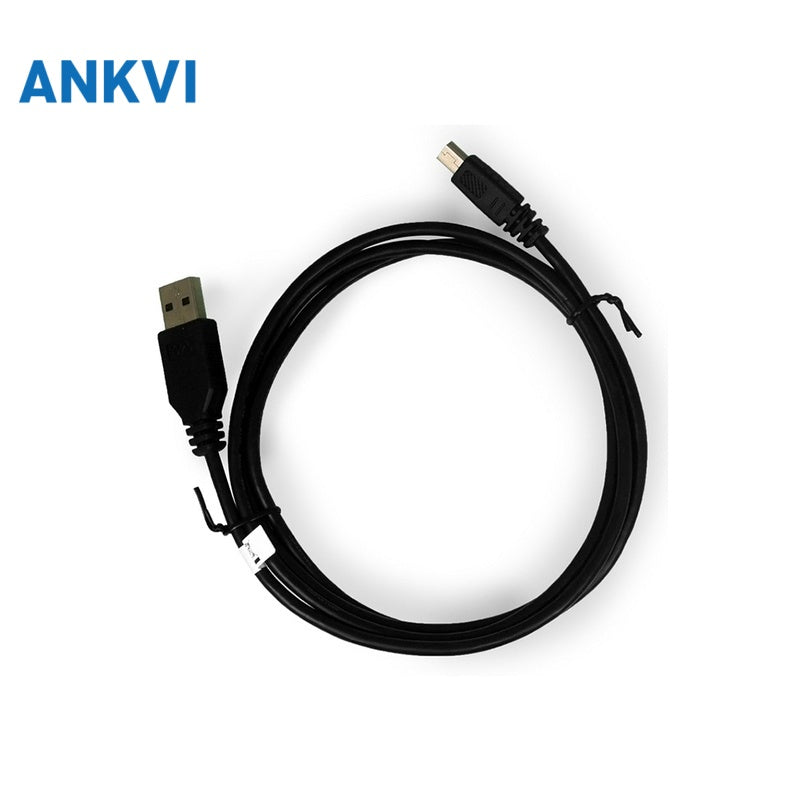

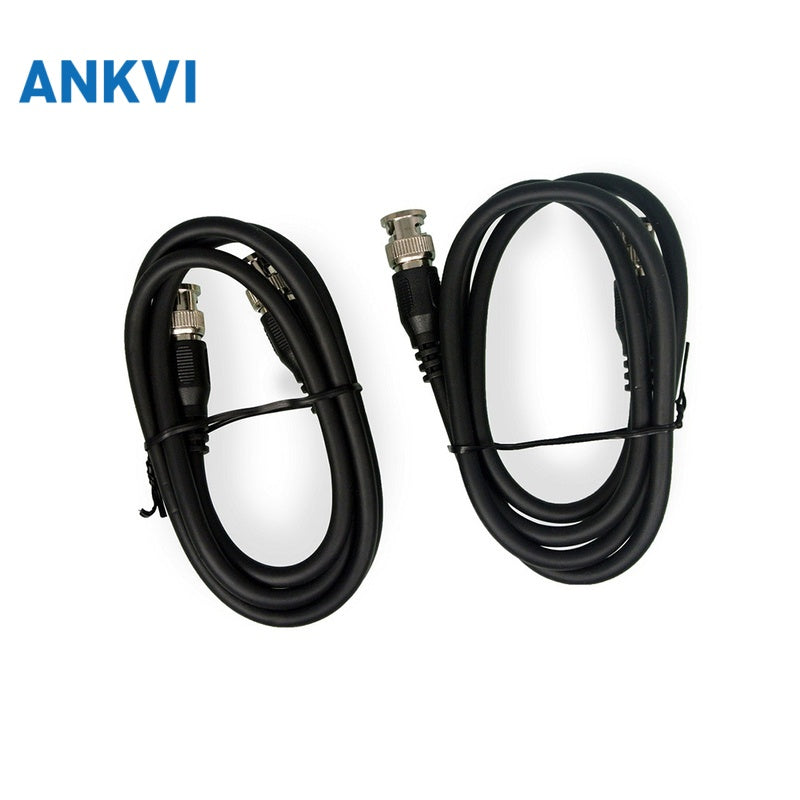

| Standard Accessories | Carrying bag, SD card, USB, AC/DC adaptor, 75 ohms cable and manual |
| Optional Accessories |

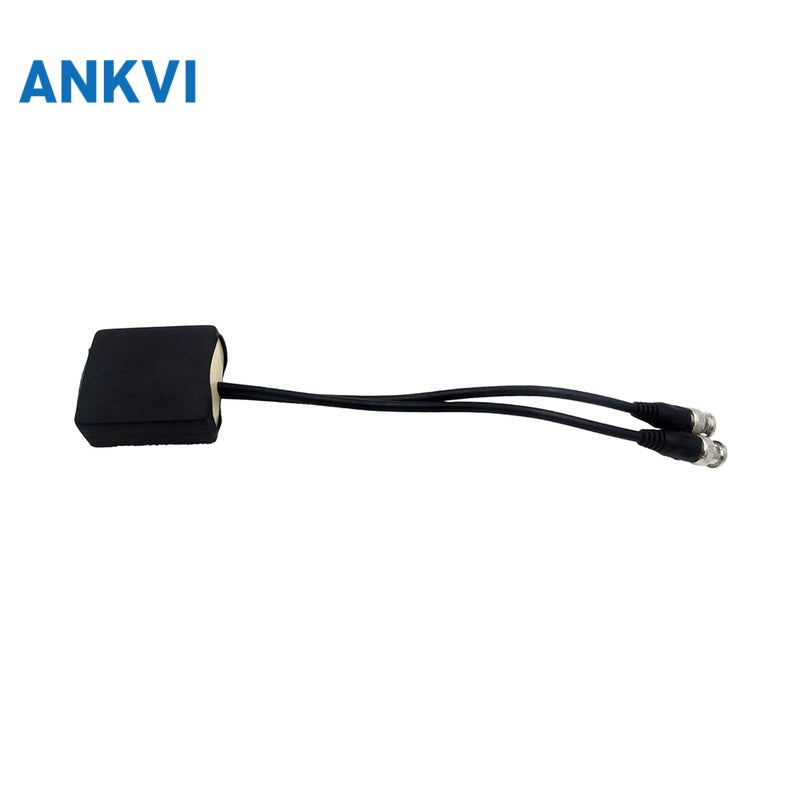

Balanced 120 ohms convertor (75 to 120 ohms) |
