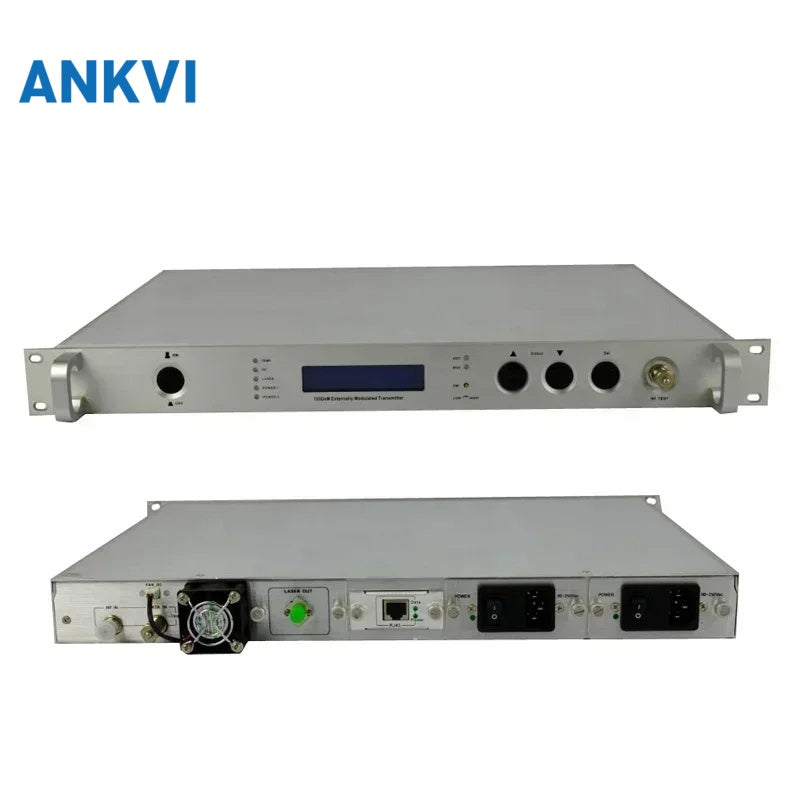

External Modulated 1550NM Transmitter Fiber Optic CATV Digital TV WT1550 Series
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Both the external modulator and laser are imported from the United States or Japan.
Perfect pre-distortion circuit ensures the best CTB and CSO when the CNR is in high standard.
Perfect SBS suppress circuit and adjustable SBS in 13,16, 18，suitable for different types of CATV net.
AGC control.
Internal double power which can be changed automatically.
Automatically shell temperature control.
Internal microprocessor software has the function of laser monitoring, parameter display, fault warning, net management and so on. Once the working parameter of the laser goes out of the fixed value of the software, the machine will warn.
The transmitter provides RJ45 and RS232 standard interface for the connecting the computer and monitoring.
Products Series:
OPT-WT1550-2×7DB （two outputs，≥7dBm）
OPT-WT1550-2×8DB （two outputs，≥8dBm）
OPT-WT1550-2×9DB （two outputs， ≥9dBm）
OPT-WT1550-2×10DB（two outputs， ≥10dBm）
| Parameter | Index | Remarks | |
| Optical Parameters | Wavelength （nm） | 1550±10 | |
| Output power （dBm） | 2×7 | Or 1×5,1×6,1×7, | |
| 1×9,2×5,2×6,2×9 | |||
| Optical return loss （dB） | ≥60 | ||
| Connector type | FC／APC | Or SC／APC | |
| RF parameters | bandwidth （MHz） | 45-862 | |
| Input level （dBmV） | 23±5 | AGC | |
| Flatness （dB） | ≤±0.75 | 45~862MHz | |
| Return loss （dB） | ≥16 | 45~750MHz | |
| Input inpedance （Ω） | 75 | ||
| Link Parameters | channels | PAL-D/60ch | |
| CNR （dB） | ≥52 | 65Km fiber，Receive0dBm | |
| CTB （dB） | ≥65 | ||
| CSO （dB） | ≥65 | ||
| SBS （dBm） | ≥16.0 | 13,16,18 | |
| General Parameters | Net interface | RJ45，R232 | |
| Power （V） | 90～265 | Or -48VDC | |
| Power loss （W） | ≤50 | ||
| Working Temp（℃） | 0～50 | Automatically shell temp control | |
| Storage Temp（℃） | -20～85 | ||
| Working relative Temp | 20%～85% | ||
