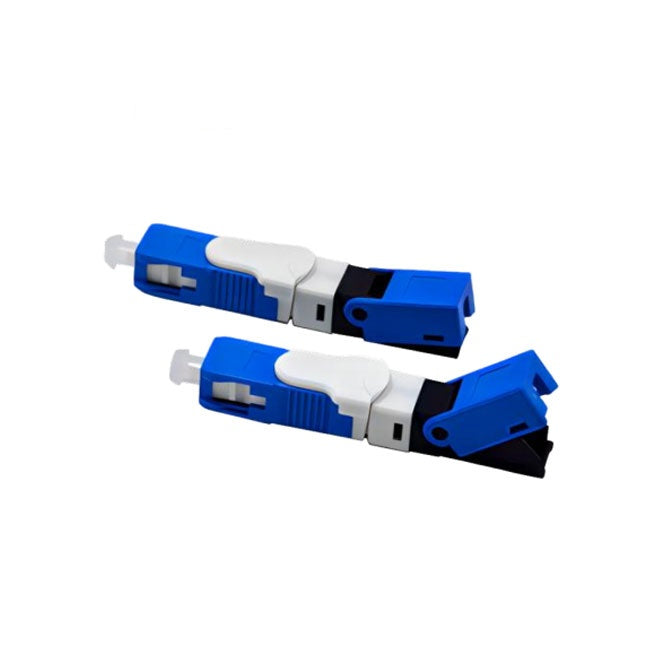

Fast Connector Cold Connector SC/UPC ESC250D-UPC
Fast Connector Cold Connector SC/UPC ESC250D-UPC

Fast Connector Cold Connector SC/UPC ESC250D-UPC

Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description

Cable:3.0mm*2.0mm, 2.0mm*1.6mm Drop Cable

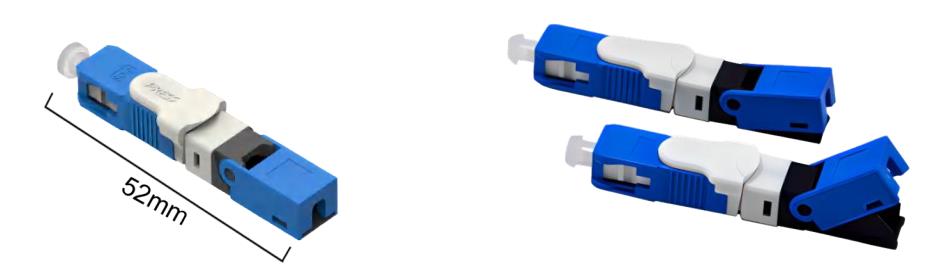

Dimension:52×9×8.1mm

Fiber: SM/ G657 Bending Insensitive; MM/ OM3, OM4

Factory-installed fber stub, no epoxy and polishing required, inside with index-matching gel

Operating Temperature: -25℃～+75℃

Application: FTTH

Item Parameter
Insert Loss AVG≤0.3 dB MAX≤0.5 dB
Return Loss SM:UPC≥45dB,APC≥50dB
MM: UPC≥25 dB
Tensile Strength ≥30N
Mechanical Endurance 500 Times
Repeat Assembly ≥3 Times
Assembly Time ≤2 mins

Mechanical connectors make fber terminations quick, easy and reliable. These fber optic connectors ofer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our connector can greatly reduce the assembly and set up time. The prepolished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site
