Fast find fiber in a mass
Indicate signal directions in fiber
Indicate Live or dark fiber
Detect 270Hz, 1kHz, 2kHz from laser source
Build in VFL 1mW or 10mW (Optional)
Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, no need to change adapter
One-year warranty and Three-year recommended calibration interval
| Model | AFI400 / AFI420S / AFI420L | |
| Wavelength Range | 800 to 1700nm (SM) | |
| Recognizable signal type* | CW, 2kHz, 1kHz, 270Hz ±10% | |
| Detector Type | InGaAs 2pcs | |
| Fiber Type | 0.9, 0.25, 2.0, 3.0 mm fiber | |
| Sensitivity | +10 ~ -50dBm | |
| Accuracy * | +10dB to -30 dBm (Continuous Wave) /+10dB to -25 dBm (Modulated Signal) | |
| LED Indicator | Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery | |
| Visual Fault Locator | No / 1mW / 10mW | |

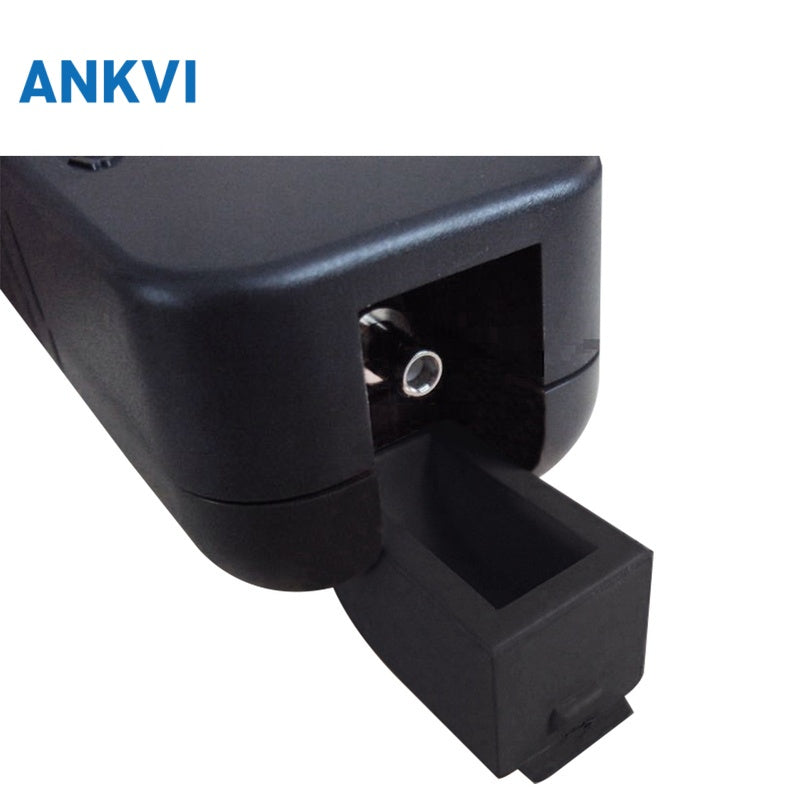

| VFL Connector | 2.5mm universal connector | |
| Power Supply | AA * 2 | |
at 20±3℃, indoor, 1550nm wavelength, 0.9mm fiber, with white coat, 270Hz, error 5%,
0.25, 2.0, 3.0mm fiber, the performance at continuous wave will be lower
1KHz, 2KHz, the performance at modulated signal will be lower
at 1310nm wavelength, the performance will be lower
| Size(H*W*D) | 230mm * 45mm * 45mm | |
| Weight | About 200g | |
| Storage Temperature | -20 -- +60°C, < 90%RH | |
| Operating Temperature | -10 -- +50°C, < 90%RH | |
