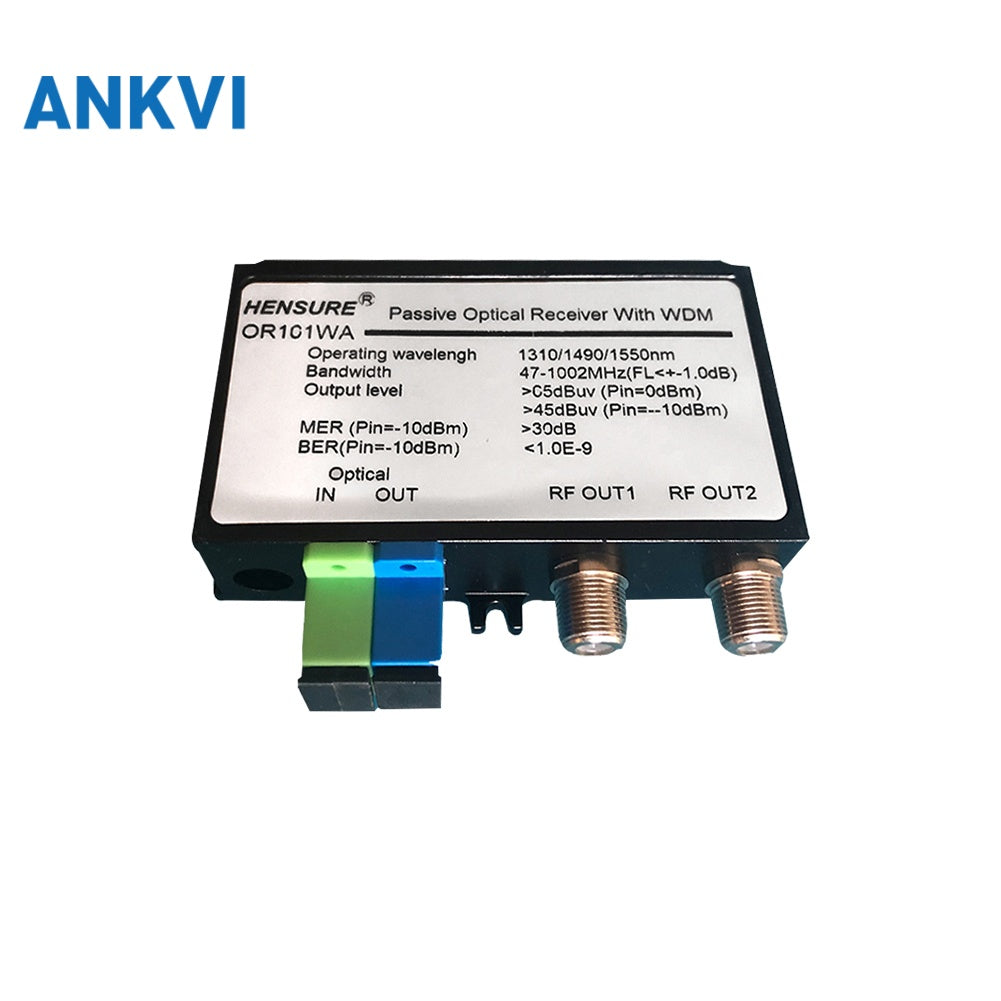

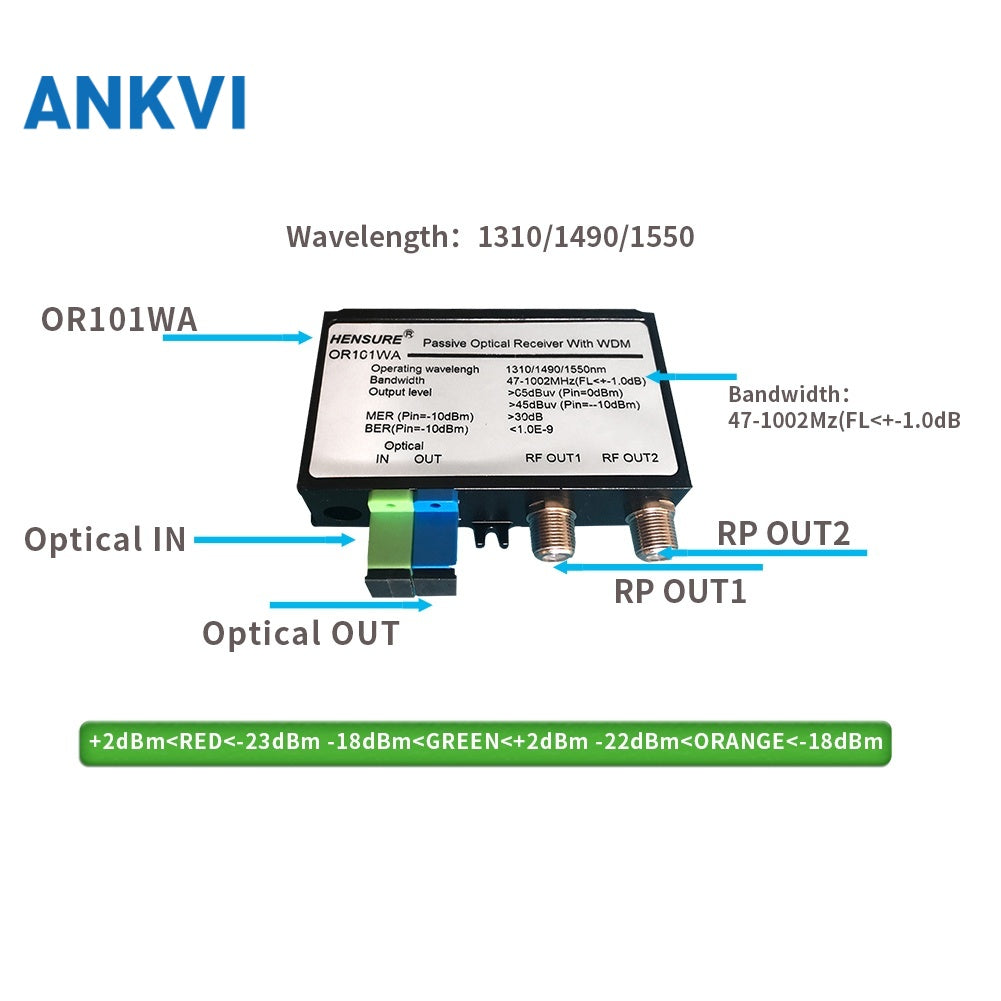

Fiber Optic Node OR101WA
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
PRODUCT FEATURE
1.No Power required
2.Work bandwidth 45~1000MHz
3.Output Level=66d BμV (Pin=0dBm)
6. With FWDM Input three wavelength
1310+1490+1550nm,pon port output 1310+1490nm
| Optic feature | Unit | Index | Supplement |
| Wavelength | (nm) | 1310/1490/1550 | |
| Channel Isolation | (dB) | ≥40 | 1550nm & 1490nm |
| Responsibitity | (A/W) | ≥0.85 | 1310nm |
| ≥0.9 | 1550nm | ||
| Receiving power | (dBm) | +2~-14 | Digital TV (MER>29dB) |
| Optical return loss | (dB) | ≥55 | |
| IN optical connector | SC/APC/SC/UPC optional | ||
| ONU connector | SC/UPC/SC/APC optional | ||
| RF Feature | Female-F Male-F |
||
| Work bandwidth | (MHz) | 45~1050 | |
| Output level | (dBμV) | >66 | Digital TV (Pin=-1dBm) |
| Return loss | (dB) | ≥14 | 47~862MHz |
| Output impedance | (Ω) | 75 | |
| Output port number | 1 | ||
| RF tie-in | F-Female | ||
| OMI | (%) | 4.3 | |
| BER | <1.0E-9 | Pin:+2~-14dBm | |
| Work temp | (c) | -20~+55 | |
| Storage temp | (c) | -40~85 | |
| Work relative temp | (%) | 5~95 | |
| Size (L)×(W)×(H) | (mm) | 86*86*27 105*67*25 |
OR101W-S(ABS shell) OR101W-A(Aluminium shell) |
