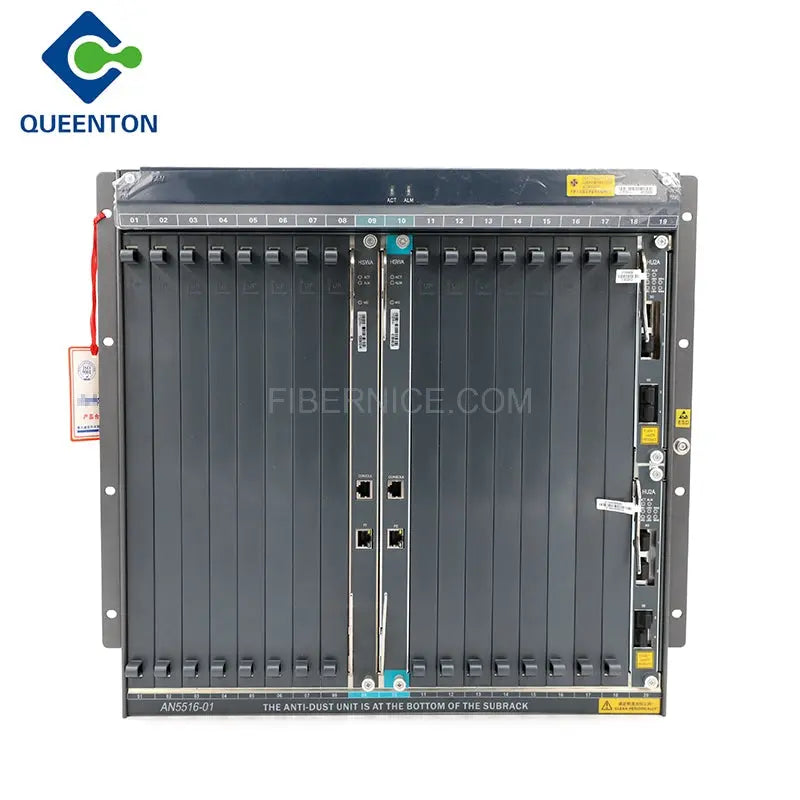

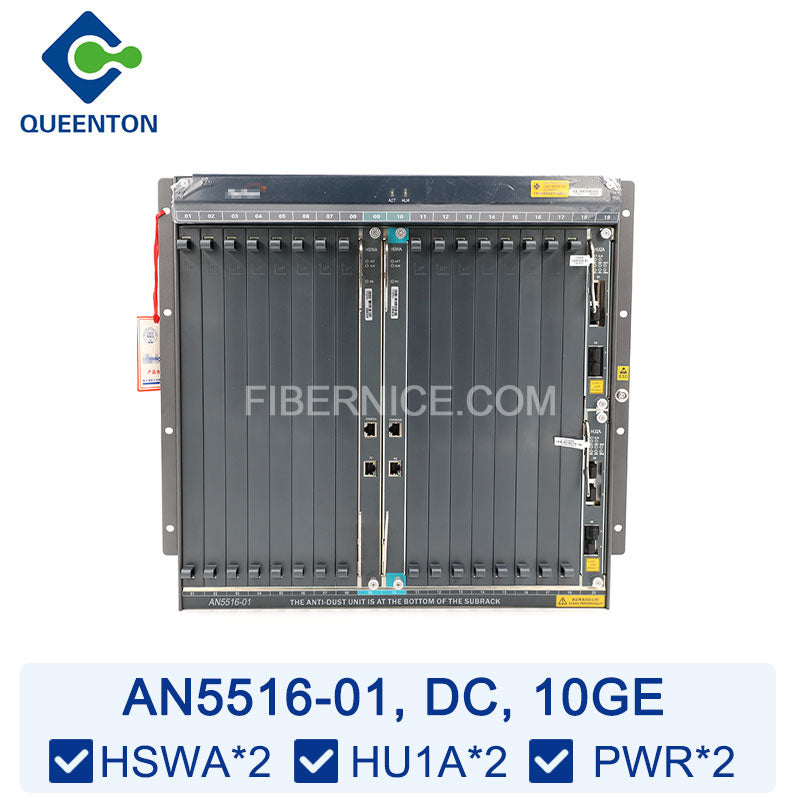

Fiberhome AN5516-01 OLT 10GE DC (19 inch) 16 Slots Equipped with 2*HSWA 2*HU1A 2*PWR
Fiberhome AN5516-01 OLT 10GE DC (19 inch) 16 Slots Equipped with 2*HSWA 2*HU1A 2*PWR
Fiberhome AN5516-01 OLT 10GE DC (19 inch) 16 Slots Equipped with 2*HSWA 2*HU1A 2*PWR

Fiberhome AN5516-01 OLT 10GE DC (19 inch) 16 Slots Equipped with 2*HSWA 2*HU1A 2*PWR

Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description

Feature：

  • 1: This Original Fiberhome AN5516-01 OLT 10GE DC (19 inch) 16 Slots Equipped with 2pcs HSWA(Control Board),2pcs HU1A (Uplink Board), 2pcs PWR(Power Board).
  • 2: Comes with 1 PCS Ground wire + 1 Package screws + 1PCS Console cable + 2 PCS DC power cord + 2 Pcs 10G 10KM Uplink Optical Module.
  • 3: Supports 16 Service slots, and it has the Capability to Support up to 32768 ONTs.
  • 4: Software version provided by default: RP700/RP1000.
  • 5: Compatible with third-party ONU software version: RP700/RP1000, all available software versions: RP700/RP1000/RP1200/RP1300/RP1400/RP1800.
  • 6: Compatible Service board：GC8B, GCOB, EC8B, ECOB
ITEM DETAIL
Item AN5516-01 10GE DC OLT
Dimensions (W x D x H) (mm) 620 (H) × 620 (W) × 440 (D)
Operating temperature -25 ºC ~ +55 ºC
Work Humidity 5%-95%
Power Supply Mode(W) -48V DC input Supports dual power protection Working Voltage range
-38.4V～-72V
Switching capacity of backplane bus 3.2Tbit/s
Control Board Exchange Capacity 1920 Gbit/s
Access Capacity 128*10G EPON
64*10G GPON
128*EPON
256*GPON
768*GE
