14 months Warranty
Product Highlights
- ONE-STOP Fiber Optic Superstore
- High-quality pre-sales, including solution customization, sample request, test reports, and perfect warranty & return policies allow you to enjoy worry-free experience.
- Short lead time, Deliver on time, Strict quality checking before shipment.
- Our professional sales team win the reputation in home and abroad with the outstanding service and high quality products.
- 24/5 around-the-clock customer service and technical support for tackling any complex issue anytime.
Feature
1.This Original Huawei Ma5800-X15 Olt Dc (19 Inch) 15 Slots Equipped With 2Pcs MPLB(Control Board), 2Pcs PILA(Power Board).
2.Comes With 1 Package Cable Tie + 1 Pcs Ground Wire + 1 Package Screws + 2 Pcs Dc Power Cord + 2 Pcs 10G 10KM Uplink Optical Module.
3.Supports 15 Service Slots, And It Has The Capability To Support Up To 30720 Onts.
4. Software version provided by default: MA5800V100R018C00.
5. Compatible with third-party ONU software version: R018/R021, all available software versions: R018/R019/R021/R022.
6. Maximum power consumption at full load (W): 1161W (The uplink board model for this test is H901GPHF).
7. The R018 version usually does not have CGHF/CSHF board files, and the R019 version usually has CGHF/CSHF board files.
8.Supports 262143 Mac Address, 65536 Arp Table.
9.Supports 1:64 Eotdr And Docsis 3.1 Standard.
10.Compatible Service Board：Gphf/Gpsf/Gplf/Gpuf/Ephf/Xghd/Cghf/Cgid/Cguf/Cghd/Cgud/Xehd/Cshf
| Item | MA5800-X7 OLT |
| Supported cabinet | N66E-22 |
| Power supply mode | DC power supply (dual for backup) |
| Dimensions (W x D x H) (mm) | 442*287*486 |
| Ambient temperature | -40 °C to +65 °C* (normal operation) Minimum startup temperature: -25 °C * +65°C indicates the temperature of the air intake vent of the service subrack. |
| Working environment humidity | 5%RH～95%RH |
| Air pressure environment | 70kPa～106kPa |
| Backplane bus switching capacity | 9.36 Tbit/s |
| Payload switching capacity of the control board |
MPLA/MPLB：7 Tbit/s |
| 4K video users concurrent number | 16000 |
| Number of MAC addresses | 262143 |
| ARP / routing table entry | 65536 |
| Maximum Number of Ports in a Subrack | 240 x GPON/EPON 120 x GE/FE 240 x 10G GPON/10G EPON 120 x 10G GE 480 x E1 |

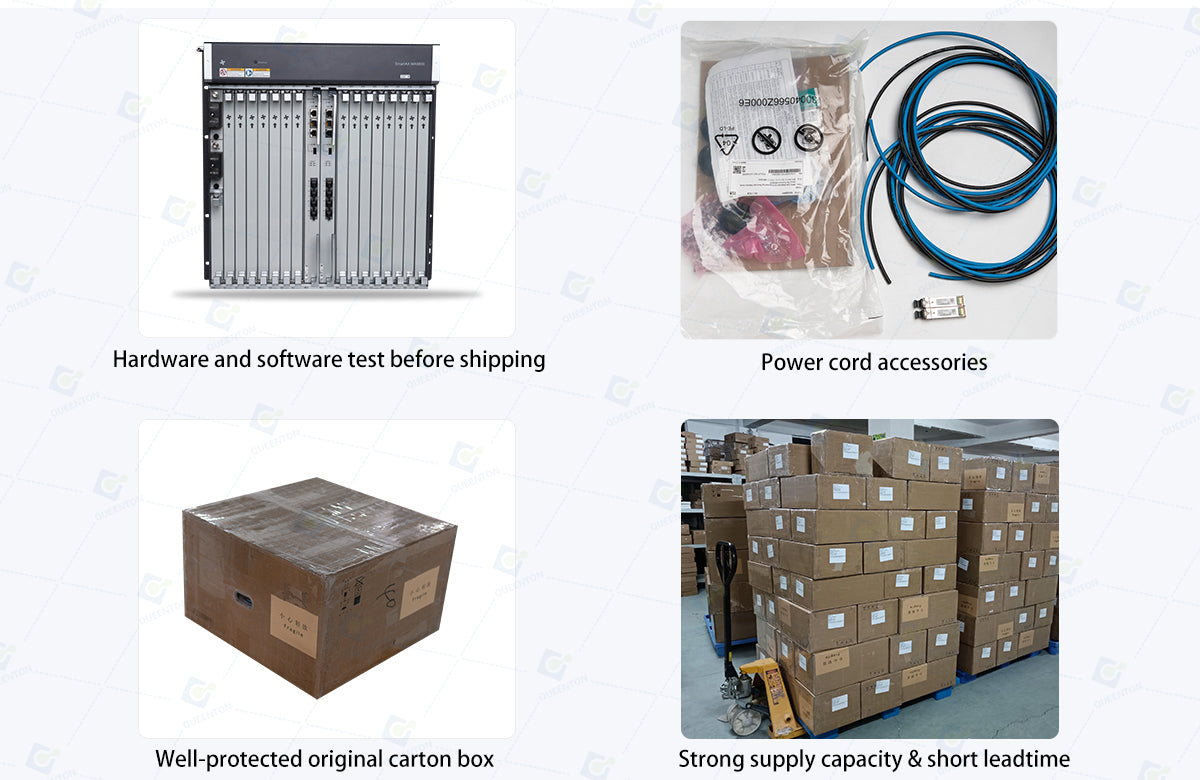

Package
How we test our products？
What Does One-Stop Service Mean For You?
14 months Warranty
Our products are strictly inspected to ensure they are working properly before shipment. At the same time, our warranty is higher than industry standards, up to 14 months. Customers only need to run their own business, and we will handle product issues for you.
We have a professional technical team that can help you solve most software and hardware problems. We are also familiar with FTTH solutions and will assist you 24 hours a day to solve your and your customers' problems.
How to Ship My Products?
We ships orders by international couriers, including DHL, FedEx, EMS, UPS, TNT and Aramex (mainly for Africa and Middle East). You can refer to the The Shipping Methods Guide.
How to Save on Shipping?
To save your shipping cost, we suggests you buy all items in one time in one order. This will minimize the shipping cost for each item and save your cost. If you can wait much longer, please choose the standard shipping method. It will be much cheaper than using express shipping.
Can You Ship To My Country?
Definitely, we can ship to your country. We can ship orders to worldside.
Note: You should be clear about the import tax situation in your own country.
