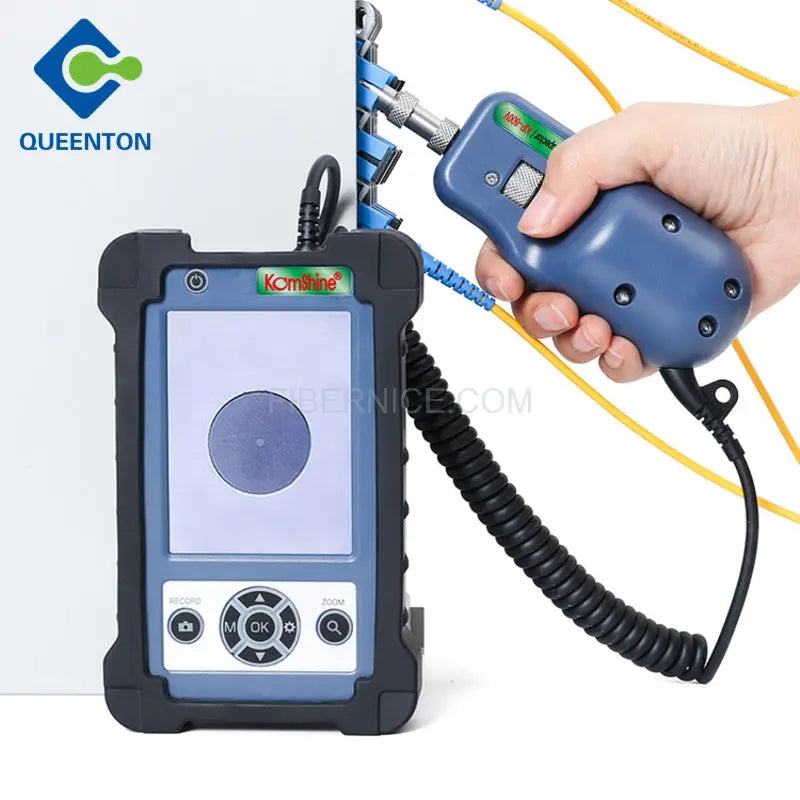

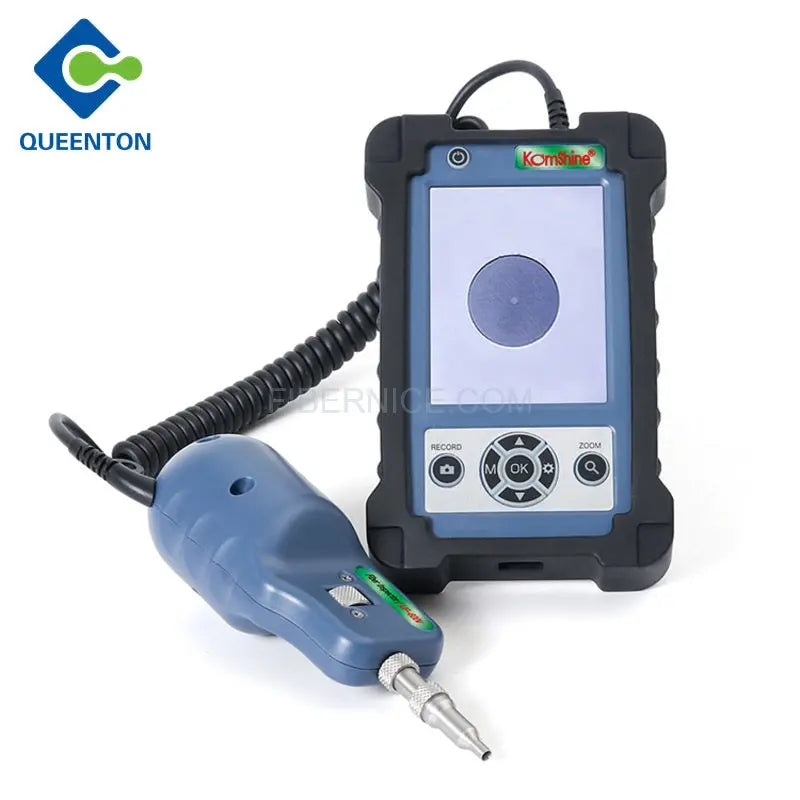

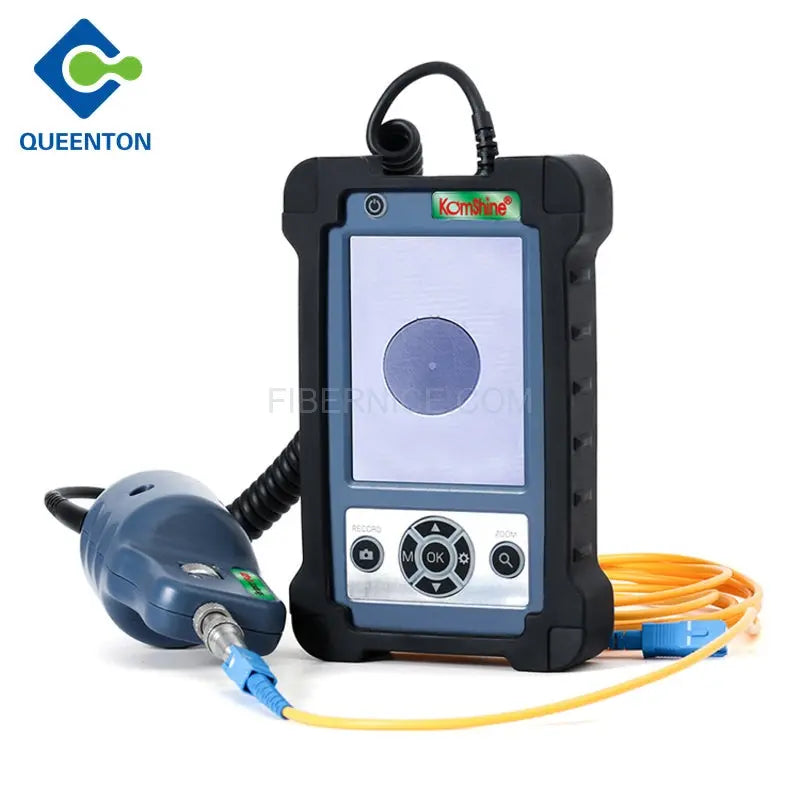

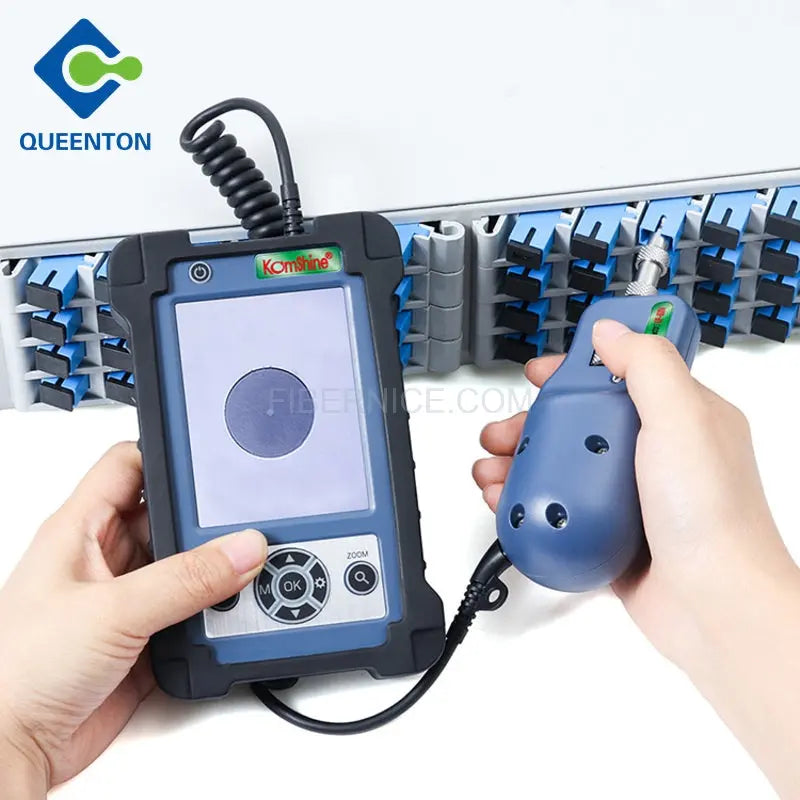

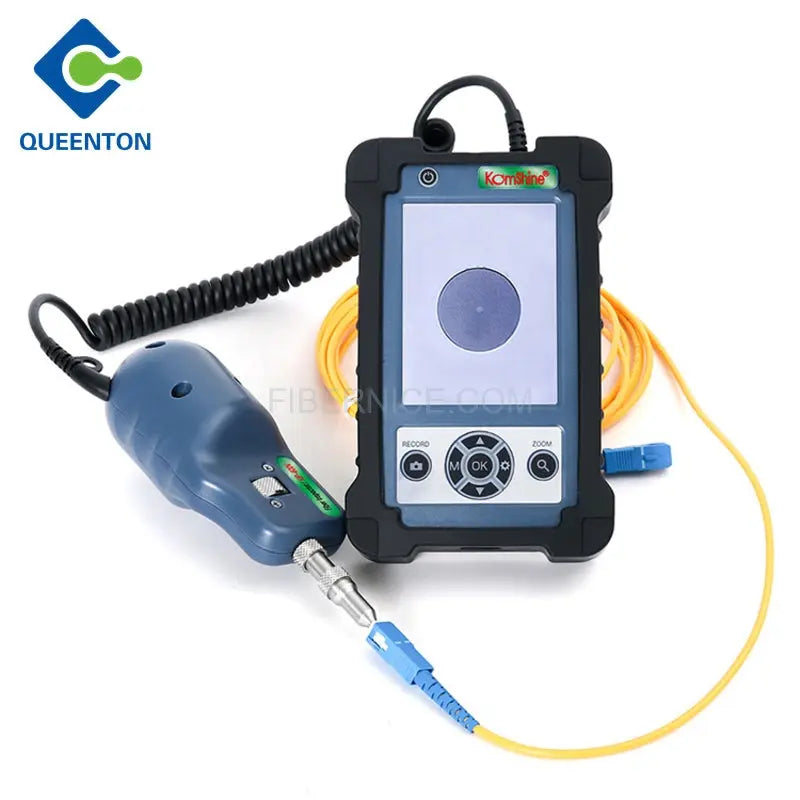

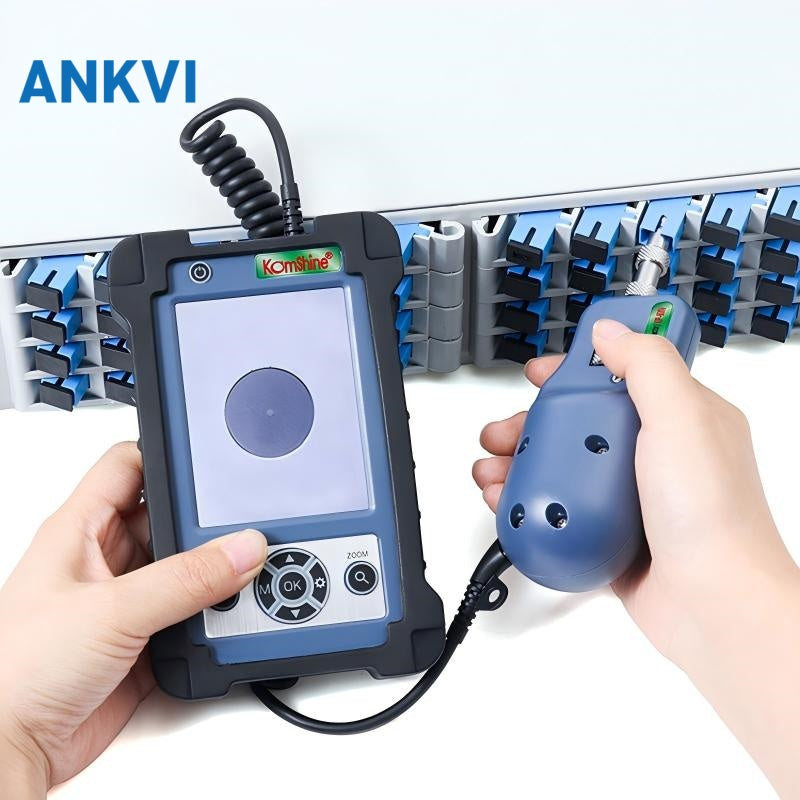

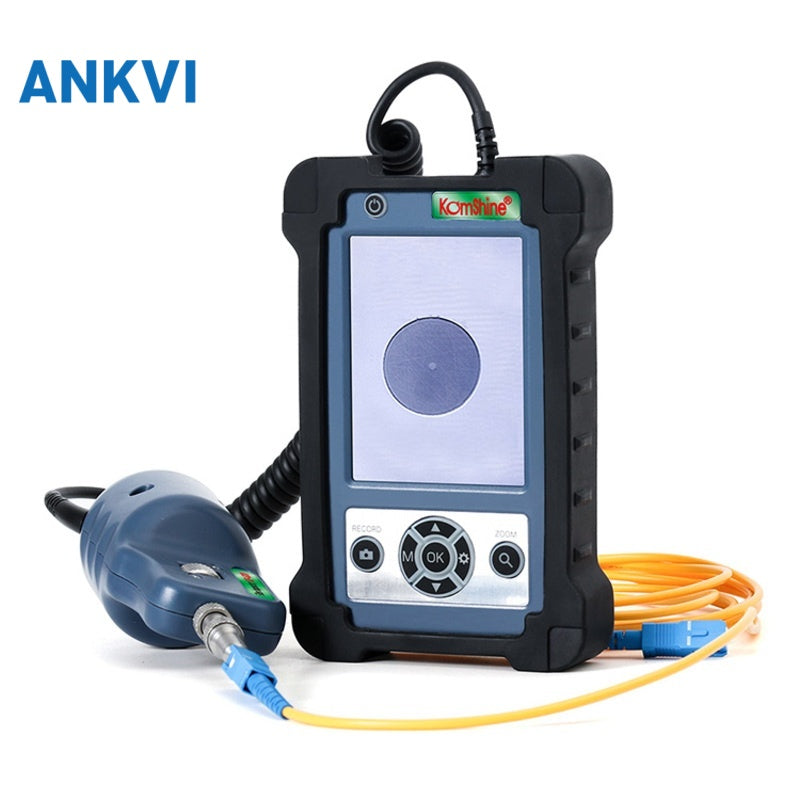

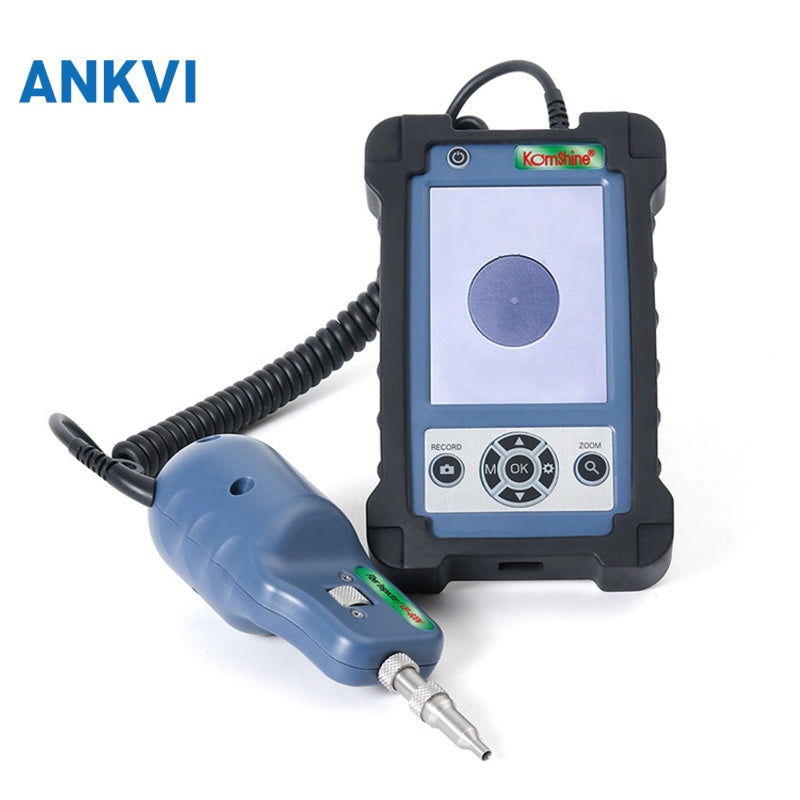

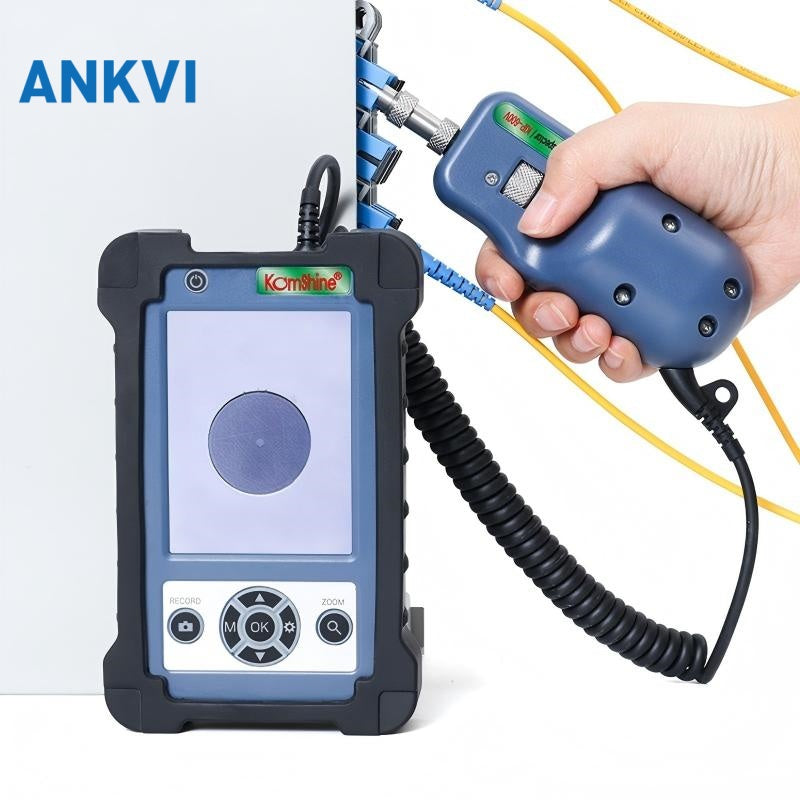

Komshine Fiber Optic Connector Inspection System KIP-600V
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Rotary metal bracket, stable and convenient.
Compatible / FC/SC/ST/LC/SC female connector/LC male connector
4000mAH large capacity lithium power, 20 hours standby.

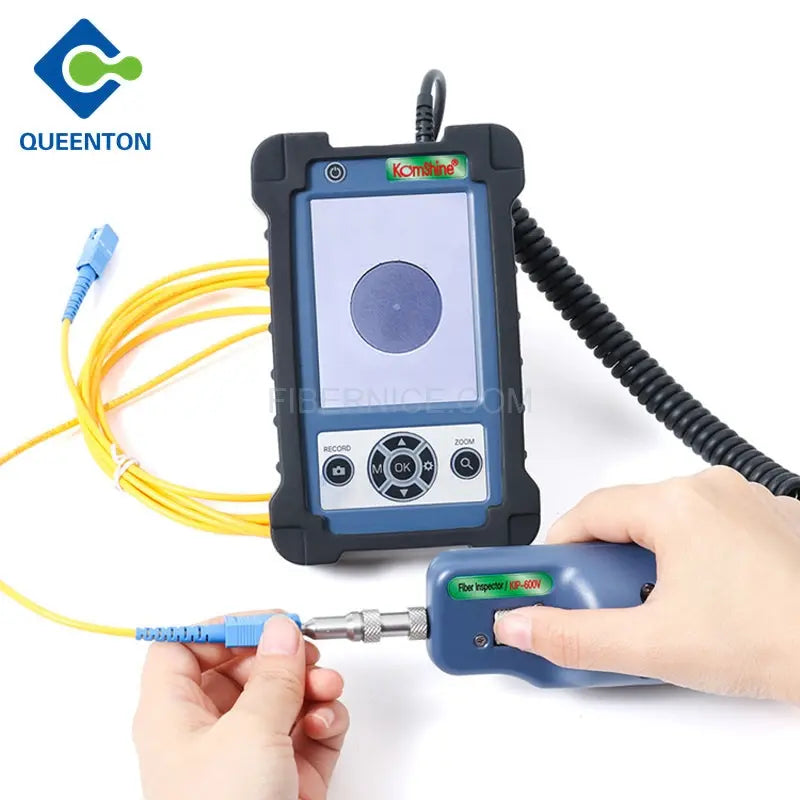

real time video，support extend t-flash card ,quick check the pollution degree of female connector and male conector
400 times magnification, the stain is clearly visible
3.5 inch HD LCD display.
1/3 inch sensor, 300,000 effective pixels.
removable Silicon Case，reduce the damage by collising or dropping in a certain extent

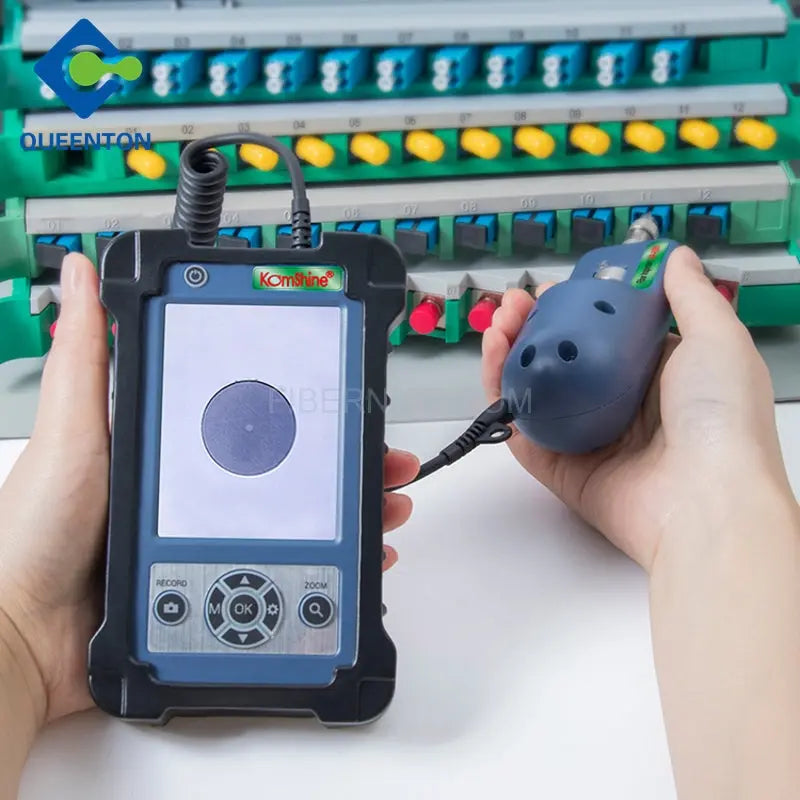

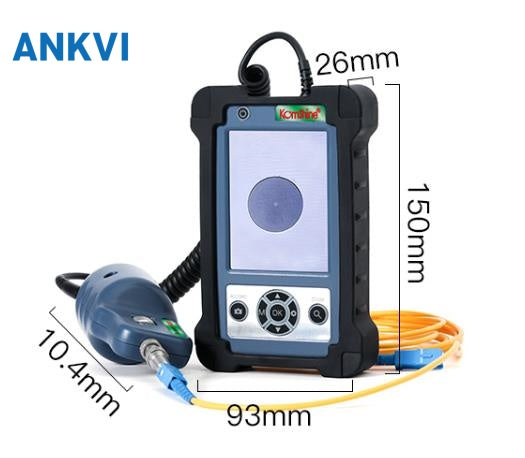

Small size, one-handed, convenient and fast.
| KIP-600V probe | Magnifcation | 400X | |
| Resolution(um) | surpass 1.0 | ||
| Visual range(um) | 0.316*0.285 | ||
| Dimension(um) | 235(W)*95(D)*30(H) | ||
| lmage Sensor | 1/3 480 | ||
| Storage Temperatrue | -18°C~35°C | ||
| Weight(kg) | 0.11 | ||
| 3.5-inch LCD display |
Image | lmage size(mm) | 22 |
| Pixels | 307200 | ||
| Video | Frequency | 25FPS | |
| LCD screen | 960*240 LCD | ||
| Video output mode | NTSC/PAL | ||
| Plavback Format | AVI | ||
| User interface | Compatible memory cards | TF | |
| Capacity | 8GB | ||
| USB | 1.1/2.0 | ||
| Hard disk format | FAT32 | ||
| Power Supply | AC adapter | DC 5V/2A | |
| Internal Battery | Lithium battery 4000Mah | ||
| Media Player | V7 | ||
| Weight(kg)/W*D*H(mm) | 0.085/78*22*56 | ||
