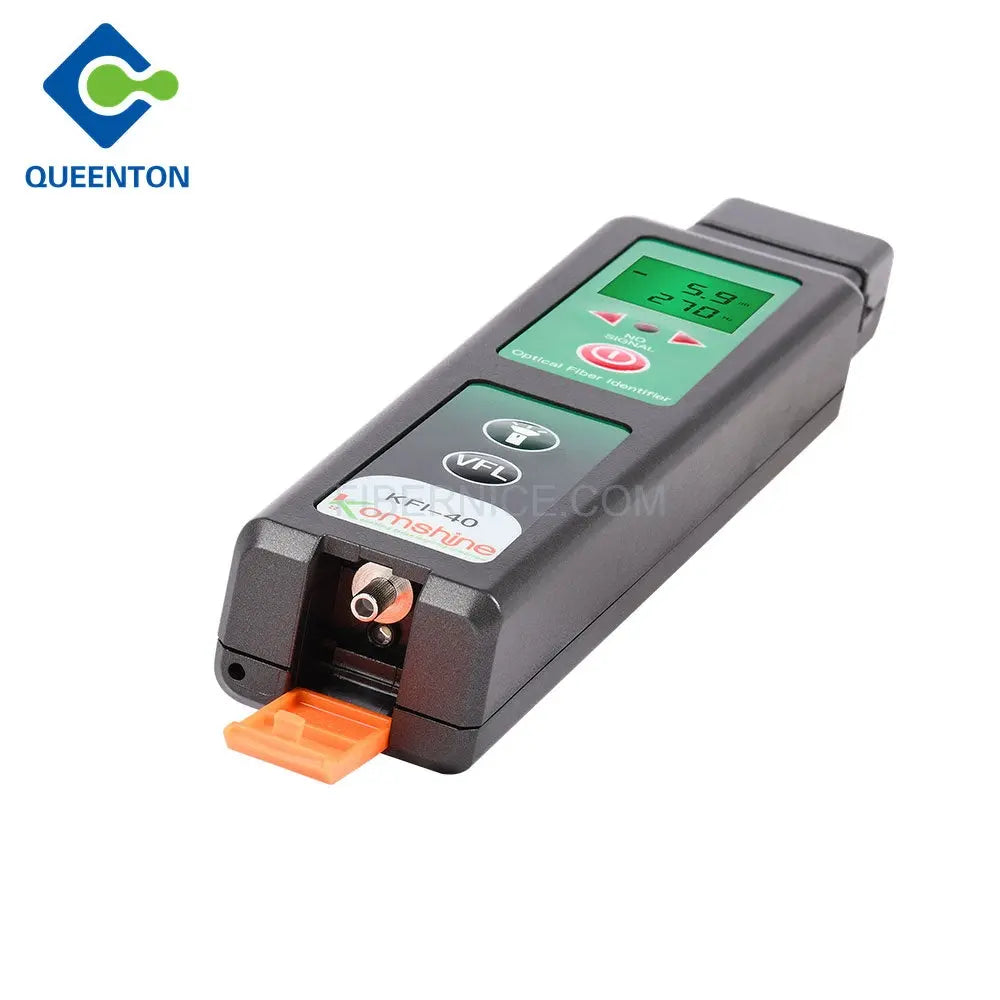

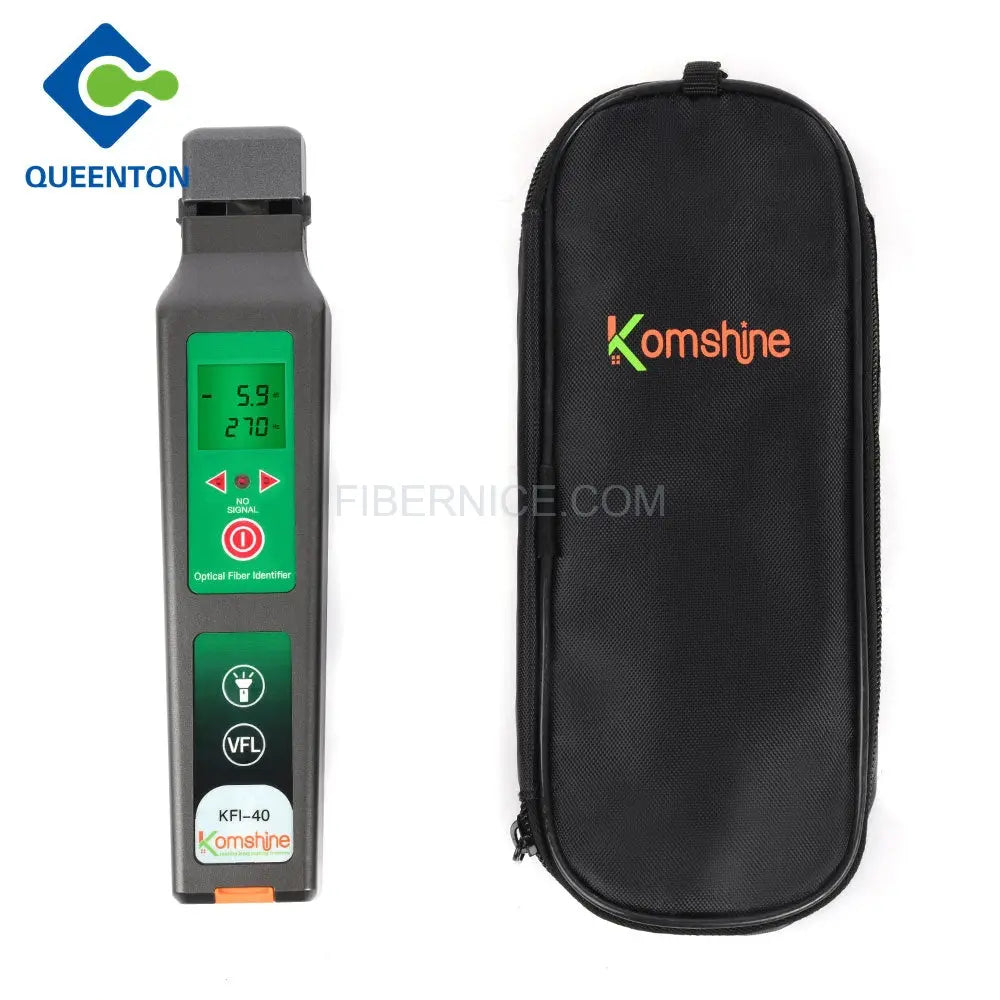

Komshine Optical Fiber Identifier KFI-40
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection

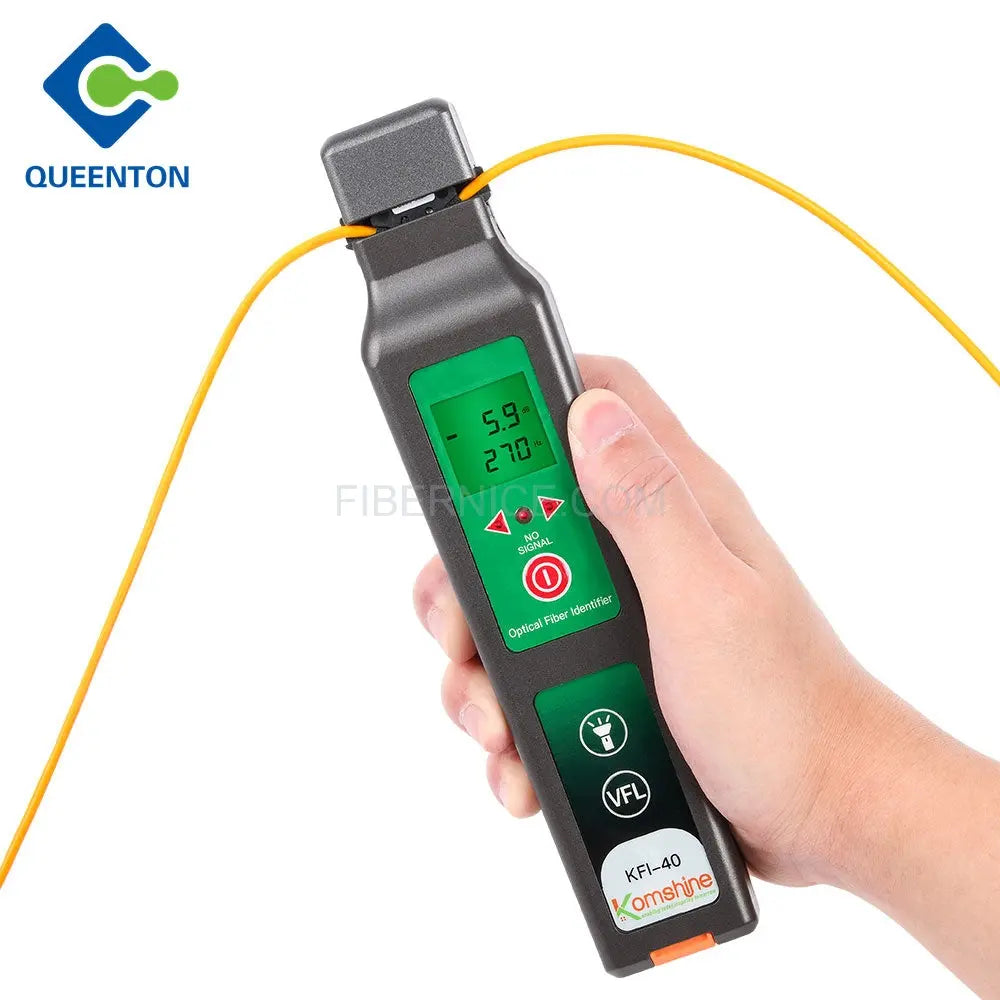

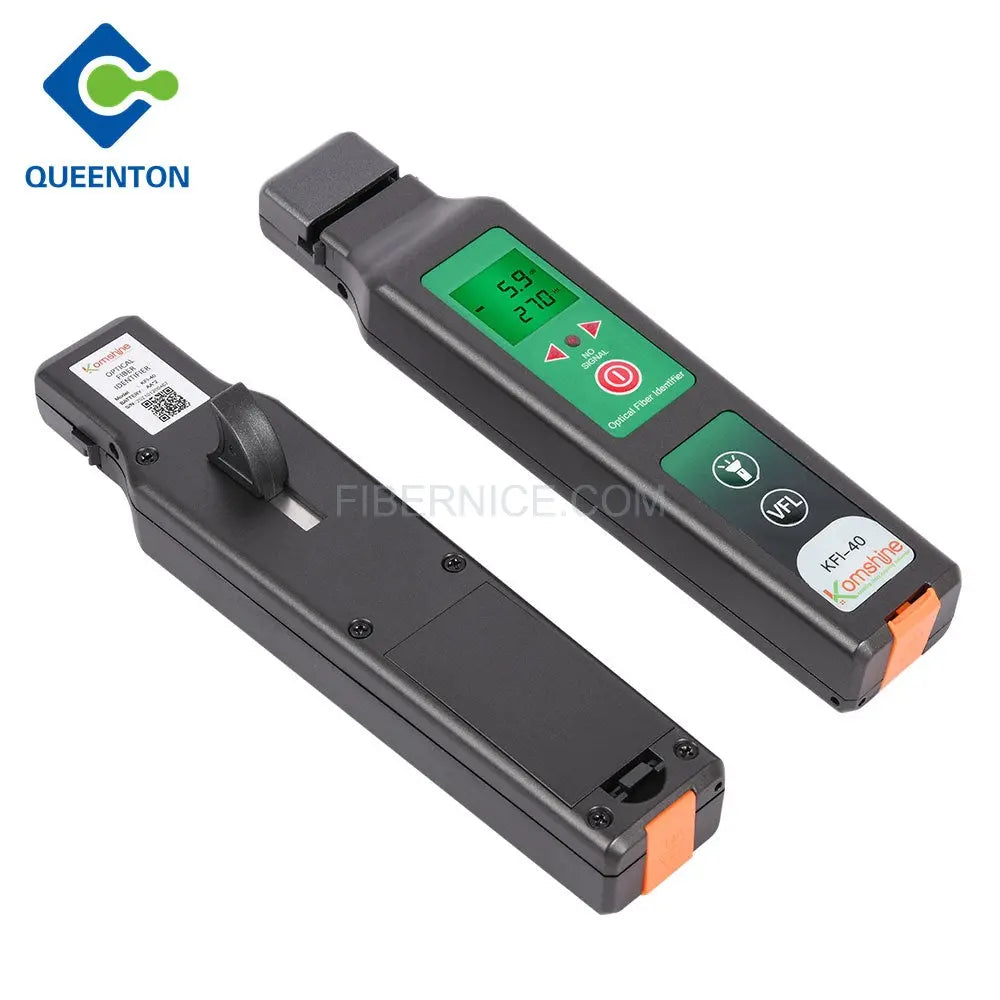

Universal back clip design,suitable for 0.25/0.9/2.0/3.0 fiber

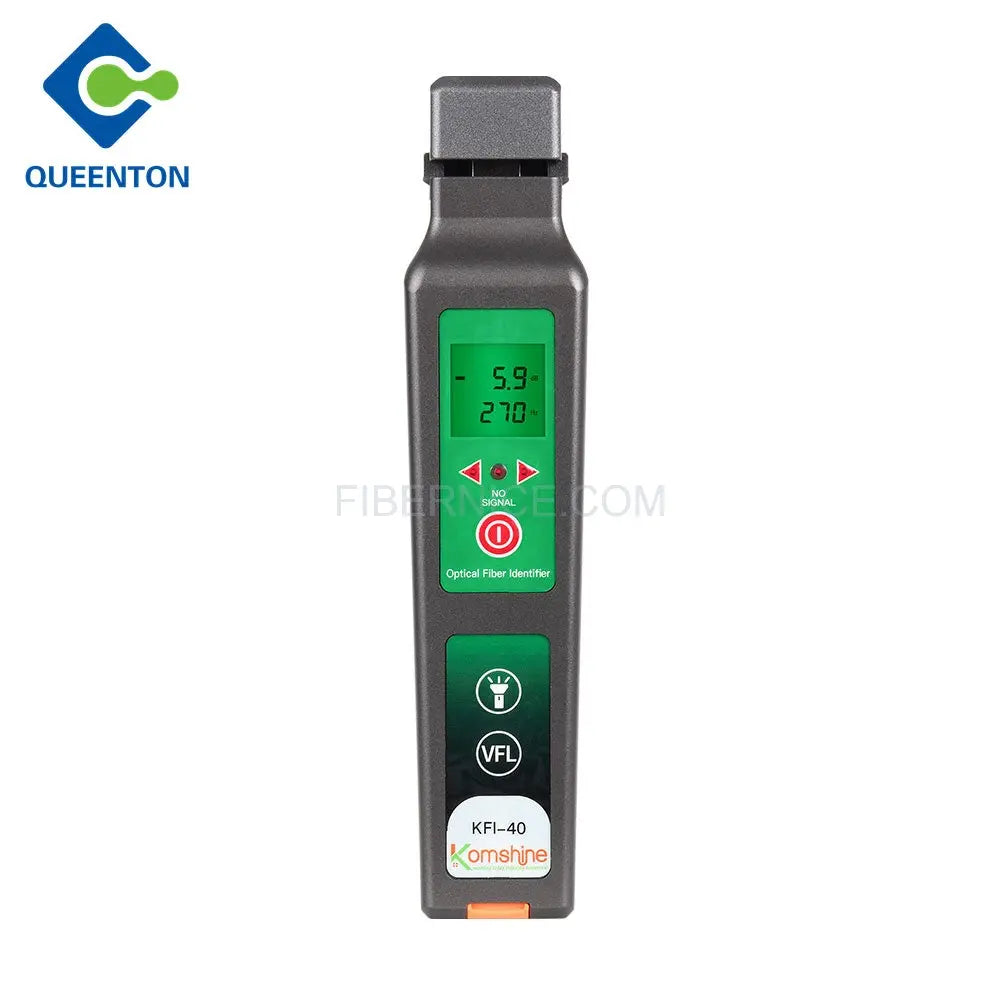

LED backlit display,suitable for various environment and no auxiliary lighting required
Testing sensitivity -40dBm to 10 dBm
Strong and stable light source, strong penetrating power
Be equipped with LED light,more convenient to work in the dark

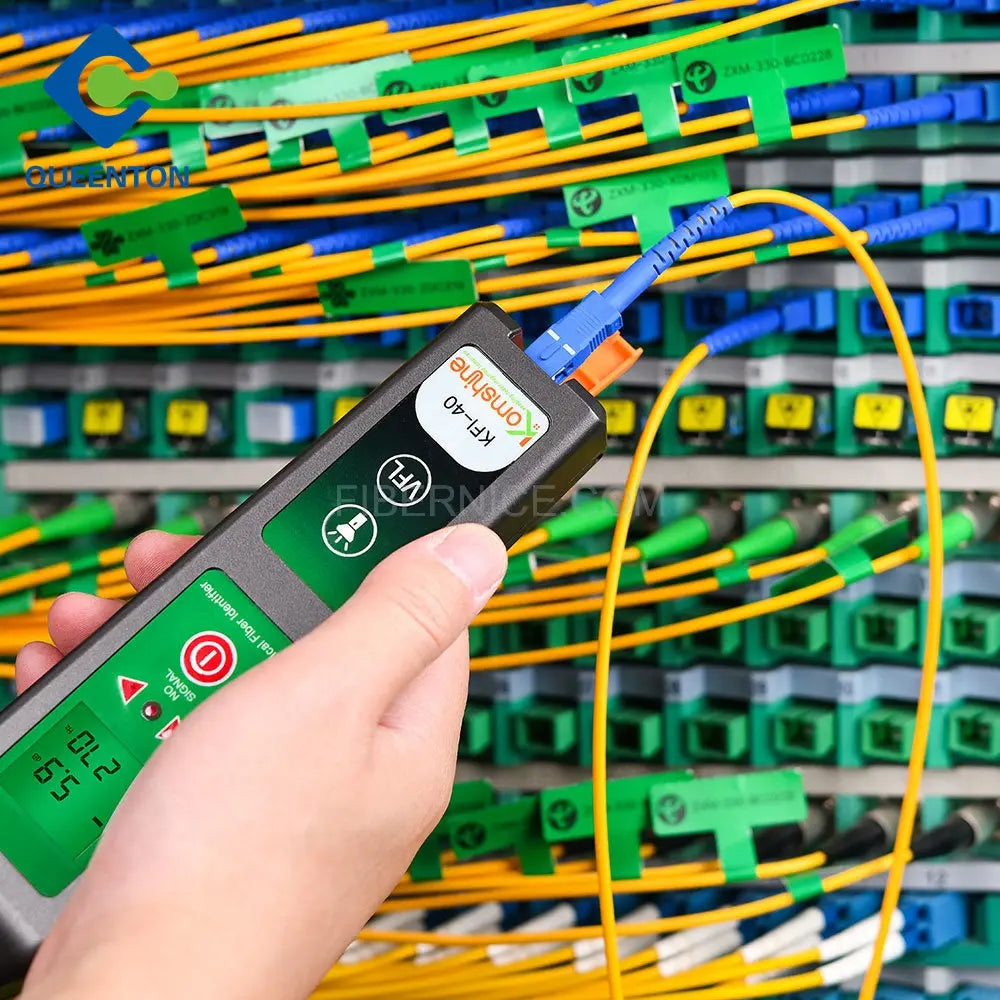

Built-in VFL,2.5mm universal connectors，strong stability，testing distance is up to 5KM
| Wavelength Recognition Range | 800-1700nm |
| Signal Recognition Type | CW,270 Hz:5%,1kHz5%,2 kHz5% |
| Detector Type | φ1mm InGaAs 2 pcs |
| Adapted fiber type | Universal Holder for φ0.25(Bare Fiber) φ0.9, φ2.0, φ3.0 Cable |
| Signal Direction | Left & Right LED |
| Optical Power Reading Range | -40 dBm to 10 dBm |
| Signal Frequency Range | 270Hz,1kHz2kHz |
| Power Type | AA*2 |
| Operating Temperature Range | -10'Cto60°C |
| Storage Temperature Range | -25Cto70°C |
| Dimension/Weight | 219*45*28mm/235g |
