Description

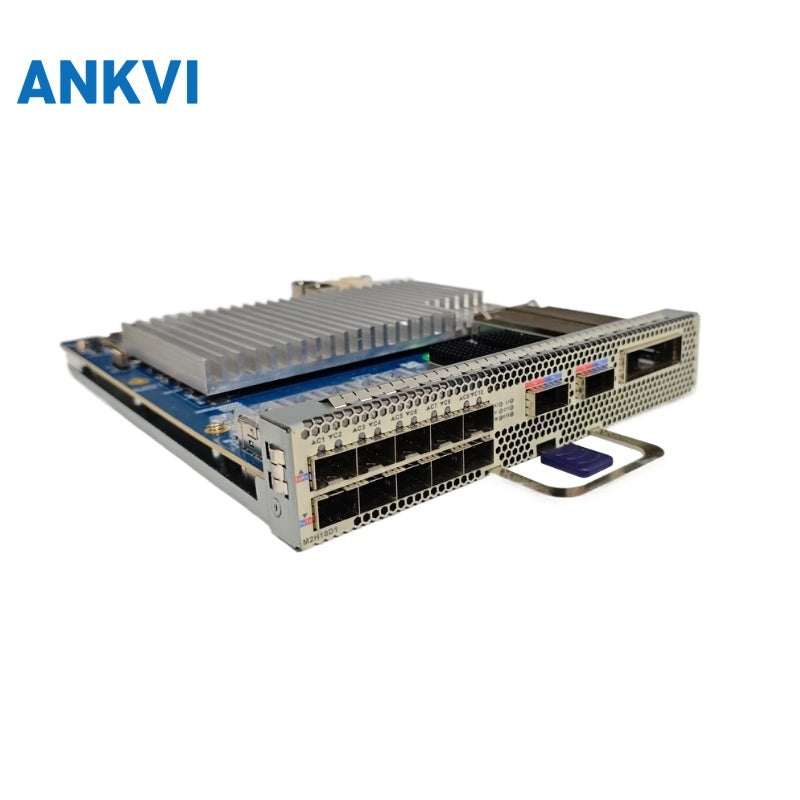

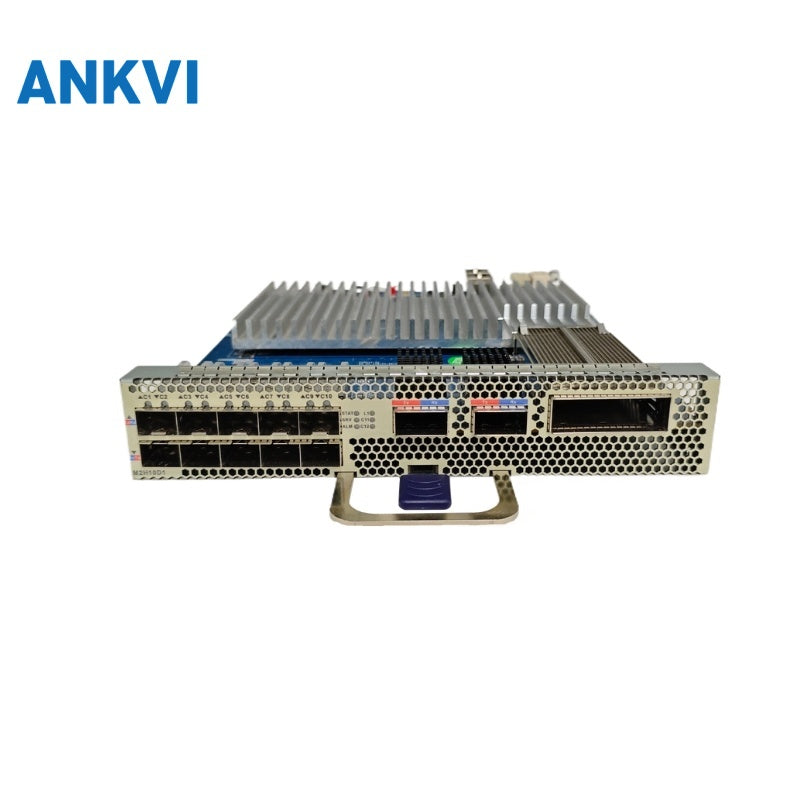

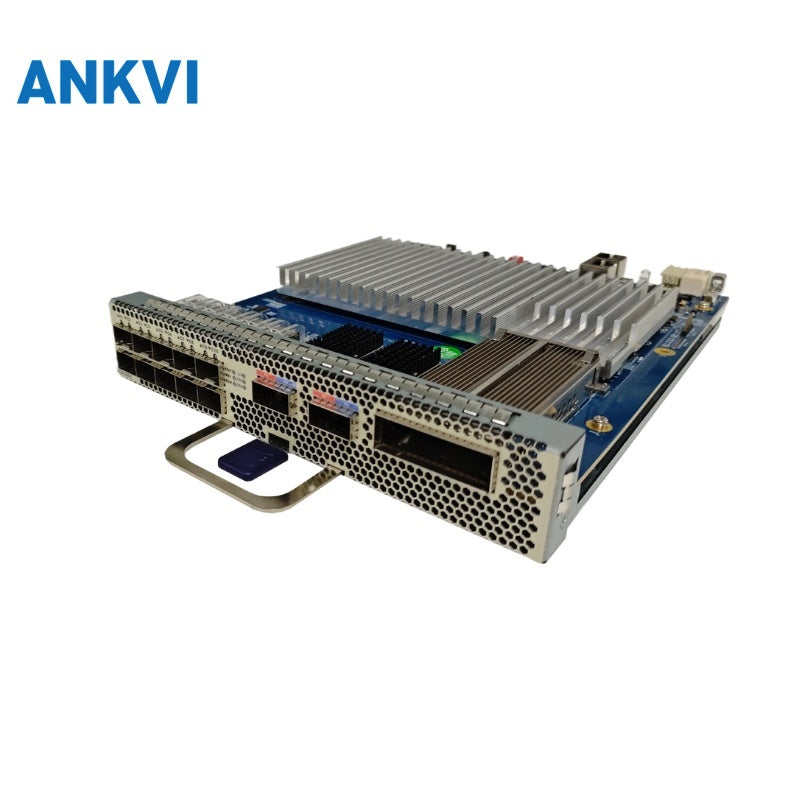

M2H10D1

Product Description

The 200G service card supports two 100GE or one 100GE add ten 10GE service access, adopts advanced technologies such as 16QAM/QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 200GE business over 1200 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Technical specifications

Function

Description



Occupied Slots

1/2 slots,shown in name 2/4/6/8 slot

Client-side Interface

Supports 2 pluggable QSFP28 100G modules

Supports 1 pluggable QSFP+ 40G modules

Supports 10 pluggable SFP+ 10G modules

Line-side Interface

Supports 1 pluggable 200G CFP2 DCO coherent module

Service Type

10GE/OTU2/STM-64/10GE WAN/40GE/100GE/100GE FlexE (Unware mode)/OTU4

Service Mapping Path

2*100G client to 1*200G line mode:

. 100G<-> ODU4<-> ODUC2<-> OTUC2

. OTU4<-> ODU4<-> ODUC2<-> OTUC

1*100G + 10*10G client to 1*200G line mode:

. 100G<-> ODU4<-> ODUC2<-> OTUC2

. OTU4<-> ODU4<-> ODUC2<-> OTUC2

. 10G <->ODU2<->ODU4<-> ODUC2<-> OTUC2

. STM64 <-> ODU2 <-> ODU4<-> ODUC2<-> OTUC2

. OTU2 <-> ODU2<-> ODU4<-> ODUC2<-> OTUC2

1*40G + 10*10G client to 1*200G line mode:

. 40G<-> ODU3<-> ODU4<->ODUC2<-> OTUC2

. 10G <->ODU2<->ODU4<-> ODUC2<-> OTUC2

. STM64 <-> ODU2 <-> ODU4<-> ODUC2<-> OTUC2

. OTU2 <-> ODU2<-> ODU4<-> ODUC2<-> OTUC2



Line-side Modulation Format

200G: 16QAM / QPSK

Line-side Protection Function

When switching over with the optical protection card, the switchover must be completed within 50ms.

Local Fault

Supports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure. Supports transparent transmission of Local Fault and Remote Fault.
