OP1 Fiber Protection Card 1+1 OLP <15ns Switching Low Loss Wide Power Range Compact 1/4 Slot

OP1 Fiber Protection Card 1+1 OLP <15ns Switching Low Loss Wide Power Range Compact 1/4 Slot

Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description

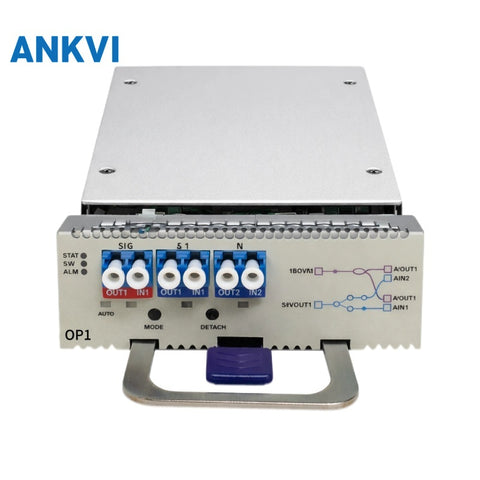

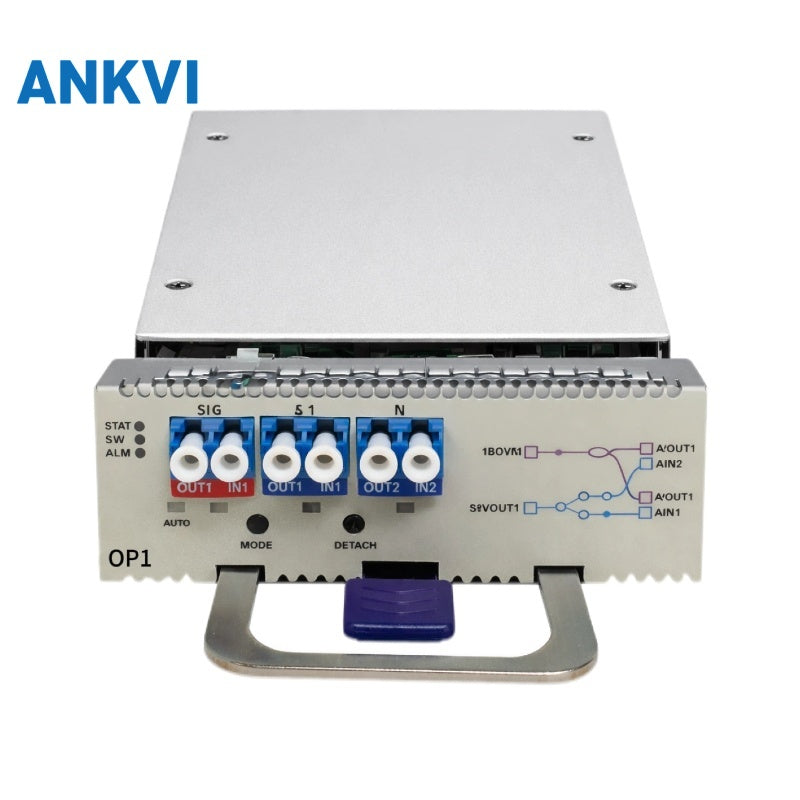

OP1 Card

Product Description

The Optical Line Protection (OLP) system is an innovative optical line protection subsystem developed using advanced dynamic synchronous optical switching technology. When unexpected fiber breakage or significant signal loss in optical transmission lines causes communication quality degradation or equipment failures, the OLP system can rapidly switch to backup lines within seconds. This ensures uninterrupted service delivery while effectively preventing fiber or equipment malfunctions, reducing recovery time from hours to milliseconds. The card occupies only 1/4 standard slot capacity.

Technical specifications

Performance Parameter

1+1

Unit

Operating Wavelength

1310±50nm, 1550±50nm

nm

Range of Light Power

＋23～-50

dBm

Accuracy of Light Power

±0.25

dB

Measure Optical Power Resolution

±0.01

dB

Return Loss

≥55

dB

Polarization-related Loss

≤0.05

dB

Wavelength Dependent Loss

≤0.1

dB

Insertion Loss

Tx≤4dB，RX≤1.2dB

dB

Switching Speed

<15

ns

Size

107 (W) *262 (D) * 40 (H)

mm

Environment

Working Temperature

-10℃～+60℃

℃

Storage Temperature

-40℃～+85℃

℃

Related Humidity

5%~95% no condensation



Power Dissipation

≤15

W
