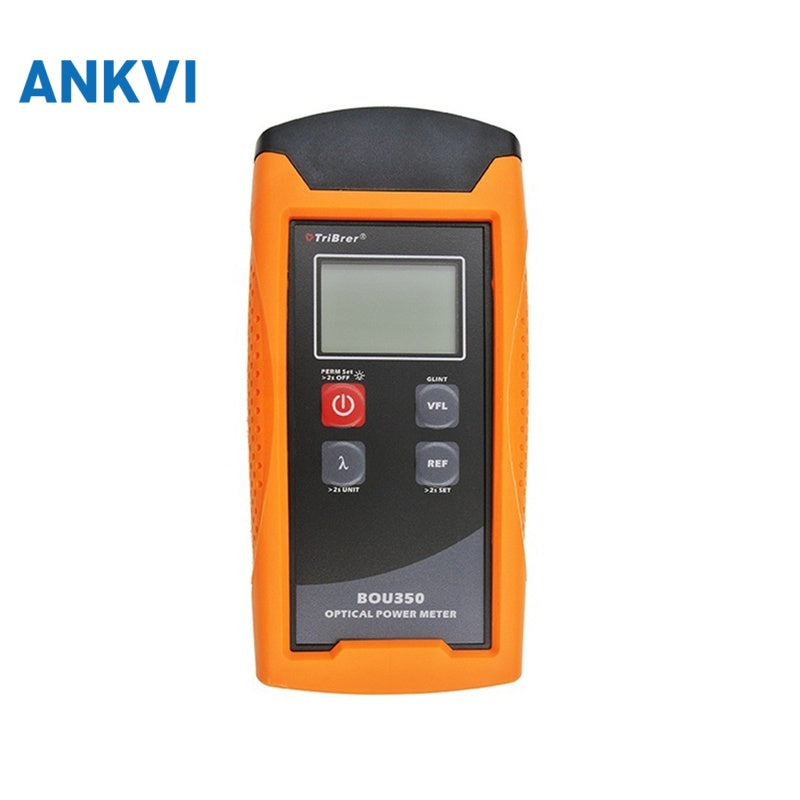

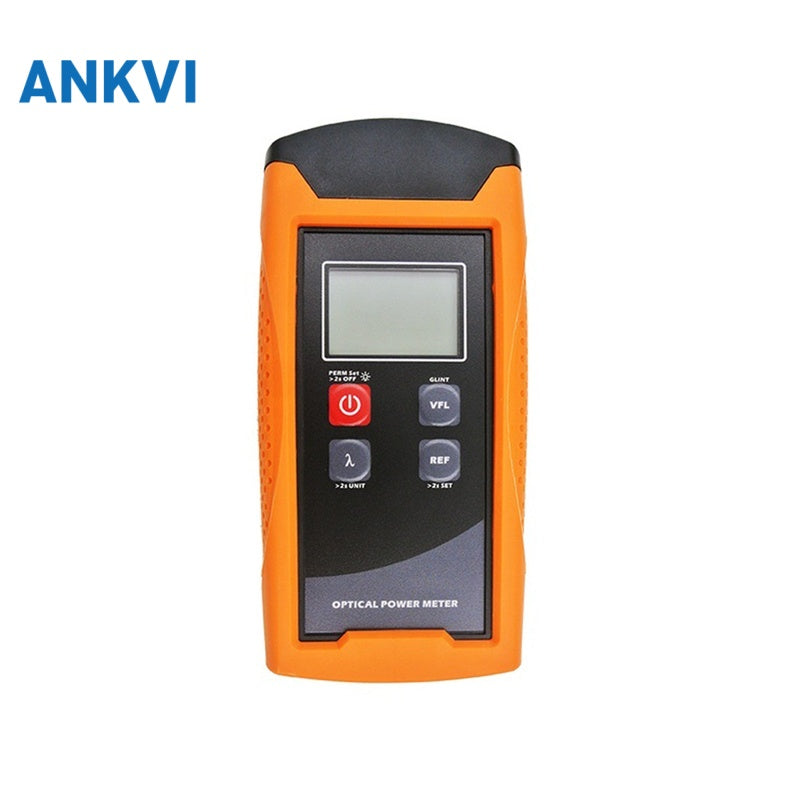

Optical Power Meter OPM BOU350C
Optical Power Meter OPM BOU350C
Optical Power Meter OPM BOU350C
Optical Power Meter OPM BOU350C
Optical Power Meter OPM BOU350C
Optical Power Meter OPM BOU350C

Optical Power Meter OPM BOU350C

Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description

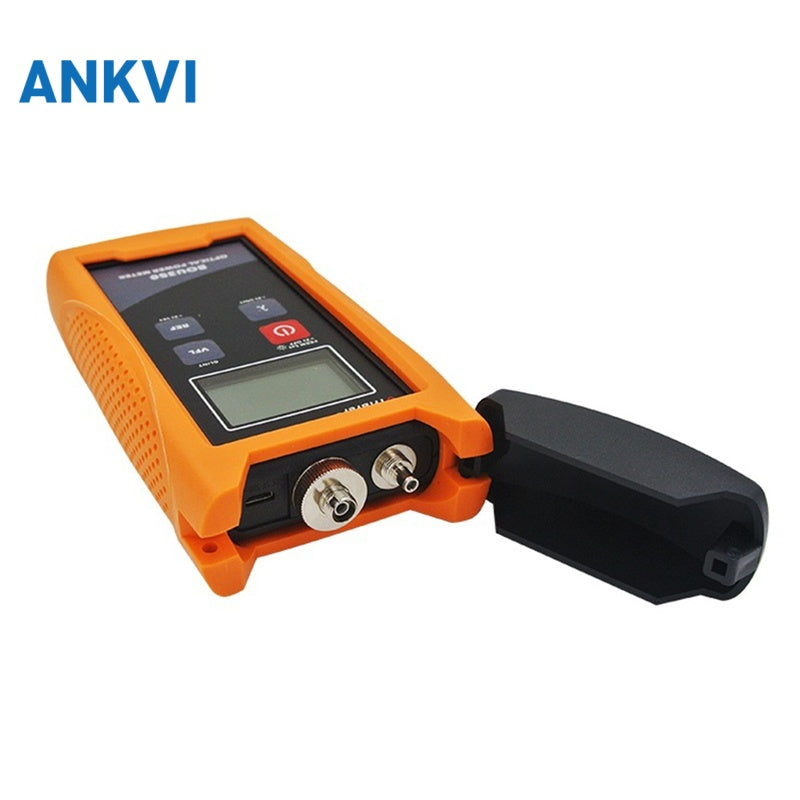

FC, SC, ST adapters and 2.5mm UPP

Energy save mode

Built in VFL (optional)

Reference value storage

Power autonomy of 100 hours

850/1300/1310/1490/1550/1625nm

One-year warranty and Three-year recommended calibration interval

Model BOU350T BOU350C
Display Range 1310/1490/1550/1625: +10 ~ -70dBm 1310/1490/1550/1625: +26 ~ -50dBm
850/1300: +10 ~ -60dBm 850/1300: +26 ~ -40dBm
Accuracy * ± 0.2 dB
Calibrated Wavelengths 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Resolution 0.01dB
OPM Connector FC & 2.5mm UPP (option: SC, ST)
REF Yes
Automatic Power Off No operation in 10 minutes (can be canceled), Low battery energy
Build in VFL (Optional) 1mW or 10mW or customize
REF Yes
Auto Power Off No operation in 10 minutes (can be canceled), Low battery energy
Battery Charge Yes
Battery Life Above 100 hours
Power Supply AA * 2 batteries or AC/DC power supply adapter

* at 20±3℃, CW, with FC connector, -10dBm, SM fiber

Size(H*W*D) 160mm * 75mm * 32mm
Weight  About 180g
Storage Temperature -20 -- +60°C, < 90%RH
Operating Temperature  -10 -- +50°C, < 90%RH
Size(H*W*D) 160mm * 75mm * 32mm
Weight  About 180g
Storage Temperature -20 -- +60°C,90%RH
Operating Temperature -10 -- +50°C, < 90%RH


Model VFL
BOU350T = OPM(+10~ -70dBm) Blank = N/A
BOU350C = OPM(+26~ -50dBm) V01 = 1mw
  V10 = 10mw
