14 months Warranty
Product Highlights
- ONE-STOP Fiber Optic Superstore
- High-quality pre-sales, including solution customization, sample request, test reports, and perfect warranty & return policies allow you to enjoy worry-free experience.
- Short lead time, Deliver on time, Strict quality checking before shipment.
- Our professional sales team win the reputation in home and abroad with the outstanding service and high quality products.
- 24/5 around-the-clock customer service and technical support for tackling any complex issue anytime.

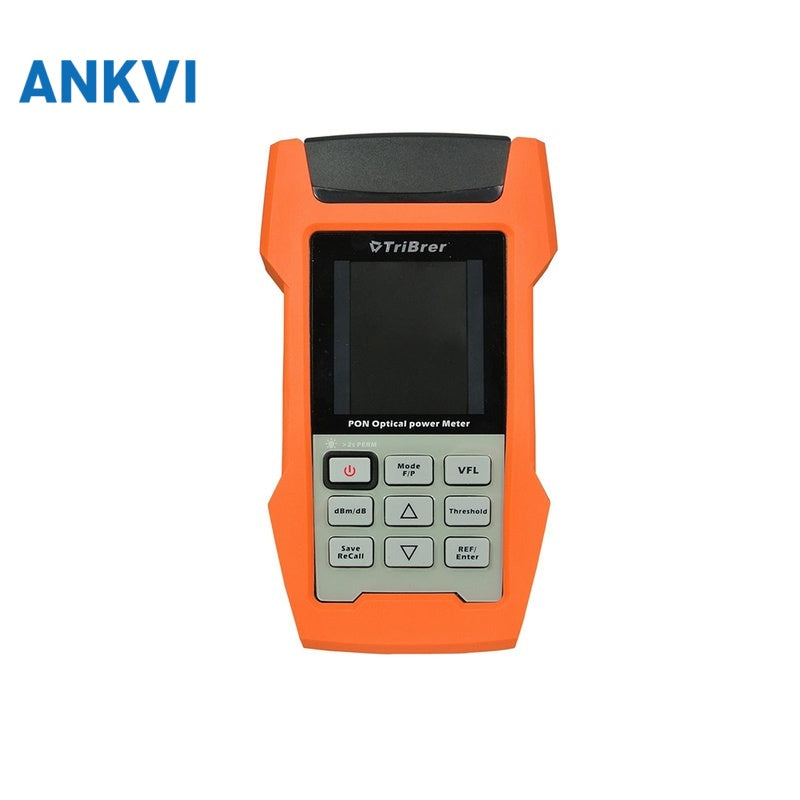

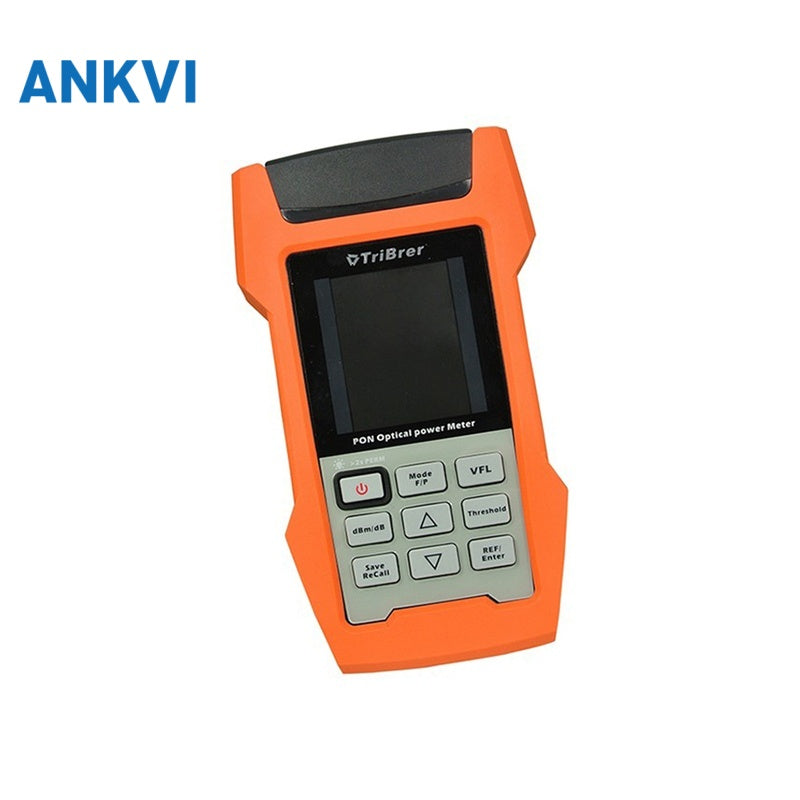

For PON network testing
Support online measurement
Pass through measurement
Fast assessment by PASS/FAIL function
Display 1310/1490/1550 results in one screen
Test 3 wavelengths separately and simultaneously
One-year warranty and Three-year recommended
calibration interval
| Model | AOF500 AOF500-V10 AOF500T AOF500C | |||
| Measurement Range(dBm) | 1310 nm: +10 ~ - 35 dBm/1490 nm: +10 ~ - 50 dBm/1550 nm: +25 ~ - 50 dBm | |||
| Pass Through Loss | < 1.5 dB | |||
| Accuracy * | ± 0.2 dB (burst signal:± 0.5dB) | |||
| Threshold sets | 10 | |||
| Data Storage | 1000 | |||

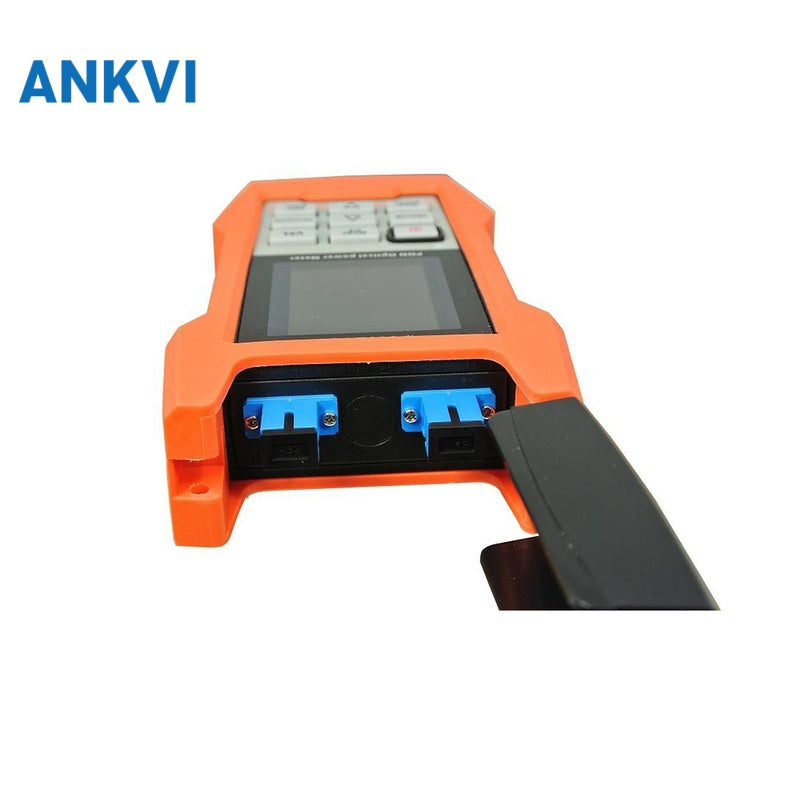

| Connector | SC/UPC ( or customize ) | |||
| OPM Module | NO NO +8~-70dBm +26~-50dBm | |||
| VFL Module | NO 10mW NO NO | |||
| Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy | |||
| Battery Charge | Yes | |||
| Connect To PC | Optional function | |||
| Operate Time | Above 36 hours | |||
| Power Supply | 3* AA batteries or AC/DC power supply adapter(220VAC, 50Hz) | |||
* at 20±3℃, with SC/UPC connector, -10dBm
| Size(H*W*D) | 190mm *90mm * 40mm | |
| Weight | about 450g | |
| Storage Temperature | -20 -- +60°C, 0 -- 90%RH | |
| Operating Temperature | -10 -- +50°C, 0 -- 90%RH | |
