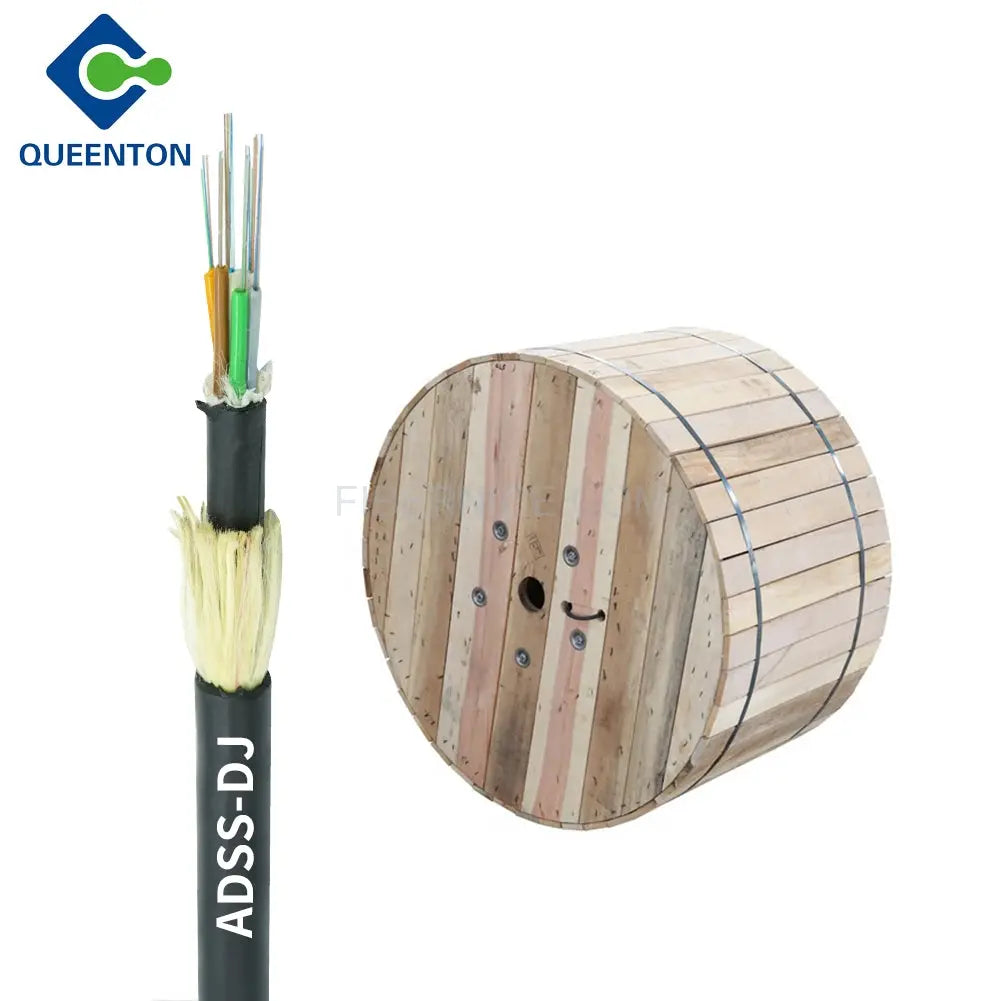

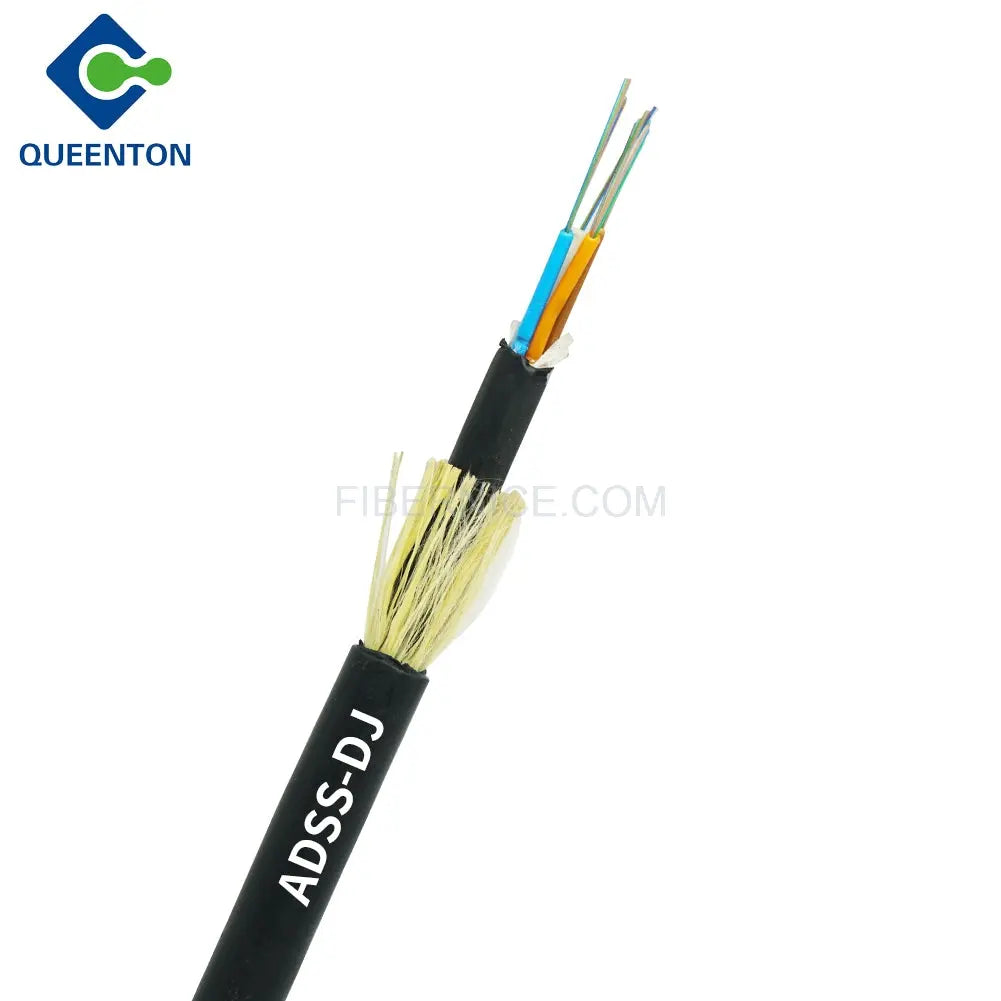

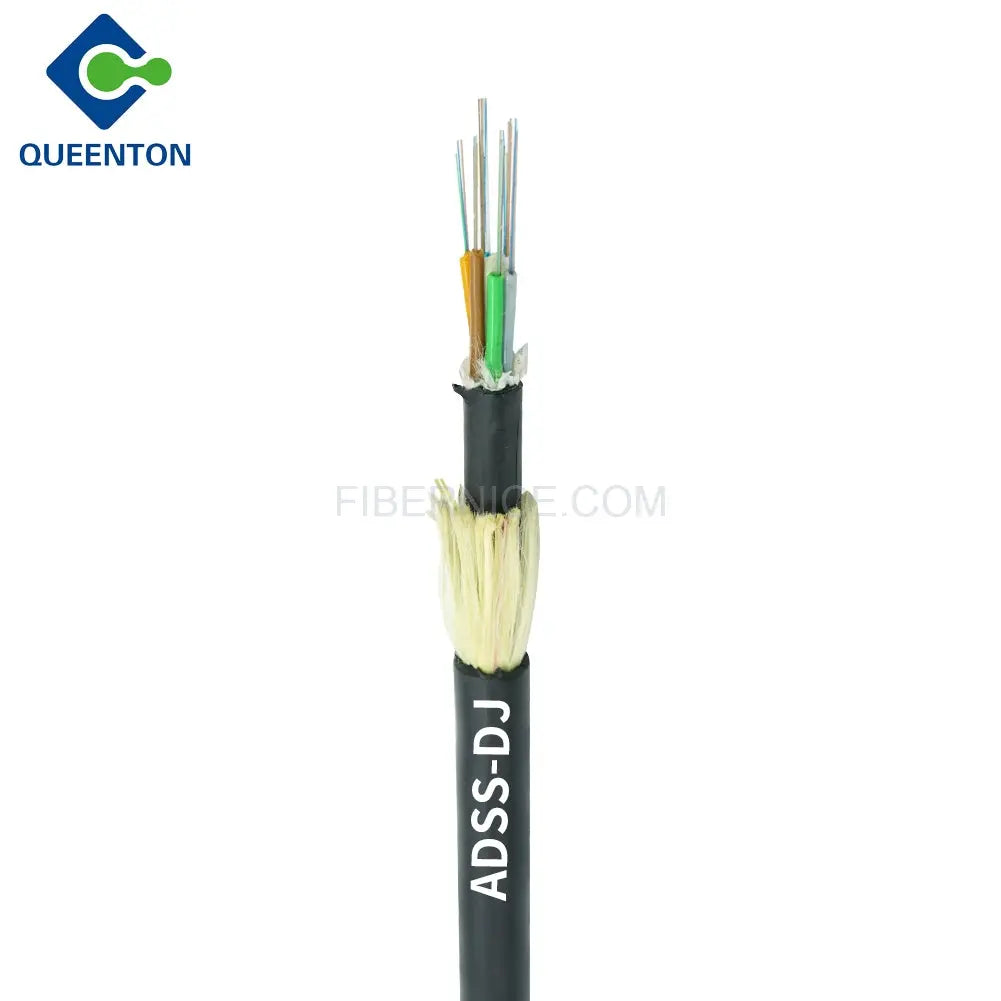

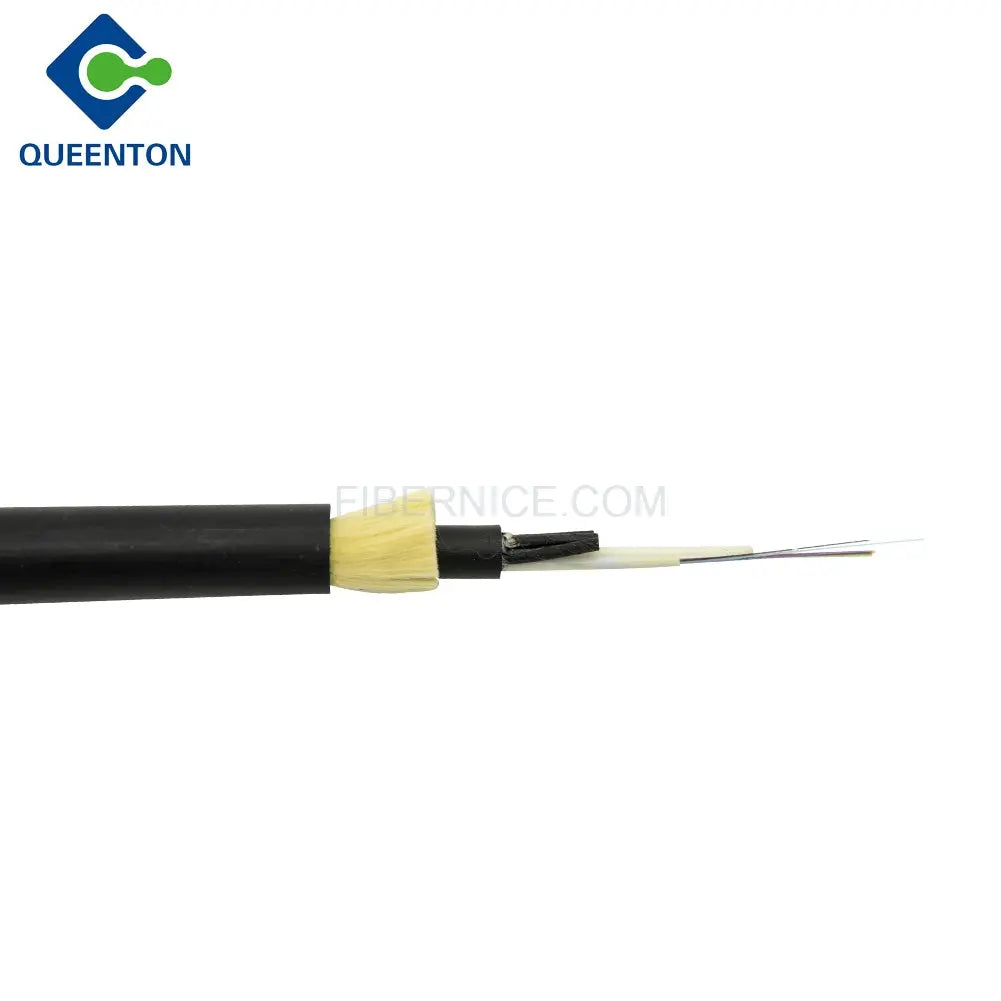

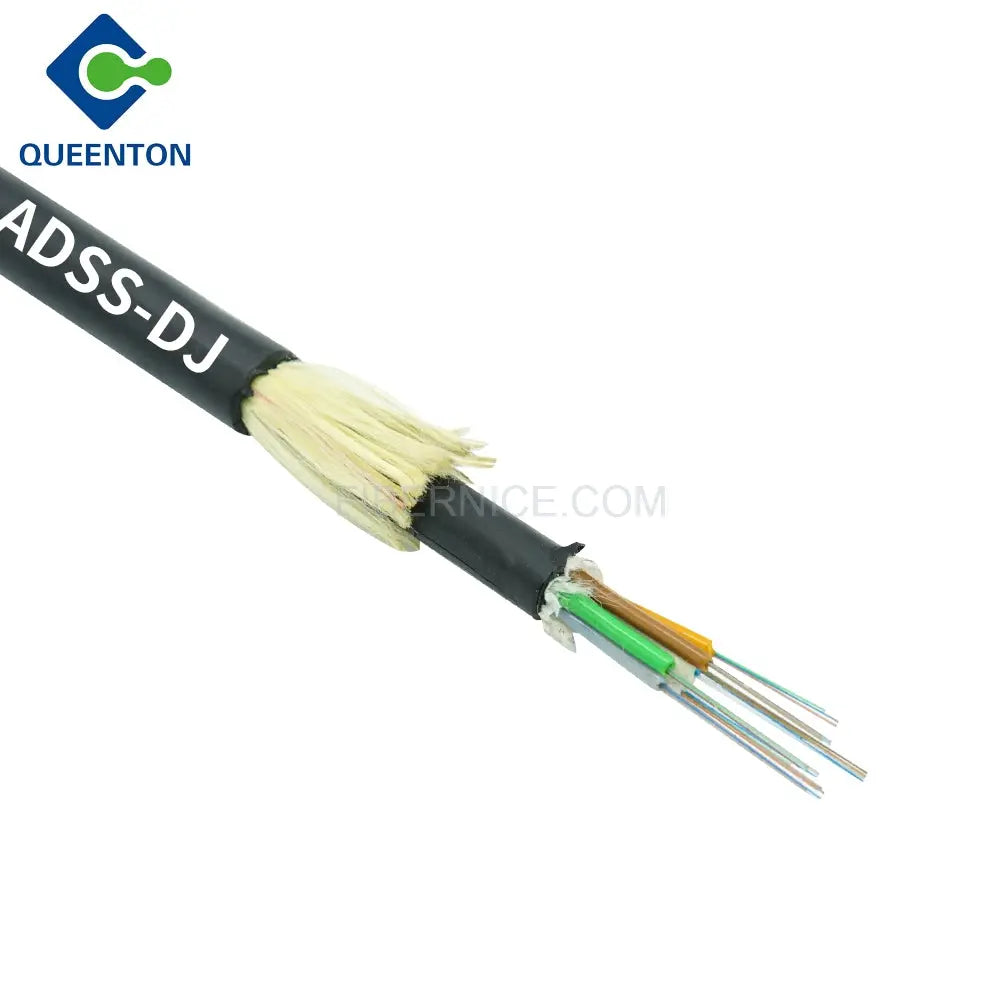

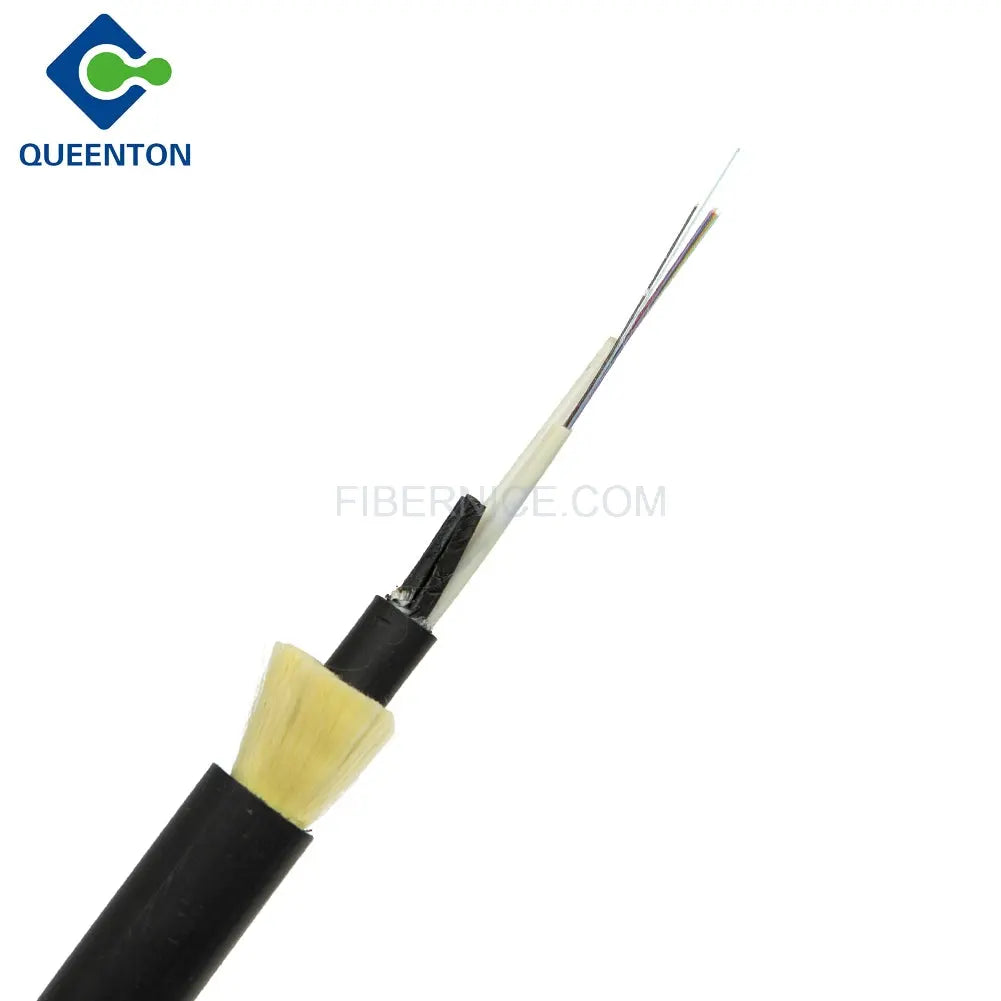

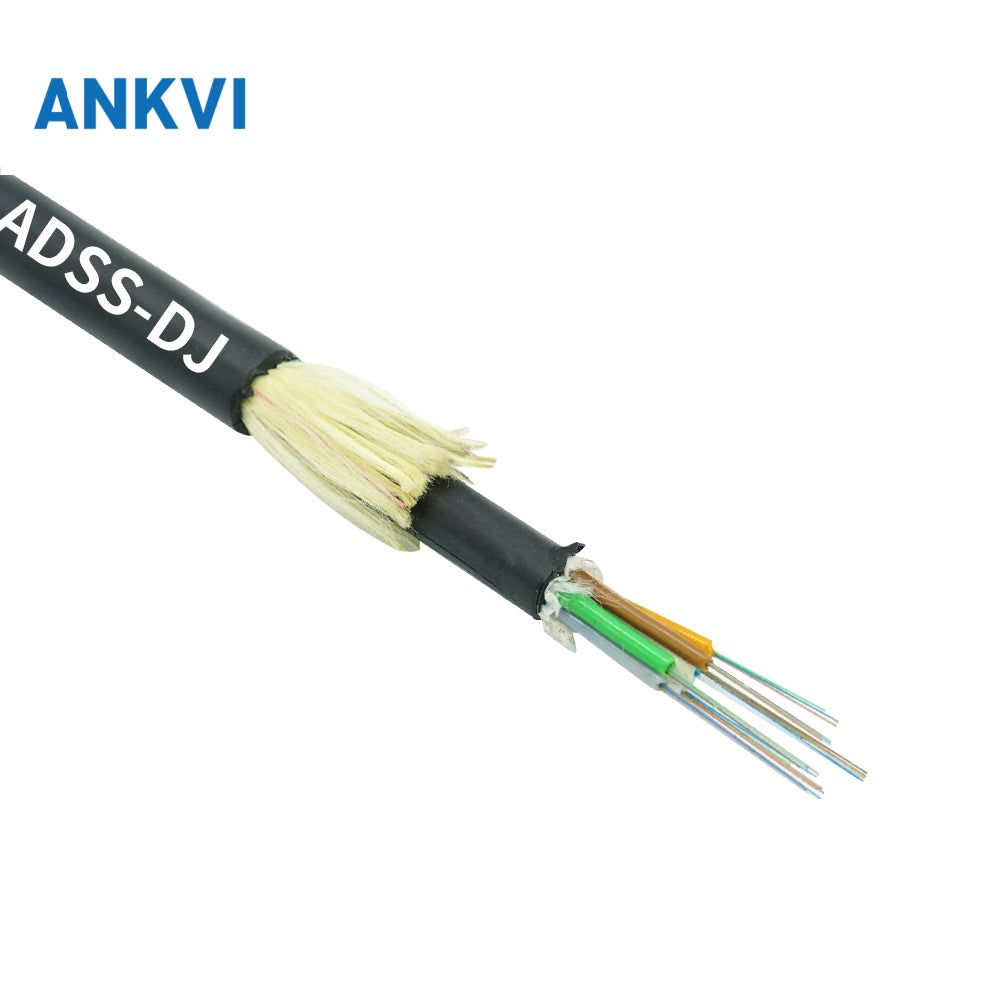

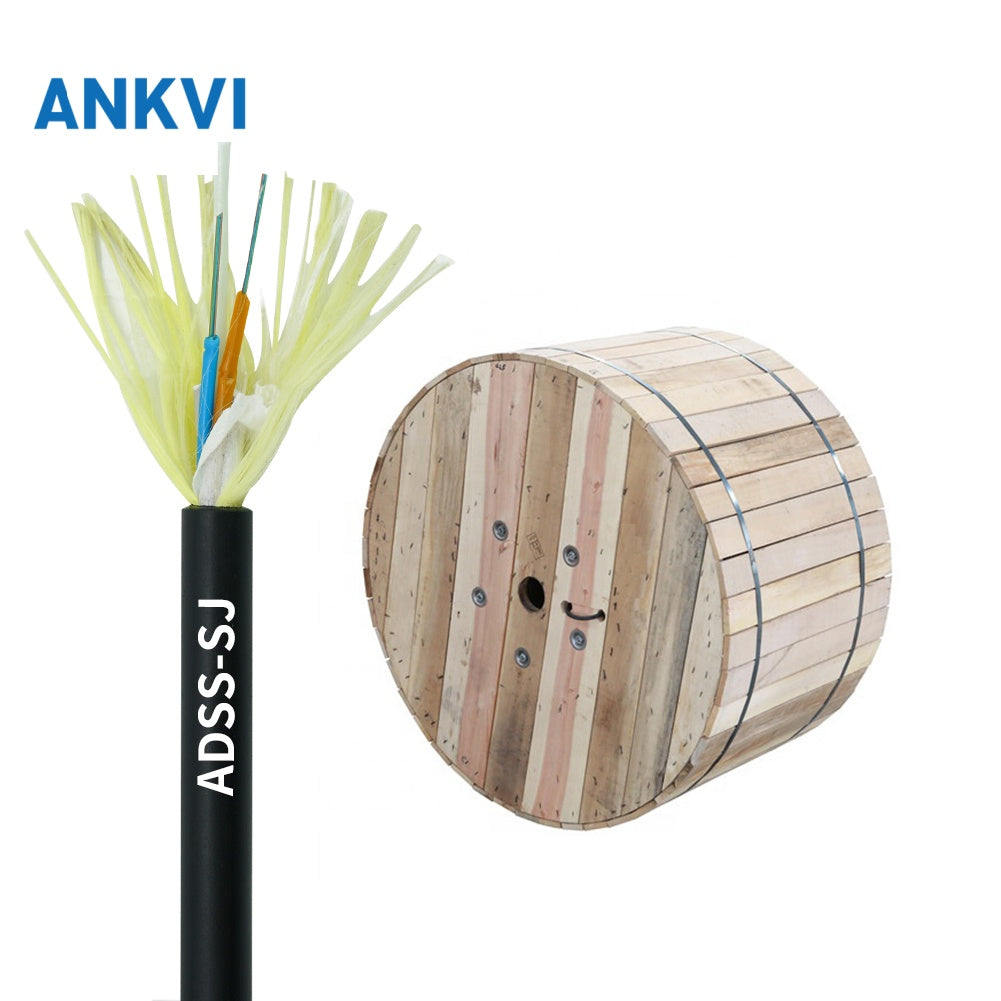

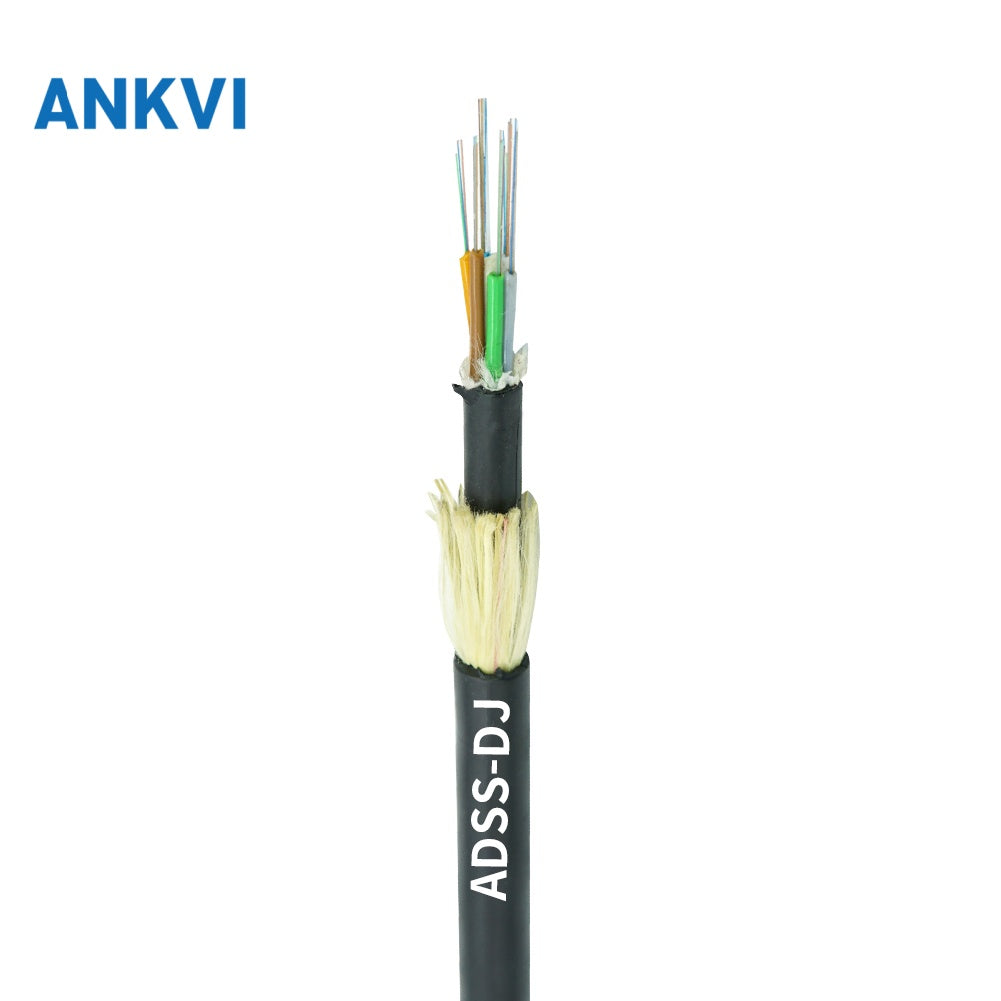

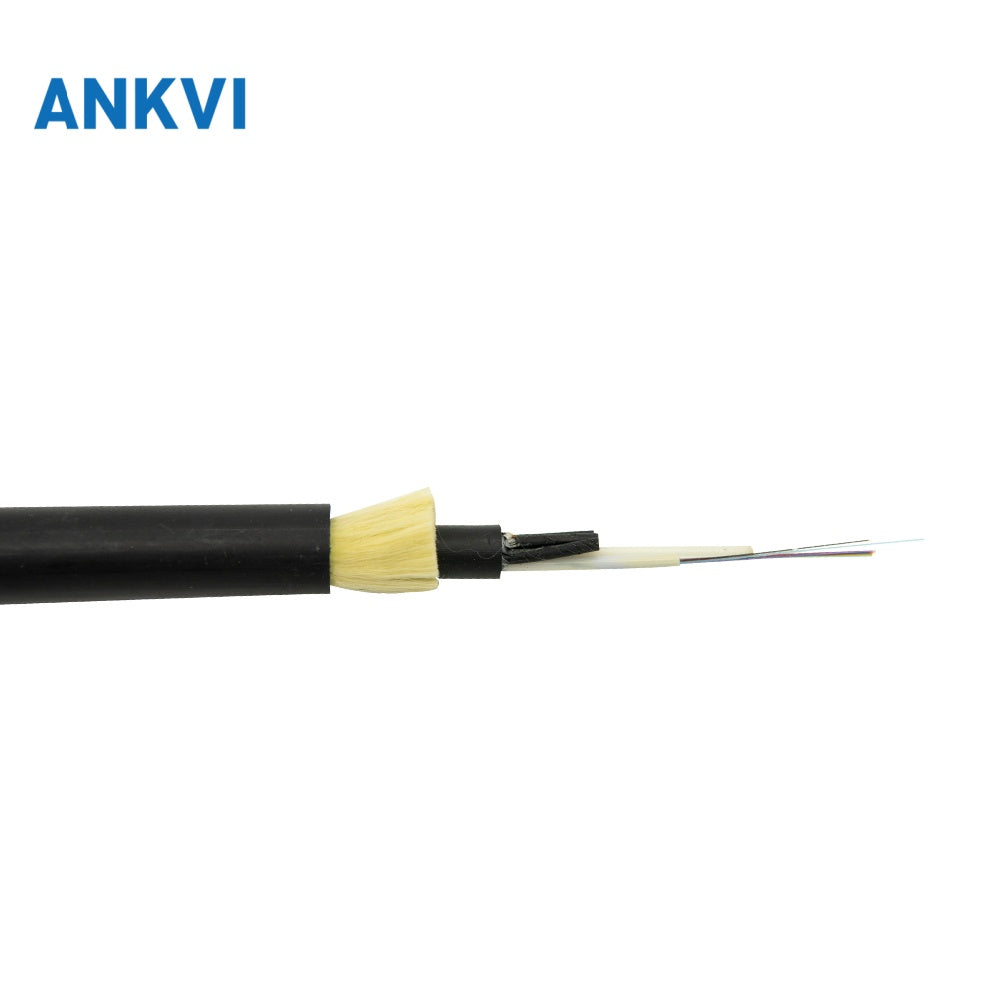

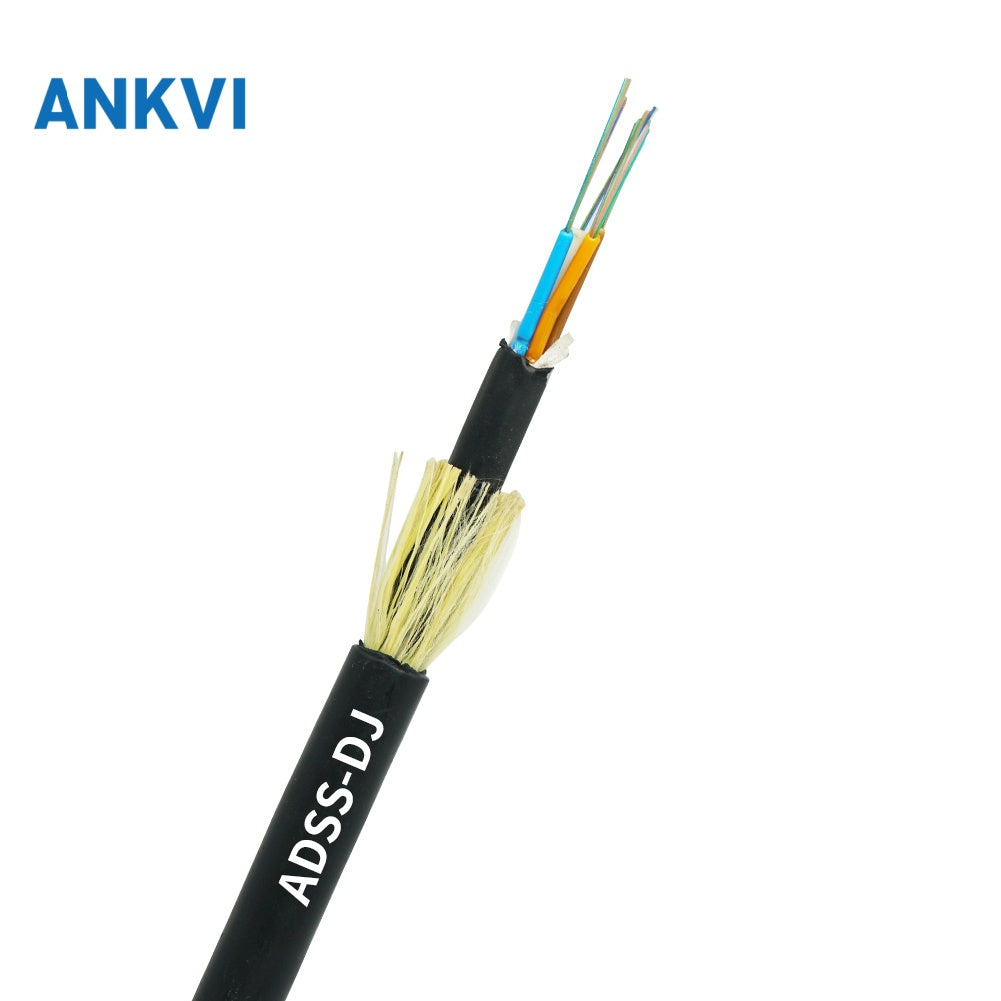

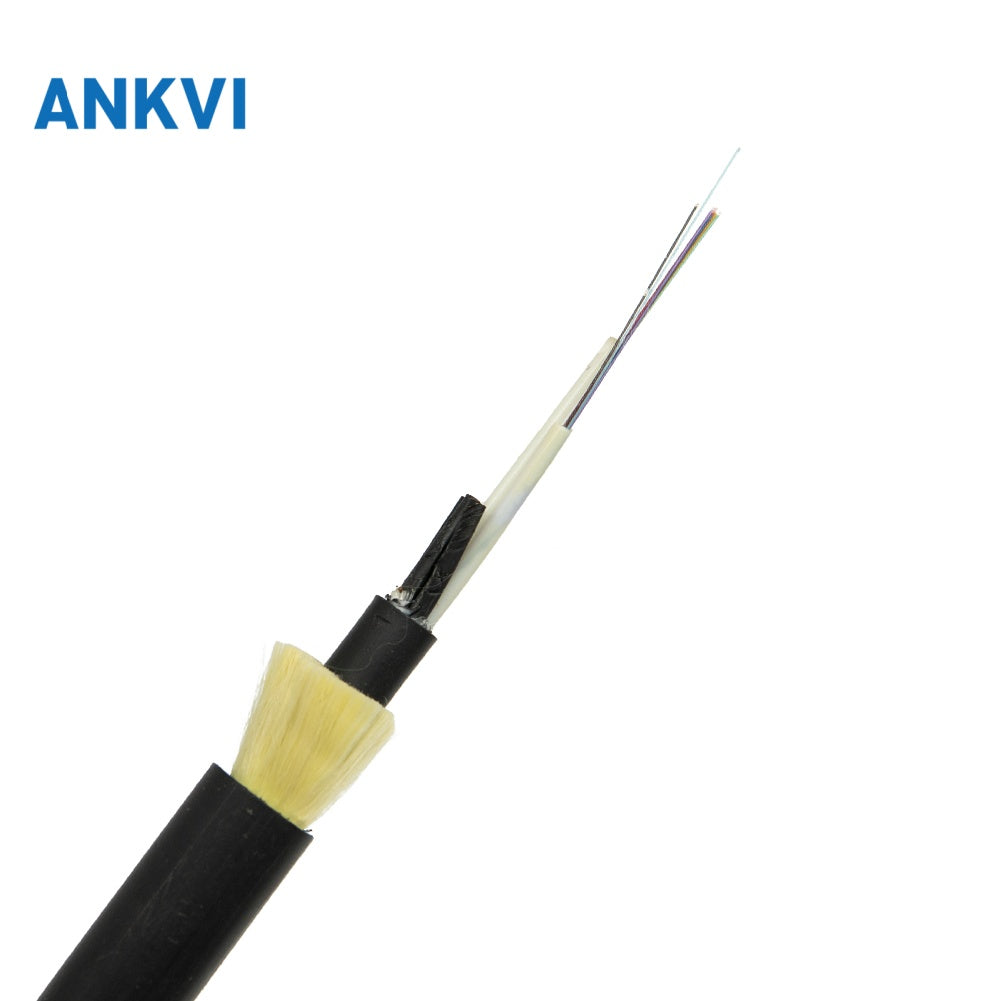

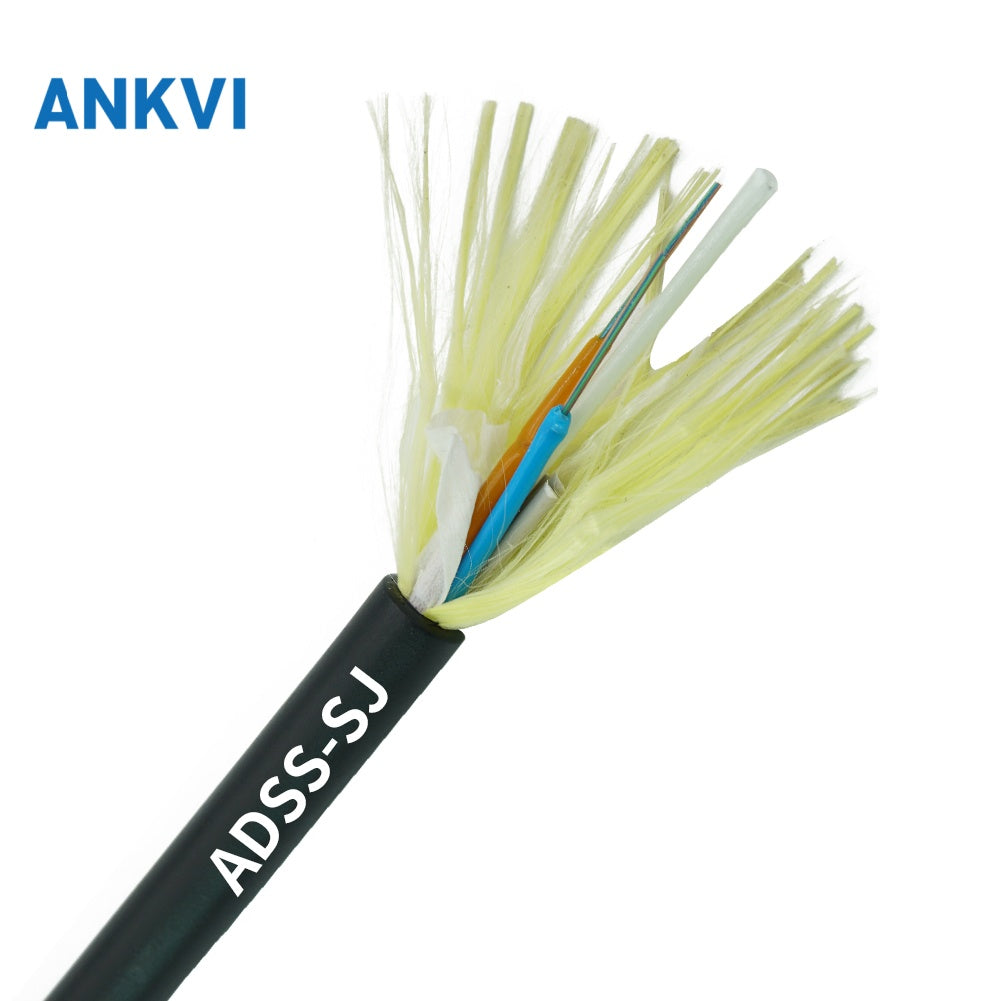

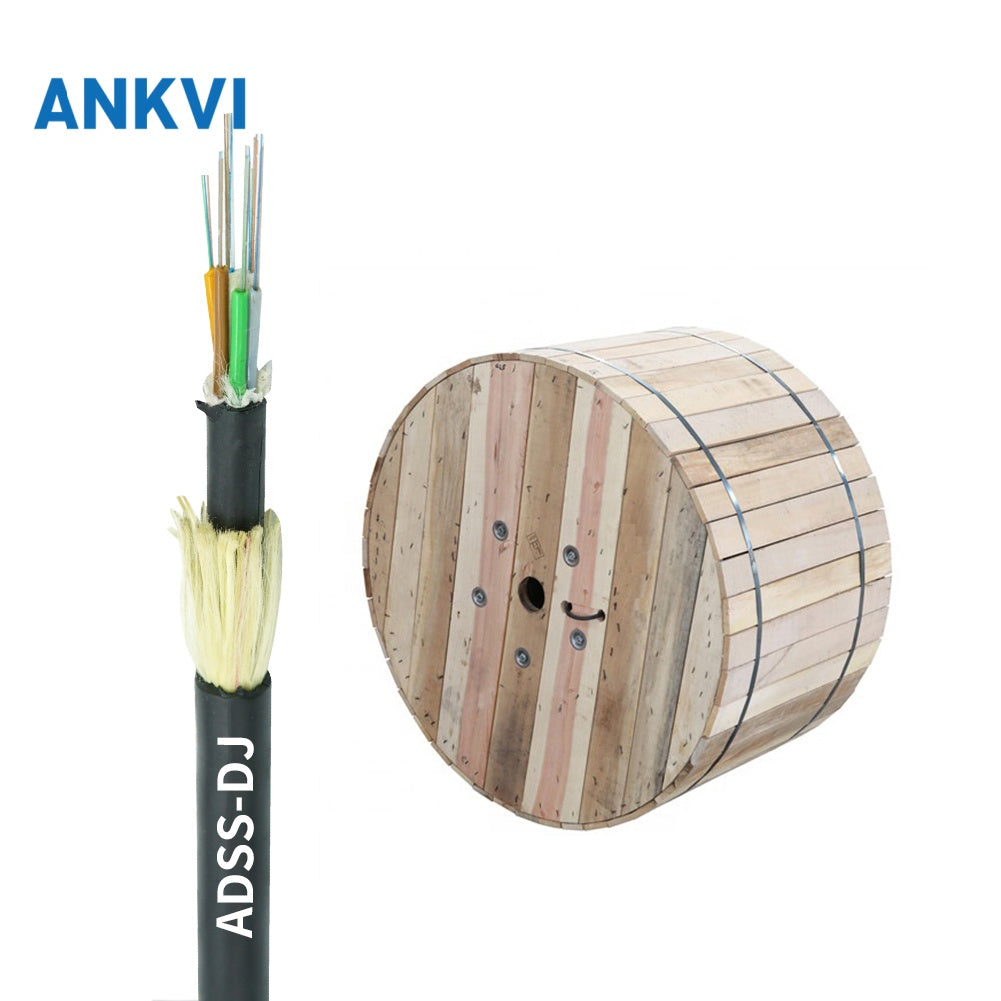

Outdoor ADSS 9.5 mm Cable span G652D PE Outer jacket Fiber Optic Cable ADSS
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Fiber Parameters
| Items | G.652D |
| Mode Field Diameter 1310nm | 9.2±0.4 um |
| Mode Field Diameter 1550nm | 10.4±0.5 um |
| Cladding Diameter | 124.8±0.7 um |
| Cladding Non-Circularity | ≤0.7 % |
| Core-Cladding Concentricity Error | ≤0.5 um |
| Coating Diameter | 245±5 um |
| Coating Non-Circularity | ≤6.0 % |
| Cladding-Coating Concentricity Error | ≤12.0 um |
| Cable Cutoff Wavelength | λcc 1260 um |
| Attenuation(max.) 1310nm | ≤0.36 dB/km |
| Attenuation(max.) 1550nm | ≤0.22 dB/km |
Mechanical and Environmental Characteristics
| Max. Tensile(Long Term) | 2000 N |
| Max. Tensile(Short Term) | 4000N |
| Crush (Long Term) | 1000 N/10cm |
| Crush (Short Term) | 2000 N/10cm |
| Min. Bend Radius(Dynamic) | 25D mm |
| Min. Bend Radius (Static) | 10D mm |
| Installation Temperature | -20~±60 °C |
| Operating Temperature | -40~±70 °C |
| Storage Temperature | -40~±70 °C |

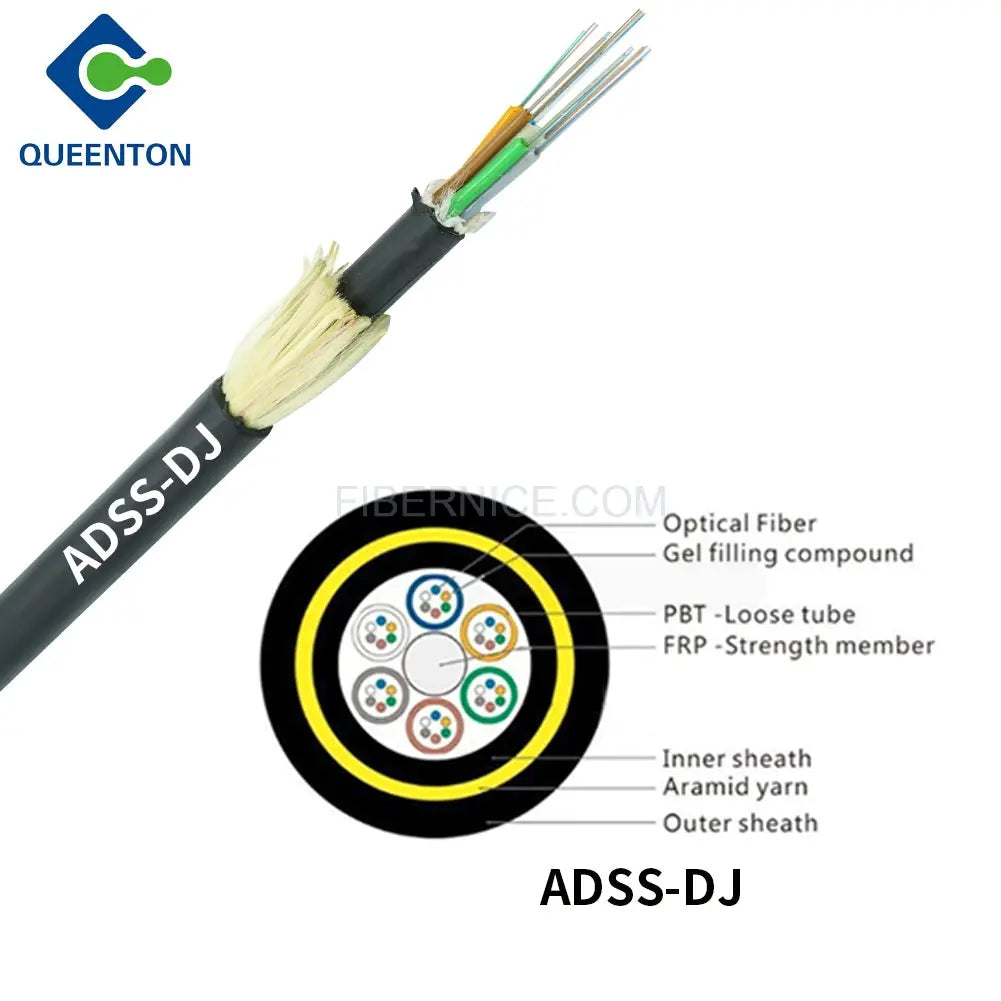

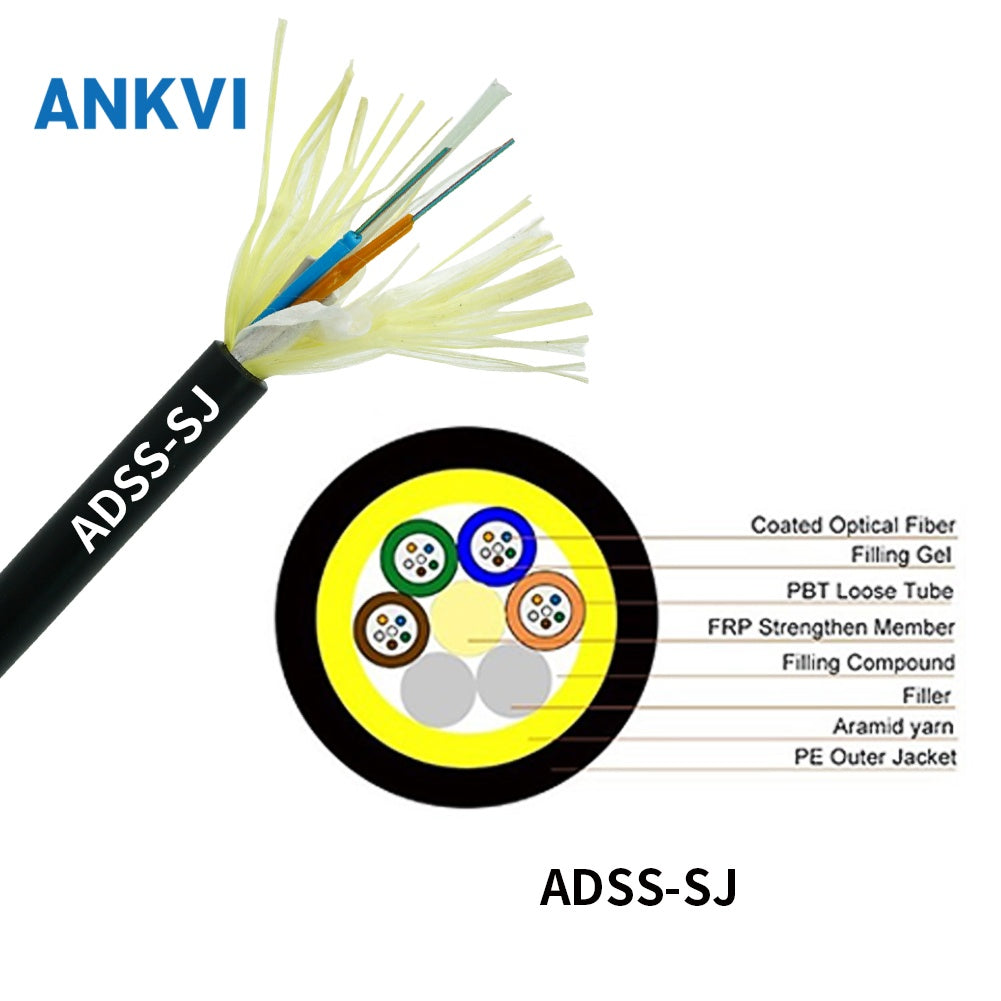

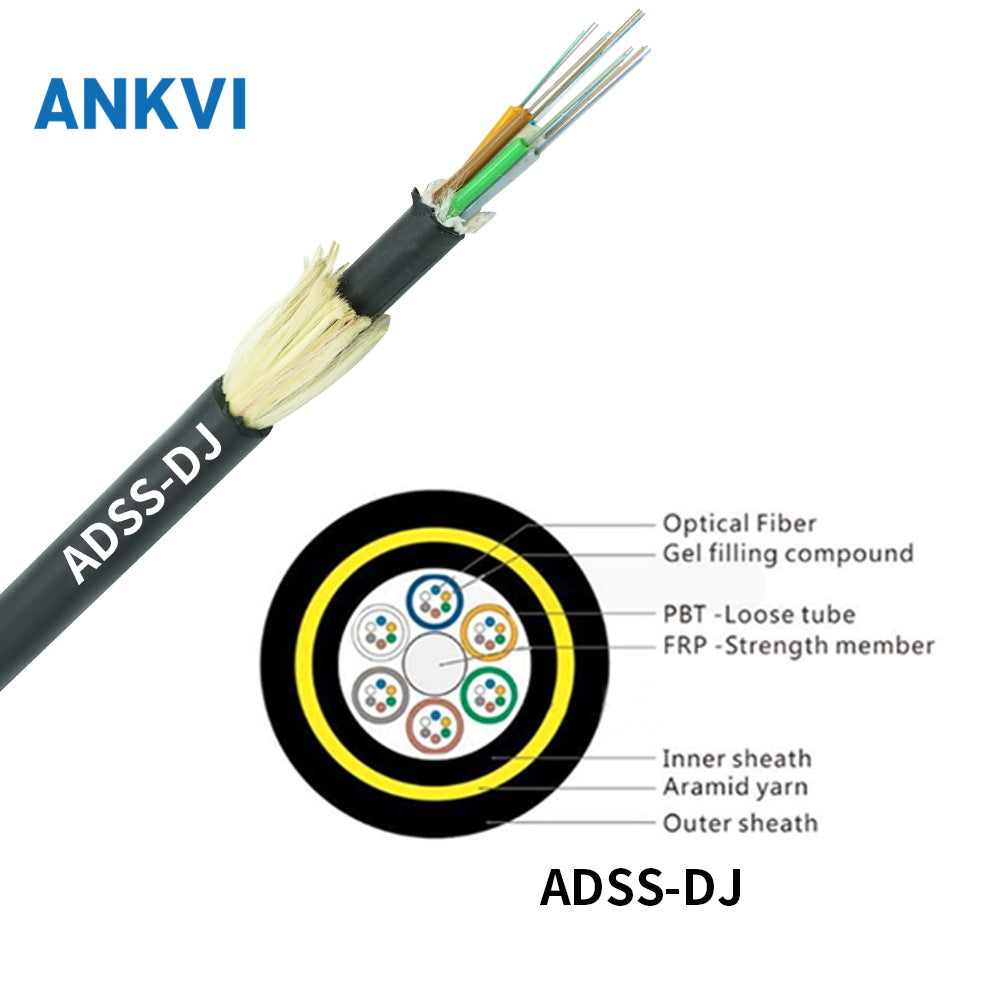

Cable Parameters
| Loose Tube Dimension | 2.0mm+0.05mm |
| Loose Tube Material | PBT |
| Fillers Dimension | 2.0mm±0.05mm |
| Fillers Fillers | PVC |
| Fillers Color | White |
| Central Strengthen Member Diameter | 2.2±0.05 mm |
| Central Strengthen Member Material | FRP |
| Armoured Yarn Span | 100/120/150/200/250 meters |
| Armoured Yarn Material | Aramide Yarn |
| Outer Sheath Material | PE |
| Outer Sheath Color | Black |
