- $777.46
- $777.46
- Unit price
- per
14 months Warranty
Product Highlights
- ONE-STOP Fiber Optic Superstore
- High-quality pre-sales, including solution customization, sample request, test reports, and perfect warranty & return policies allow you to enjoy worry-free experience.
- Short lead time, Deliver on time, Strict quality checking before shipment.
- Our professional sales team win the reputation in home and abroad with the outstanding service and high quality products.
- 24/5 around-the-clock customer service and technical support for tackling any complex issue anytime.
Fiber Parameters
| Items | G.652D |
| Mode Field Diameter 1310nm | 9.2±0.4 um |
| Mode Field Diameter 1550nm | 10.4±0.5 um |
| Cladding Diameter | 124.8±0.7 um |
| Cladding Non-Circularity | ≤0.7 % |
| Core-Cladding Concentricity Error | ≤0.5 um |
| Coating Diameter | 245±5 um |
| Coating Non-Circularity | ≤6.0 % |
| Cladding-Coating Concentricity Error | ≤12.0 um |
| Cable Cutoff Wavelength | λcc 1260 um |
| Attenuation(max.) 1310nm | ≤0.36 dB/km |
| Attenuation(max.) 1550nm | ≤0.22 dB/km |
Mechanical and Environmental Characteristics
| Weight | 170±5kg/km |
| Max.load under installation | ≤8.6 KN |
| Max. load under operation | ≤4.2 N |
| Max. Pulling force(Long Term) | 3000 N |
| Max. Pulling force(Short Term) | 8000 N |
| Crush (Long Term) | 300 N |
| Crush (Short Term) | 1000 N |
| Min. Bend Radius(Dynamic) | 30D mm |
| Min. Bend Radius (Static) | 10D mm |
| Installation Temperature | -20~±60 °C |
| Operating Temperature | -40~±70 °C |
| Storage Temperature | -40~±70 °C |

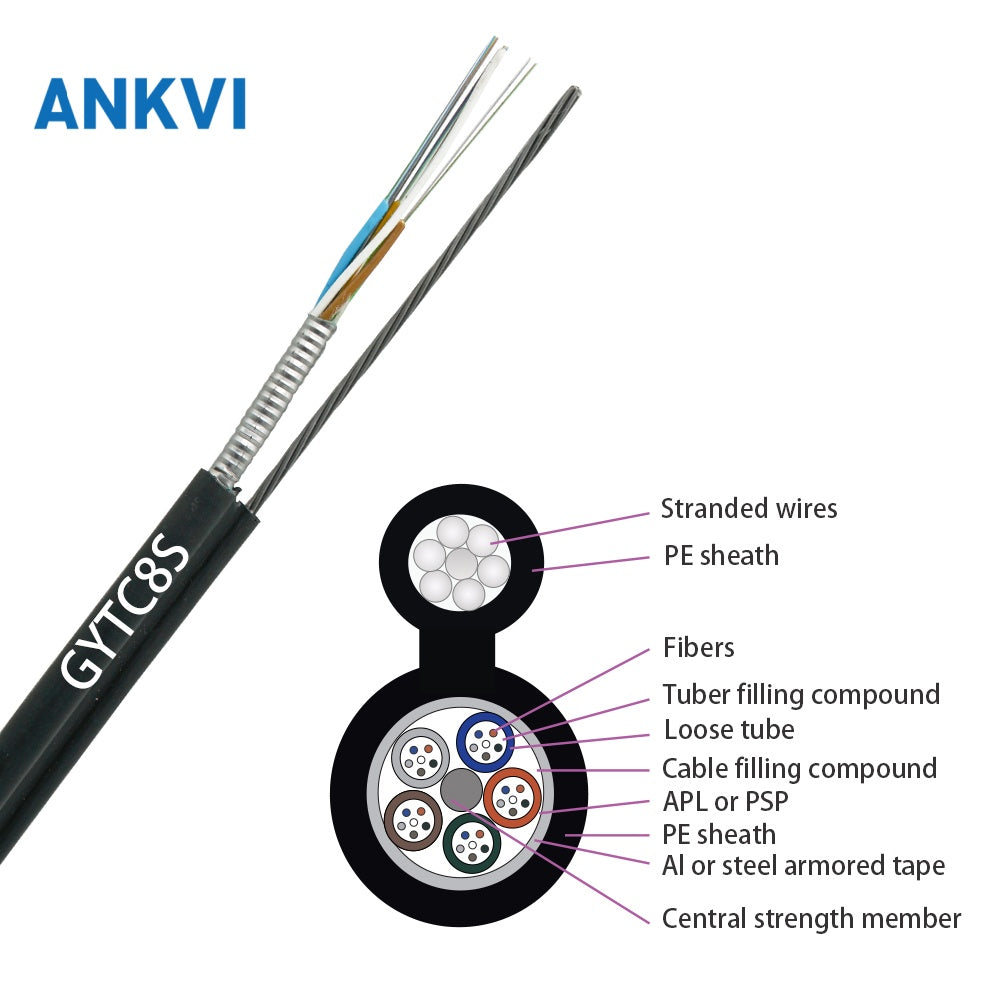

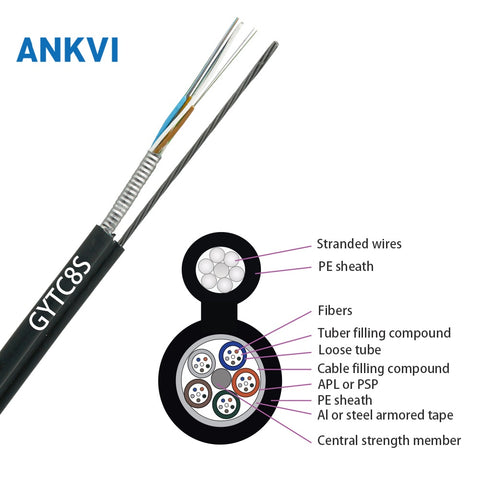

Cable Parameters
| Dropping steel messengers | 7*1.0mm Galvanized steel wire |
| Loose Tube Dimension | 2.3mm+0.05mm |
| Loose Tube Material | PBT |
| Loose Tube Tube No. | 4 |
| Fillers Dimension | 2.3mm±0.05mm |
| Fillers Fillers | PVC |
| Fillers Color | White |
| Central Strengthen Member Diameter | 1.5 mm |
| Central Strengthen Member Material | Steel |
| Armoured steel tape Material | Corrugated steel tape |
| Armoured steel tape Thickness | 1.0 mm |
| Outer Sheath Material | PE |
| Outer Sheath Color | Black |
| Cable Outer Diameter | 9.5*17 ±0.1mm |
What Does One-Stop Service Mean For You?
14 months Warranty
Our products are strictly inspected to ensure they are working properly before shipment. At the same time, our warranty is higher than industry standards, up to 14 months. Customers only need to run their own business, and we will handle product issues for you.
We have a professional technical team that can help you solve most software and hardware problems. We are also familiar with FTTH solutions and will assist you 24 hours a day to solve your and your customers' problems.
How to Ship My Products?
We ships orders by international couriers, including DHL, FedEx, EMS, UPS, TNT and Aramex (mainly for Africa and Middle East). You can refer to the The Shipping Methods Guide.
How to Save on Shipping?
To save your shipping cost, we suggests you buy all items in one time in one order. This will minimize the shipping cost for each item and save your cost. If you can wait much longer, please choose the standard shipping method. It will be much cheaper than using express shipping.
Can You Ship To My Country?
Definitely, we can ship to your country. We can ship orders to worldside.
Note: You should be clear about the import tax situation in your own country.
