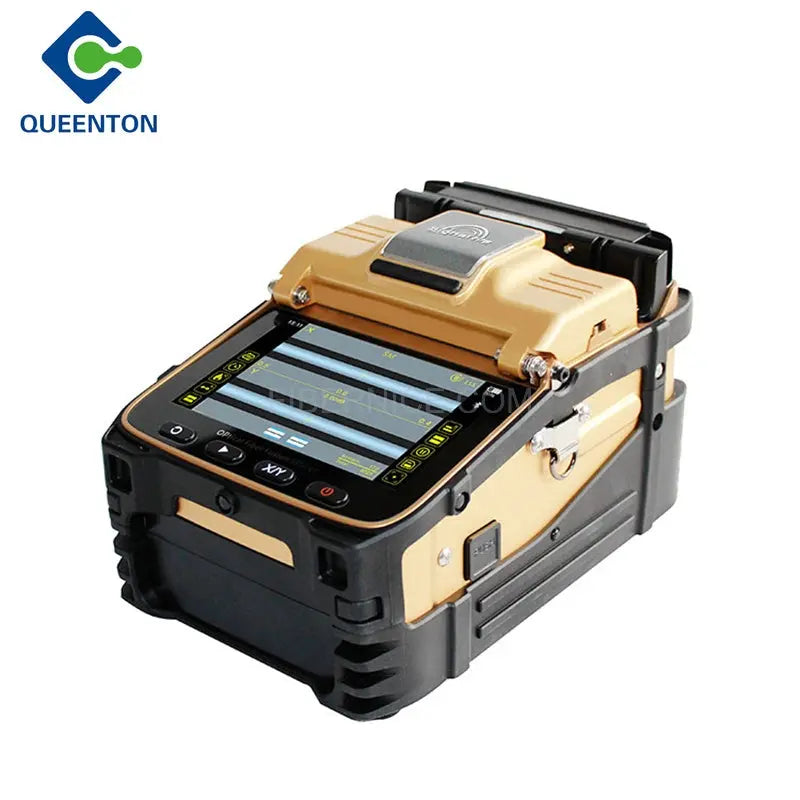

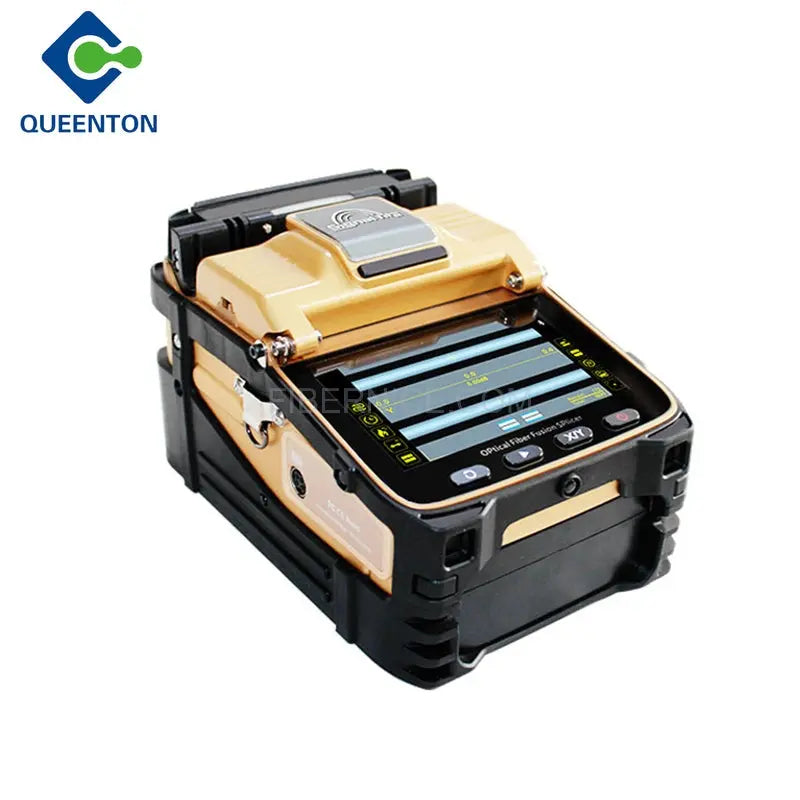

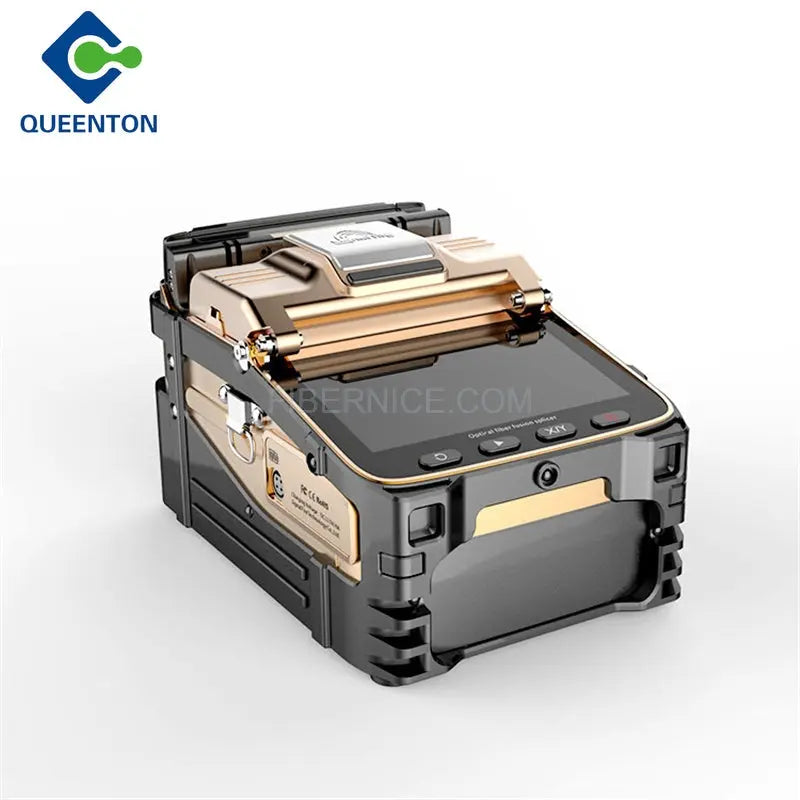

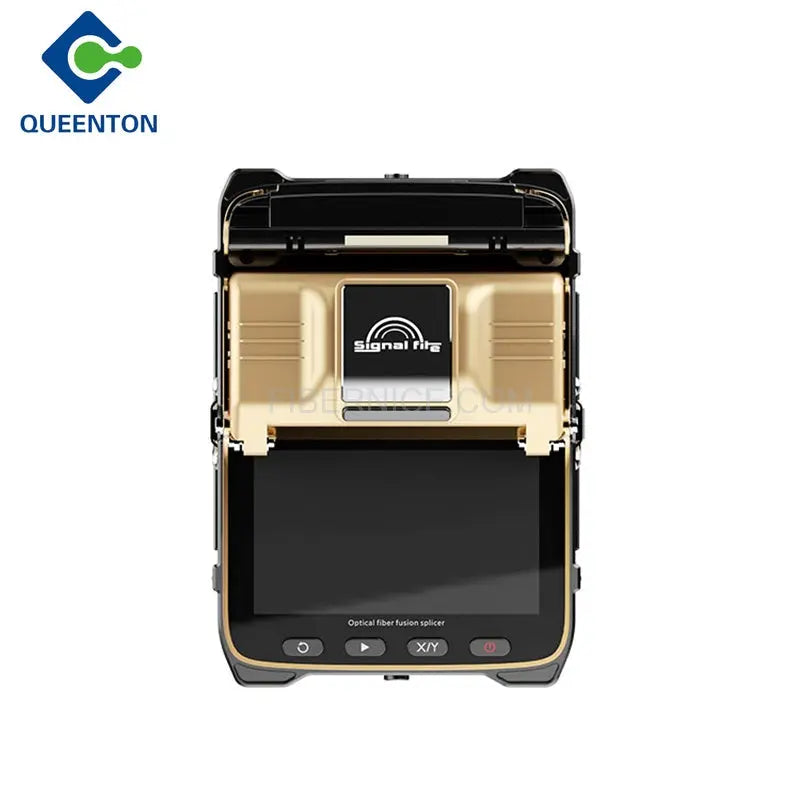

It is one of the fastest optical fiber fusion splicer on the market Use 5-inch 800X480 high-resolution screen, simple and intuitive operation graphics Up to 300x focusing magnification makes it easy to observe the core with the naked eye
7800mAh lithium battery Battery charging "New upgrade"
The battery can be removed and charged separately
18S automatic heating, comes with a stool to facilitate the construction workers
| Fiber alignment | Core/cladding |
| Motor number | 6 motors |
| Splicing time | 6s |
| Heating mode | 15s， can be customized according to the external environment |
| Fiber type | Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion; |
| The cladding diameter | 80-150 μm |
| Splicing loss | 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Splicing mode | Automatic focusing core alignment, conventional/high precision welding |
| Splicing way | Automatic, semi-automatic |

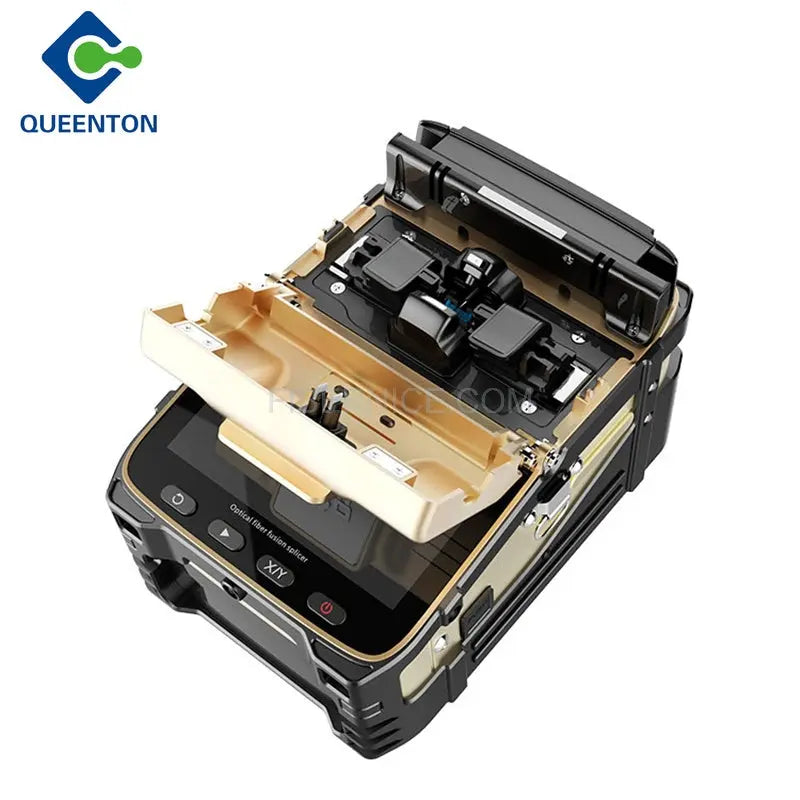

| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber,jumper fiber,drop cable |
| Battery capacity | 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 260 cores |
| Magnification | 300 (X or Y), 150 (X or Y) |
| Fiber diameter | Coating diameter: 80-150μm/Coating diameter: 100-1000μm |
| Cutting length | Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm |
| Heat shrink tube | 60mm、50mm、40mm、25mm |
| Tensile testing | standard 2N |
| display | 5 inch TFT color display screen |
| External lighting | USB port can be connected with EXTERNAL LED light, convenient for night construction |
| Charge mobile device | The USB port can charge mobile devices such as mobile phones |
| Boot time | 1s, boot can enter the working mode |
| Data is stored | Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Wireless communication | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Management function | The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| interface | USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices |
| Return loss | Better than 60 db |
| Product protection | Waterproof, dustproof and fall proof |
| Power supply | Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level |
| The work environment | Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s |
