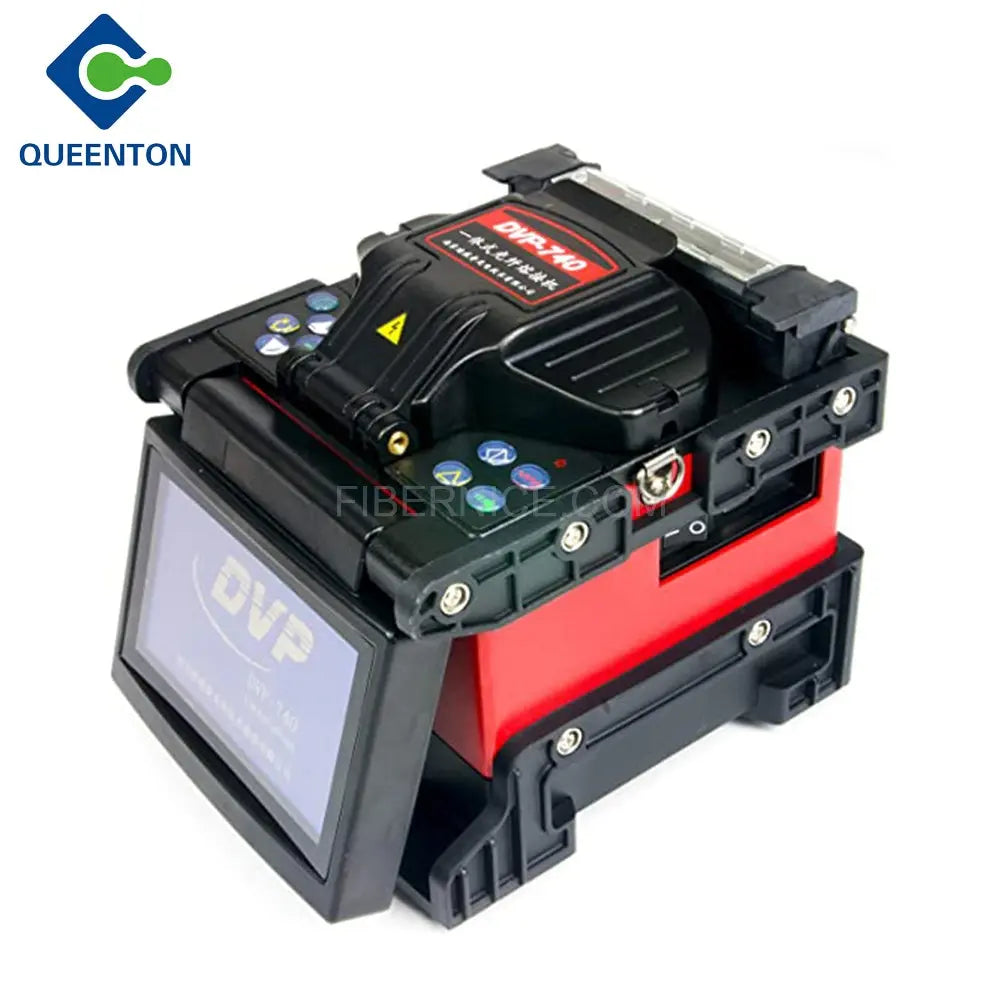

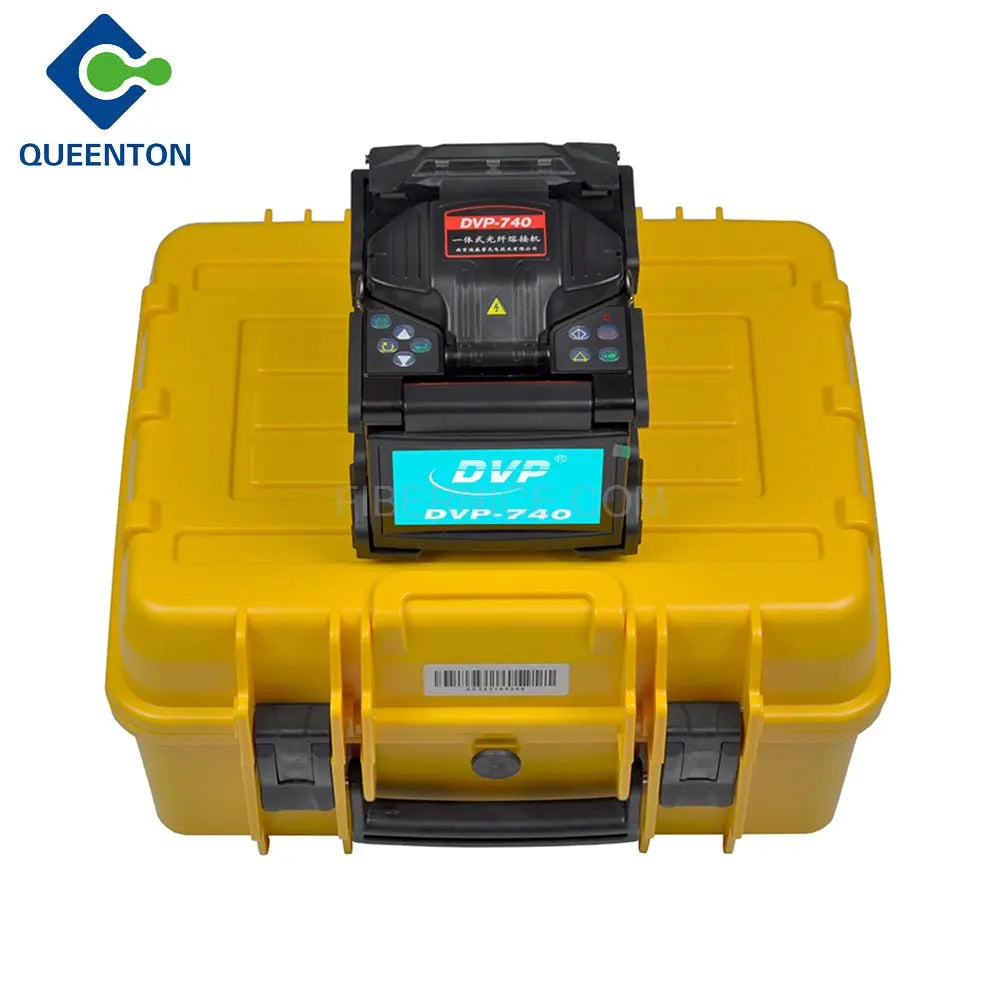

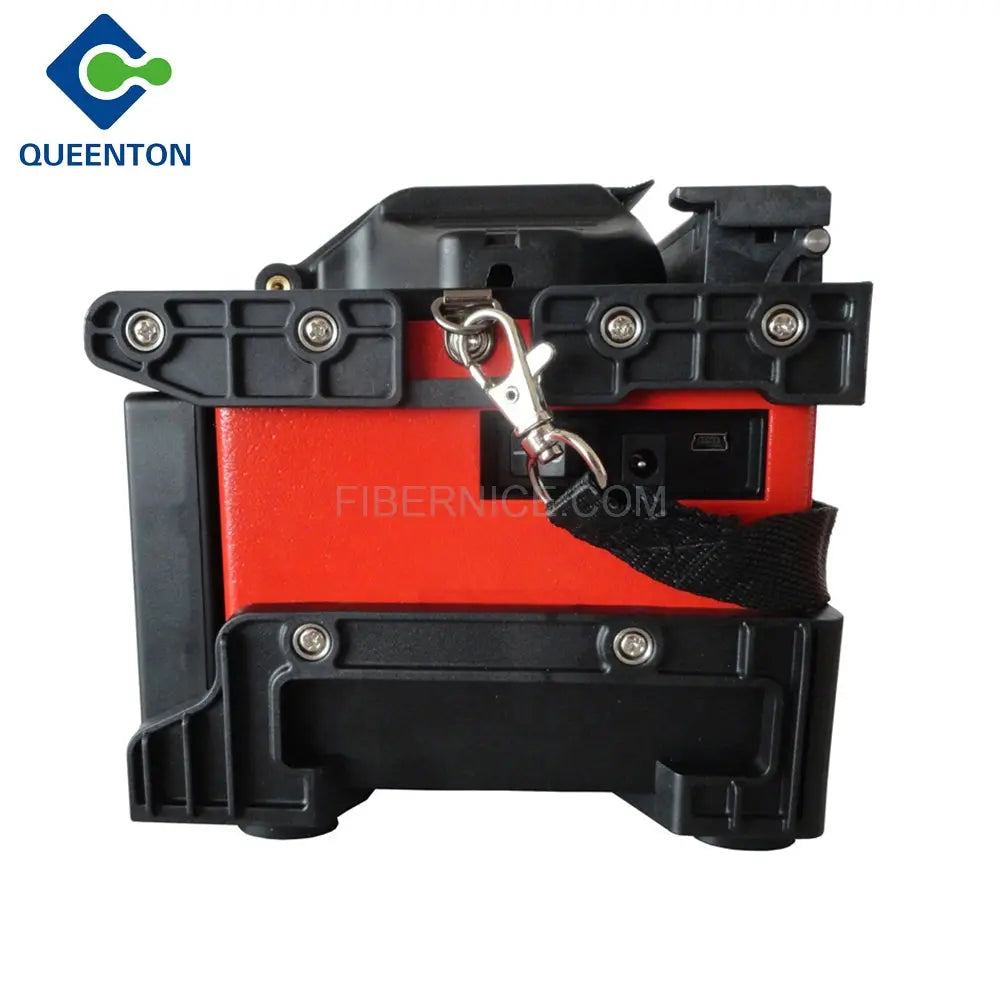

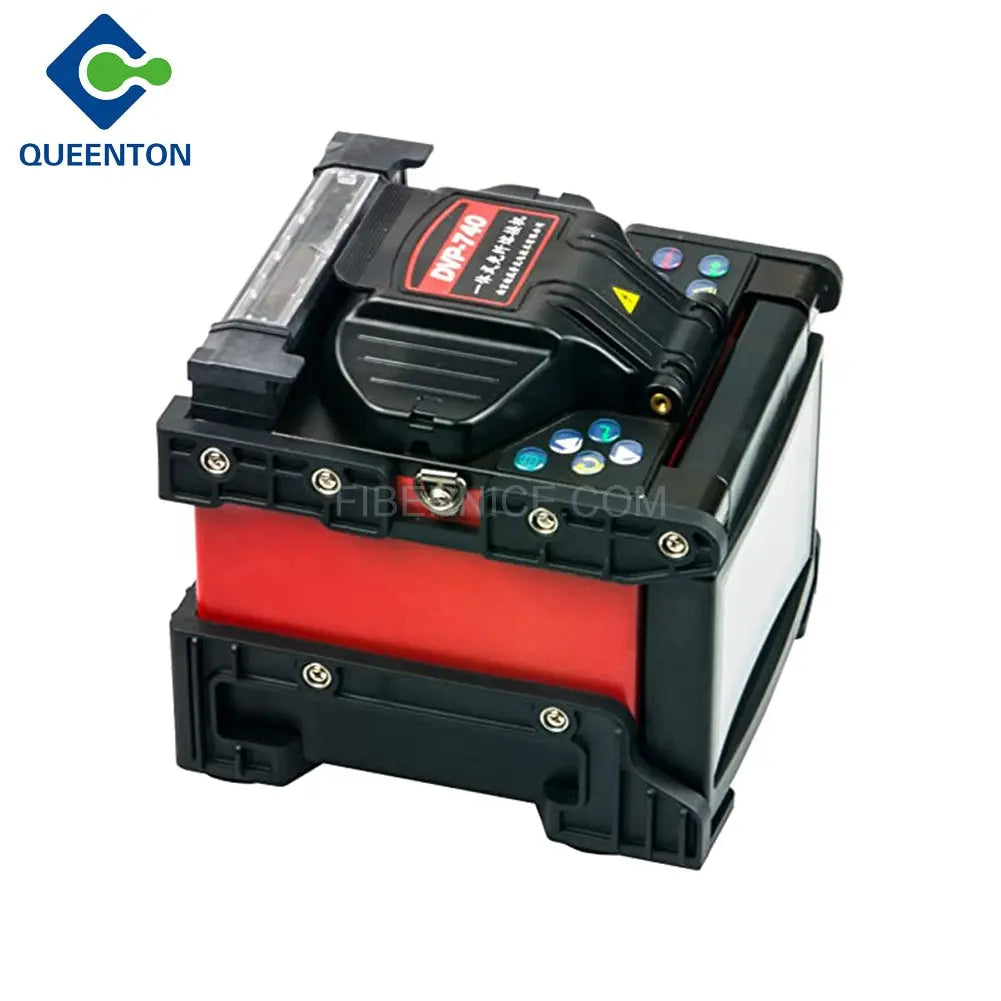

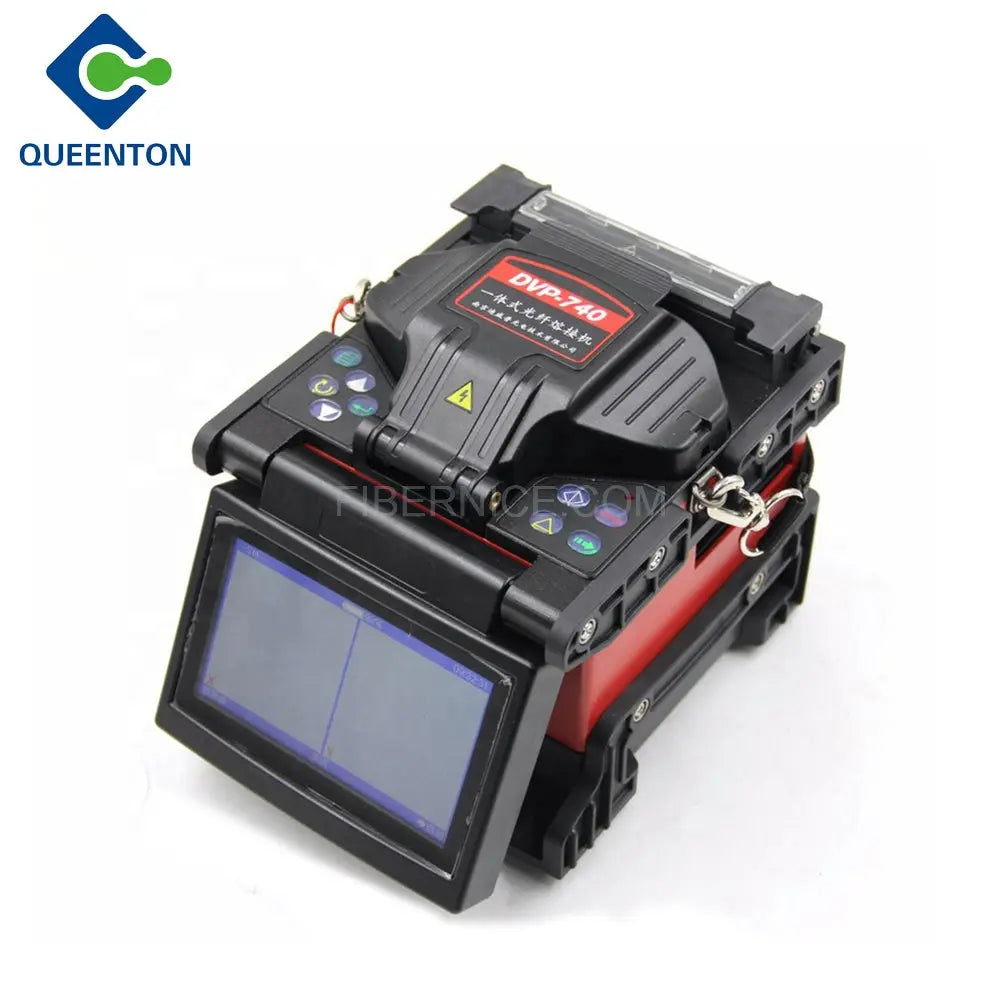

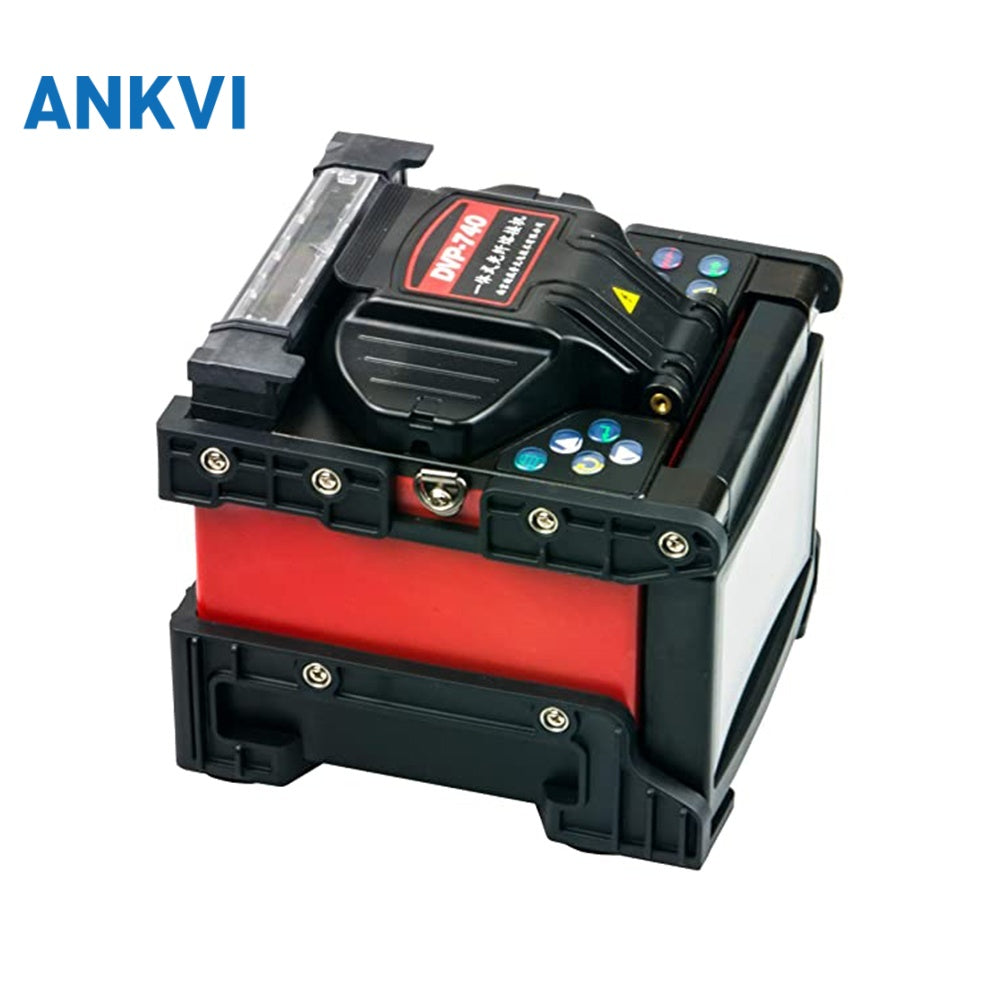

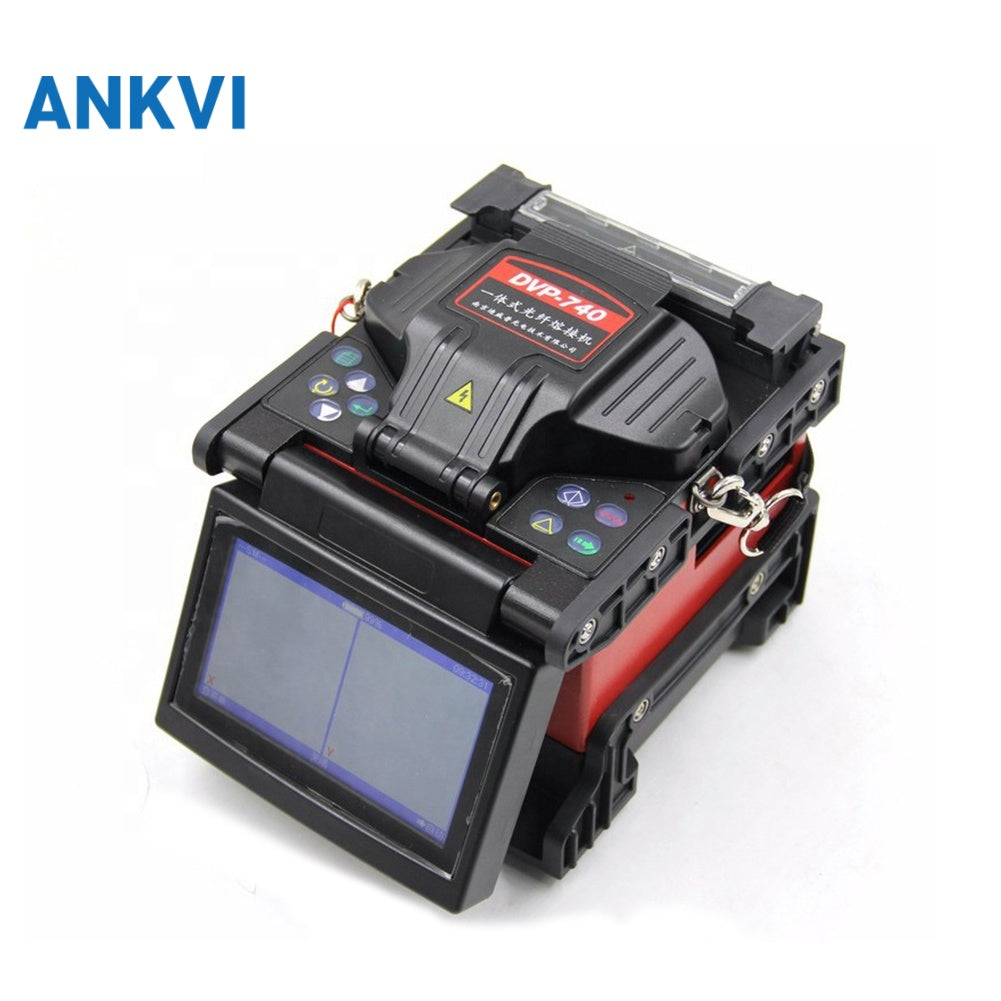

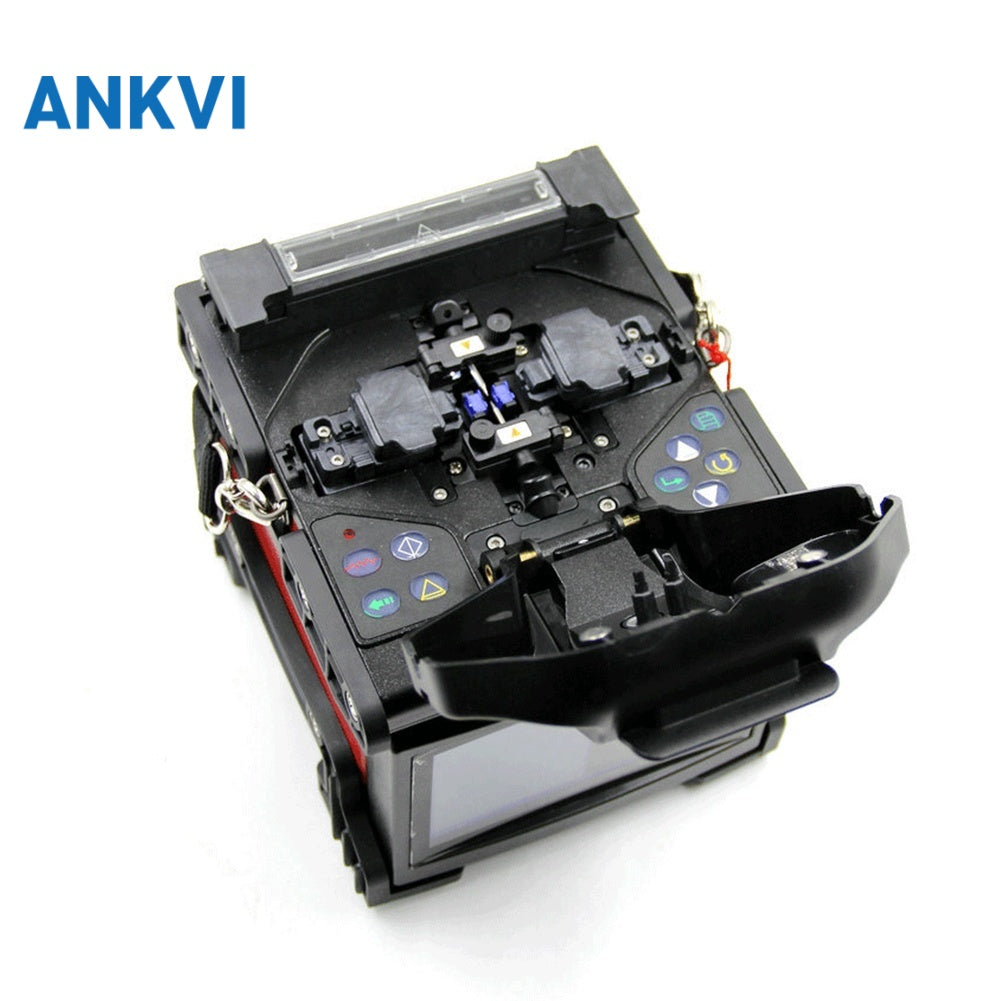

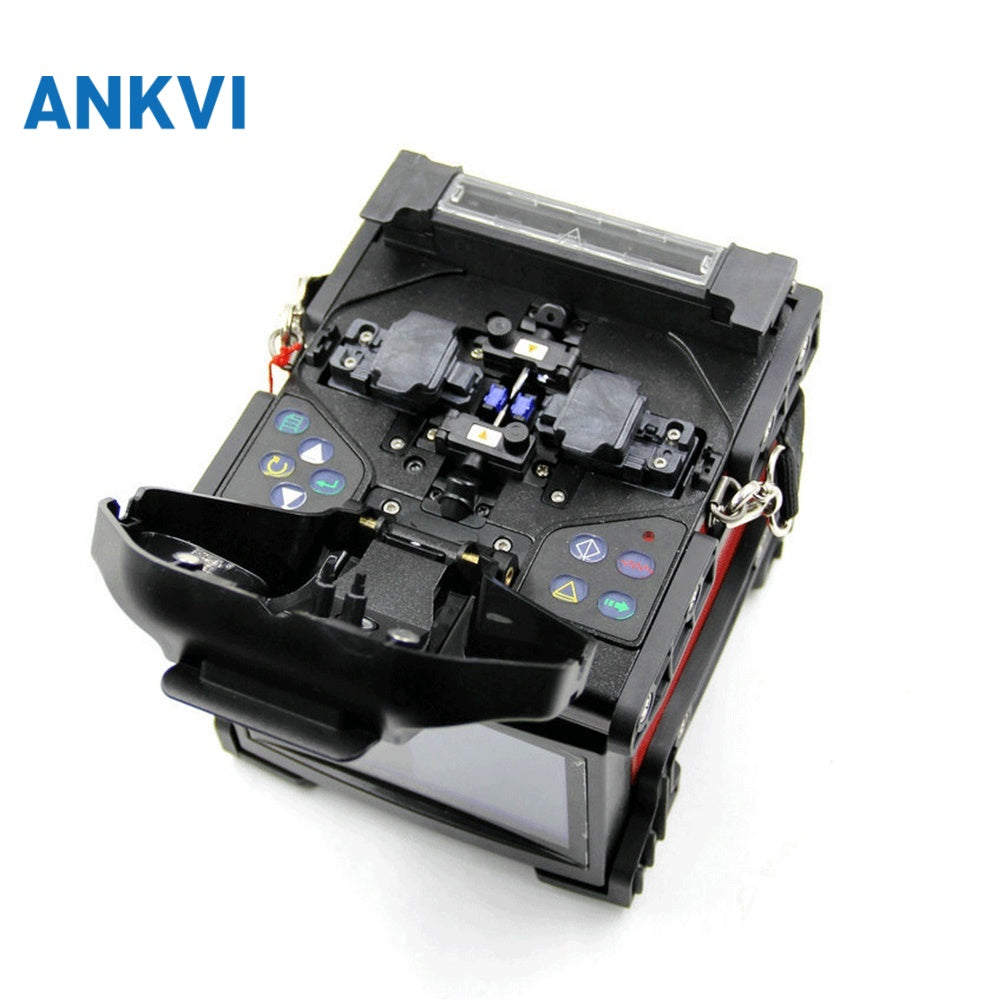

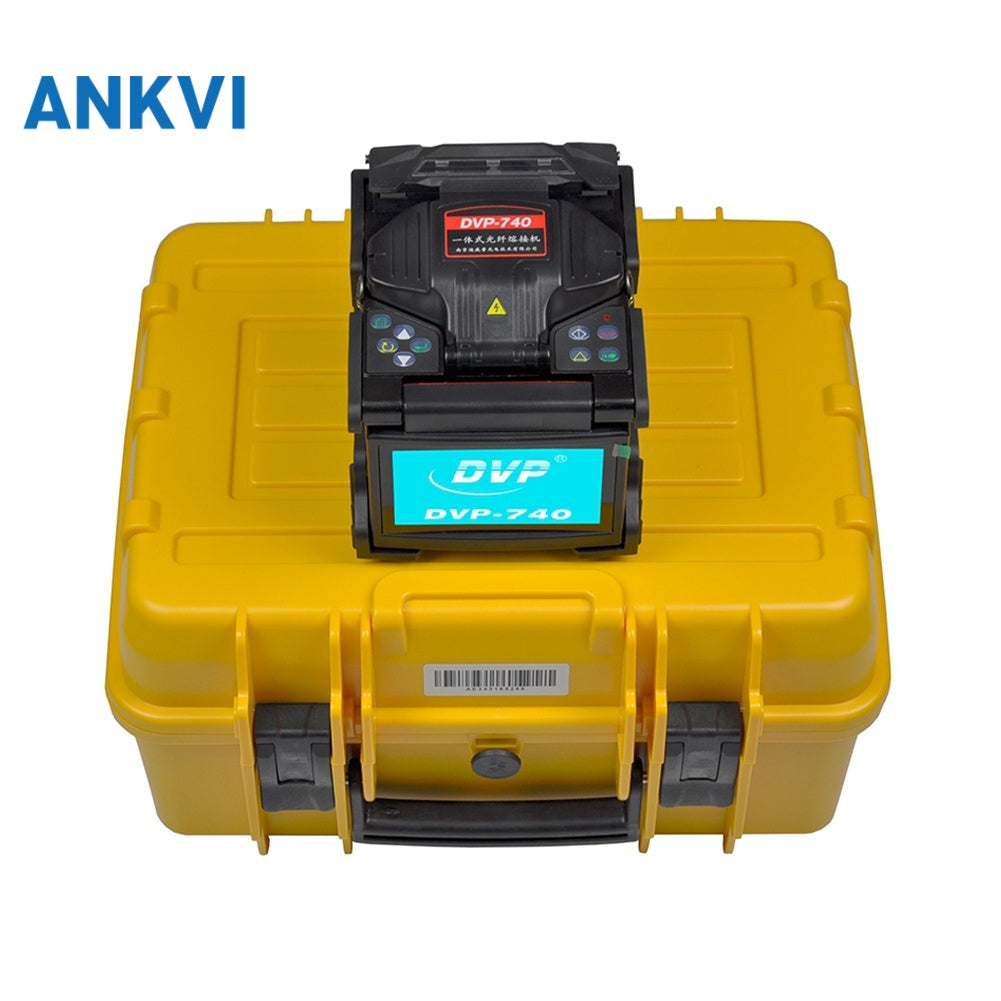

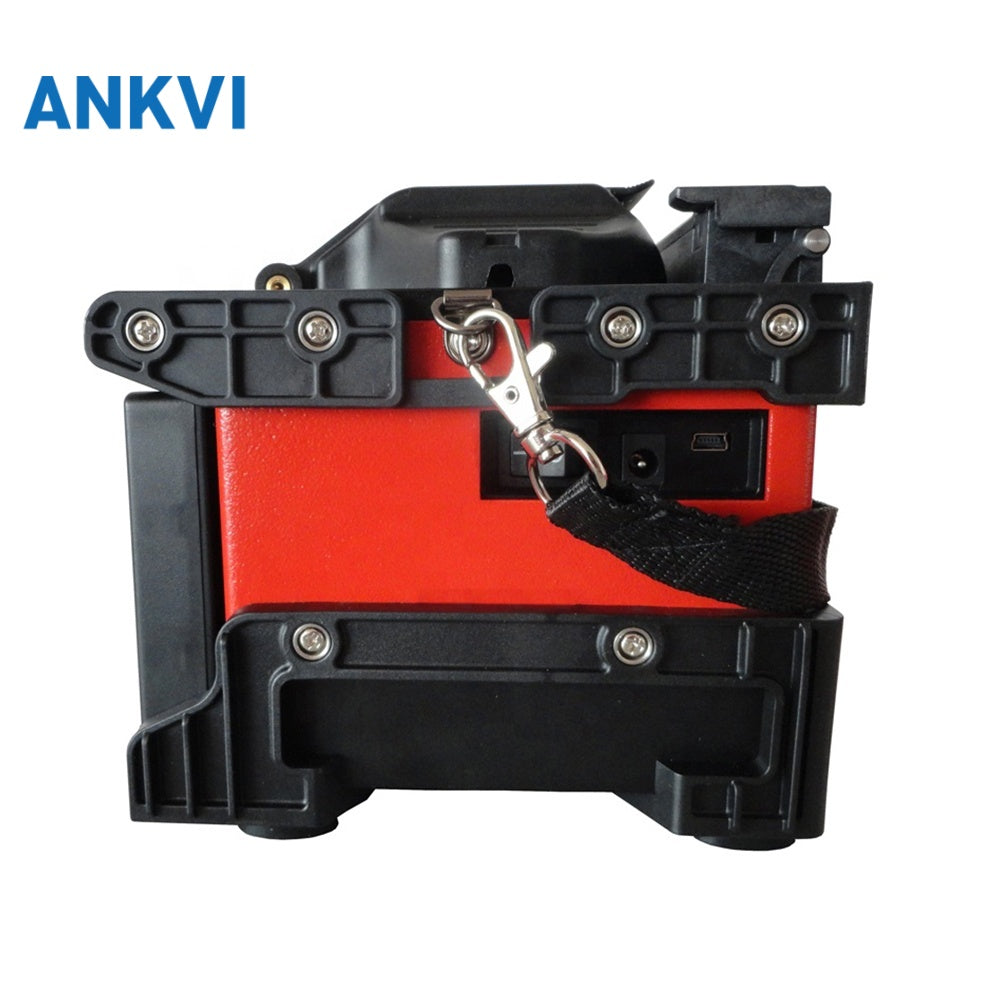

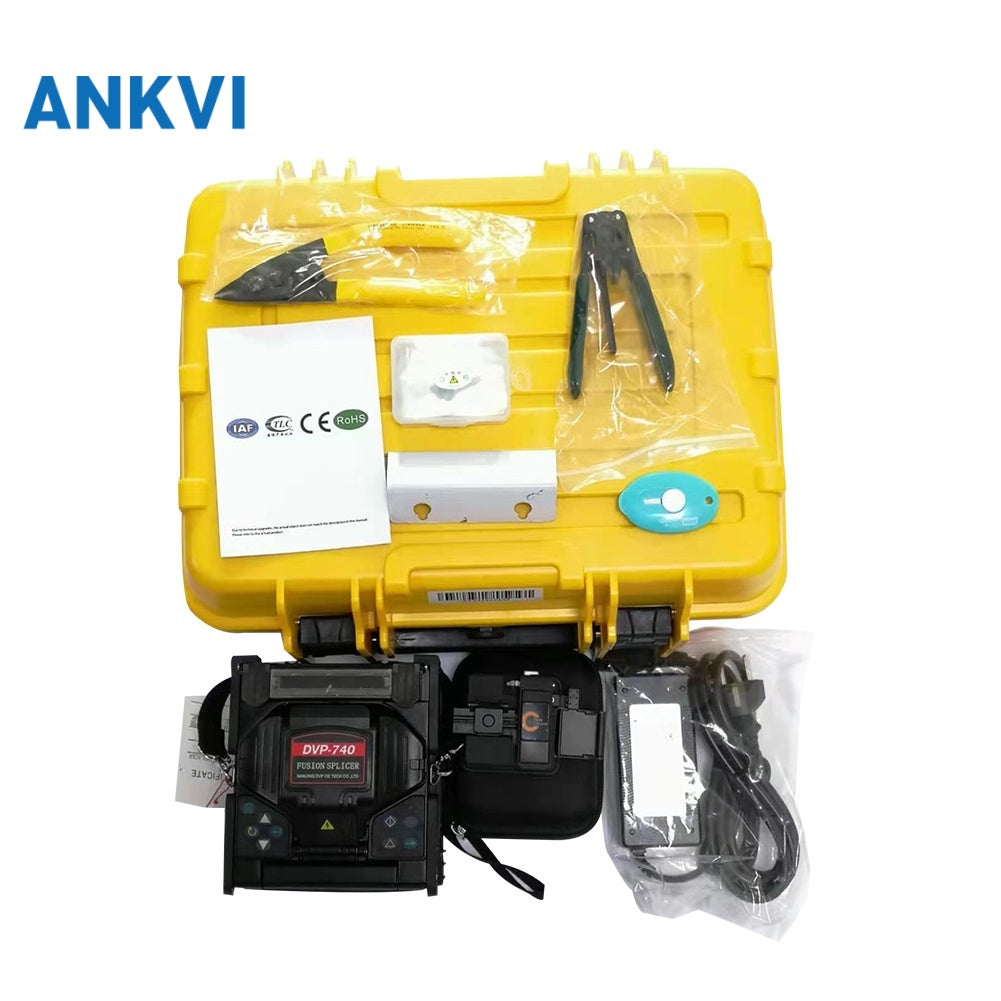

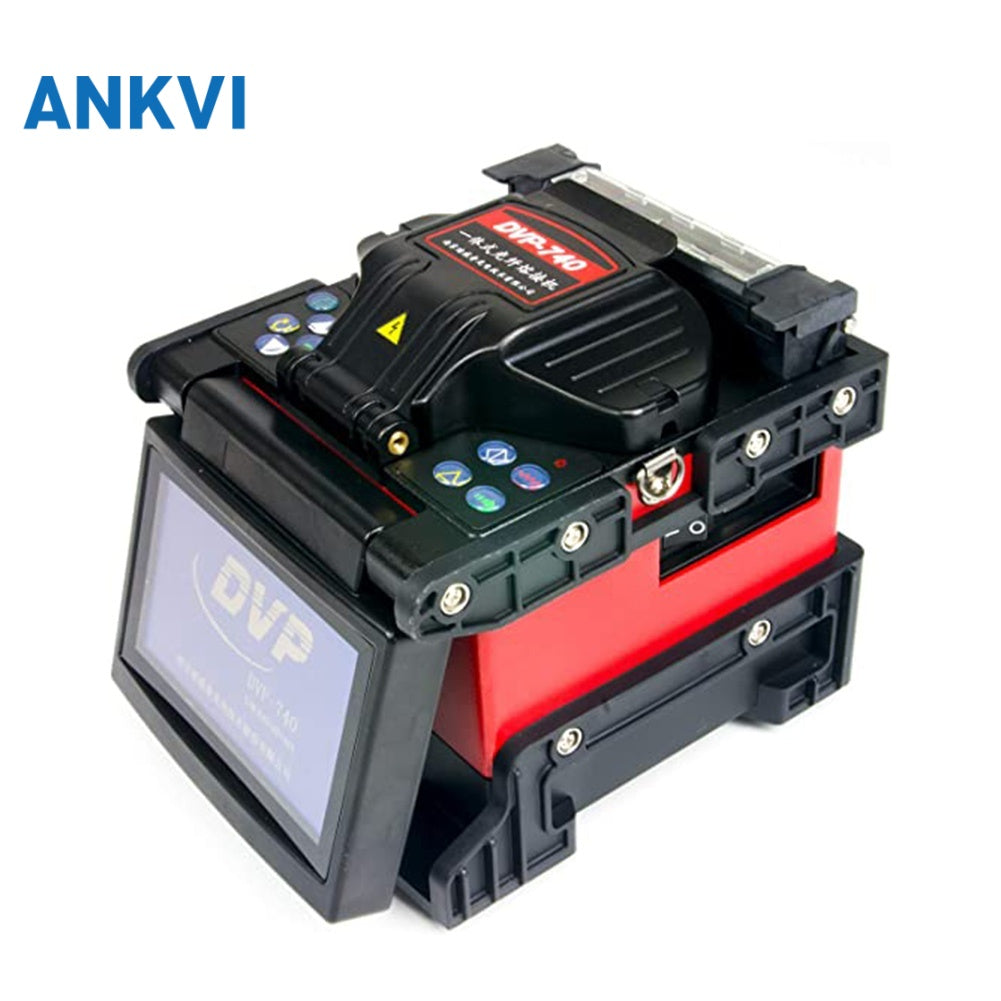

SIGNAL FIRE Fiber Optic Fusion Splicer DVP-740
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Efficient, versatile, lightweight & portable
Working platform design for aerial work

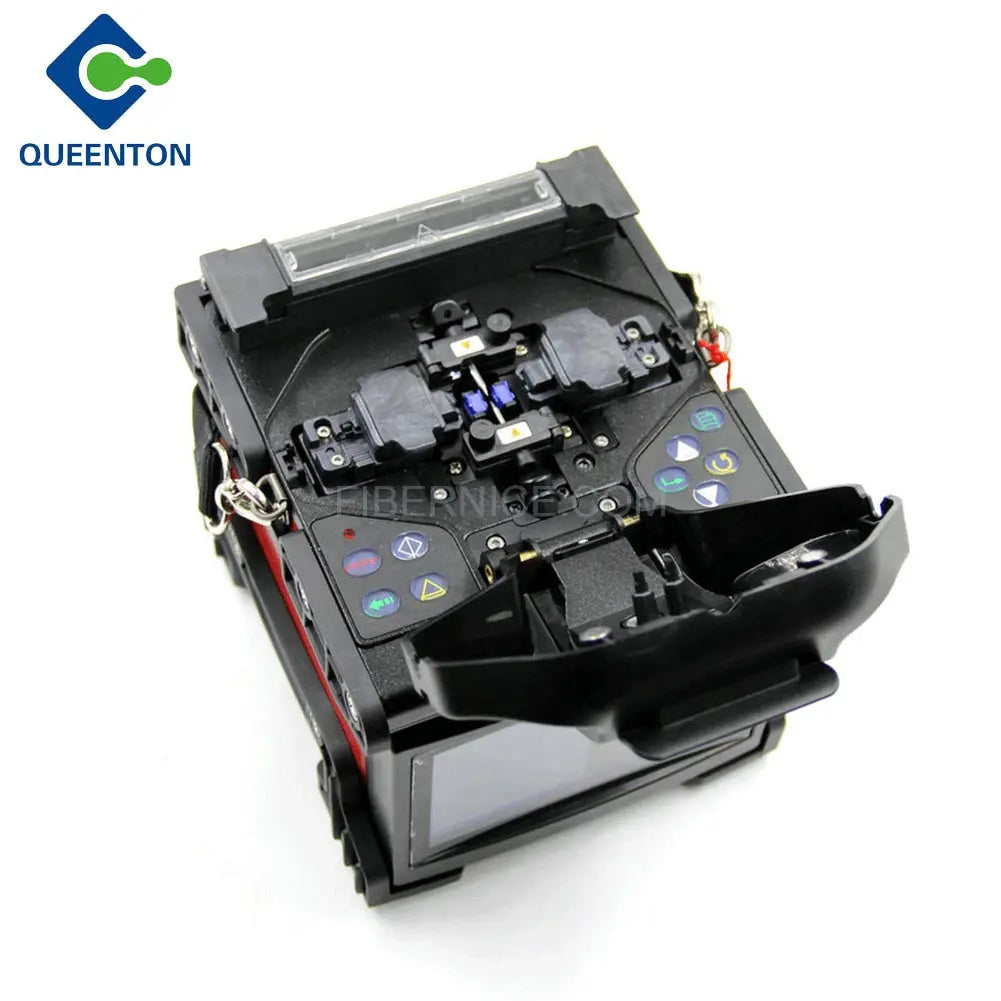

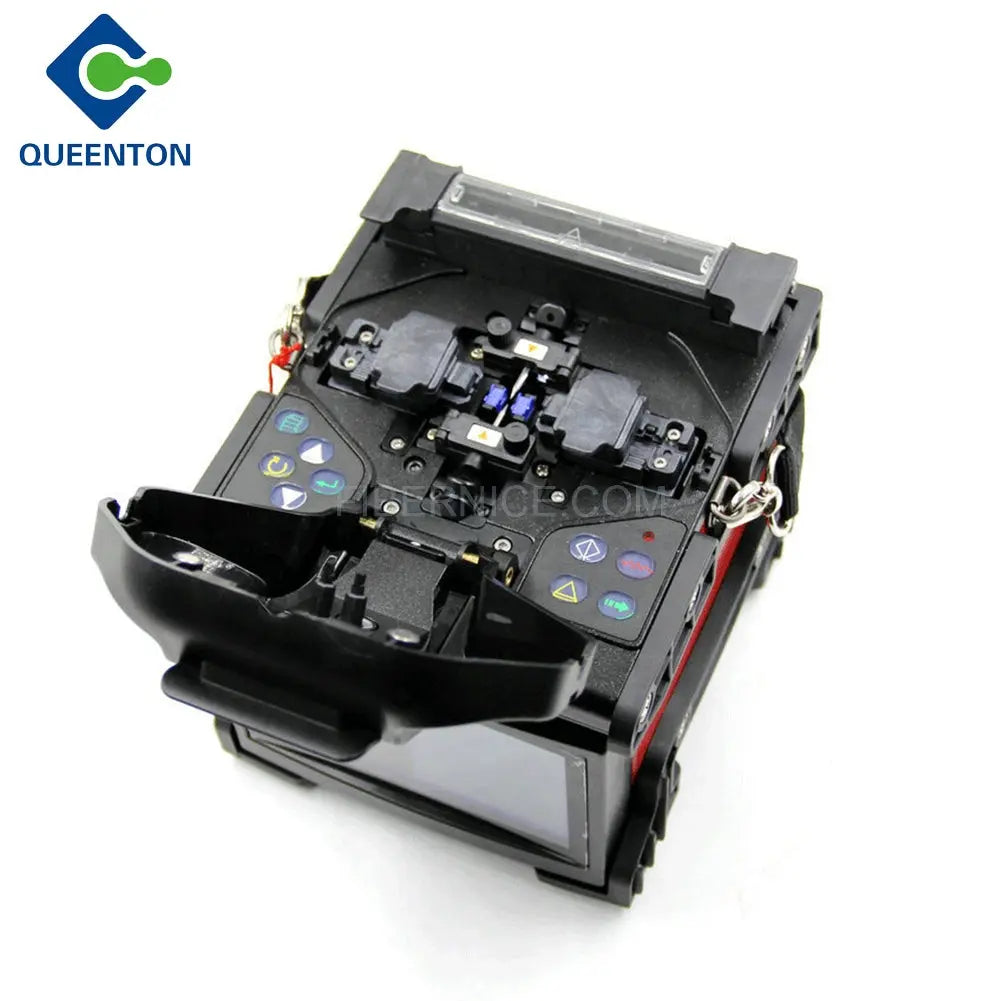

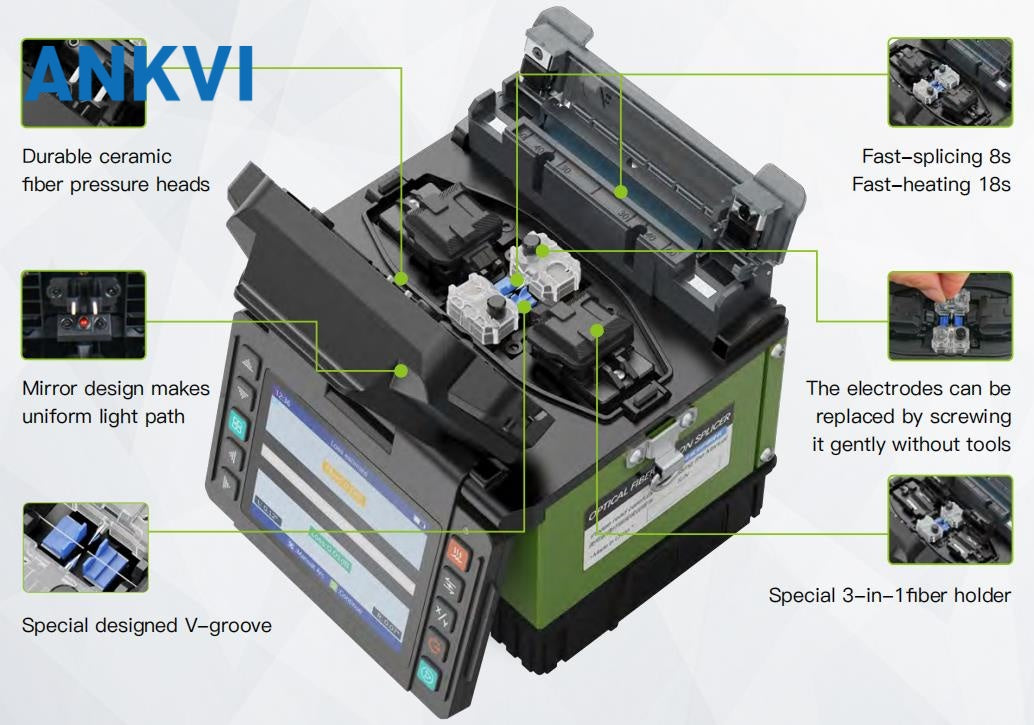

Special 3-in-1fiber holde
Electrode life around 5000 times(Replaceable)
Automatic splicing & automatic heating
Innovatively no need tools to replace electrodes
Support 120 times of splicing + heating when fully charged
| Splice Method : | Active Clad-Alignment |
| Applicable Fibers : | SM(TU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(TU-T G.655) |
| Compatible Fiber/Cable : | 0.25~3.0 mm / indoor flat cable |
| Fiber Holder : | Replaceable |
| Fiber Diameter : | Cladding: 80-150um, Coating: 100~1000um |
| Fiber Cleave Length : | 8-16 mm |
| Splice mode : | Max 128 modes |
| Typical Splice Loss : | SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB |
| Return Loss : | >>60dB |
| Splicing Time : | SM Quick mode : 8 sec / SM Average: 10 Sec |
| Estimated Splice Loss : | Available |
| Heating Time : | Quick mode 18 sec.(SM G652 250um 40mm Sleeve) adjustable |
| Protection Sleeve Length: | 20mm, 30mm,40mm, 50mm, 60mm |
| Heat Programs: | Max 32 modes |
| Battery : | 3400mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge |
| Electrode Life : | 5000 arcs (replaceable) |
| Auto-start : | Splice / Heating |
| Automatic Fiberldentifcation : | / |
| Automatic ARCldentifcation : | Automatic arc calibration by air pressure and temperature |
| Results Storage : | The last 10,000 splice records and 2,000 result images |
| Tension Test : | 1.96~2.25N |
| Operating Condition : | Altitude: 0-5000m, 0-95% relative humidity, -20-50"C, Max Wind 15m/s |
| Storage Condition : | 0~95% relative humidity, -20~60"C |
| Display : | 3.5” color high resolution (800 x 480) display |
| Fiber Magnifcation : | X, Y, XY, X/Y : 320X Magnifcation |
| Power Supply : | AC 100-240V,DC 9-14V |
| Terminal : | USB2.0 |
| Weight : | 1 .06kg without battery / 1.35kg with battery |
| Size : | 130H x 113W x 126D mm |
