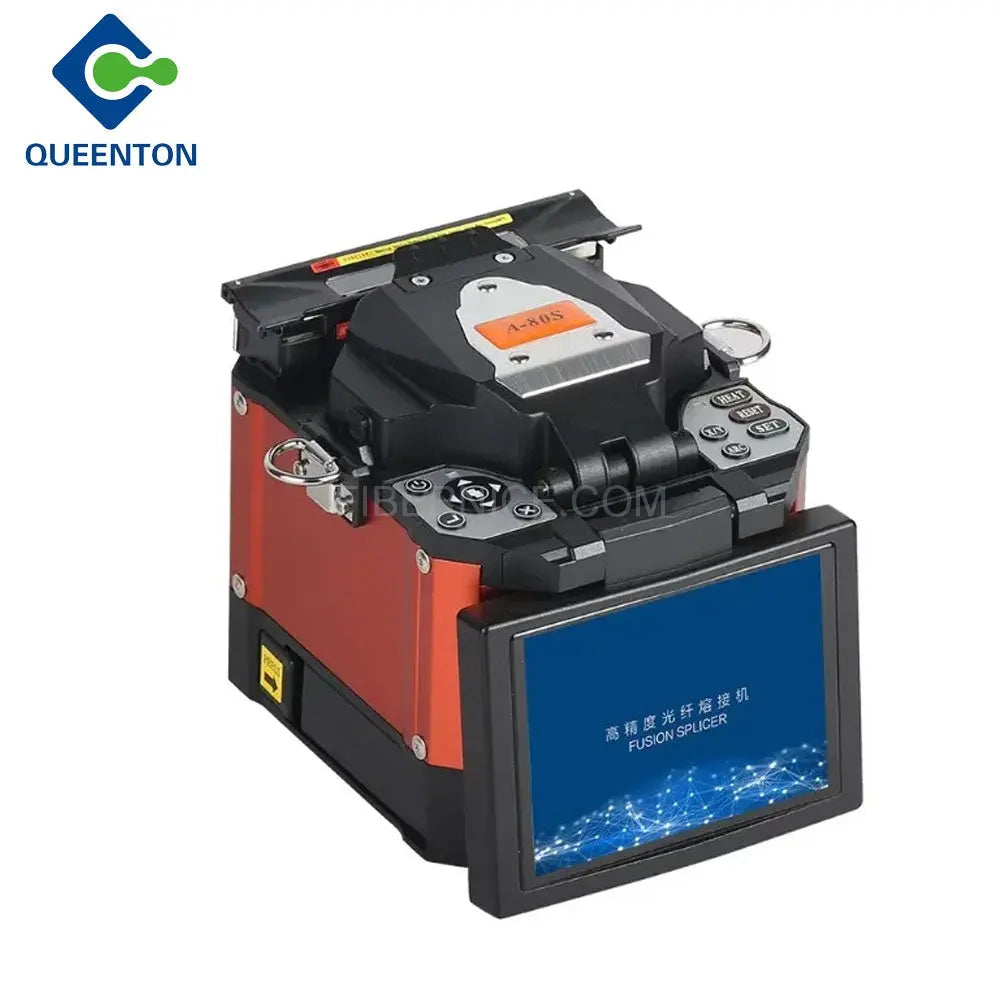

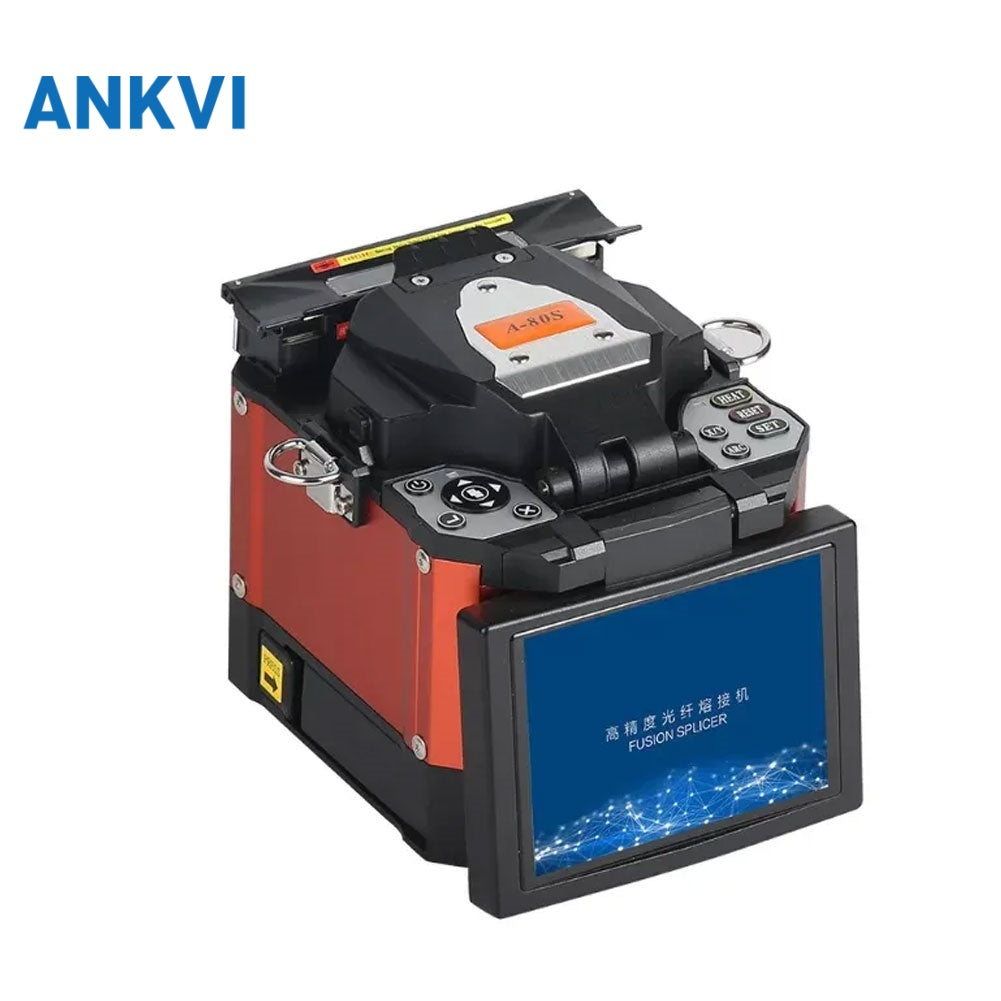

SKL Fiber Optic Fusion Splicer A-80S
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service
Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Welding loss/Cutting angleis clear at a glance, 5-inch high resolution screen(instructions in Chinese and English attached)
6700MAH large capacity lithium battery
18-26 seconds rapid heating (The heating time can be set and the heating temperature can be adjusted)
|
Optical fiber clamp |
Multifunctional clamp, suitable for: optical cable bare fiber jumper pigtail leather cable |
| Magnification | 400 times (x-axis or y-axis) |
| Heat shrinkable sleeve | 60mm, 40mm and a series of micro shrink casings |
| Display | 5.0-inch TFT color LCD display can be flipped, convenient for two-way operation |
| External interface | USB interface, convenient for data download and software update |
| Fusion mode | 17 use modes |
| Heating mode | 9 use modes |
| splice loss Storage | 5000 update connection results saved in built-in memory |
| Built in battery | Continuous welding and heating for no less than 200 times |
| Power supply | Built in lithium battery 11.8V power supply, charging time < 3.5;External adaptation,input ac100-240v50/ 60Hz, output dc13.5v/4.81a |
| Battery Save | 15% lithium battery power can be saved in typical environment |
| work environment | Under typical environment, 15% of lithium battery power can be savedTemperature:- 10+50, temperature: < 95% RH (no condensation),Working altitude: 0 ~ 5000m, maximum wind speed: 15m / S |
| Boundary dimension | 158mm (L) x130mm (W) x156mm (H) |
| floodlight | Convenient to place optical fiber at night |
| Weight | 1.77kg (excluding battery) 2.14kg (including battery) |
