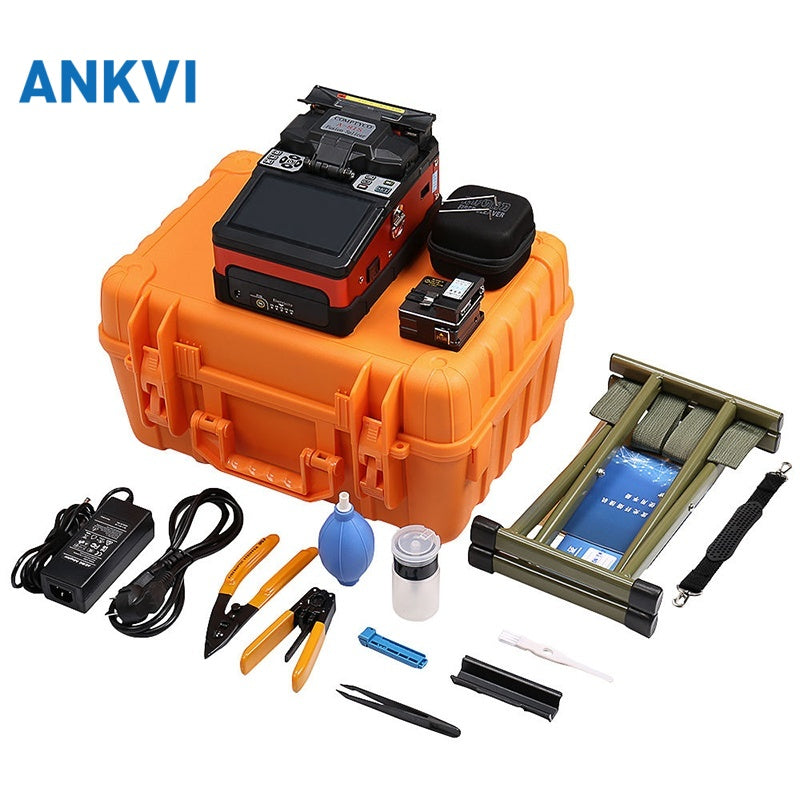

SKL Fiber Optic Fusion Splicer A-81S
Product Testing
We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.
One-stop Service

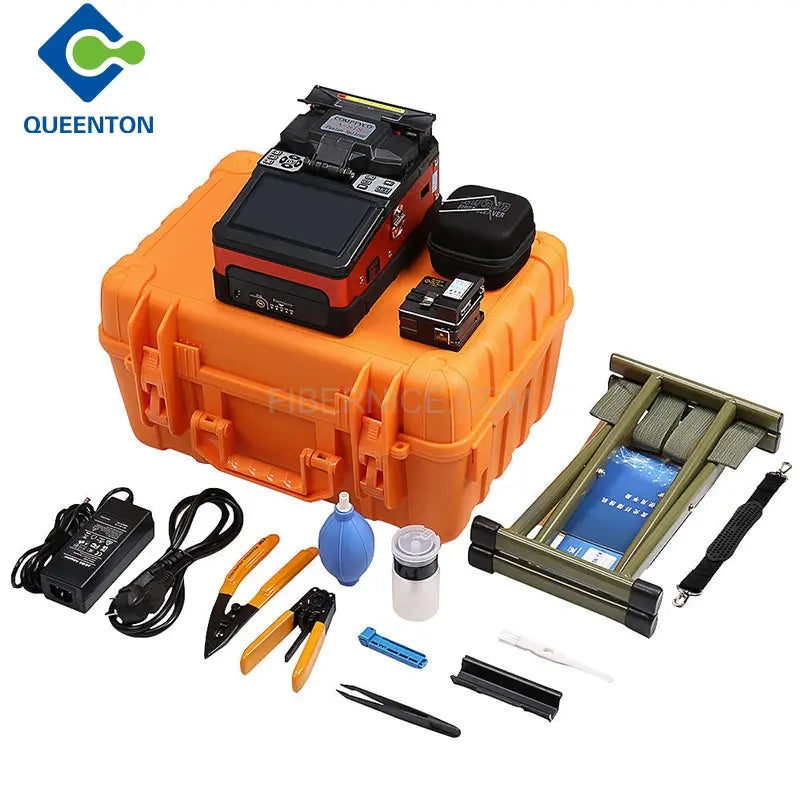

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.
14 months Warranty
Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection

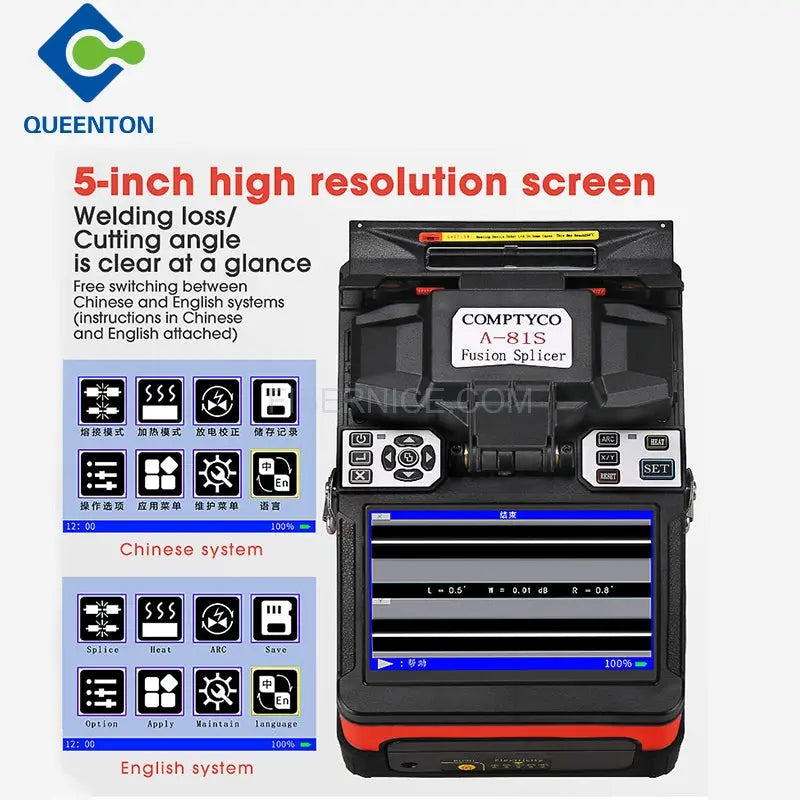

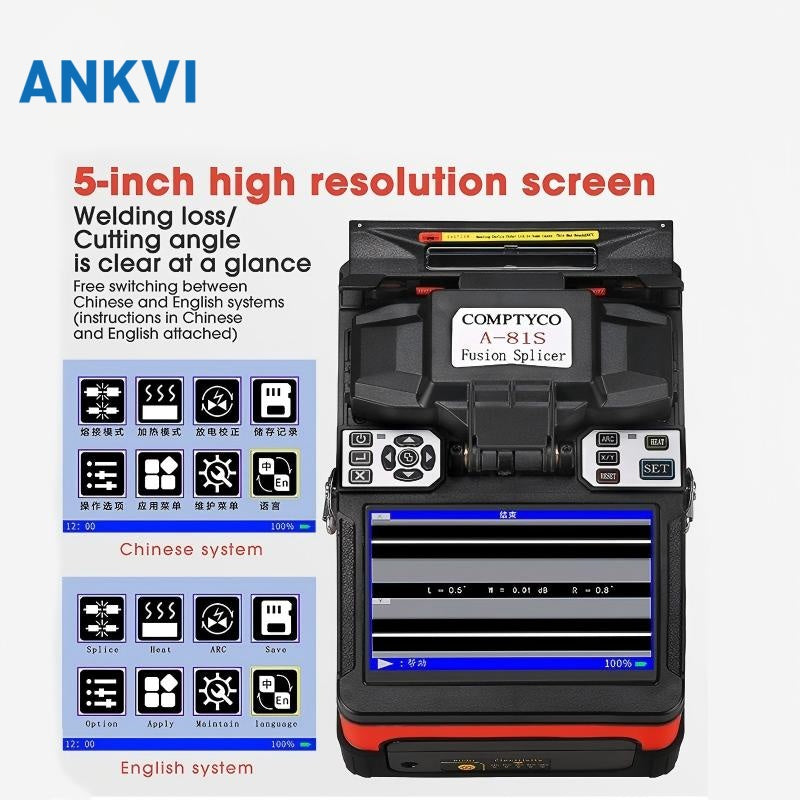

5-inch high resolution screen Welding loss/Cutting angleis clear at a glance

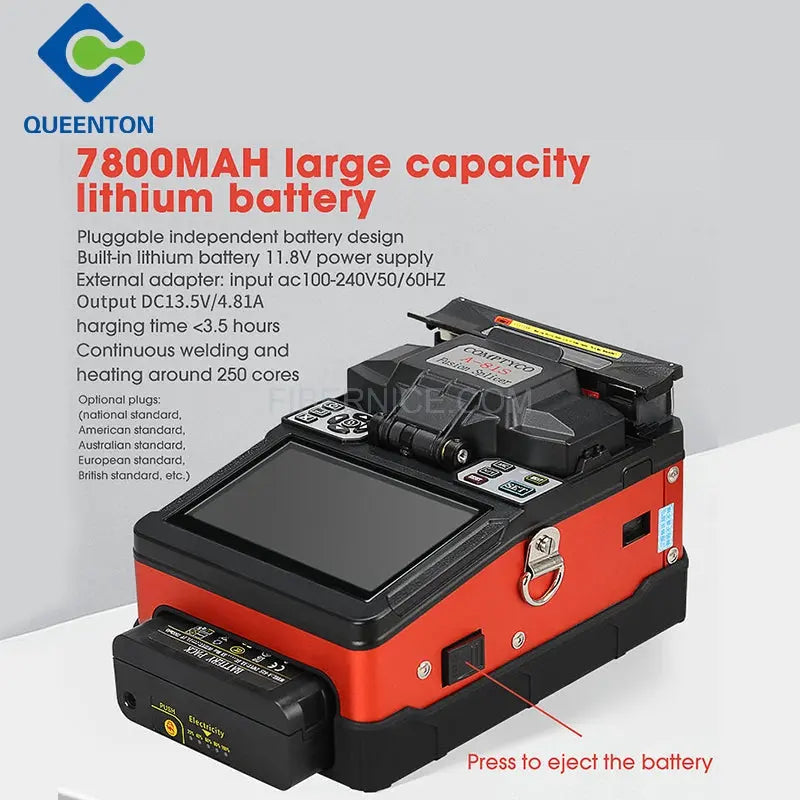

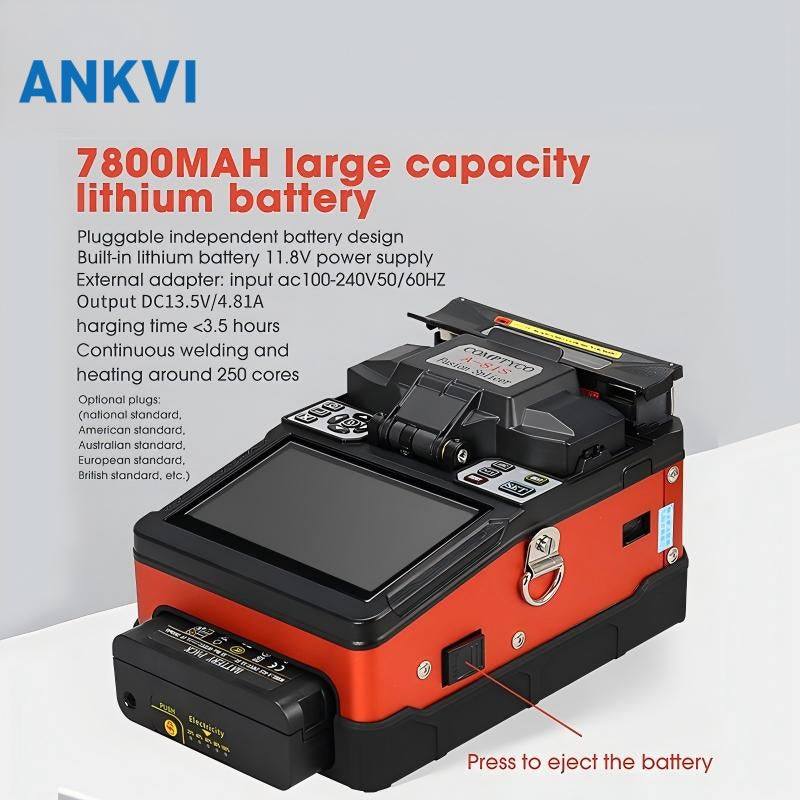

7800MAH large capacity lithium battery

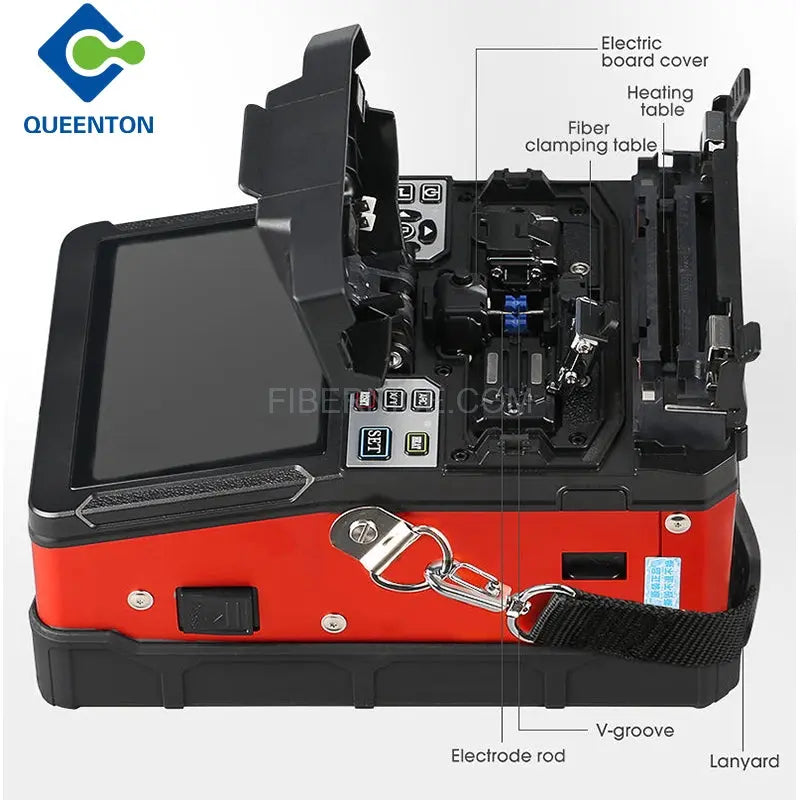

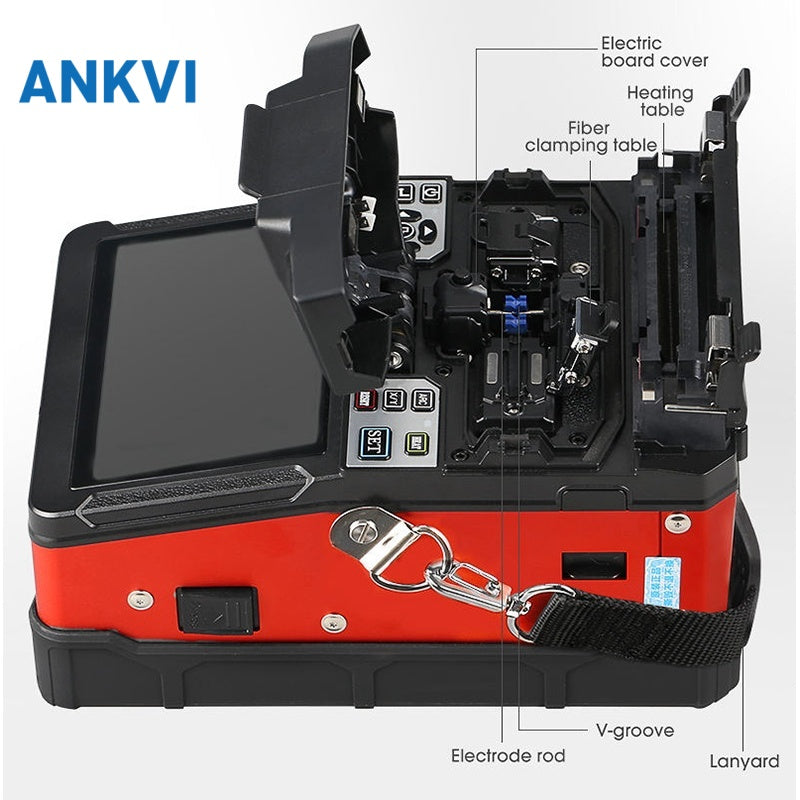

3 in 1 universal fixture (no need to replace)Apply to Bare fiber of optical cable/Jumper pigtail/Fiber optic cable
18-26 seconds rapid heating(The heating time can be set and the heating temperature can be adjusted)
| Opticalfiber fixture | Multi functional fixture, suitable for: Bare fiber of optical cable/jumper pigtail / pigtail cable |
| enlargemultiple | 400 Times (x-axis or y-axis) |
| Thermacasing | 60mm, 40mm and a section of miniature sleeve |
| display | 5.0 inch TFT color LCD display The content can be rotated to facilitate two-way operation |
| Externalinterface | USB interface, convenient for data download and software update |
| Weldingmode | 17 groups of usage modes |
| Heatingmode | 9 groups of usage modes |
| Splice lossStorage | Save 5000 update connection results in built-in memory |
| Built inbattery | It can be welded continuously and heated no less than 200 times |
| Powersupply | Built Lithium battery 11.8V Power Supply, charging time < 3.5H External adapter input AC100-240V50/60HZ Output dc13.5v/4.81a: plug optional: (national standard, American Standard, Australian standard, European standard. British Standard) |
| Power savingfunction | 15% lithium battery power saving in typical environment |
| workenvironment | Temperature:-10~+50, temperature: <9*5%RH(no condensation). Working altitude:0-5000m,maximum wind speed: 15m/s |

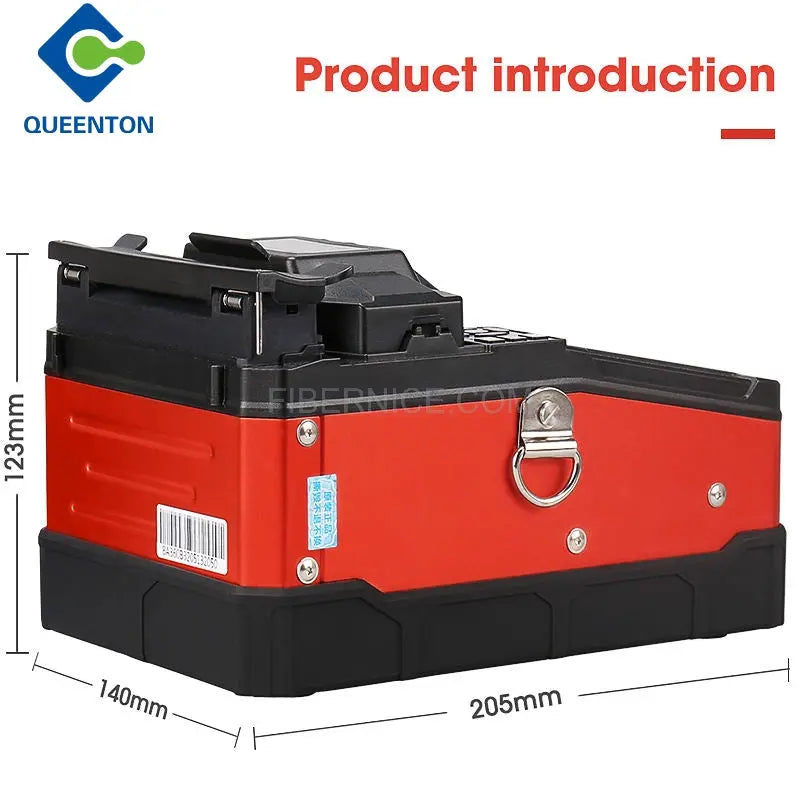

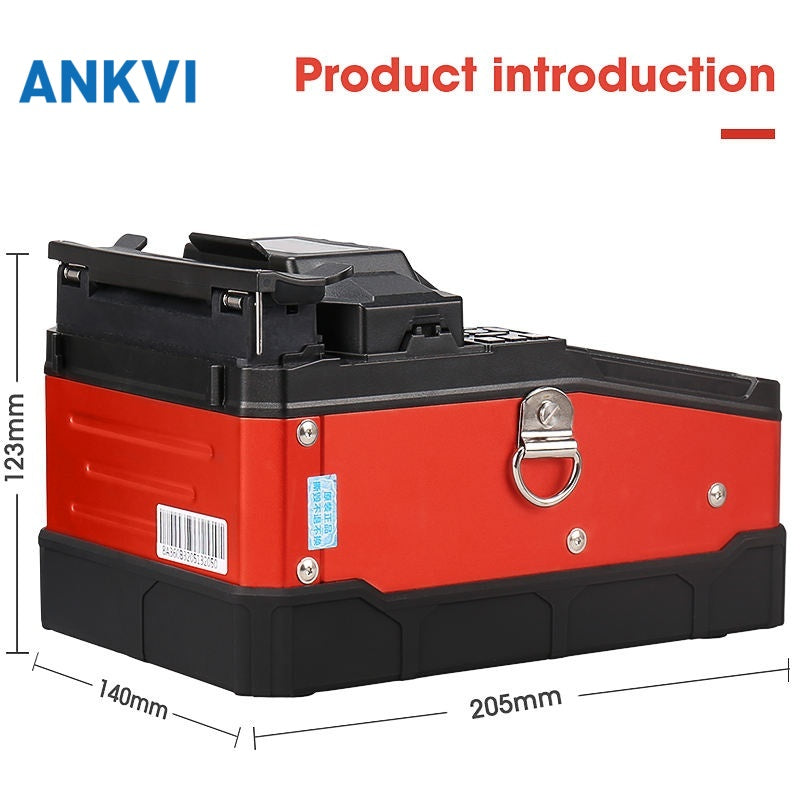

| Dimensions | 205mm (length)X140mm (width) X123mm (height) |
| flashlight | Convenient to place fiber at night |
| Weight | 1434g (without battery) 1906g (with battery) |
