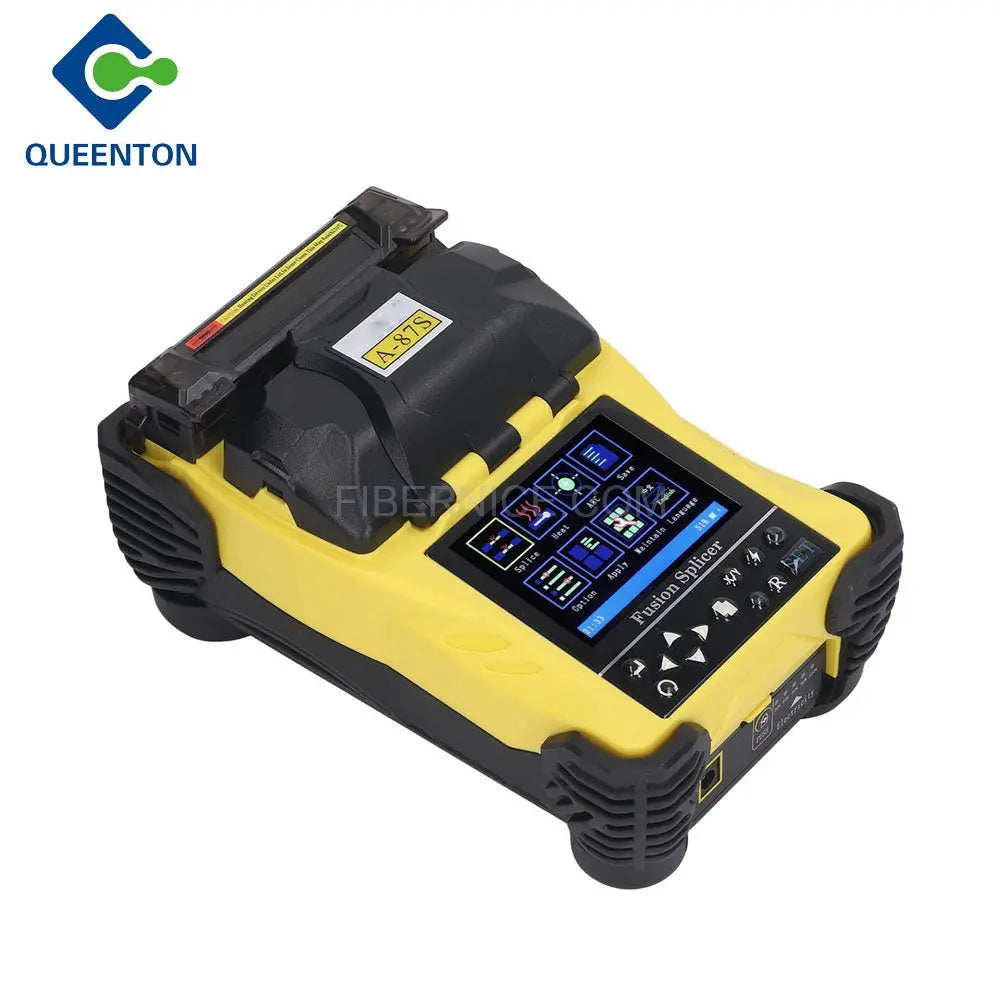

SKL Fiber Optic Fusion Splicer A-87S
SKL Fiber Optic Fusion Splicer A-87S
SKL Fiber Optic Fusion Splicer A-87S
SKL Fiber Optic Fusion Splicer A-87S

SKL Fiber Optic Fusion Splicer A-87S

Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description

Automatic heatingIntelligent weldingThe responseis not sfuck.

Welding loss / cutting angle manifest at a glance

Free switching between Chinese and English systems (with Chinese and English instructions)

Multifunctional clamp, suitable for bare optical fiber,pigtail, jumper and leather wire The replacement fixture can be used for SC and other connectors for various FTTX optical fiber cables

Optical fiberclamp Multi-function clamp for bare fiber, tail fiber, jumpers,leatherline;changing clamp applicable for SC and othelconnectors for a variety of FTTx opticalfiber and cable.
Amplificationfactor 400 times (X axis or Y axis)
Heat shrink 60mm、40mm and a series ofminiature bush
bush 3.5 inches TFT color LCD display
Display Reversible,convenient for bi-directionaloperation
Externalinterface USB interface, convenient for data download and software upgrade
Splicingmode 17 groups ofoperation modes
Heatingmode 9 groups ofoperation modes
Splicing lossstorage 5000 latest splicing results are stored in the built-in storage
Built-inbattery Supports continuous splicing and heating for not less than 200 times
Powersupply The built-in lithium battery 11.8V supplies the power, charging time<3.5h;Externaladapter,input AC100-240V50/60HZ，output DC13.5V/4.81A
Powersaving 15% of the power of the lithium battery can be savedin a typicalenvironment.
Workingenvironment Temperature:-10~+50C，Humidity :<95%RH (no condensation)Working altitude: 0~5000m，Max.wind speed: 15m/s
Outerdimension 214mm (long) x136mm (wide) x109.5mm (high)
Lighting Convenientfor optical fiberinstallation in the evening
Weight 1.21Kg (excl.battery) 1.5Kg (incl.battery)
