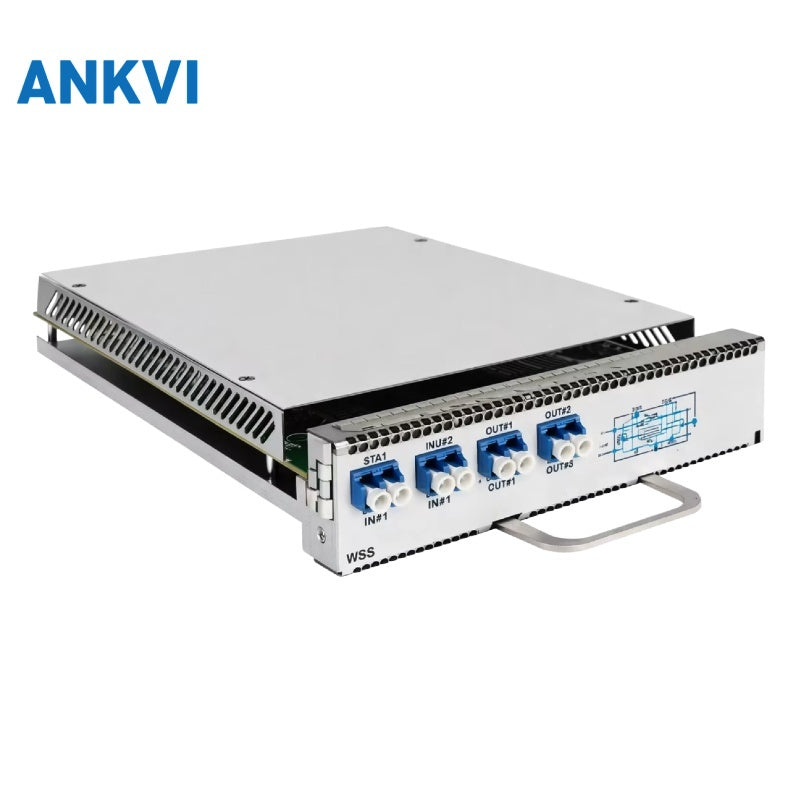

WSS09 1*9 ROADM Card

Product Description

The 1x9 ROADM is a compact solution designed for all network types, enabling dynamic traffic design and seamless wavelength routing changes. As a building block for reconfigurable 9D splitters, the 1x9 ROADM features nine independent ports. Port addition utilizes wavelength selection switches (WSS) to dynamically select from 96 DWDM channels on the ITU-T 50 GHz C-band grid for each port's input signal.The card occupies only 1/4 standard slot capacity.

Technical specifications

Performance Parameter

Qualification

Unit

Channel Wavelength

1528.773~1566.73

nm

Channel Spacing

50/100

Ghz

Channel Spectrum Width

N*12.5

4≤N≤12

Ghz

Channel Passband

＞ 0.3

nm

Insert Loss Flatness

＜0.5

dB

Insertion Loss

(Add 1~9 to BA input)

6.3

7.5

8.1

(dB)

(PA output to Drop 1~9)

6.3

7.5

8.1

(dB)

Channel Separation

Nearest values

25

dB

Nonadjacent values

35

dB

Polarization-related Loss

<0.15

dB

VOA Dynamic Range

0~15dB

dB

VOA Sets Resolution

0.1

dB

VOA Setprecision

@0~10dB damping

±1

dB

@>10dB damping

±1.5

Directivity

>50

dB

Return loss

>45

dB

Response Time

< 2dB step

＜1400

ms

< 15dB step

＜2000

Port switching

＜3000

Size

216 (W) * 262 (D) * 40 (H)

mm

Working Temperature

-10℃～+60℃

℃

Storage Temperature

-40℃～+85℃

℃

Relative Humidity

5%~95% Non-condensing



Power Dissipation

≤80

W
