Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description

he optical cable connector box is used for direct connection and large capacity discontinuous connection of optical fiber cable, and plays a role of protecting optical fiber cable joint. It can meet the construction requirements for laying optical fiber cables, underground, pipelines and wells

Features

1. It is suitable for the aerial.

2. All kinds of accessories can be configured.

3. An aging resistance: good stability to heat, heat radiation, air, ozone etc..

4. The purpose of corrosion resistance: high resistance to dilute acid, salt, oxidizing agent, aliphatic hydrocarbons etc..

5. The purpose of sealing technology: using repeatable opening seal components, to ensure airtight The purpose of sealing technology: using repeatable opening seal components, to ensure airtight good waterproof performance.

6. All the mechanical properties: the ability to endure harsh conditions such as vibration, impact, cable tensile distortion and strong temperature change etc..

Locking device: no special tools are needed for easy installation and repeated opening

Model No. XRT-006
Color Black
Capacity 12cores(12core/tray*1trays)
24cores(24core/tray*1trays)
48cores(24core/tray*2trays)
Protection Level IP68
Material ABS
Inlet/Outlet 2 inlet 2 outlet / 1 inlet 3 outlet

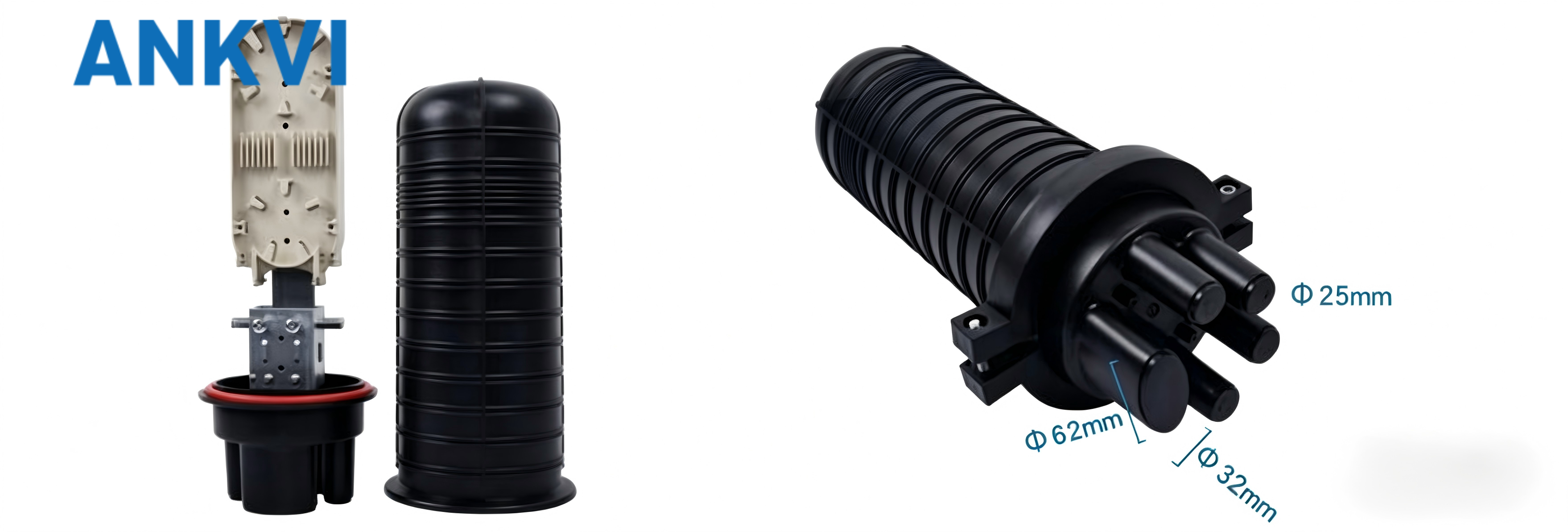

Product Size H300*Φ105mm
Scope of inlet (2in)Oval/outet(2out) Round shape Φ20mm
Scope of inlet (1in)Oval shape Φ18mm
Scope of outet(3out) Round shap Φ18mm
Scope of inlet (1in)Oval shape Heat Shrinkable sealin

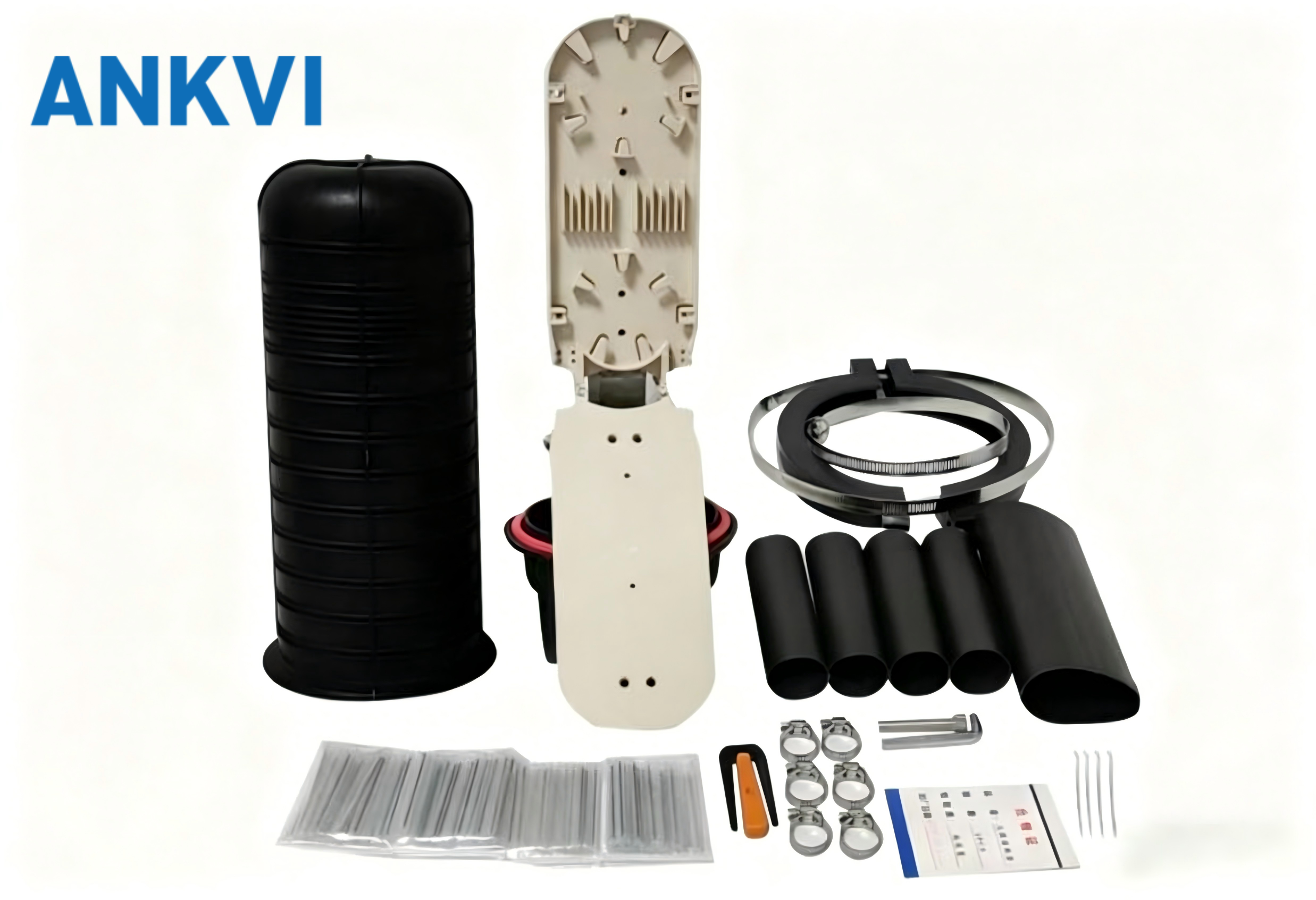

No Name description qty/pcs
1 Aerial hand kit lron + pole+screw 1
2 Plastic tie 3mm*120mm/white 4
3 Splice sleeve 60mm*3.0*1.5 Same as splice Closure Cores
4 Cable splitter small siz 1
5 Heat shrink tube black(remark:inner wall spiral coating 1
6 Heat shrink tube black(remark:inner wall spiral coating) 3
