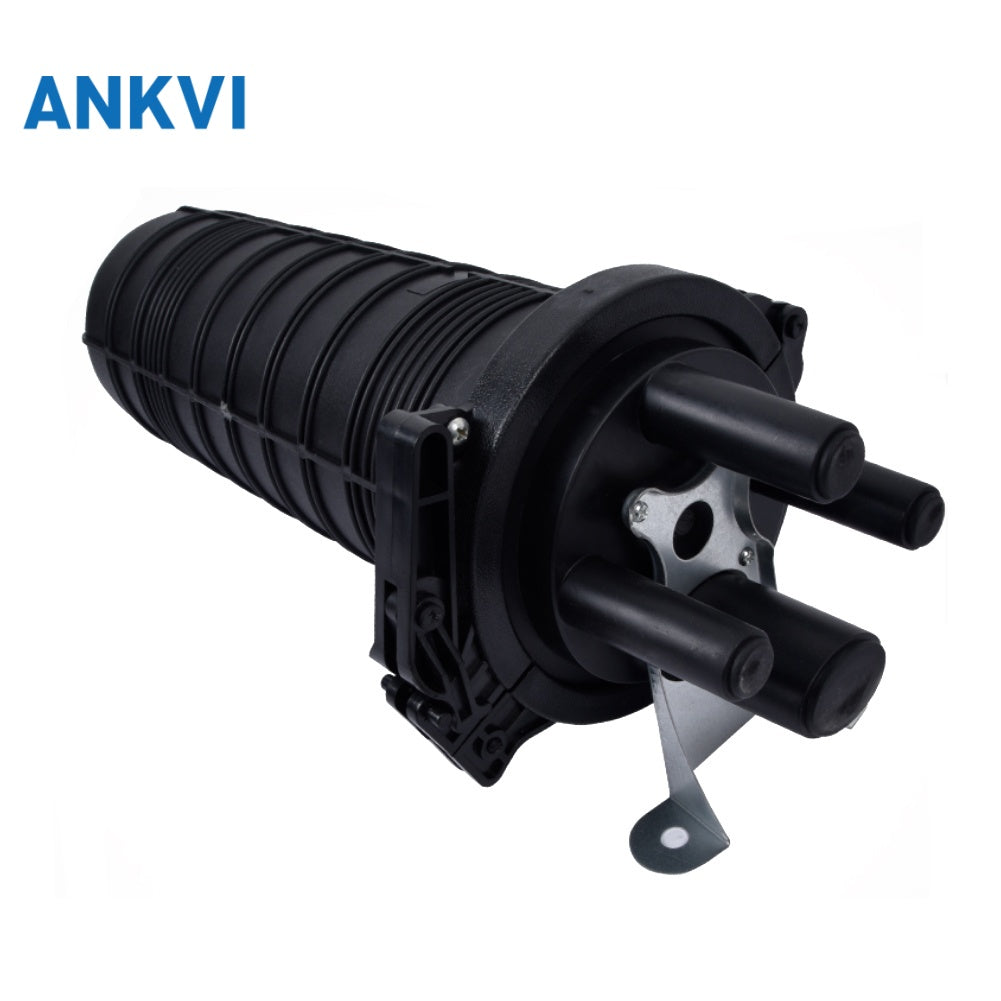

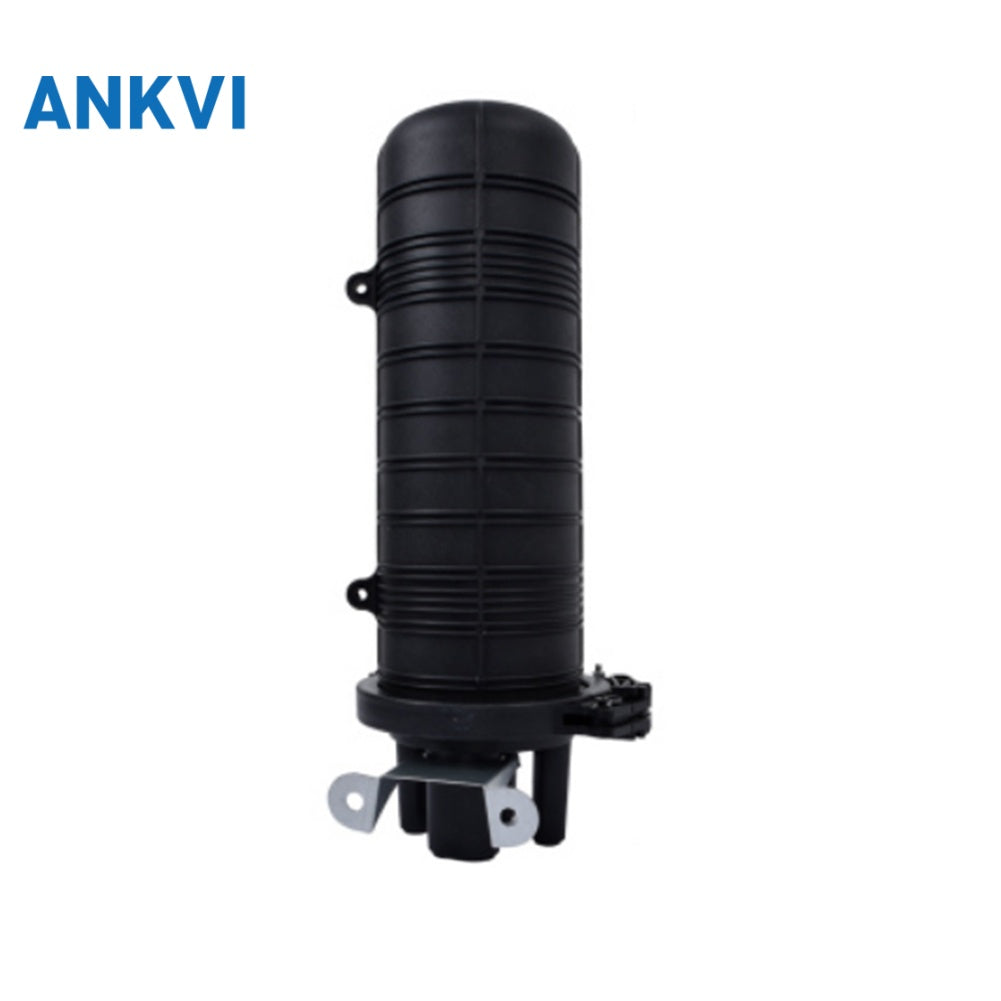

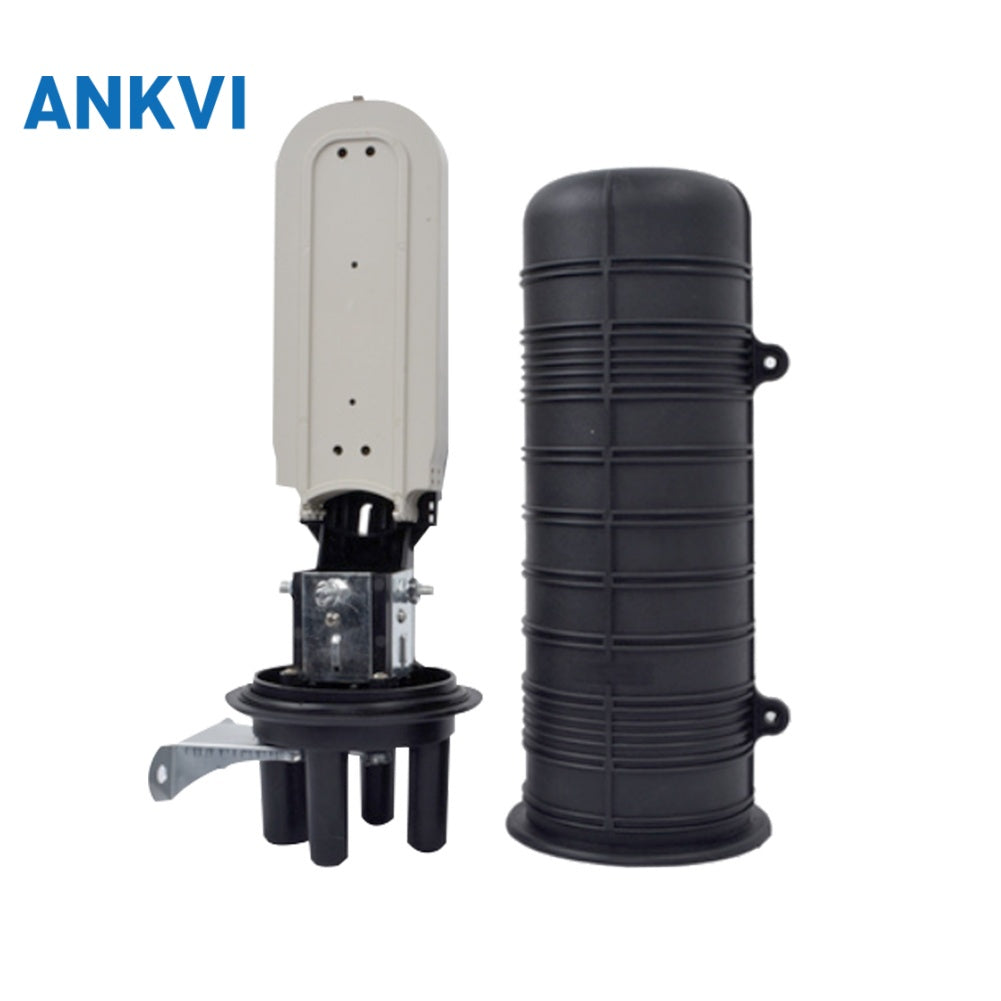

he optical cable connector box is used for direct connection and large capacity discontinuous connection of optical fiber cable, and plays a role of protecting optical fiber cable joint. It can meet the construction requirements for laying optical fiber cables, underground, pipelines and wells
Features
1. It is suitable for the aerial.
2. All kinds of accessories can be configured.
3. An aging resistance: good stability to heat, heat radiation, air, ozone etc..
4. The purpose of corrosion resistance: high resistance to dilute acid, salt, oxidizing agent, aliphatic hydrocarbons etc..
5. The purpose of sealing technology: using repeatable opening seal components, to ensure airtight The purpose of sealing technology: using repeatable opening seal components, to ensure airtight good waterproof performance.
6. All the mechanical properties: the ability to endure harsh conditions such as vibration, impact, cable tensile distortion and strong temperature change etc..
Locking device: no special tools are needed for easy installation and repeated opening
| Model No. | XRT-MS-005 |
| Color | Black |

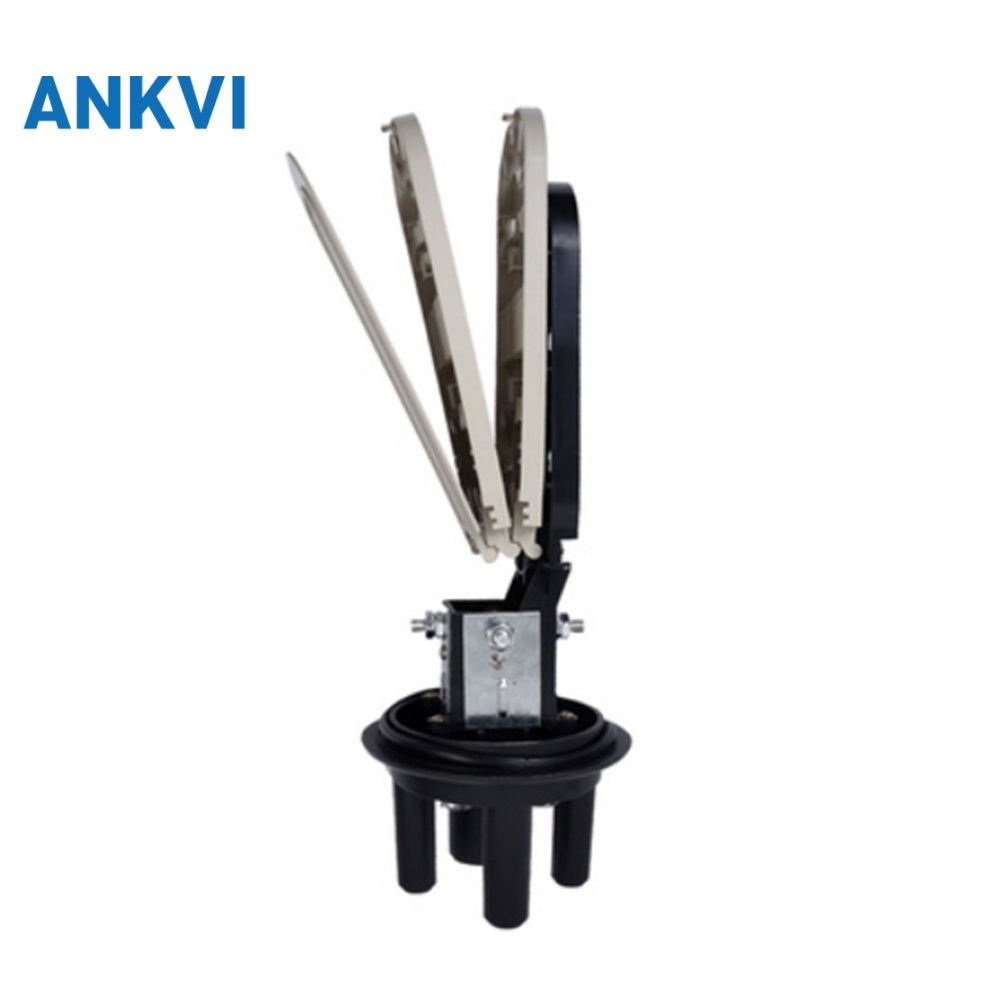

| Capacity | 12cores(12core/tray*1trays) 24cores(24core/tray*1trays) 48cores(24core/tray*2trays) 72cores(24core/tray*3trays) 96cores(24core/tray*4trays) |
| Protection Level | IP68 |
| Material | PP+ABS |
| Inlet/Outlet | 1 inlet 3 out |

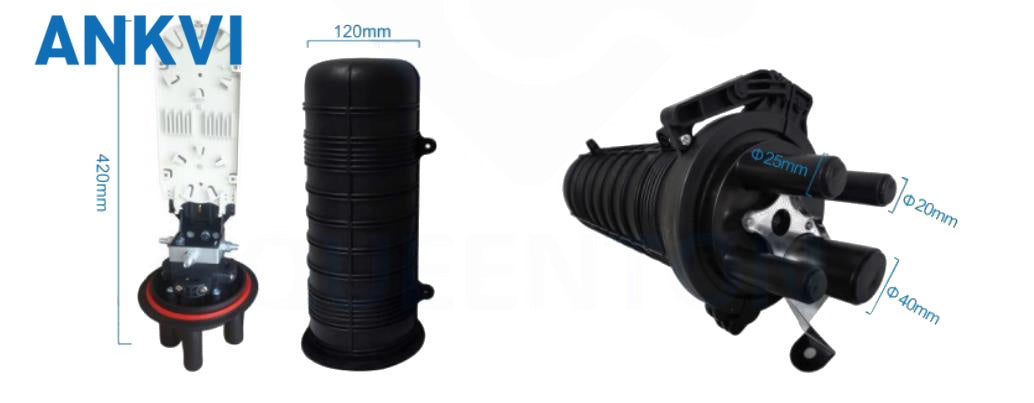

| Product Size | H440*Φ120mm |
| Scope of inlet (1in)Oval shape | 40*25mm |
| Scope of outet(3out) Round shape | Φ20mm |

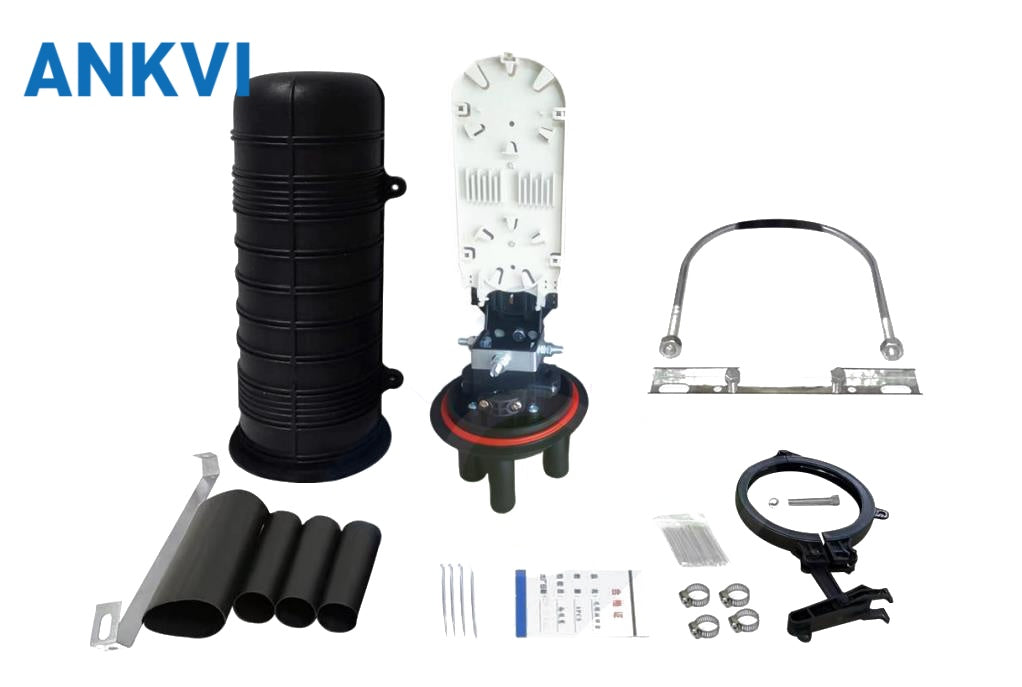

| No | Name | description | qty/pcs |
| 1 | Aerial hand kit | lron +pole+screw | 1 |
| 2 | Plastic tie | 3mm*120mm/white | 4 |
| 3 | Splice sleeve | 60mm*3.0*1.5 | Same as splice Closure Cores |
| 4 | Heat shrink tube |
black(remark:inner wall spiral coating) | 1 |
| 5 | Heat shrink tub |
black(remark:inner wall spiral coating) | 3 |
| 6 | Throat hoop |
4 |
