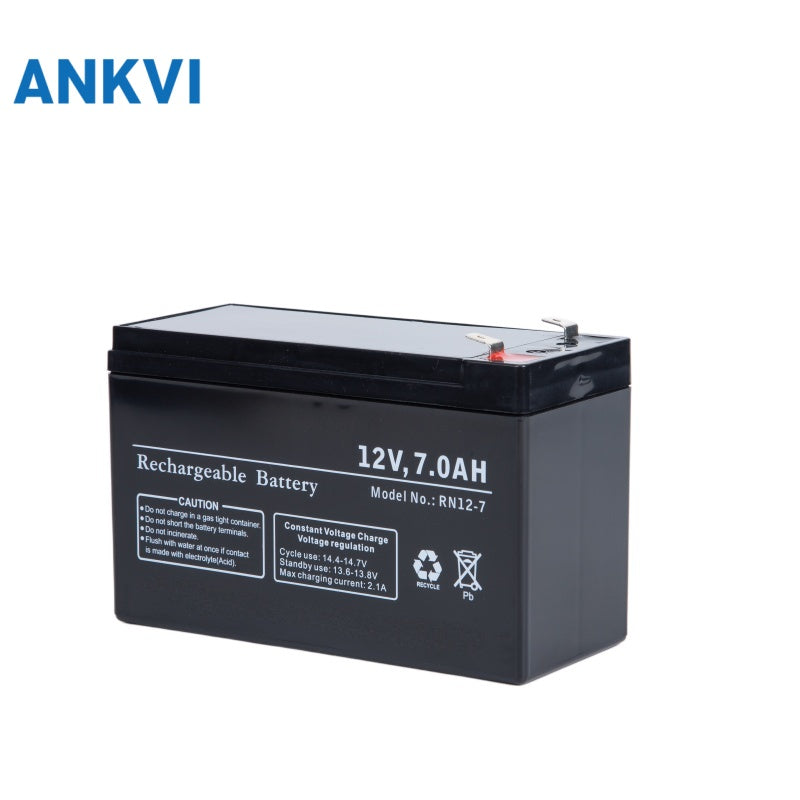

12V 7.0AH Rechargeable Battery VRLA AGM 2.03kg 33mΩ Internal Resistance for Emergency Lighting Telecom

12V 7.0AH Rechargeable Battery VRLA AGM 2.03kg 33mΩ Internal Resistance for Emergency Lighting Telecom

Get Wholesale Price

Teste de produtos

Testamos produtos um por um. Testamos a funcionalidade do produto simulando cenários de uso do mundo real para garantir uma operação suave.

Serviço completo

Nossos produtos incluem equipamentos de fibra óptica, cabos ópticos, acessórios, ferramentas, etc., seja você um atacadista, distribuidor, engenheiro ou ISP, podemos atender às suas necessidades.

1 ano de garantia

Saber mais.
Descrição
Parameter Specification
Nominal Voltage 12V
Rated Capacity (20 hour rate) 7.0 Ah
Rated Capacity (10 hour rate) 6.48 Ah
Rated Capacity (5 hour rate) 6.00 Ah
Rated Capacity (1 hour rate) 4.60 Ah
Length 151 ± 1 mm (5.94 inches)
Width 65 ± 1 mm (2.56 inches)
Height 95 ± 1 mm (3.74 inches)
Total Height (incl. terminal) 101 ± 1 mm (3.98 inches)
Weight (Approx.) 2.03 kg (4.48 lbs) ± 4%
Internal Resistance (Full Charged) 33 mΩ
Self‑Discharge (3 months) 91% capacity remaining
Self‑Discharge (6 months) 82% capacity remaining
Self‑Discharge (12 months) 64% capacity remaining
Self‑Discharge (Monthly) < 3% at 25℃
Charge Voltage (Cycle Use) 14.50 – 14.90 V
Charge Voltage (Float Use) 13.50 – 13.80 V
Max Initial Charging Current ≤ 2.10 A
Capacity at 40℃ (20hr rate) 102%
Capacity at 25℃ (20hr rate) 100%
Capacity at 0℃ (20hr rate) 85%
Capacity at -15℃ (20hr rate) 65%
Battery Type VRLA / AGM Sealed Lead Acid
Applications UPS, Solar/Wind Power, Telecom, Medical, Security, CATV, Computers, Electric Power Systems, Electric Tools, Toys, Emergency Lighting
