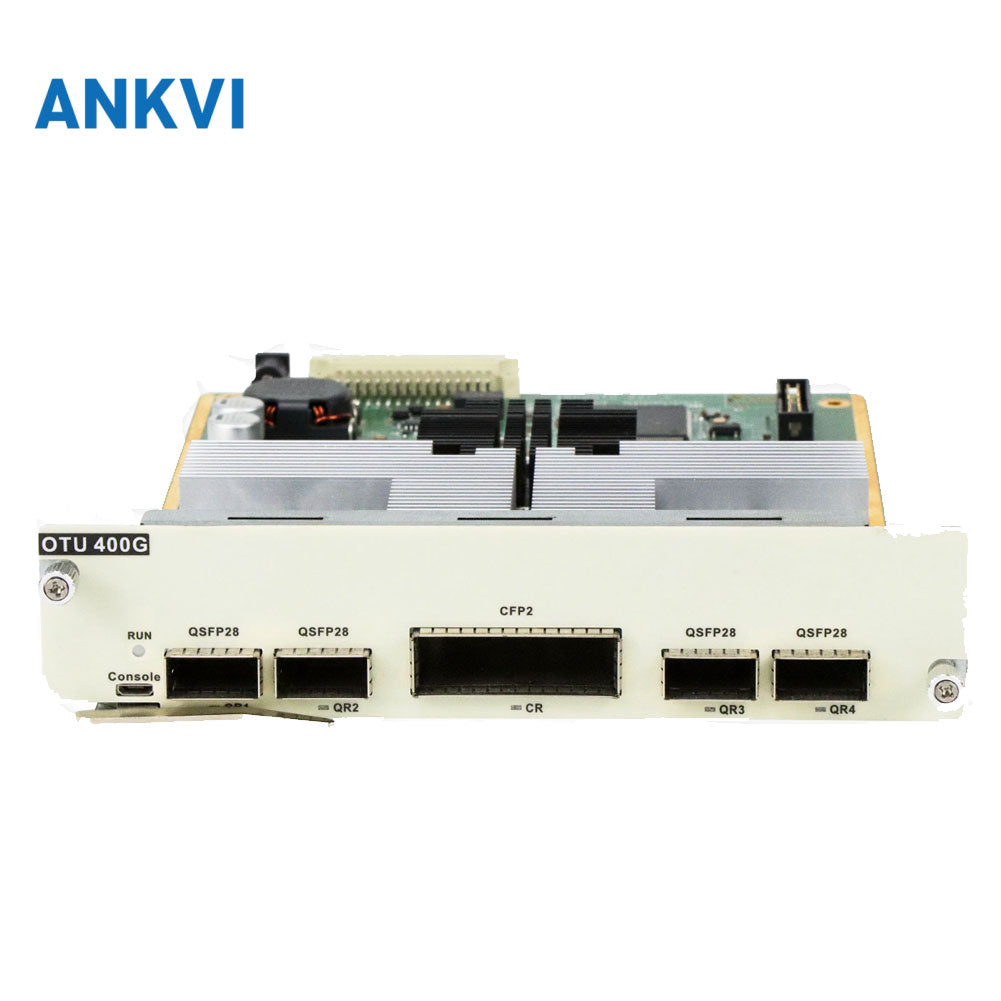

400G Coherent TMUX:1*CFP+4*QSFP28

Product Description

The 400G coherent TMUX service card supports four 100GE service accesses, adopts advanced technologies such as 16QAM modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 400GE business over 400 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Technical specifications

Function

Description



Interface

• Client-side interfaces: 4, pluggable based on QSFP28

• Line side interface: 1, based on 400G CFP2 pluggable, coherent 16QAM

Line mode

Support transparent transmission of 1*400GE service, which can convert 4 channels of 100GE service optical signals on the client side into 1 channel of 400G rate DWDM standard wavelength optical signals

Repeater mode

Support 400G wavelength electrical relay

Support business type

• 100GE

WDM technology

Support DWDM: C-band 50GHz 96 waves tunable

FEC technology

Support oFEC

Number of occupied slots

Support OSP3800 full series chassis, occupying 2 slots, (1RU)

Network management function

• Support real-time monitoring of port working status, including: transmit optical power, receive optical power, temperature, error code statistics etc.

• Support port loop-back function and port shutdown function

Max power consumption

65W (including optical module)

MTBF

＞100,000 hours
