Descrição

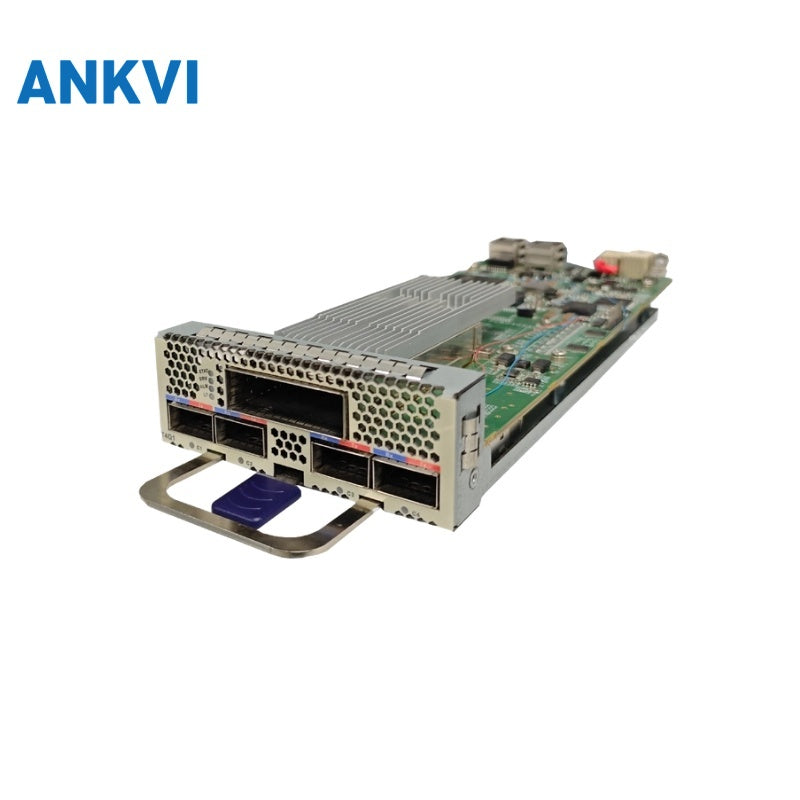

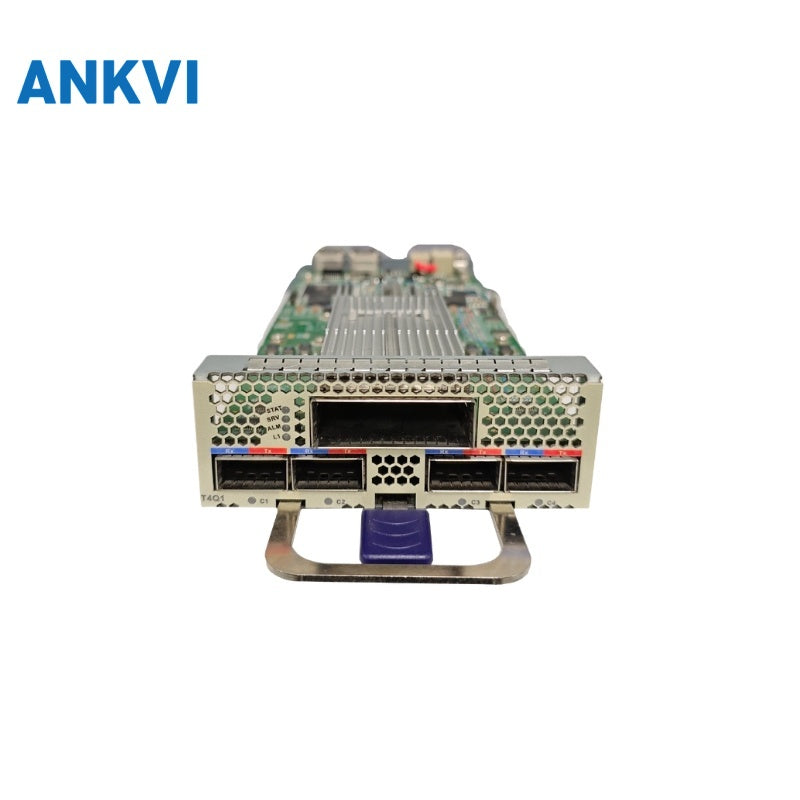

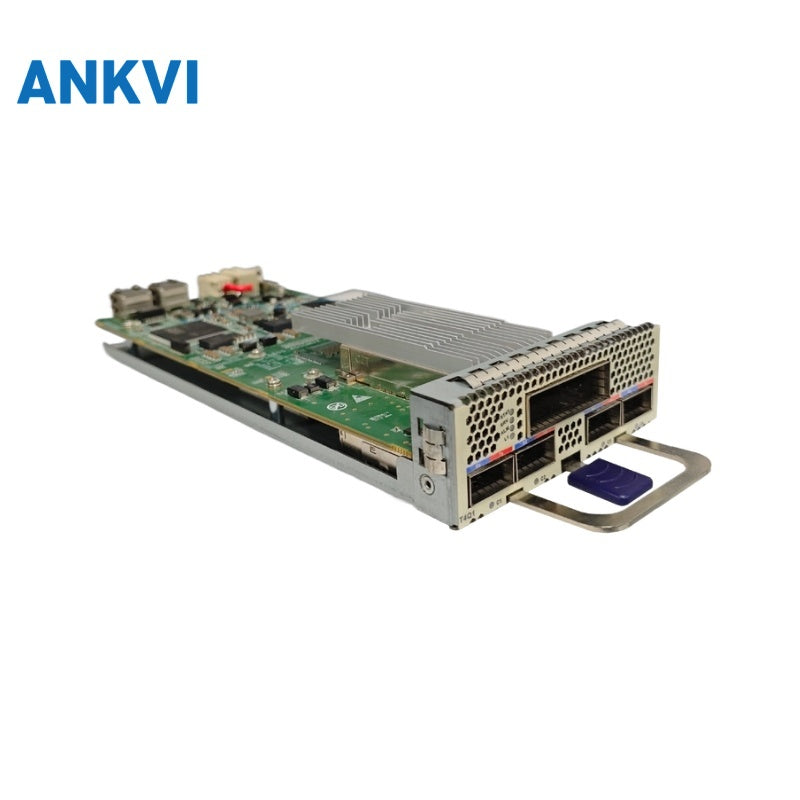

T4Q1 Card

Product Description

The 400G coherent TMUX service card supports four 100GE service access, adopts advanced technologies such as 16QAM/16QAM-pcs/QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 400GE business over 2000 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Technical specifications

Function

Description



Occupied Slots

1/4 slots,shown in name 1~8 slot

Client-side Interface

Supports 4 pluggable QSFP28 100G modules

Line-side Interface

Supports 1 pluggable 400G CFP2 DCO coherent module

Service Type

100GE

Service Mapping Path

4*100G client to 1*400G line mode:

. 100G<->ODU4<->ODUC4<->OTUC4

Line-side Modulation Format

400G: 16QAM/16QAM-PCS/QPSK

WDM Technology

Support DWDM: C-band 50GHz 96 waves tunable

FEC Technology

Support oFEC

Client-side Ethernet RMON Monitoring Function

Support

Client-side Automatic Laser Shutdown (ALS)

Support

Local Fault

Supports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure. Supports transparent transmission of Local Fault and Remote Fault.

Loop

Support

Time Delay Measurement

Support

Line-side Protection Function

When switching over with the optical protection card, the switchover must be completed within 50ms.
