T8E2 800G Muxponder 8×100G or 4×400G Client 2×800G Line Coherent 2000km 96λ C‑Band, 1/2 Slot

T8E2 800G Muxponder 8×100G or 4×400G Client 2×800G Line Coherent 2000km 96λ C‑Band, 1/2 Slot

Get Wholesale Price

Teste de produtos

Testamos produtos um por um. Testamos a funcionalidade do produto simulando cenários de uso do mundo real para garantir uma operação suave.

Serviço completo

Nossos produtos incluem equipamentos de fibra óptica, cabos ópticos, acessórios, ferramentas, etc., seja você um atacadista, distribuidor, engenheiro ou ISP, podemos atender às suas necessidades.

1 ano de garantia

Saber mais.
Descrição

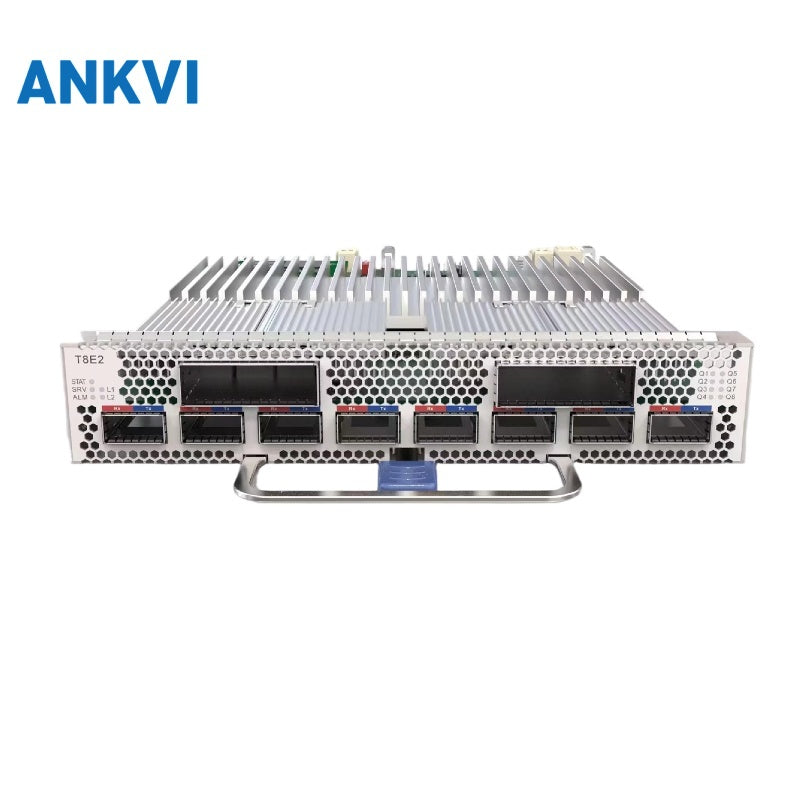

T8E2 Card

Product Description

The 800G coherent TMUX service card supports eight 100GE or dual two 400GE service access, adopts advanced technologies such as 16QAM/16QAM-pcs/QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.

It can realize 800GE business over 2000 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.

Technical specifications

Function

Description



Occupied Slots

1/2 slots,shown in name 1~8 slot

Client-side Interface

Supports 8 pluggable QSFP28 100G modules

Supports 4 pluggable QSFP112 400G modules

Line-side Interface

Supports 2 pluggable 400G/800G CFP2 DCO coherent modules

Service Type

•100GE, 100GE FlexE (Unware mode), 400GE

Service Mapping Path

8*100G client to 1*800G line mode:

. 100G<->ODU4<->ODUC8<->OTUC8

Dual 2*400G client to 1*800G line mode:

. 400G<->ODUC4<->ODUC8<->OTUC8

Dual 4*100G client to 1*400G line mode:

. 100G<->ODU4<->ODUC4<->OTUC4

1*800G line to 1*800G line OEO repeater mode:

. OTUC8<->ODUC8<->OTUC8

1*400G line to 1*400G line OEO repeater mode:

. OTUC4<->ODUC4<->OTUC4

Line-side Modulation Format

400G: 16QAM-PCS/QPSK

800G: 16QAM

WDM Technology

Support DWDM: C-band 50GHz 96 waves tunable

FEC Technology

Support oFEC

Client-side Ethernet RMON Monitoring function

Support

Client-side Automatic Laser Shutdown (ALS)

Support

Local Fault

Supports downstream insertion of Local Fault from the client side in case of Ethernet input loss or WDM side failure. Supports transparent transmission of Local Fault and Remote Fault.

Loop SupportTime Delay Measurement

Support
