FTTH AUS Fiber Optic Drop Cable 1.6mm GYFXY

Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description

Fiber Parameters

Items G.652D
Mode Field Diameter 1310nm 9.2±0.4 um
Mode Field Diameter 1550nm 10.4±0.5 um
Cladding Diameter 124.8±0.7 um
Cladding Non-Circularity ≤0.7 %
Core-Cladding Concentricity Error ≤0.5 um
Coating Diameter 245±5 um
Coating Non-Circularity ≤6.0 %
Cladding-Coating Concentricity Error ≤12.0 um
Cable Cutoff Wavelength λcc 1260 um
Attenuation(max.) 1310nm ≤0.36 dB/km
Attenuation(max.) 1550nm ≤0.22 dB/km



Mechanical and Environmental Characteristics

Max. Tensile(Long Term) 2000 N
Max. Tensile(Short Term) 4000N
Crush (Long Term) 1000 N/10cm
Crush (Short Term) 2000 N/10cm
Min. Bend Radius(Dynamic) 25D mm
Min. Bend Radius (Static) 10D mm
Installation Temperature -20~±60 °C
Operating Temperature -40~±70 °C
Storage Temperature -40~±70 °C

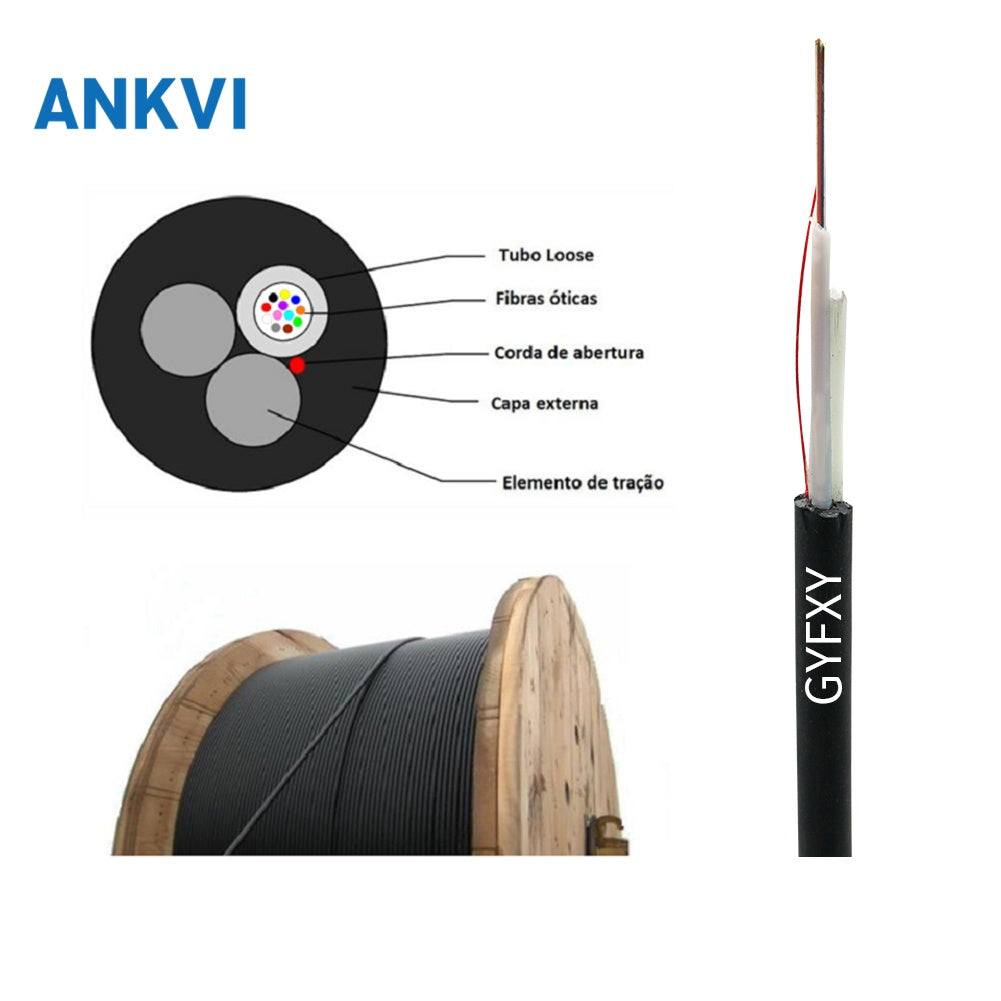

Cable Parameters

Cable Inner Structure 2
Loose Tube Dimension 2.0mm±0.1m
Loose Tube Material PBT
Loose Tube Tube No. 1

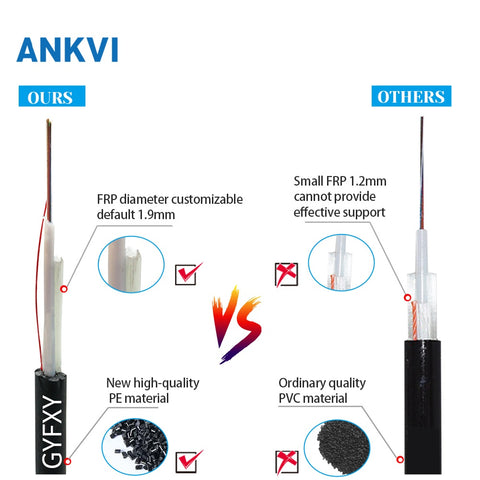

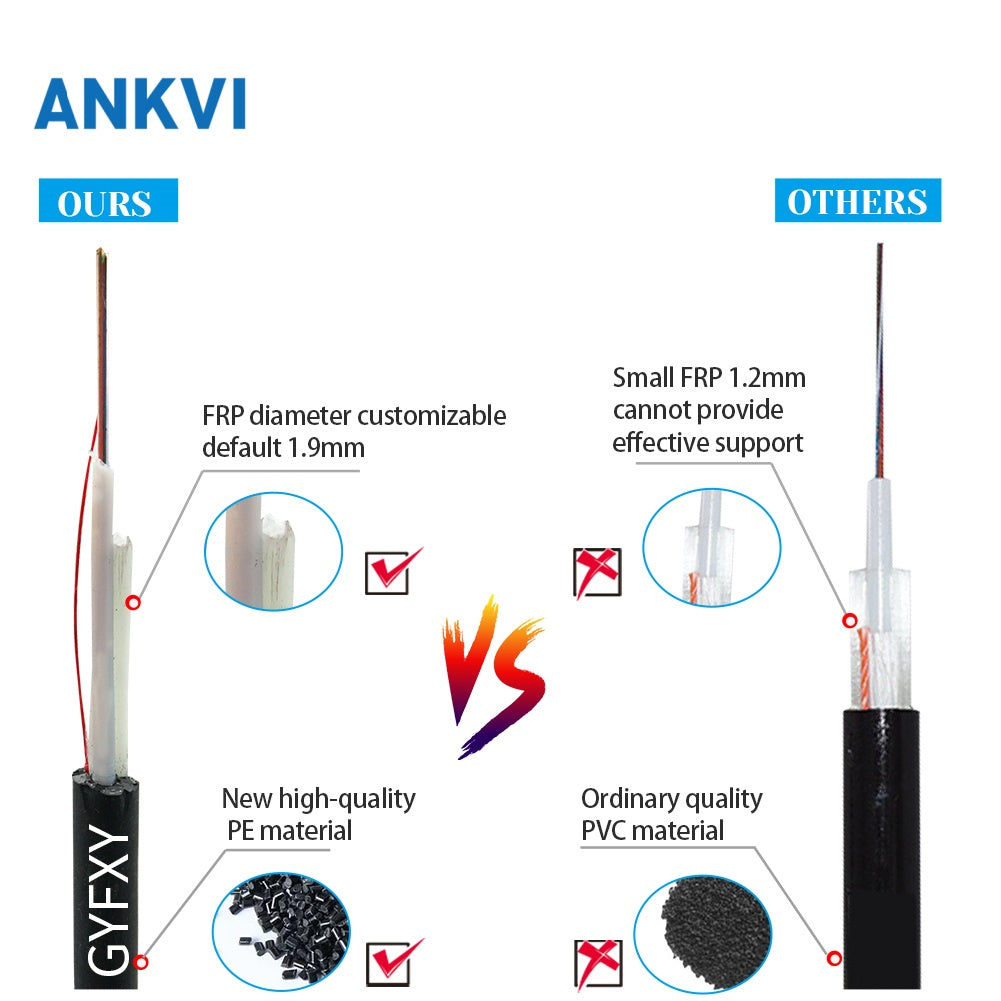

FRP Dimension 2*1.9mm±0.05mm
FRP No. 2
Outer Sheath Material PE
Outer Sheath Color Black
OD Cable Outer Diameter 7.0±0.3mm
Weight Cable Weight Per KM 45 ±3kg/km
