Description

Compatible with majority of mobile operators and supports 4G/3G LTE:-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B5/B8

4 Mode in 1- 4G Router Mode, 4G+Router Mode, Repeater Mode and AP Mode.

4*6dBi High Gain Antennas provide high signal coverage.

LTE downlink：up to 300Mbps

WLAN function, easy to expand wireless network.

Prevent loiter network, multi wireless safety ensuring.

IP broadband band control, ensure the speed.

Support web page management, easy to install.

Support network traffic statistics.

Support 32 WIFI devices online simultaneously.

Support LB-LINK APP remote management.

CPU MT7628/580MHz
DRAM/FLASH 64MB DDR2/8M SPI

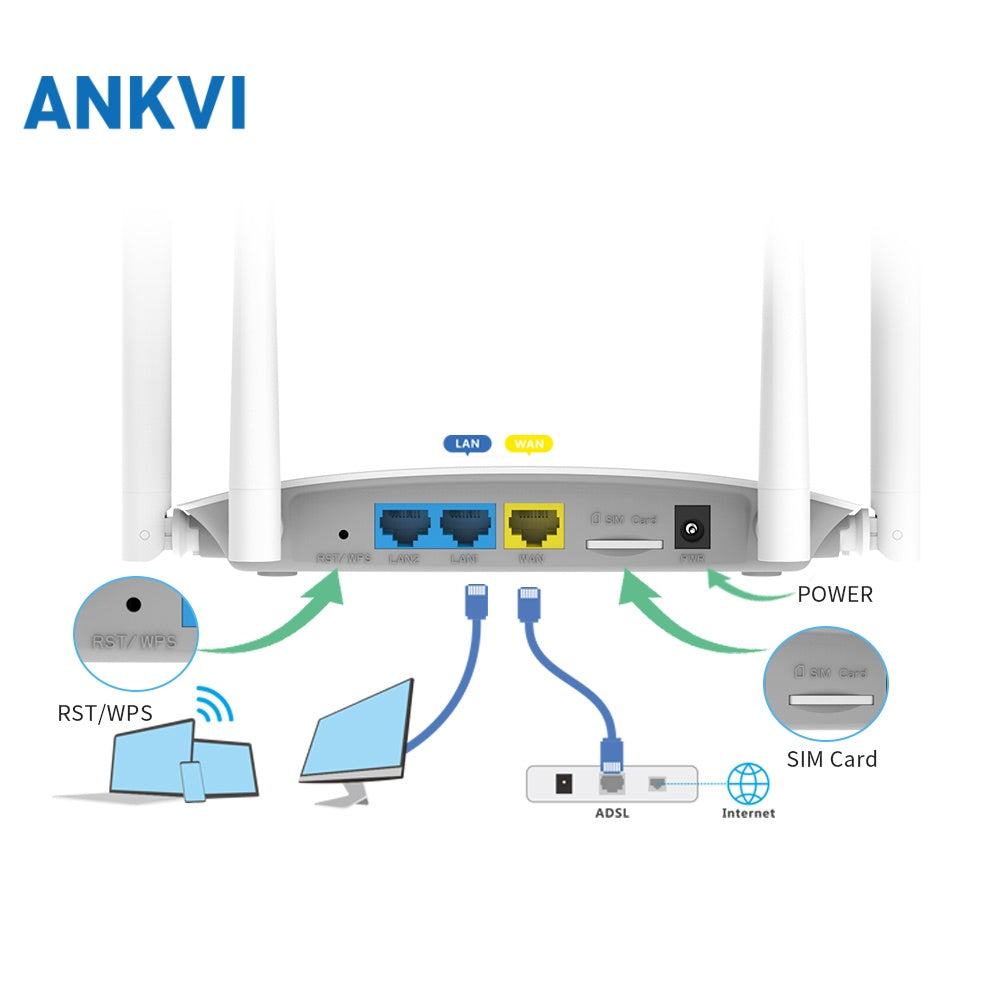

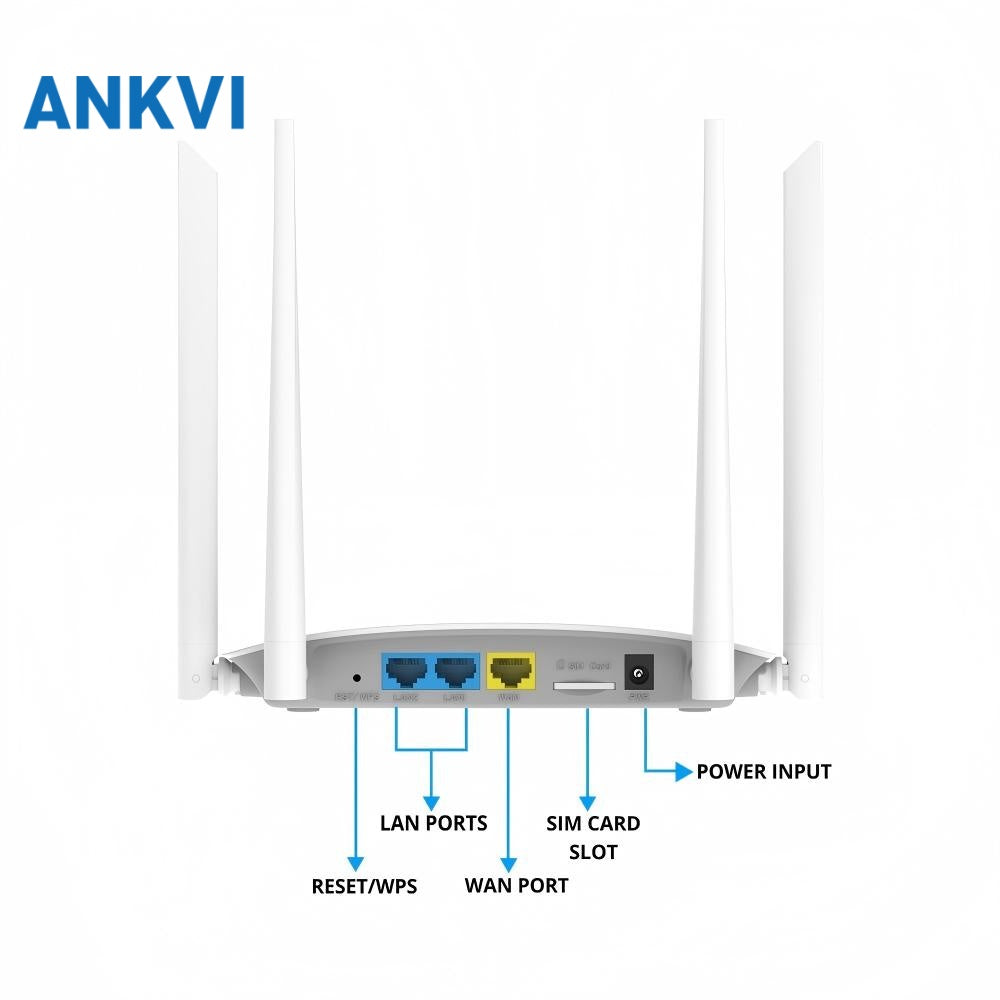

Interface 2x RJ45 10M/100M LAN Ethernet interfaces
1 x RJ45 10M/100M WAN Ethernet interfaces
1 x Reset
1 x Power jack 12V 1A

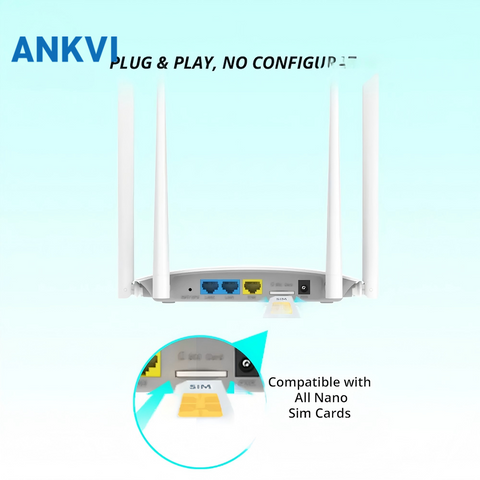

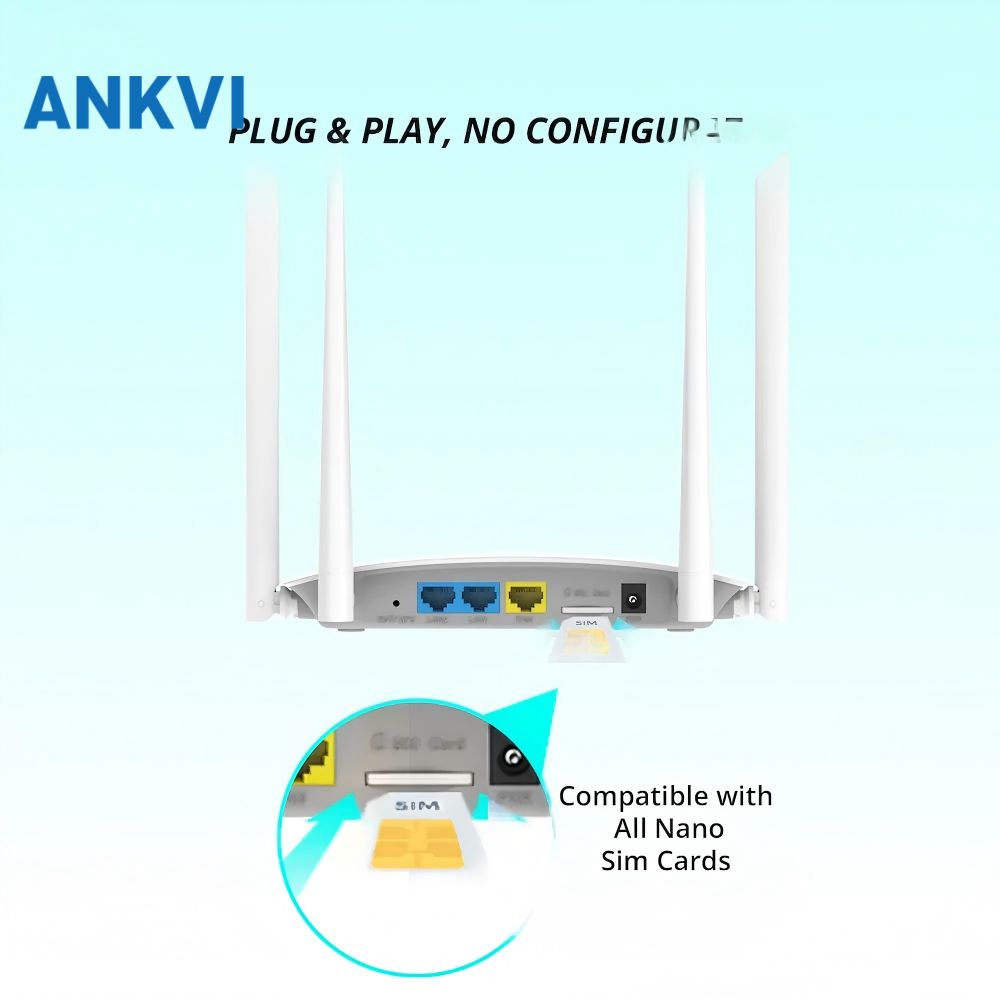

1 x SIM（Standard）
Antenna 2.4G（802.11N）：2T2R 4G ：2T2R
Gain 2.4G ：5dBi 4G：1-4Dbi
Range 2.4-2.4835GHZ
LED SYS
Transmit Power 11b：1/2/5.5/11Mbps
11g：6/9/12/18/24/36/48/54Mbps
11n： 300Mbps （MAX）
Spread-spectrum technique DSSS
Data Encryption WPA-PSK、WPA2-PSK、WPA/WPA2-PSK
Modulat ion type 11b：CCK、QPSK、BPSK
11g：OFDM
11n：QPSK，BPSK，16-QAM，64-QAM
Media access protocol CAMA/CA with ACK
RF Power 11b：18±1.5dBm@1-
11Mbps 11g：16±
1.5dBm@6-54Mbps
11n：15±1.5dBm@6-54Mbps
Receiver Sensitivity 11b:-95dBm@1Mbps,-89dbm@11Mbps,
11g: -92dBm@6Mbps,-72dbm@54Mbps,
11n: -85dBm@MCS0,,-70dbm@MCS7,
-86dBm@MCS8,-68dbm@MCS15,,
4G Modulation type /GNSS LTE CAT4（compatible with LCC/PCIE/M2 package）
GNSS function GPS、GLONASS、BeiDou/Compass、Galileo、QZSS
4G module RF Power Class 4 (33dBm±2dB) for GSM850
Class 4 (33dBm±2dB) for EGSM900
Class 1 (30dBm±2dB) for DCS1800
Class 1 (30dBm±2dB) for PCS1900
Class E2 (27dBm±3dB) for GSM850 8-PSK
Class E2 (27dBm±3dB) for EGSM900 8-PSK
Class E2 (26dBm±3dB) for DCS1800 8-PSK
Class E2 (26dBm±3dB) for PCS1900 8-PSK
Class 3 (24dBm+1/-3dB) for WCDMA bands
Class 3 (23dBm±2dB) for LTE-FDD bands
LTE Character Support 3GPP R8 non-CA cat 4 FDD
Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO
LTD-FDD： DL 150Mbps（MAX）
UL 50Mbps（MAX）
TD-SCDMA Character Support CCSA Release 3 TD-SCDMA
DL（MAX） 4.2Mbps
UL（MAX）2.2Mbps
