Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description


Fiber Parameters

Items G.652D
Mode Field Diameter 1310nm 9.2±0.4 um
Mode Field Diameter 1550nm 10.4±0.5 um
Cladding Diameter 124.8±0.7 um
Cladding Non-Circularity ≤0.7 %
Core-Cladding Concentricity Error ≤0.5 um
Coating Diameter 245±5 um
Coating Non-Circularity ≤6.0 %
Cladding-Coating Concentricity Error ≤12.0 um
Cable Cutoff Wavelength λcc 1260 um
Attenuation(max.) 1310nm ≤0.36 dB/km
Attenuation(max.) 1550nm ≤0.22 dB/km



Mechanical and Environmental Characteristics

Max. Tensile(Long Term) 1000 N
Max. Tensile(Short Term) 2000 N
Crush (Long Term) 1000 N
Crush (Short Term) 2000 N
Wind Speed 25 meters pe second
Min. Bend Radius(Dynamic) 25D mm
Min. Bend Radius (Static) 10D mm
Installation Temperature -20~±60 °C
Operating Temperature -40~±70 °C
Storage Temperature -40~±70 °C

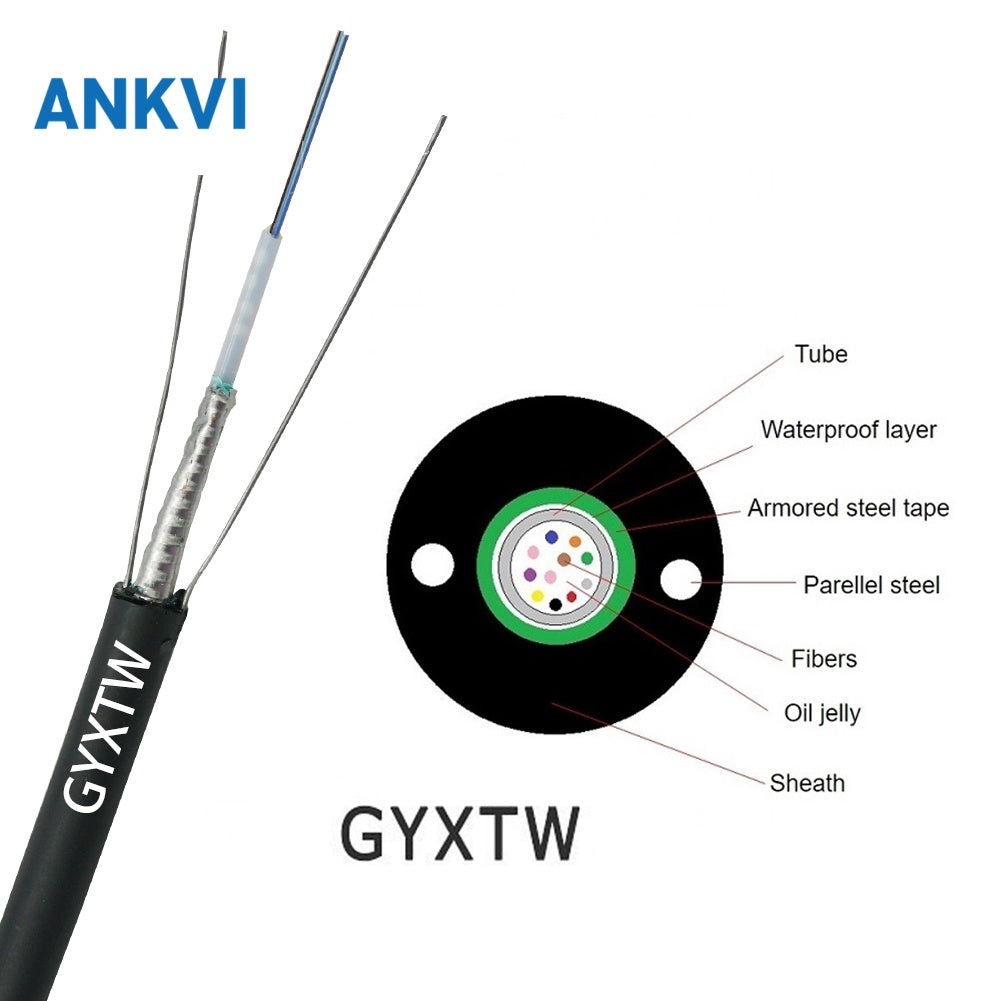

Cable Parameters

Loose Tube Dimension 2.1mm+0.05mm
Loose Tube Material PBT
Loose Tube Tube No. 1
Loose Tube 12 Fibers per Tube
Armoured steel tape Material Corrugated steel tape
Armoured steel tape Thickness 0.22 mm
Parellel 2 steels OD 0.7 mm*2
Parellel 2 steels Material Steels
Outer Sheath OD 6.0±0.1mm, 7.0±0.1mm, 7.5±0.1mm, 8.0±0.1mm
Outer Sheath Material PE
Outer Sheath Color Black
Cable Outer Thickness 2.0mm
