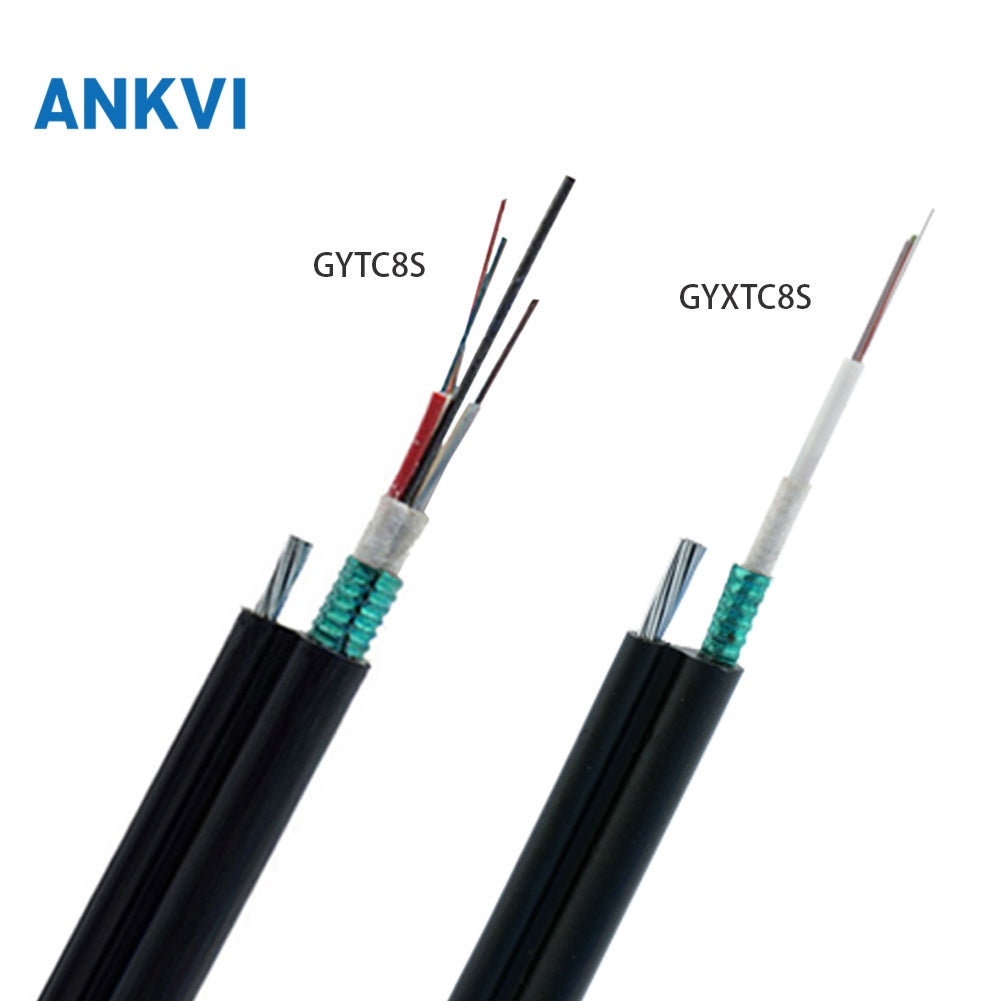

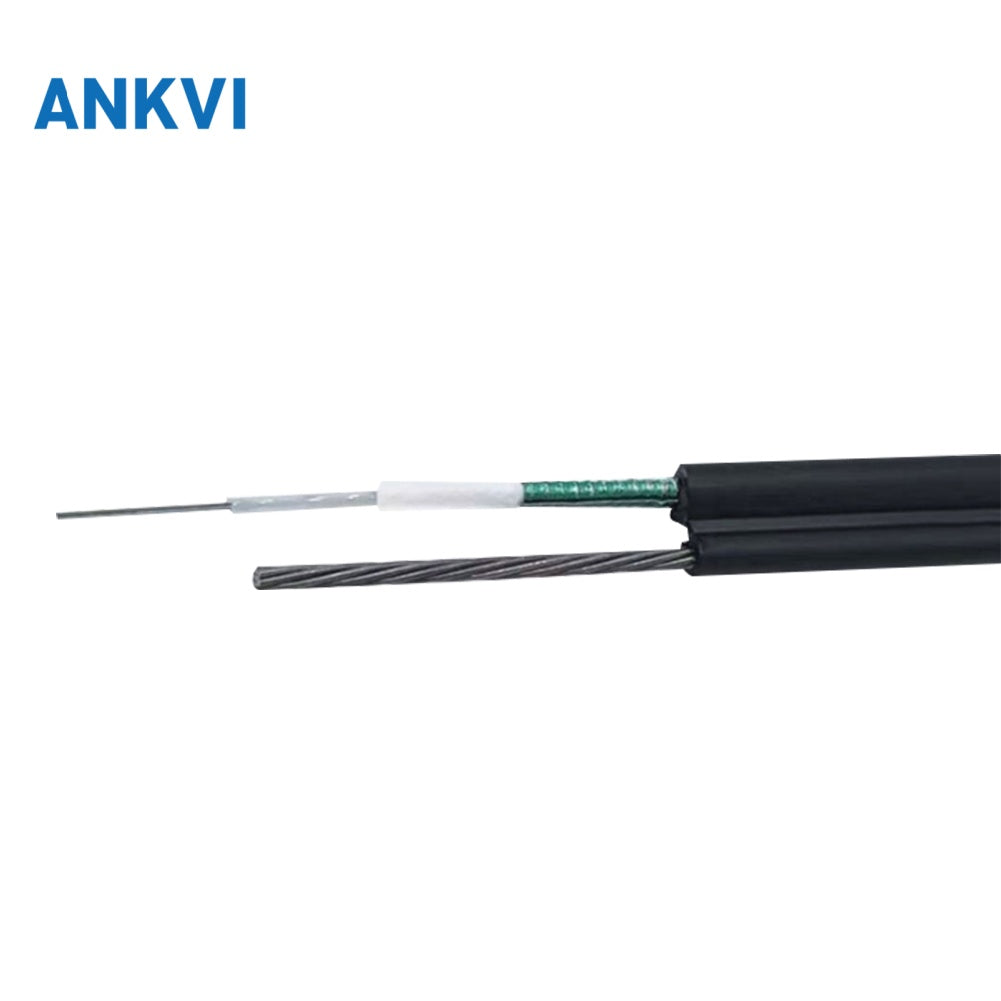

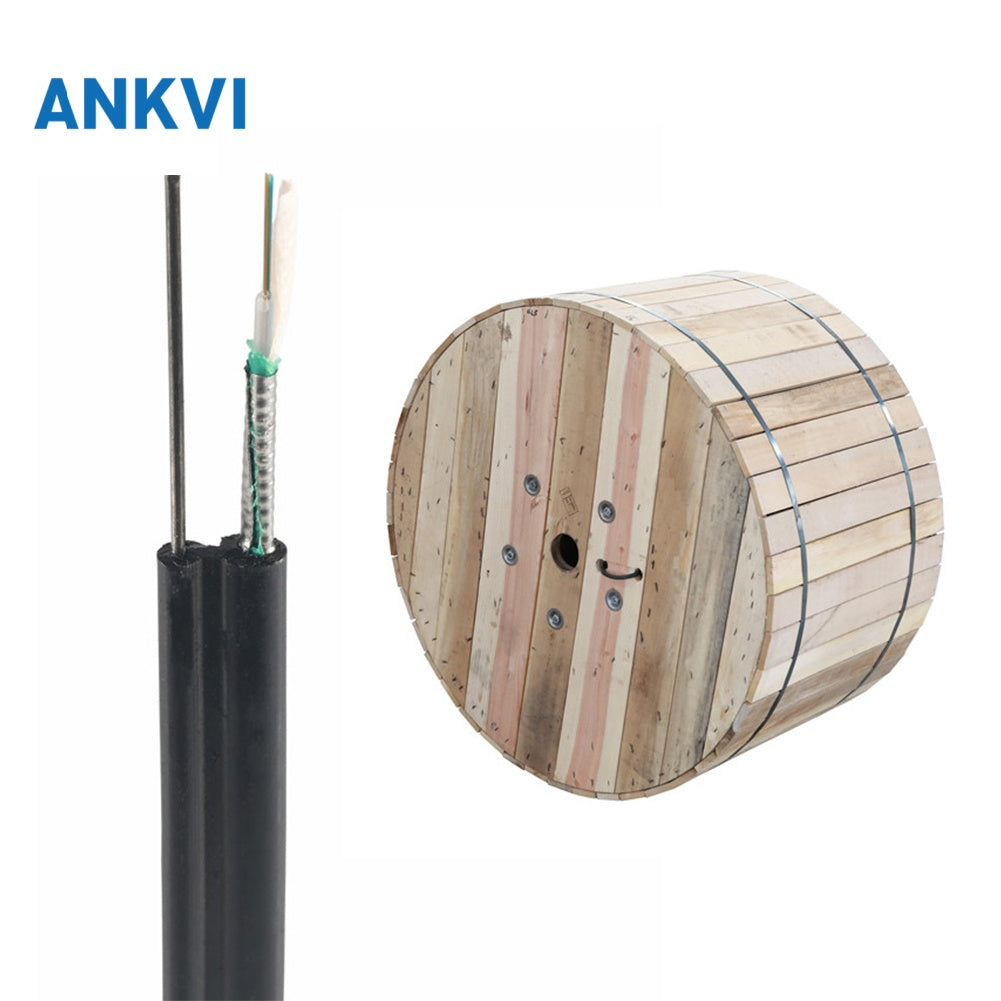

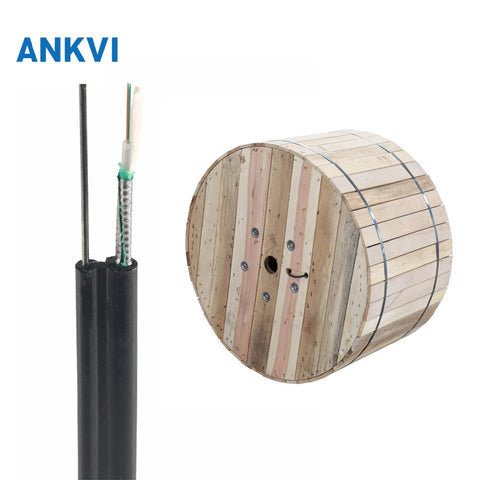

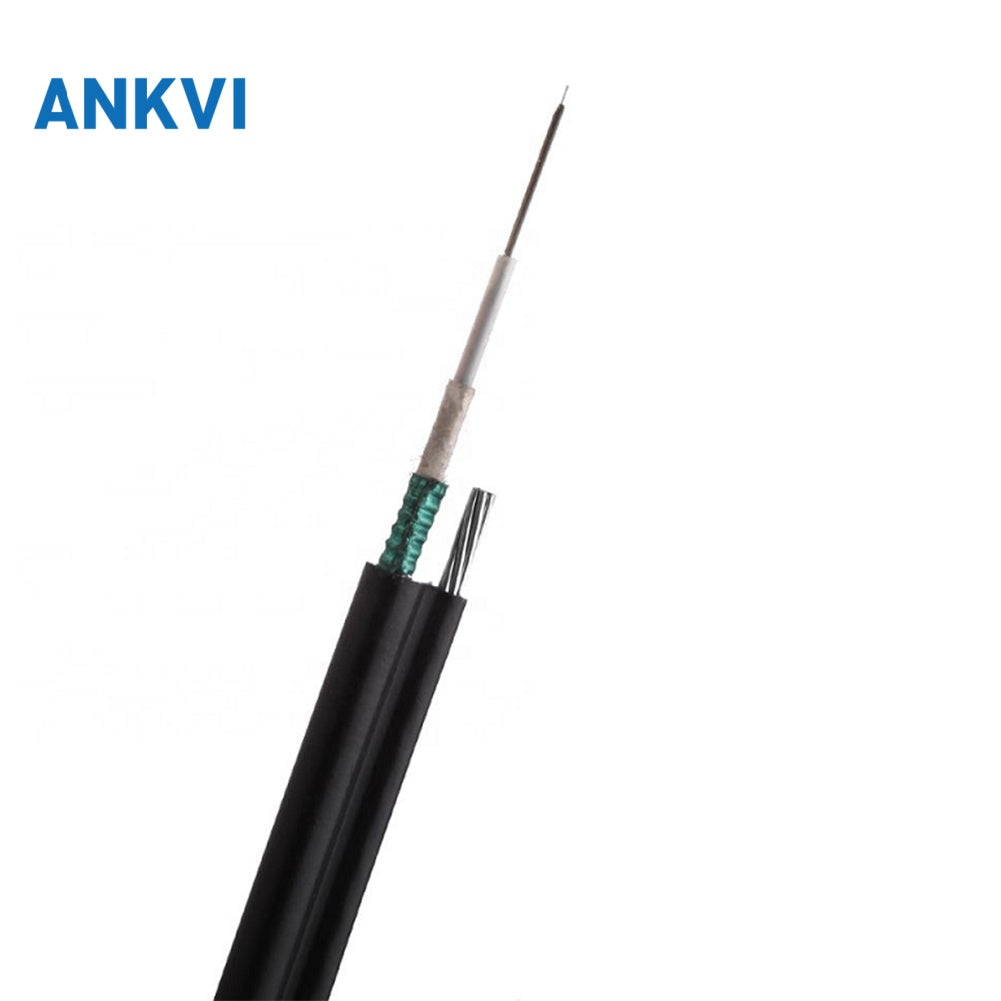

Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S
Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S

Outdoor Flat Drop Fiber Optic Cable Single Steel Wire PE G652D GYXTC8S

Get Wholesale Price

Product Testing

We test products one by one. We test product functionality by simulating real-world usage scenarios to ensure smooth operation.

One-stop Service

Our products include optical fiber equipment, optical cable, accessories, tools, etc., whether you are a wholesaler, distributor, engineer, ISP, we can meet your needs.

14 months Warranty

Our warranty is above industry standards, up to 14 months. This is based on our confidence in the quality of our products and we want to give our customers more protection
Description

Fiber Parameters

Items G.652D
Mode Field Diameter 1310nm 9.2±0.4 um
Mode Field Diameter 1550nm 10.4±0.5 um
Cladding Diameter 124.8±0.7 um
Cladding Non-Circularity ≤0.7 %
Core-Cladding Concentricity Error ≤0.5 um
Coating Diameter 245±5 um
Coating Non-Circularity ≤6.0 %
Cladding-Coating Concentricity Error ≤12.0 um
Cable Cutoff Wavelength λcc 1260 um
Attenuation(max.) 1310nm ≤0.36 dB/km
Attenuation(max.) 1550nm ≤0.22 dB/km



Mechanical and Environmental Characteristics

Weight 120±5kg/km
Max.load under installation ≤8.6 KN
Max. load under operation ≤4.2 N
Max. Pulling force(Long Term) 1000 N
Max. Pulling force(Short Term) 3000 N
Crush (Long Term) 300 N
Crush (Short Term) 1000 N
Min. Bend Radius(Dynamic) 20D mm
Min. Bend Radius (Static) 10D mm
Installation Temperature -20~±60 °C
Operating Temperature -40~±70 °C
Storage Temperature -40~±70 °C

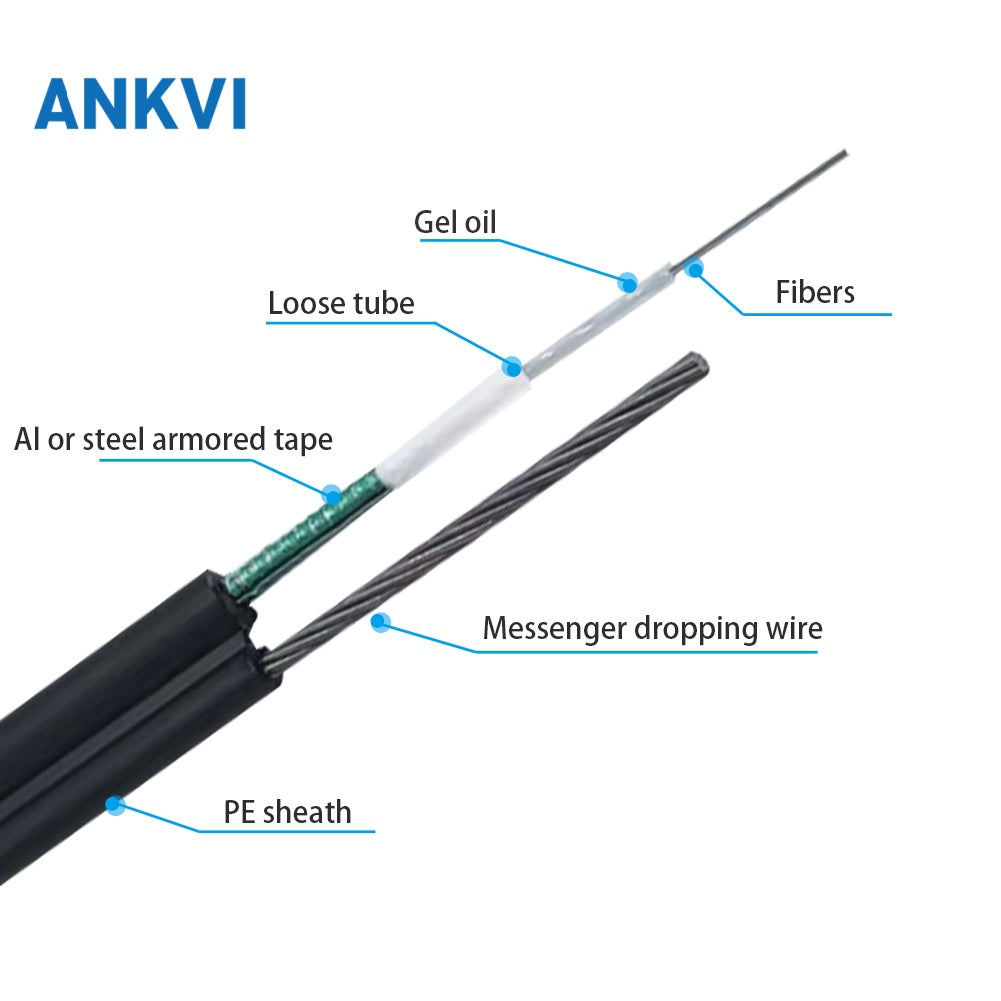

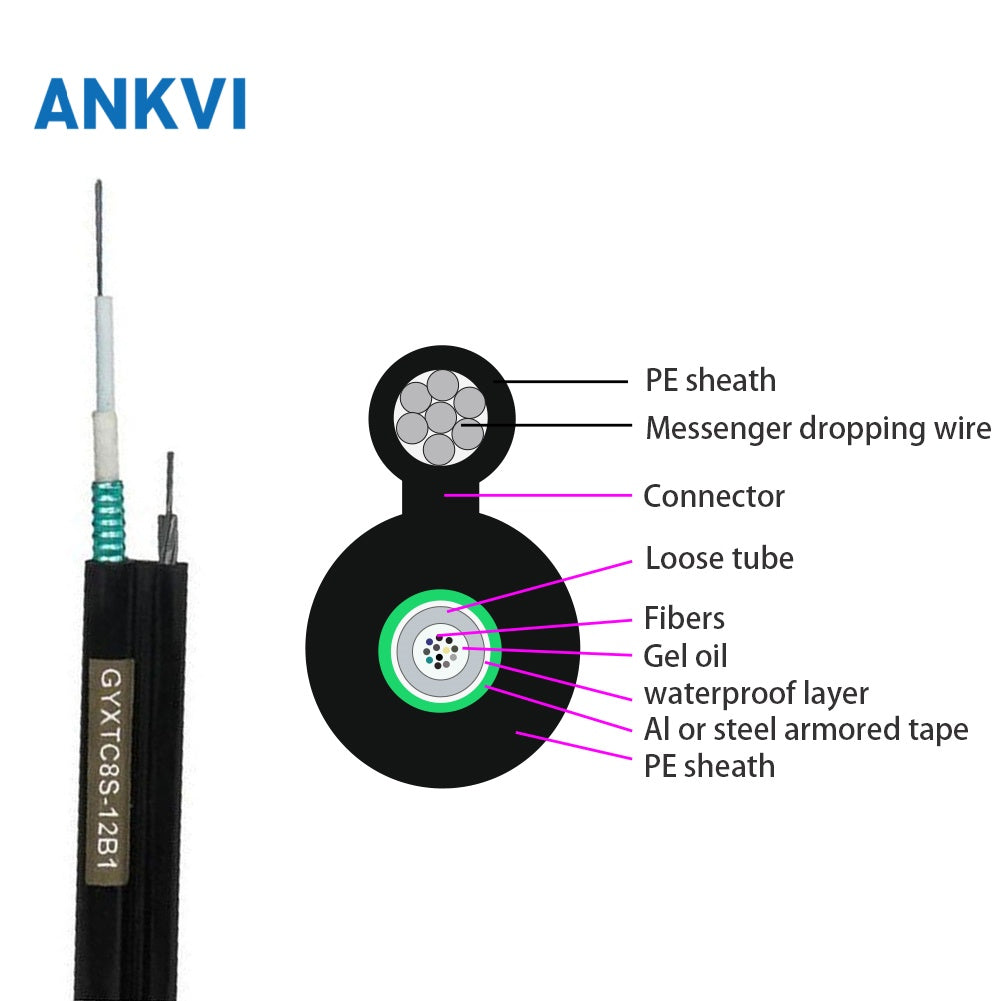

Cable Parameters

Dropping steel messengers Central tube style
Loose Tube Dimension 2.2mm+0.1mm
Loose Tube Material PBT
Loose Tube Tube No. 1
Dropping messenger Dimension. 7*1.0mm
Dropping messenger Material Steel
Armoured steel tape Thickness 1.0±0.1mm
Armoured steel tape Material Steel
Outer Sheath OD 7.5*13±0.1mm
Outer Sheath Material PE
Outer Sheath Color Black
Outer Sheath Weight 120±5kg/km
