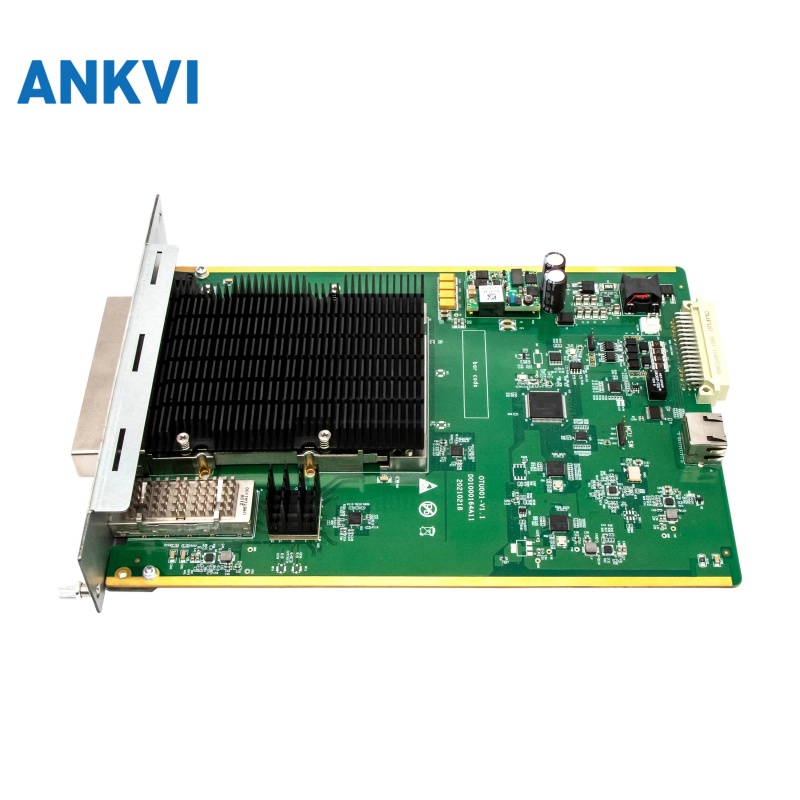

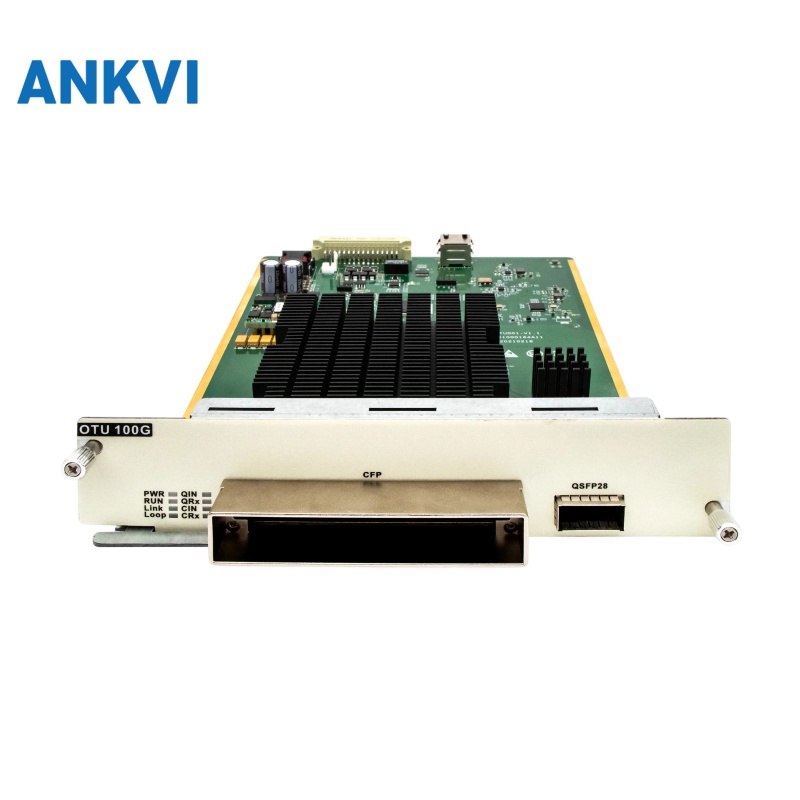

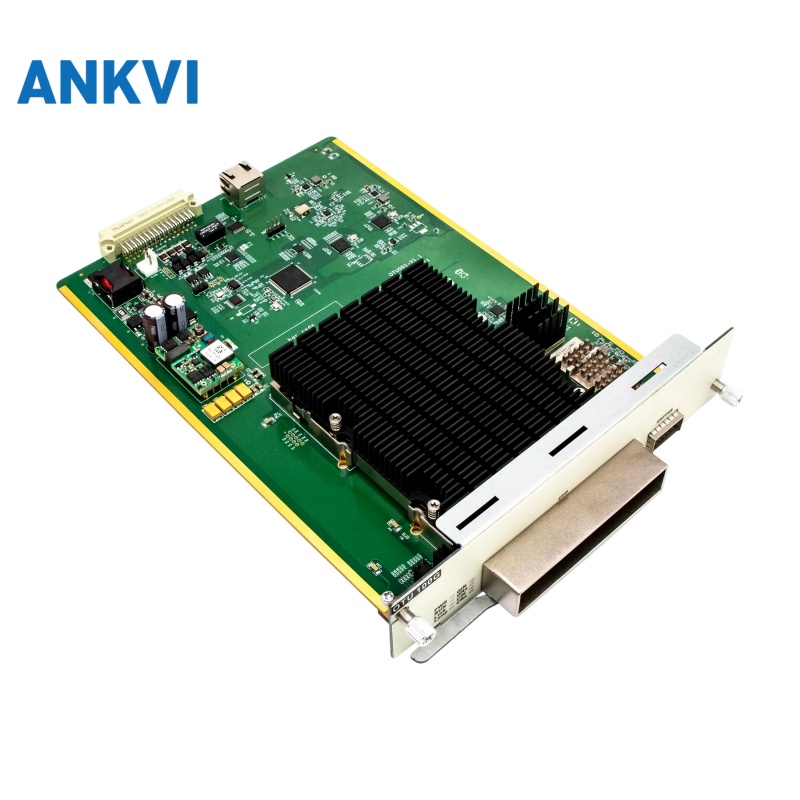

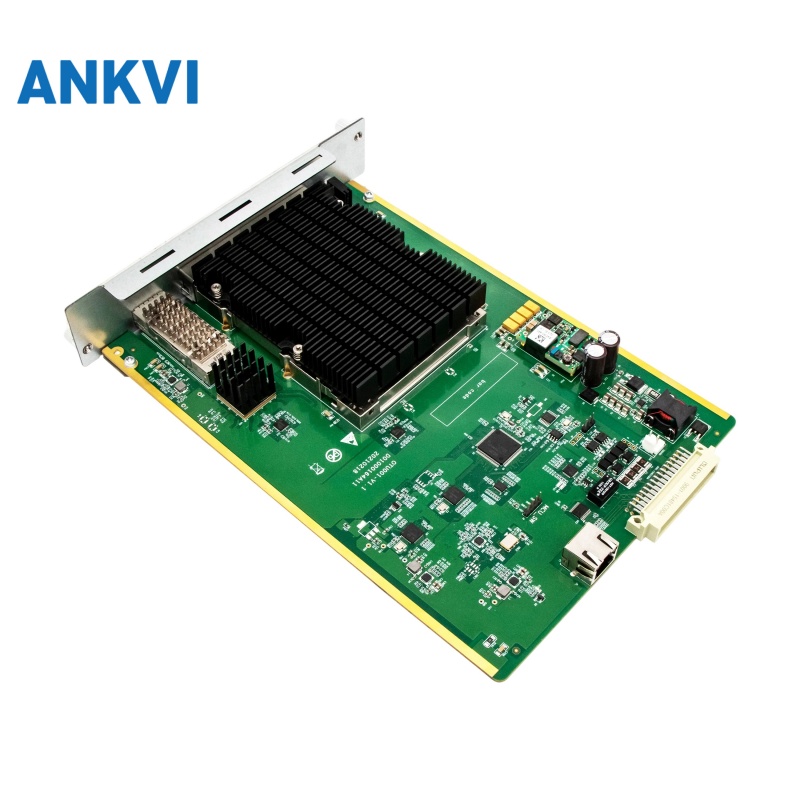

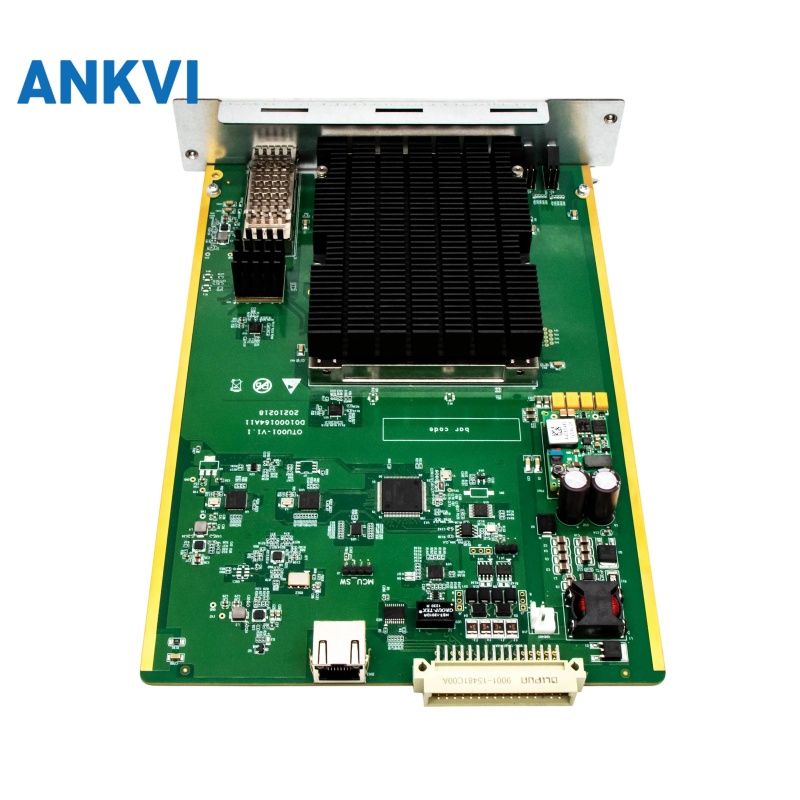

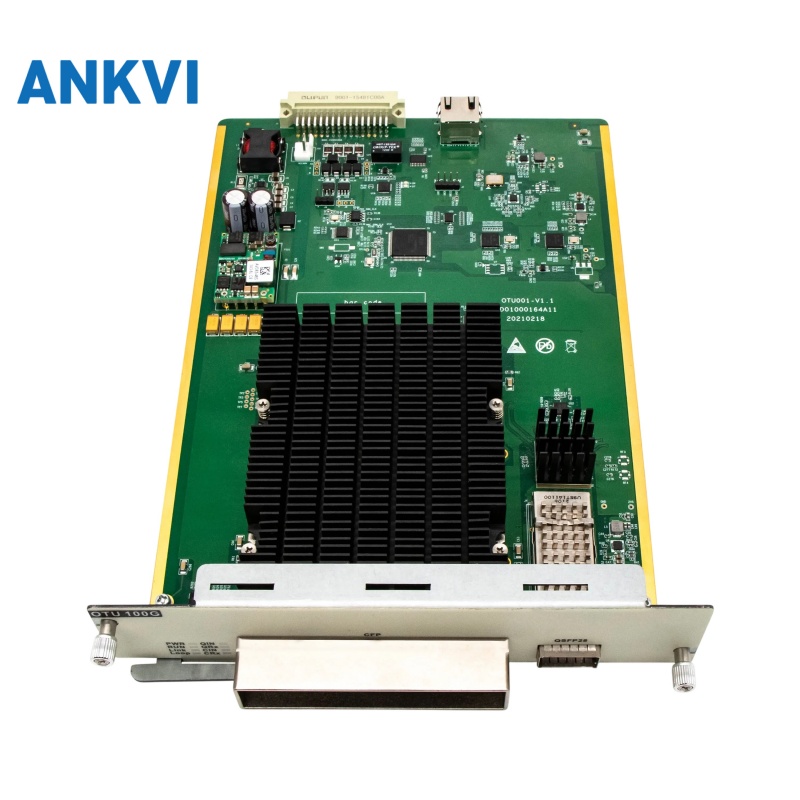

100G Coherent OEO Card – 1xCFP + 1xQSFP28
A 100G coherent transponder card with one QSFP28 client port and one 100G CFP QPSK line port, carrying 100GE over 1600 km on a C-band 96-wave tunable grid.
Description
Overview
The 100G coherent OEO service card supports one 100GE service access. It adopts advanced technologies such as QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance and non-linearity.
It can realise 100GE business over 1600 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable operation.
100G Coherent OEO Key Features
- One QSFP28 hot-pluggable client-side interface
- One 100G CFP hot-pluggable WDM-side interface with coherent QPSK
- Transforms one 100GE service optical signal into one DWDM standard wavelength optical signal
- 100GE business over 1600 kilometers of non-relay transmission
- Line side supports C-band 96 waves (50GHz) adjustable
- SDFEC forward error correction
- Supports 100G wavelength electrical relay
- Real-time monitoring of transmit optical power, receive optical power, temperature and error code statistics
- Port loop-back and port shutdown
- Occupies 2 slots (1RU) in OSP3800 series chassis, maximum power consumption 50W
100G Coherent OEO Specifications
Technical Specifications
| Function | Description |
|---|---|
| Client-side interface | 1 QSFP28 hot-plugging |
| WDM-side interface | 1 100G CFP hot-plugging, coherent QPSK |
| Line mode | Support one 100GE service transmission, transform one 100GE service optical signal into one DWDM standard wavelength optical signal |
| Relay mode | Support 100G wavelength electrical relay |
| Support service type | 100GE |
| WDM technology | Support DWDM: C band 50GHz 96 waves adjustable |
| FEC technology | Support SDFEC |
| Occupied slot number | Support OSP3800 series chassis, occupy 2 slots (1RU) |
| Network management function | Support real time monitoring of the port working state, including transmitting optical power, receiving optical power, temperature and error code statistics Support port loop-back and port shutdown |
| Max power consumption | 50W (including Module) |
| MTBF | >100,000 hours |
Deployment Scenarios
- Metro and long-haul DWDM links that need 100GE transmission over long unrepeatered spans
- Sites converting a grey 100GE client signal to a coloured DWDM wavelength
- Networks that must tolerate CD, PMD and non-linearity at 100G
- Deployments that require 100G wavelength electrical relay
- Line systems using a tunable C-band 96-wave 50GHz grid
