EDFA-1U-8-16P High-Power EDFA – 8/16 Ports, 34 dBm
The EDFA-1U-8-16P is a 1U 19-inch rack Er Yb co-doped fibre amplifier with 4 to 16 output ports and up to 34 dBm total output power for 1550 nm CATV, FTTH and FTTX networks.
显示 1-16 个结果（共 25 个结果）
-
-
EDFA-2U-077EYA-32P High-Power EDFA – 32 Ports
The EDFA-2U-077EYA-32P is a CATV Er-Yb high-power fiber amplifier with a 1535~1565nm gain spectrum, 41dBm maximum total output and dual hot-backup power supplies.
-
EDFA-2U-56EYA-16P High-Power Er/Yb EDFA – 16 Ports, 40 dBm
The EDFA-2U-56EYA-16P is a 2U 19-inch rack Er/Yb co-doped fibre amplifier with 16 output ports and 33 to 40 dBm total output power for EPON, GPON, CATV and FTTH networks.
-
EDFA-2U-8-16P High-Power EDFA – 8/16 Ports, 39 dBm
The EDFA-2U-8-16P is a 2U 19-inch rack Er Yb co-doped fibre amplifier with 4 to 64 output ports, up to 39 dBm output and a built-in RF optical transmitter for CATV, FTTH and FTTX networks.
-
EDFA-3U-77EYA-64P High-Power EDFA – 64 Ports
The EDFA-3U-77EYA-64P is a CATV Er-Yb high-power fiber amplifier with a 1535~1565nm gain spectrum, 43dBm maximum total output and dual hot-backup power supplies.
-
HS-OR1 Passive CATV Optical Receiver – 1310+1490/1550 nm
The HS-OR1 is a passive CATV optical receiver that needs no power, covering 1310+1490 and 1550 nm work wavelengths with 45~1050 MHz work bandwidth and 75 Ω output impedance.
-
HS-OR101WA FTTH Optical Receiver – Single Output
HS-OR101WA is a passive single output optical receiver with FWDM that needs no power, uses 1310/1490/1550 nm wavelengths and gives more than 65 dBμV RF output over 45~1050 MHz.
-
HS-OR16W FTTH High Level Optical Receiver – WDM, AGC
The HS-OR16W is an FTTH high level optical receiver with GaAs RF amplification, AGC range +2~-18 dBm, 47~1218 MHz bandwidth and ≥80 dBuV output level.
-
HS-OR19 FTTH Series Optical Receiver – Single RF Output
The HS-OR19 is an FTTH home optical receiver for fibre subscriber access, with light input AGC range -3~-12 dBm, 47~1006 MHz frequency range and ≥80dBuV output level.
-

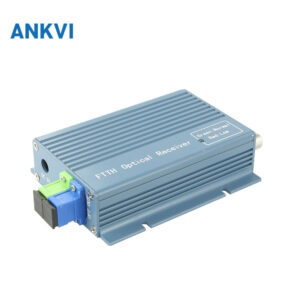

HS-OR20 FTTH Optical Receiver – Single or Dual RF Output
The HS-OR20 is an FTTH home optical receiver for CATV subscriber access, offering single or dual RF output, AGC range -3dBm~-12dBm and a 47~1006MHz frequency range.
-
HS-OR21 FTTH High Level Optical Receiver, ≥88dBuV
The HS-OR21 FTTH optical receiver covers 1100~1600nm and 47~1218MHz, delivering ≥88dBuV RF output with 75Ω impedance, ≤2(250mA) power consumption and -20~+60℃ operation.
-
HS-OR21W FTTH Optical Receiver with WDM, 47~1218MHz
The HS-OR21W FTTH optical receiver with WDM covers 47~1218MHz and delivers ≥80dBuV over 75Ω, using +5VDC at ≤2(250mA) from -20~+60℃.
-
HS-OR22 FTTH Optical Receiver, 1260~1620nm, SC/APC
The HS-OR22 FTTH optical receiver works over 1260~1620nm and 47~1218MHz, giving ≥80dBuV at 75Ω with +5VDC and ≤2, 250mA consumption.
-
HS-OR23 FTTH High Level Optical Receiver, 47~1002MHz
The HS-OR23 FTTH optical receiver covers 1100~1600nm and 47~1002MHz with 0~20dB gain adjustment, ≥51dB CNR and ≤2(250mA) at +5VDC.
-
HS-OR23B FTTB High Level CATV Optical Receiver, 47~1002 MHz
HS-OR23B is a high level FTTB CATV optical receiver with a 47~1002 MHz bandwidth, ≥100 dBuv RF output and AGC control over +2~-15 dBm.
-
HS-OR23BW FTTB Optical Receiver with WDM, 1310/1490/1550 nm
HS-OR23BW is an FTTB CATV optical receiver with WDM that supports 1310/1490/1550 nm and 47~1002 MHz bandwidth with AGC over +2~-15 dBm.
