Name: 12V12AH Sealed Lead Acid Battery – 12 V 12.0 Ah, 20 Hour Rate – ANKVI
SKU: 12V12AH

Description

Overview

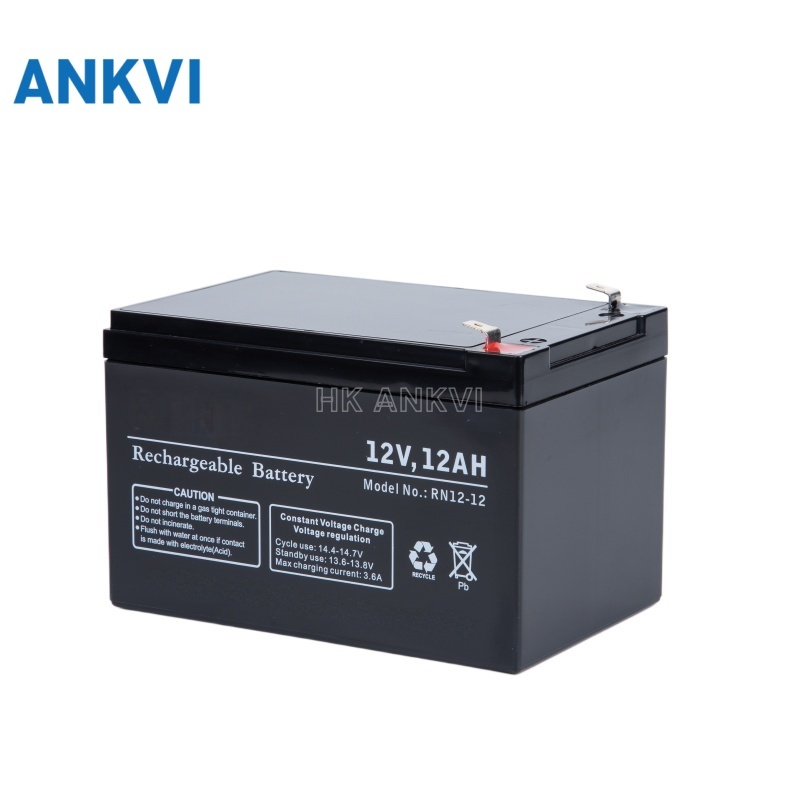

ANKVI 12V12AH is a 12 V 12.0 Ah sealed lead acid rechargeable battery for standby and cyclic duty. The case measures 151 x 98 x 95 mm, with a total height of 101 mm, and weighs about 3.25 kg.

It is charged at constant voltage and can be used in float (standby) or cyclic service. The F2 terminal takes the discharge current, and the initial charging current is limited to less than 3.6 A.

12V12AH Key Features

Nominal voltage of 12 V with a rated capacity of 12.0 Ah at the 20 hour rate.
Capacity at other rates: 11.1 Ah at the 10 hour rate (1.11 A), 10.3 Ah at the 5 hour rate (2.06 A), 7.88 Ah at the 1 hour rate (7.88 A).
Case size 151 x 98 x 95 mm (L x W x H), total height 101 mm, weight about 3.25 kg (+/-4%).
Internal resistance of 22 mOhm when fully charged at 25 C.
F2 terminal type.
Designed for a 10 year float service life at 25 C (RN series).
Initial charging current limited to less than 3.6 A.
Constant voltage charging: cycle use 14.50 – 14.90 V, standby (float) use 13.50 – 13.80 V.
Low self-discharge of less than 3% of normal capacity per month at 25 C.
Wide operating temperature range from -15 to 50 C.
Low internal resistance gives high output power; no equalising discharge is needed.
Good charge acceptance and quick charge capability at constant voltage.

12V12AH Specifications

Parameter	Specification
Nominal Voltage	12 V
Rated Capacity (20 hour rate)	12.0 Ah
Capacity (10 hour rate)	11.1 Ah (1.11 A)
Capacity (5 hour rate)	10.3 Ah (2.06 A)
Capacity (1 hour rate)	7.88 Ah (7.88 A)
Internal Resistance	22 mOhm (fully charged, 25 C)
Length	151 mm (5.94 in)
Width	98 mm (3.86 in)
Height	95 mm (3.74 in)
Total Height	101 mm (3.98 in)
Weight	approx. 3.25 kg (7.17 lb), +/-4%
Terminal Type	F2
Design Life	10 years at 25 C (RN series)
Initial Charging Current	less than 3.6 A
Cycle Use Voltage	14.50 – 14.90 V
Standby (Float) Use Voltage	13.50 – 13.80 V
Operating Temperature Range	-15 to 50 C
Self-discharge	less than 3% of normal capacity per month at 25 C

Applications

Electric tools
Alarm and security systems
Electric toys
Solar power systems
Emergency lighting
Wind power systems
Electronic instruments
Telecommunication equipments
Medical equipment
Uninterruptible power supplies
