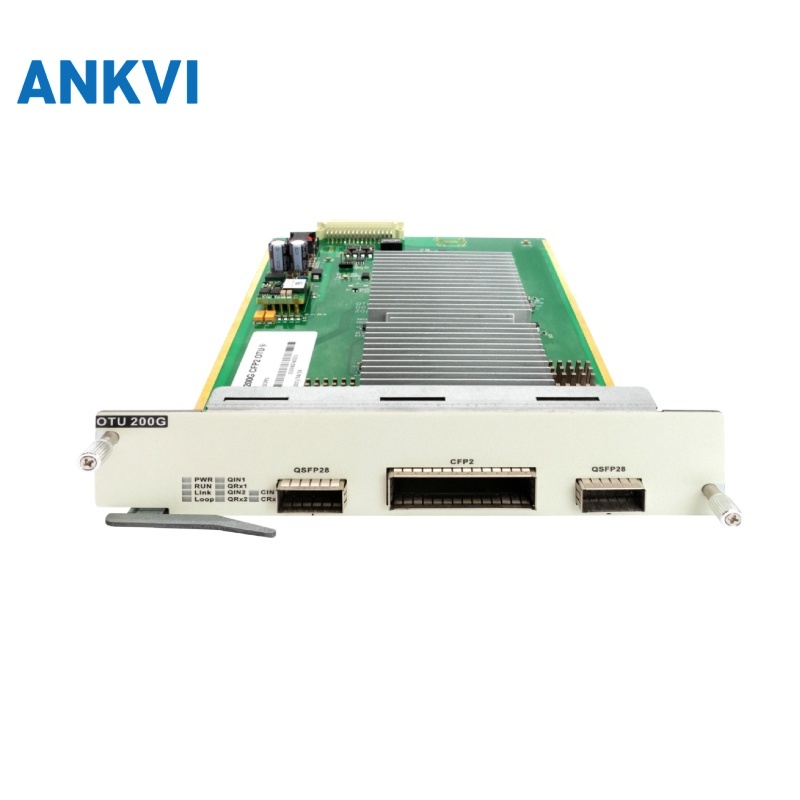

200G Coherent TMUX Card – 2x100GE to 200G
A 200G coherent muxponder that aggregates two 100GE services onto one 200G coherent QPSK wavelength and carries them 1200 km without regeneration.
Description
Overview
The 200G coherent TMUX service card supports two 100GE service access. It adopts advanced technologies such as QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance and non-linearity.
It can realise 200GE business over 1200 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable operation.
200G Coherent TMUX Key Features
- Client-side interface 2 QSFP28 hot-plugging
- WDM-side interface: 1 100G/200G CFP2 hot-plugging, coherent QPSK
- Transforms two 100GE service optical signals into one 200G rate DWDM standard wavelength optical signal
- 200GE business over 1200 kilometers of non-relay transmission
- Line side supports C-band 96 waves (50GHz) tunable
- oFEC forward error correction
- Supports 200G wavelength electrical relay
- Real-time monitoring of transmit and receive optical power, temperature and error code statistics
- Occupies 2 slots (1RU) in the OSP3800 full series chassis, maximum power consumption 50W
200G Coherent TMUX Specifications
Technical Specifications
| Function | Description |
|---|---|
| Interface | 2 QSFP28 hot-plugging WDM-side interface: 1 100G/200G CFP2 hot-plugging, coherent QPSK |
| Line mode | Support one 200GE service transmission, transform two 100GE service optical signal into one 200G rate DWDM standard wavelength optical signal |
| Repeater mode | Support 200G wavelength electrical relay |
| Support business type | 100GE |
| WDM technology | Support DWDM: C-band 50GHz 96 waves tunable |
| FEC technology | Support oFEC |
| Number of occupied slots | Support OSP3800 full series chassis, occupying 2 slots (1RU) |
| Network management function | Support real-time monitoring of port working status, including transmit optical power, receive optical power, temperature and error code statistics Support port loop-back function and port shutdown function |
| Max power consumption | 50W (including optical module) |
| MTBF | >100,000 hours |
Deployment Scenarios
- Aggregating two 100GE client services onto one 200G coherent wavelength
- Metro and regional links that need 200GE over long unrepeatered spans
- Sites converting grey 100GE signals to a coloured 200G DWDM wavelength
- Deployments that require 200G wavelength electrical relay
- Line systems using a tunable C-band 96-wave 50GHz grid
