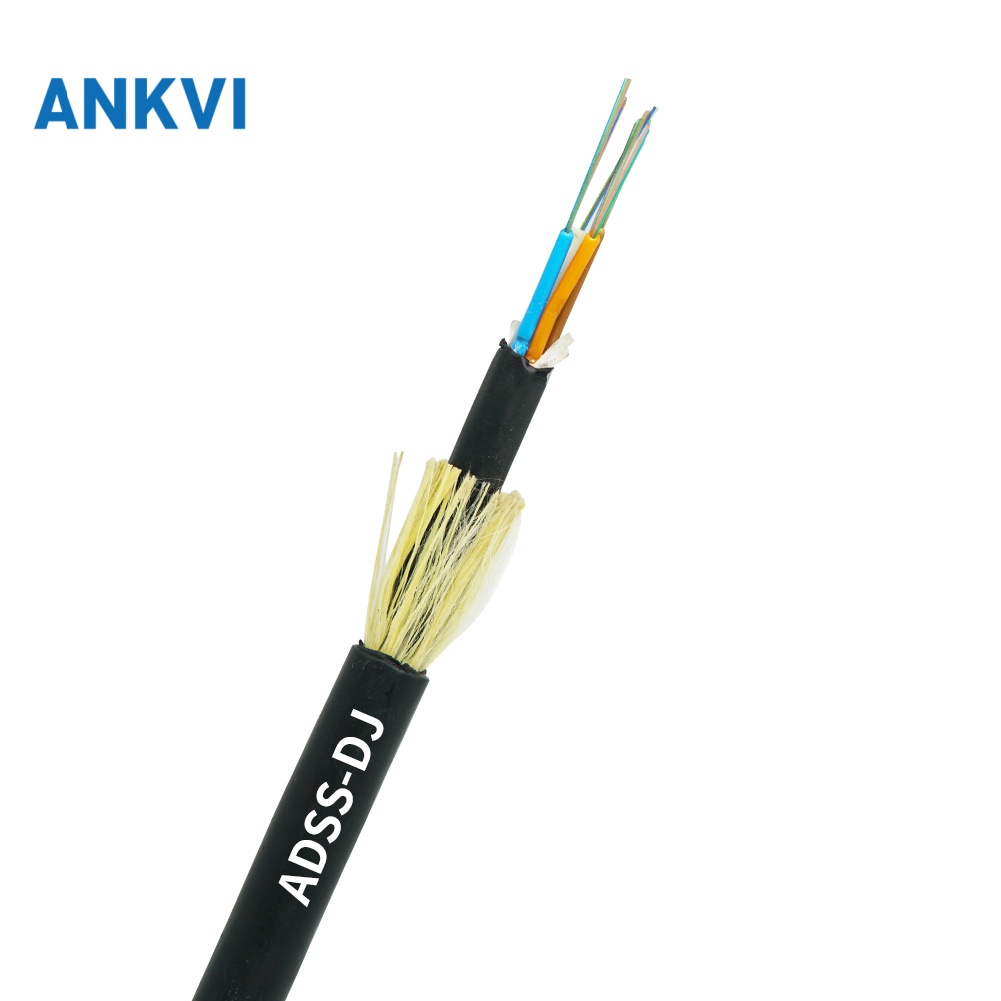

ADSS All-Dielectric Self-Supporting Aerial Cable – 48C/96C
All-dielectric self-supporting aerial cable with 48 or 96 G.652D fibres, FRP central strength member, aramid yarn and a black PE jacket for 100 to 150 m spans.
Description
Overview

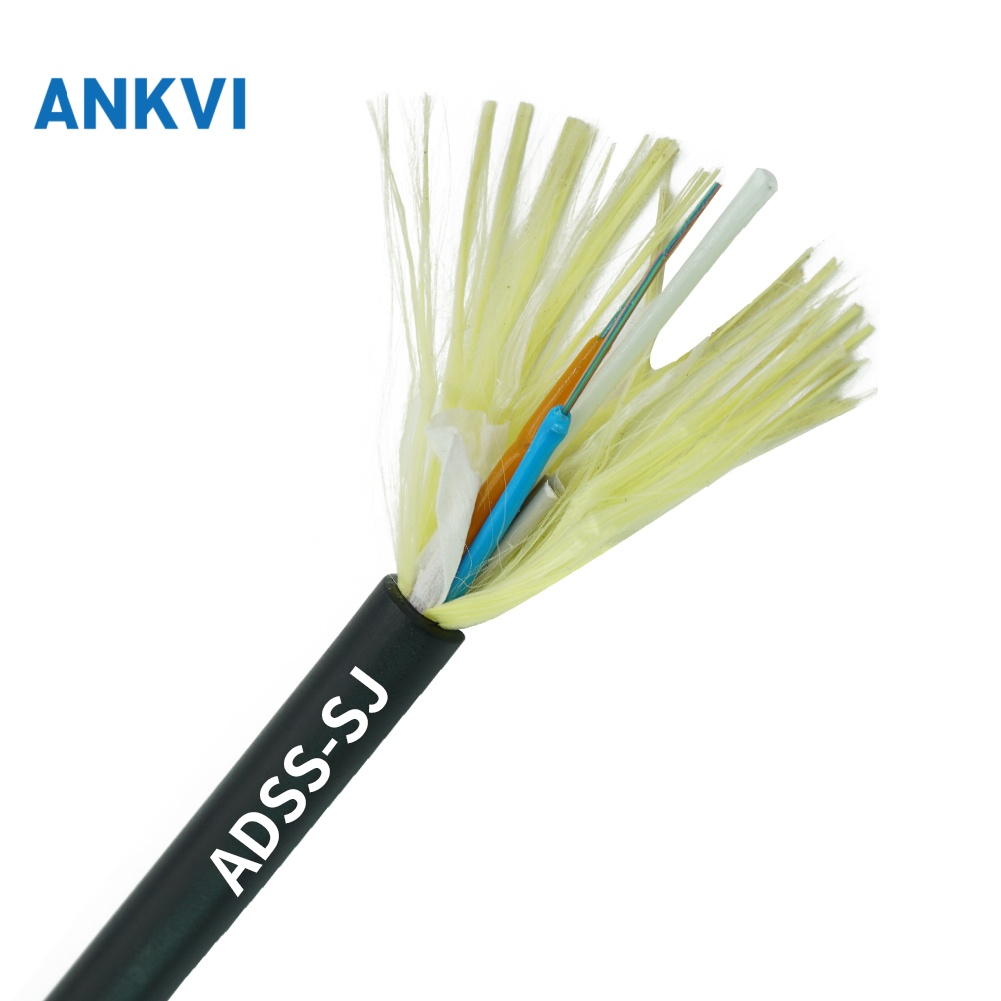

The ADSS (All Dielectric Self-Supporting Aerial Cable) is an outdoor aerial cable for overhead power and telecom routes. It carries 48 or 96 G.652D single-mode fibres in PBT loose tubes stranded around an FRP central strength member in a 1+6 or 1+8 structure under a black PE jacket.
Aramid yarn carries the tensile load, so the cable is fully self-supporting over the documented spans of 100 m, 120 m and 150 m with no metallic earth or bonding, and the product design life is more than 30 years.
ADSS Key Features
- 48-core or 96-core single-mode construction with 12 fibres per PBT loose tube
- FRP central strength member plus aramid yarn for self-supporting spans of 100 m, 120 m and 150 m
- All-dielectric design with a black PE outer sheath, so no metallic earthing is required
- G.652D fibre: attenuation of 0.36 dB/km or less at 1310 nm and 0.22 dB/km or less at 1550 nm
- Operating temperature -40 to +70 °C with a 20D dynamic and 10D static minimum bend radius
ADSS Specifications
Fiber Parameters
| Parameter | Specification |
|---|---|
| Fibre specification | G.652D |
| Mode Field Diameter (1310nm) | 9.2±0.4 µm |
| Mode Field Diameter (1550nm) | 10.4±0.5 µm |
| Cladding Diameter | 124.8±0.7 µm |
| Cladding Non-Circularity | ≤0.7 % |
| Core-Cladding Concentricity Error | ≤0.5 µm |
| Coating Diameter | 245±5 µm |
| Coating Non-Circularity | ≤6.0 % |
| Cladding-Coating Concentricity Error | ≤12.0 µm |
| Cable Cutoff Wavelength | λcc≤1260 nm |
| Attenuation(max.) (1310nm) | ≤0.36 dB/km |
| Attenuation(max.) (1550nm) | ≤0.22 dB/km |
Mechanical and Environmental Characteristics
| Parameter | Specification |
|---|---|
| Weight (96C, span 100 m) | 120±5 kg/km |
| Weight (48C, span 120 m / 150 m) | 83±5 kg/km |
| Max.operating tension | 2.5 KN |
| Max.anti-pulling strength | 7.5 KN |
| Max.anti-crushing force(Long Term) | 300 N |
| Max.anti-crushing force(Short Term) | 1000 N |
| Min.Bend Radius(Dynamic) | 20D mm |
| Min.Bend Radius(Static) | 10D mm |
| Installation Temperature | -20~+60 °C |
| Operating Temperature | -40~+70 °C |
| Storage Temperature | -40~+70 °C |
Cable Parameters
| Parameter | Specification |
|---|---|
| Fiber No. (96C, span 100 m) | 96 |
| Fiber No. (48C, span 120 m / 150 m) | 48 |

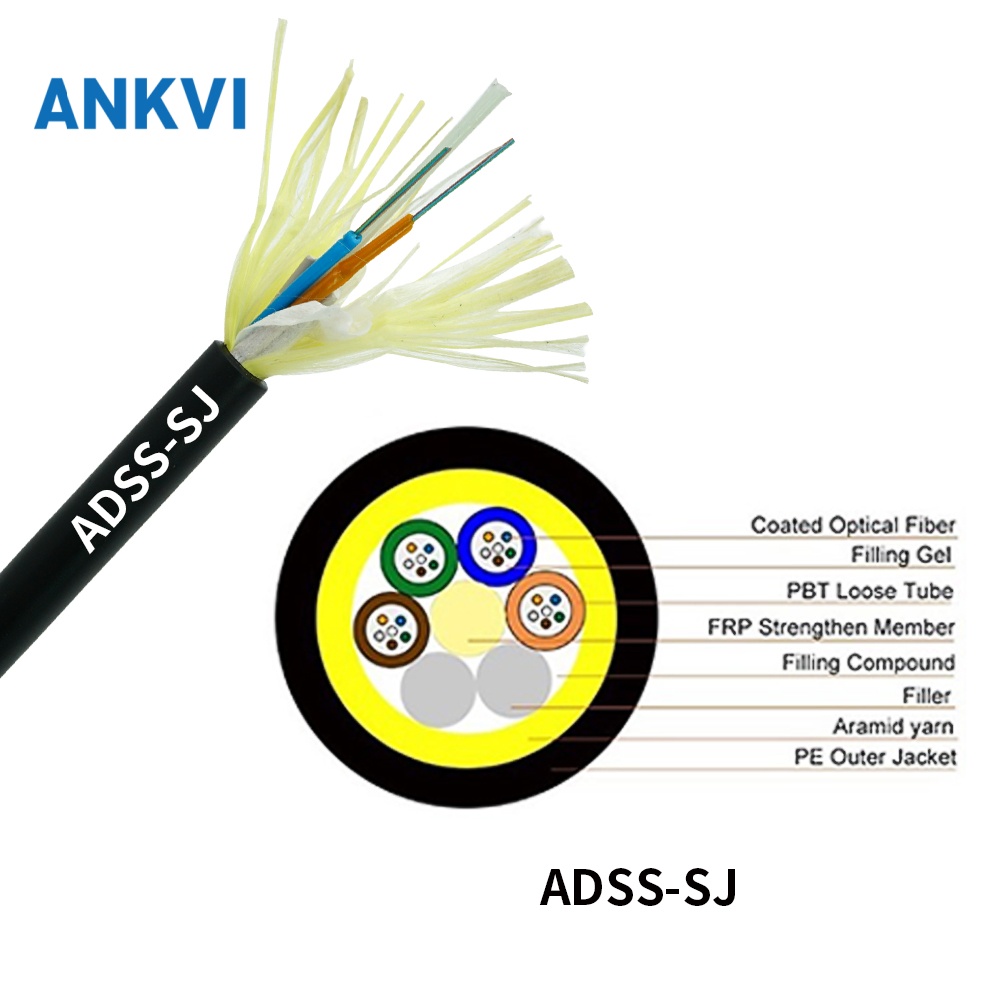

| Cable internal structure (96C) | 1+8 |

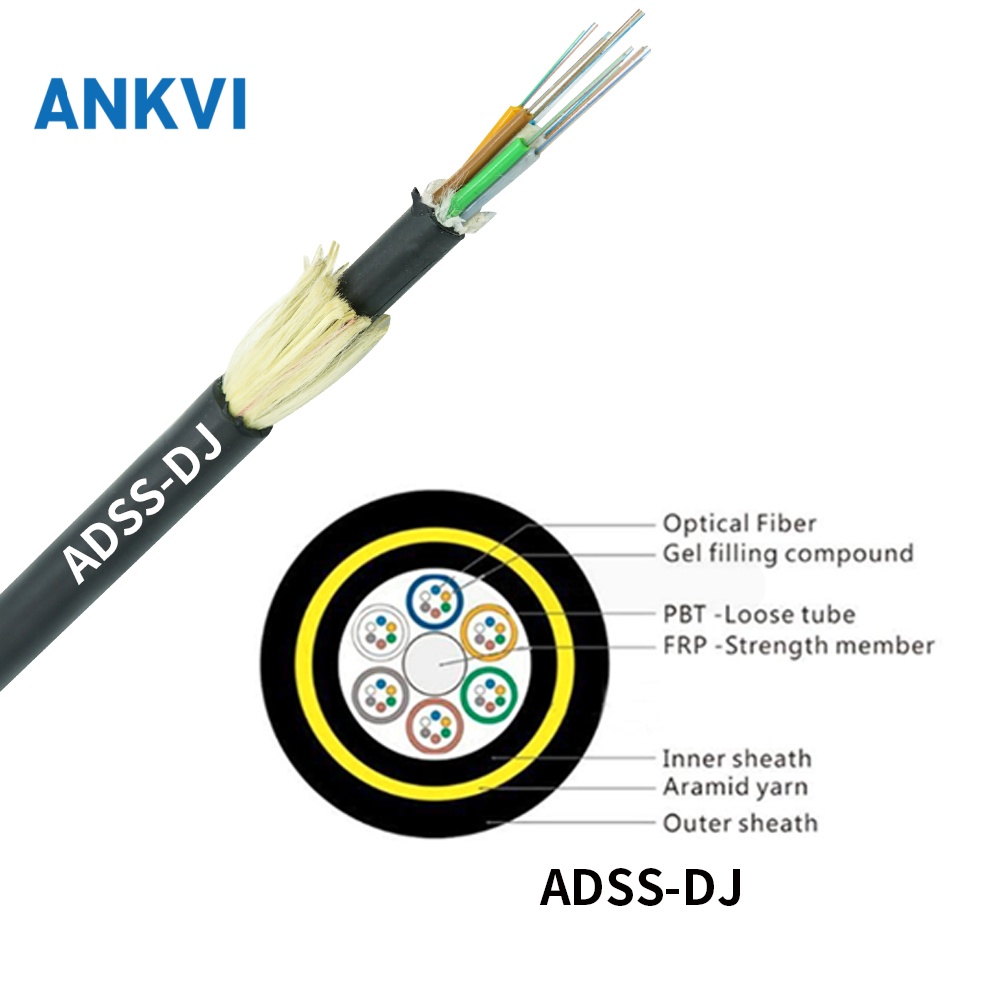

| Cable internal structure (48C) | 1+6 |
| Loose Tube Dimension | 2.0±0.05mm |
| Loose Tube Material | PBT |
| Loose Tube Tube No. (96C) | 8 |
| Loose Tube Tube No. (48C) | 4 |
| Loose Tube Fibers per Tube | 12 |
| Fillers Dimension | 2.0±0.05mm |
| Fillers Material | PVC |
| Fillers Color | White |
| Fillers No. (96C) | 0 |
| Fillers No. (48C) | 2 |
| Central Strengthen Member Diameter (96C) | 2.2mm (PE coated 3.6mm) |
| Central Strengthen Member Diameter (48C) | 2.0±0.05mm |
| Central Strengthen Member Material | FRP |
| Armaid Yarn Span (96C, span 100 m) | 100Meters |
| Armaid Yarn Span (48C, span 120 m) | 120Meters |
| Armaid Yarn Span (48C, span 150 m) | 150Meters |
| Armaid Yarn Material | Aramid yarn |
| Outer Sheath Material | PE |
| Outer Sheath Color | Black |
| OD Cable Outer Diameter (96C) | 12.0±0.1mm |
| OD Cable Outer Diameter (48C) | 9.8±0.2mm |
| Weight Cable Weight Per KM (96C) | 120±5kg/km |
| Weight Cable Weight Per KM (48C) | 83±5kg/km |
Applications
- Aerial self-supporting spans of 100 m, 120 m and 150 m
- Overhead distribution and utility routes that require an all-dielectric cable
- Access and backhaul links between distribution poles
- Outdoor plant with a design life of more than 30 years
Packing & Shipping
Clients often worry about transit damage?

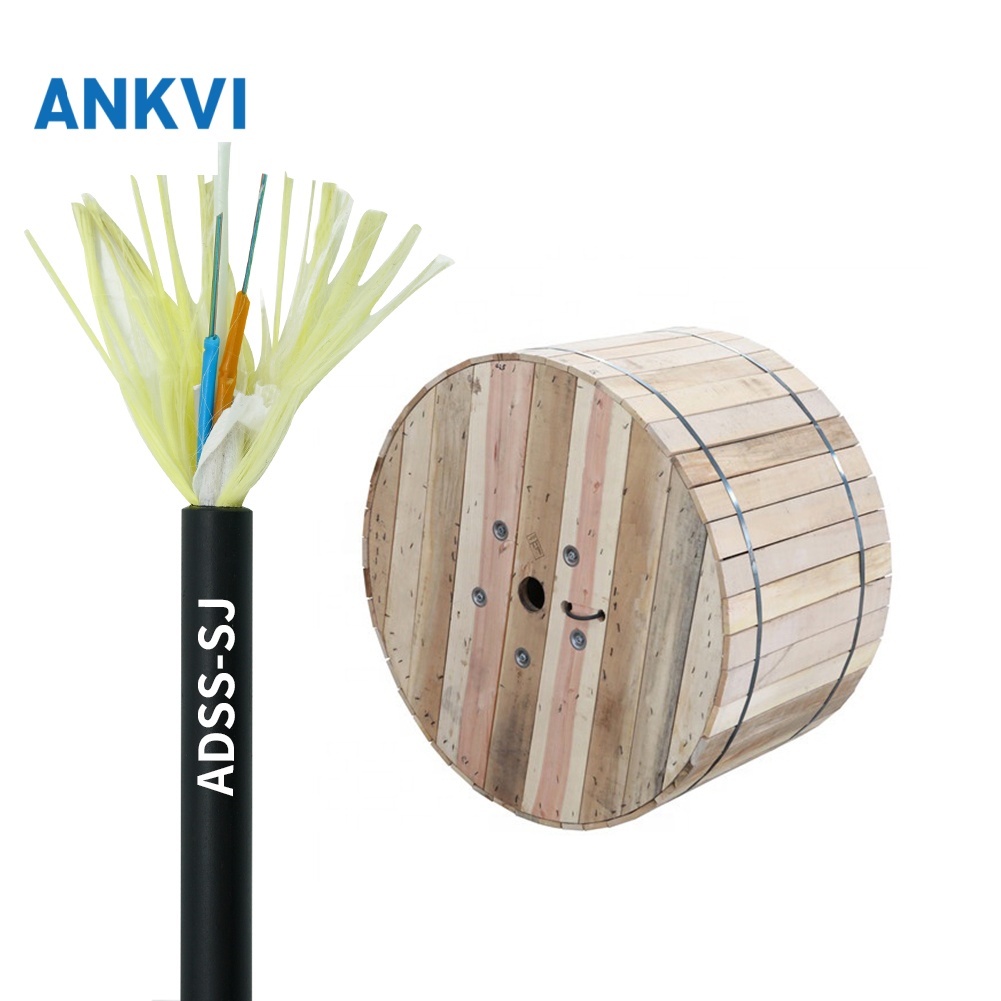

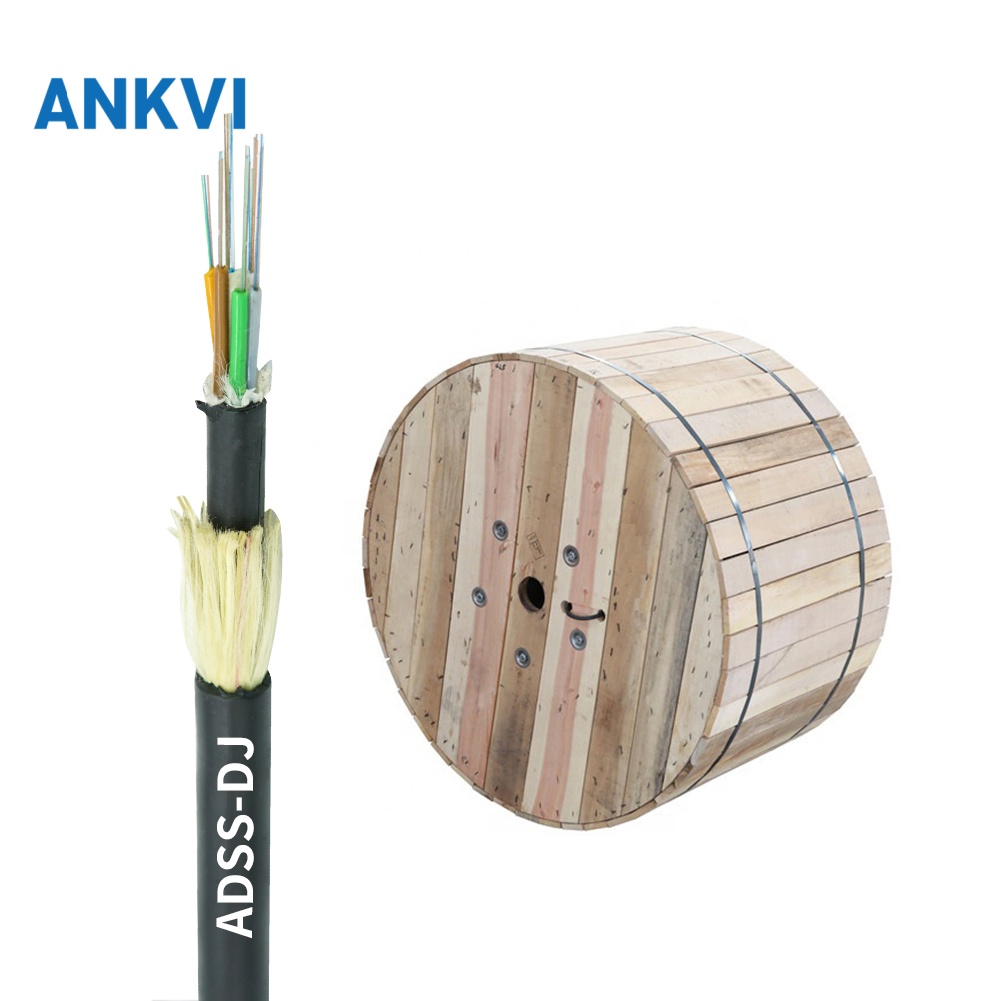

Our sturdy packaging puts those fears to rest. For different products we use waterproof film, foam protection, palletizing, wooden frame securing and cable reels. This ensures safe and reliable transport.
