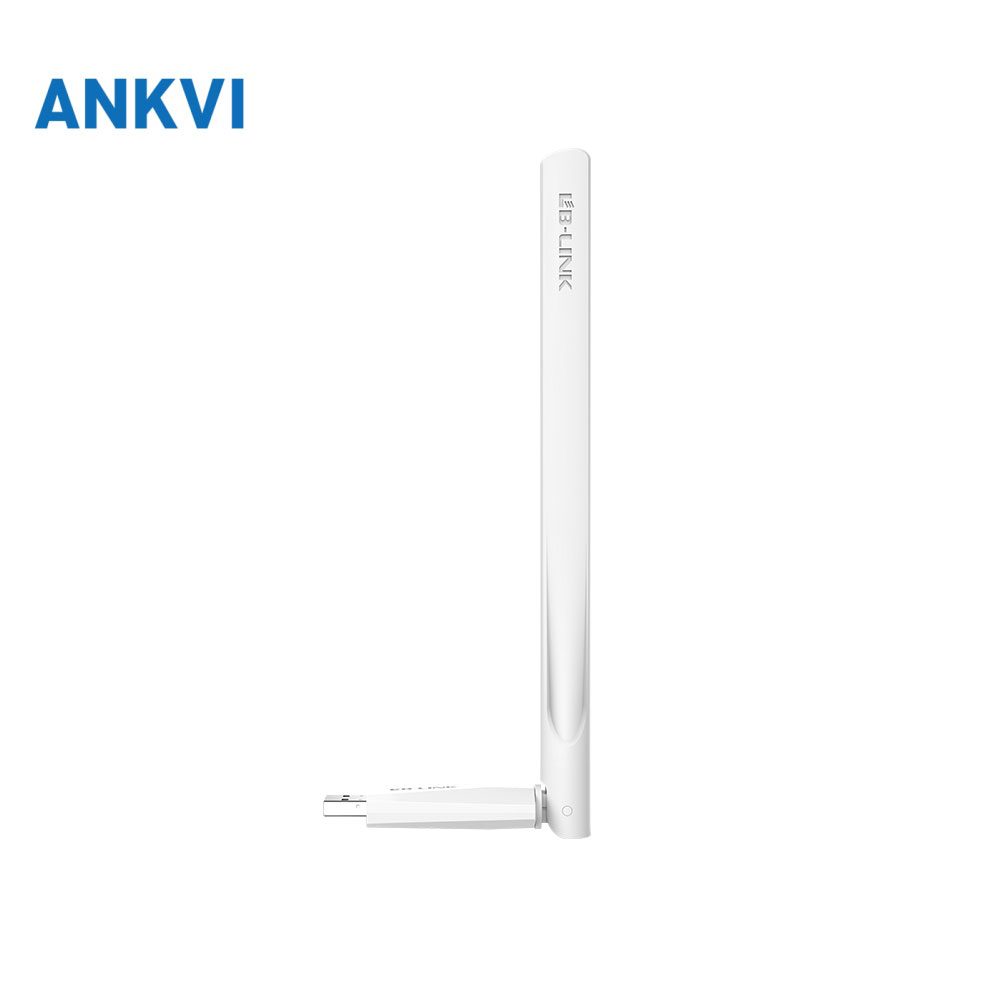

BL-WDN650A AC650 Dual Band USB Wi-Fi Adapter
The BL-WDN650A is a dual band USB Wi-Fi adapter with an external high-gain antenna, USB 2.0 connection and plug-and-play setup on Windows 10 and 8.1.
Description
Overview
The BL-WDN650A is a dual band USB Wi-Fi adapter that adds wireless capability to a desktop or laptop and can also share a connection as a soft AP.
It complies with IEEE 802.11b/g/n/ac, plugs into a USB 2.0 port and carries a high-gain external antenna for stable coverage.
BL-WDN650A Key Features
- Complies with IEEE 802.11b/g/n/ac and works on both 2.4GHz and 5GHz bands
- High-speed data transfer up to 650 Mbps
- Plug and play with no CD required and automatic installation
- 6dBi external antenna provides high-gain signal and stable coverage
- Portable USB 2.0 design travels easily between machines
- Soft AP function extends a wireless network by creating a hotspot
BL-WDN650A Specifications
| Parameter | Specification |
|---|---|
| Standards | 2.4GHz: IEEE802.11n, IEEE802.11g, IEEE 802.11b; 5.0GHz: IEEE 802.11ac, IEEE802.11n, IEEE 802.11a; |
| Port Type | USB 2.0 |
| Frequency | 2.4~2.4835GHz, 5.15~5.845GHz |
| Channels | 2.4G: 1-13, 5G: 36-140, 149-165 |
| Modulations | OFDM / CCK / 16-QAM / 64-QAM / 256-QAM |
| Receiver Sensitivity | 2.4G: 1M: -98 dBm@8%PER 6M:-90 dBm@10%PER 11M: -88 dBm@8%PER 15M: -88 dBm@10%PER 54M: -73 dBm@10%PER 150M: -68dBm@10%PER 5G: 6M:-90 dBm@10%PER 15M: -88 dBm@10%PER 32.5M: -82 dBm@10%PER 54M: -70 dBm@10%PER 150M: -67 dBm@10%PER 433.3M: -58 dBm@10% PER |
| Supported Operating Systems | Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Operating Environment | Operating temperature: 0℃~40℃ Storage temperature: -20℃~70℃ Operating humidity: 10%~90%RH, Noncondensing Storage humidity: 5%~90%RH, Noncondensing |
Applications
- Adding dual band Wi-Fi to a desktop PC that has no wireless card
- Upgrading an older laptop to faster 802.11ac wireless
- Turning a wired or tethered connection into a Wi-Fi hotspot with soft AP mode
- Keeping a stable link for streaming and downloads on Windows 10, 8.1, 8, 7 and XP
