GJ.026 EVA50 Digital Variable Optical Attenuator
Handheld digital variable optical attenuator for single-mode fiber, calibrated at 1310nm, 1490nm and 1550nm, with LCD display, 0.1 dB resolution and ranges of 40 dB, 60 dB or 80 dB.
Description
Overview

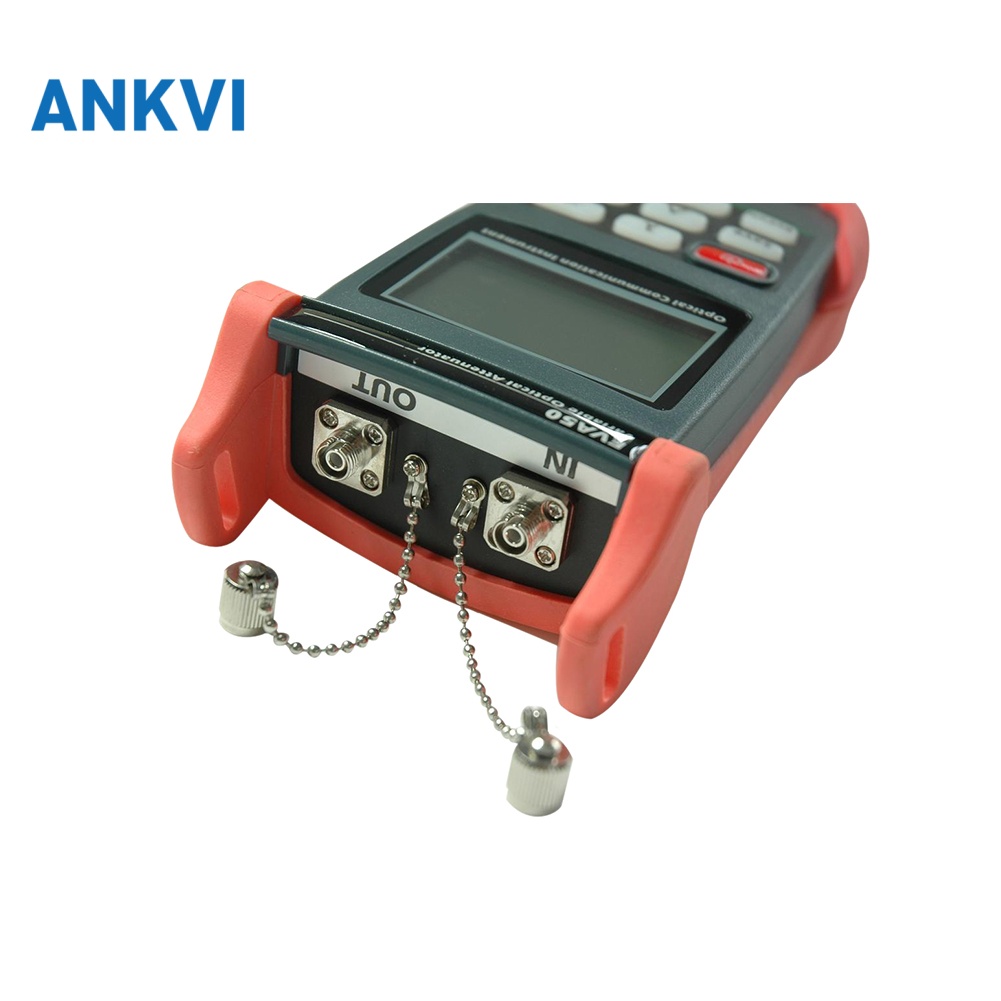

The GJ.026 EVA50 is a compact and rugged portable optical variable attenuator with a digital attenuating mode and an LCD display.
It is calibrated at 1310nm, 1490nm and 1550nm and comes in 40 dB, 60 dB and 80 dB attenuating ranges for single-mode fiber.
GJ.026 EVA50 Key Features
- Most compact and rugged portable attenuator on the market
- Three wavelengths: 1310nm / 1490nm / 1550nm
- Different attenuator range, 40dB, 60dB or 80dB
- Can save current value as reference
- Can save 10 tracks attenuation value
- Energy save mode
GJ.026 EVA50 Specifications
| Parameter | Specification |
|---|---|
| Model | EVA50-40 / EVA50-60 / EVA50-80 |
| Attenuating Range | 40 dB (SM) / 60 dB (SM) / 80 dB (SM) |
| Calibrated Wavelengths | 1310nm / 1490nm / 1550nm |
| Fiber Mode | SM |
| Attenuating Mode | Digital |
| Display Resolving Power | 0.1 dB |
| Display | LCD, 128*64 |
| Max Input Power | + 28 dBm |
| Return Loss* | > 40 dB |
| Insertion Loss* | < 2.5 dB |
| Connector | FC/PC (or customize) |
| Uncertainty | 0.5 dB |
| Repeatability* | 0.2 dB |
| RS-232 | Optional |
| Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy |
| Battery Charge | Yes |
| Operate Time | Above 20 hours |
| Power Supply | 3 * AA batteries or AC/DC adapter |
| Size(H*W*D) | 190mm * 90mm * 40mm |
| Weight | About 450g |
| Storage Temperature | -20 — +60 , < 90%RH |
| Operating Temperature | -10 — +50 , < 90%RH |
Applications
- Balancing optical power levels in fiber links
- Receiver overload protection during testing
- BER testing and system margin simulation
