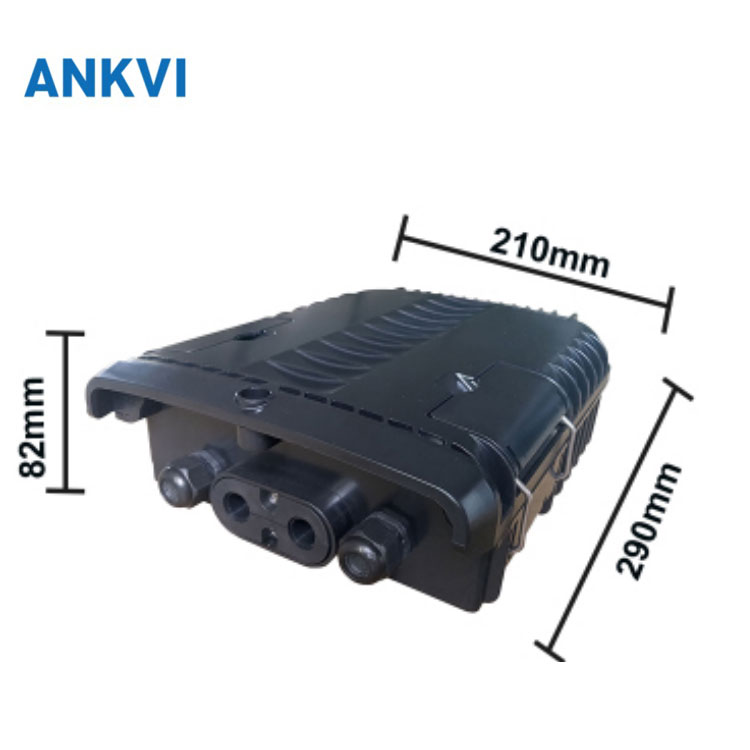

FQX.025 Fiber Optic Distribution Box 16 Ports – PC+ABS, IP66

Description

Overview

The FQX.025 is a fiber optic distribution box that realizes the functions of fiber fusion, distribution and scheduling in the FTTH system.

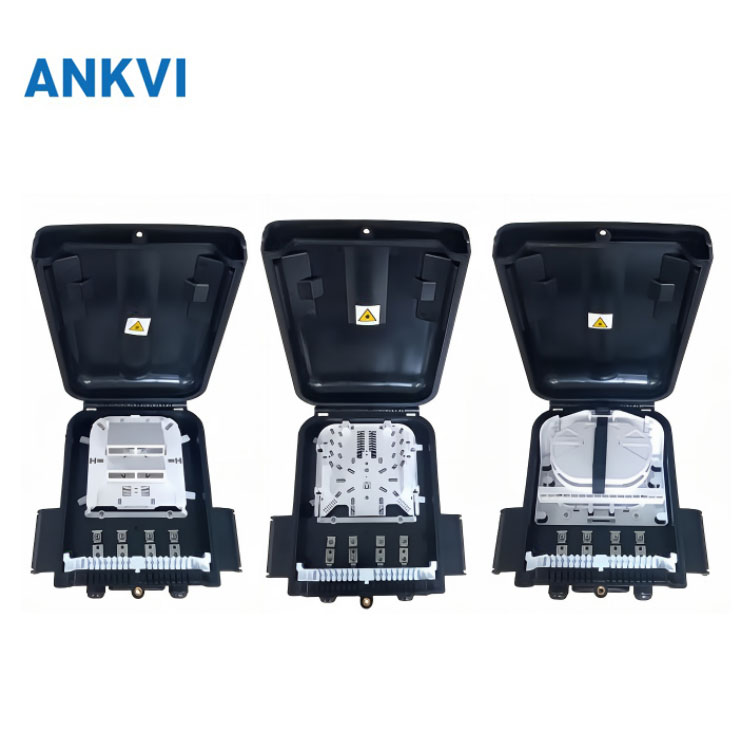

Its shell is made of PC+ABS so it stays strong and durable, and its IP66 protection rating allows it to be installed and used outdoors. Internally it can be fitted with a variety of stents to mount adapters, a mini steel splitter or a cassette splitter.

FQX.025 Key Features

• PC+ABS shell that is strong and durable
• IP66 protection rating for outdoor installation and use
• Realizes fiber fusion, distribution and scheduling in the FTTH system
• 2 IN-16OUT cable inlet and outlet with a largest cable diameter of 12mm
• Supplied in a carton of 10 sets

FQX.025 Specifications

Product Specifications

Installation and Accessories

• Wall-mount: drill 4 holes over the wall based on the size, place the expansion bolt, match the box to the holes and fasten with the bolts.
• Wall-mount accessories: plastic tie x4, screw x4, plastic expansion bolt x4 and throat hoop x4.
• Pole-mount: set the easy pole ring to the telecom pole; accessories: plastic tie x4, screw x4, plastic expansion bolt x4, throat hoop x4, hoop x2 and [A] backboards x2.
• Mounting modes cover pole, cable and wall or pole fixings with the matching plastic holding pole, hook, metal back plate or metal holding pole and hoops.
• Heat shrink tubing is supplied in the same quantity as the splice closure cores; configuration can be customized as required.

Applications

• FTTH fiber fusion, distribution and scheduling nodes.
• Outdoor distribution points installed on a wall, a pole or a cable with IP66 protection.
• Deployments that need SC, FC, LC or E2K adapter accommodation.
• Routes that carry cable up to a largest diameter of 12mm.
