FQX.038 Fiber Optic Distribution Box 8 Ports – IP65, ABS
A wall or pole mounted fiber optic distribution box with 8 SC, FC, LC or E2K adapter ports and a 1×8 splitter slot, in a strong ABS shell rated IP65.
Description
Overview
The FQX.038 fiber optic distribution box handles fiber fusion, distribution and scheduling in FTTH systems. It is moulded in new ABS material for a strong, durable shell, and its IP65 protection rating allows it to be installed and used outdoors.
Inside, the box can be fitted with a variety of stents to install adapters, a mini steel splitter or a cassette splitter.
FQX.038 Key Features
- Realizes fiber fusion, distribution and scheduling in FTTH systems
- Strong, durable shell moulded in new ABS material
- IP65 protection rating for outdoor installation and use
- Internal stents accept a variety of adapter types
- Takes a mini steel splitter or a cassette splitter
FQX.038 Specifications
Product Specifications
| Parameter | Specification |
|---|---|
| Item | Fiber Optic Distribution Box 8 ports |
| Diameter of Cable(mm) | IN: 7mm- 13mm OUT: 2-12.5mm |

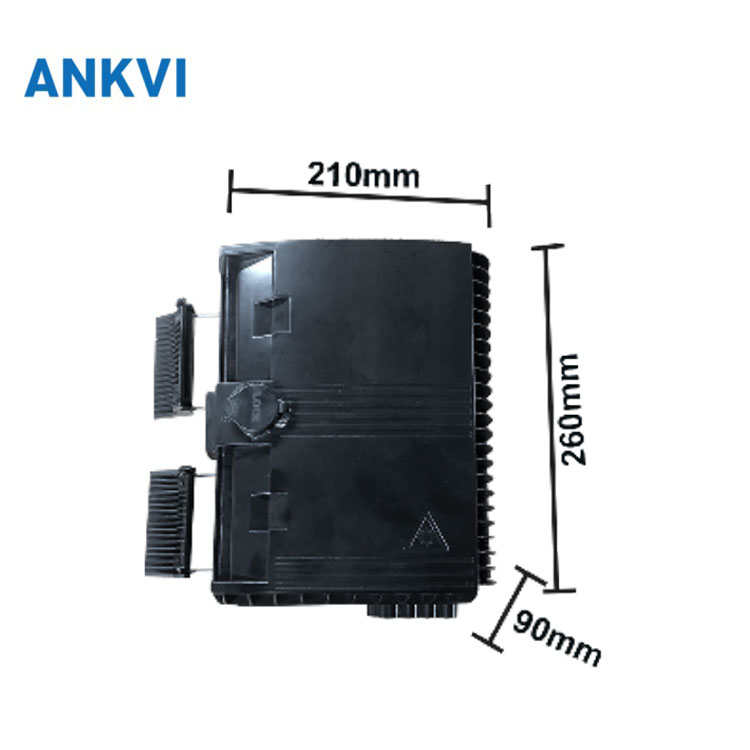

| Dimension (mm) | 260MM*210MM*90MM |
| Adaptor accommodating | Max. 8 port of SC, FC, LC, E2K |
| Material | ABS |
| Splitter | One for 1×8 splitter |
| Weight (Kg) | 0.93 |
| Working Temperature | -30deg.C~80deg.C |
| No. of Cable Inlet/Outlet | 2IN- 8OUT |
| Protection Grade | IP65 |
| Carton packing | 15sets/carton |
| Weight (carton) | 15kg/carton |
| Carton size | 54.5*28.5*15.5cm |
Installation and Accessories
- wall-mount: 4 plastic ties, 4 screws, 4 plastic expansion bolts, 2 throat hoops, 1 key, plus heat shrink tubing (same as splice closure cores)
- pole-mount: 4 plastic ties, 4 screws, 4 plastic expansion bolts, 2 throat hoops, 2 hoops, 1 key, plus heat shrink tubing (same as splice closure cores)

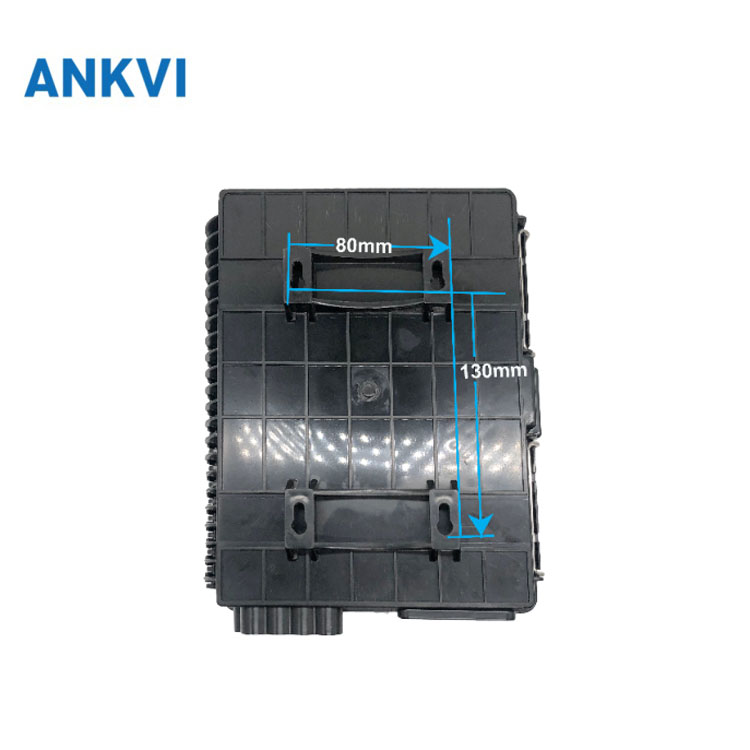

- Wall installation: drill 4 holes in the wall to match the box, fit the plastic expansion bolts, then align the box over the holes and fasten it with the bolts
- Pole installation: fit the easy pole ring set to the telecom pole
Applications
- FTTH fiber distribution and scheduling where an 8 port box is required
- Outdoor wall-mounted or pole-mounted fiber access points
- Sites that use a 1×8 splitter inside the box
- Drop cable networks that need SC, FC, LC or E2K adapters
