GJ.0033-0035 Red Laser Pen – 10-30 mW, 650 nm VFL
GJ.0033, GJ.0034 and GJ.0035 are red laser pen visual fault locators rated at 10 mW, 20 mW and 30 mW, with a 2.5 mm universal adapter and CW or 2 Hz modulation modes.
Description
Overview

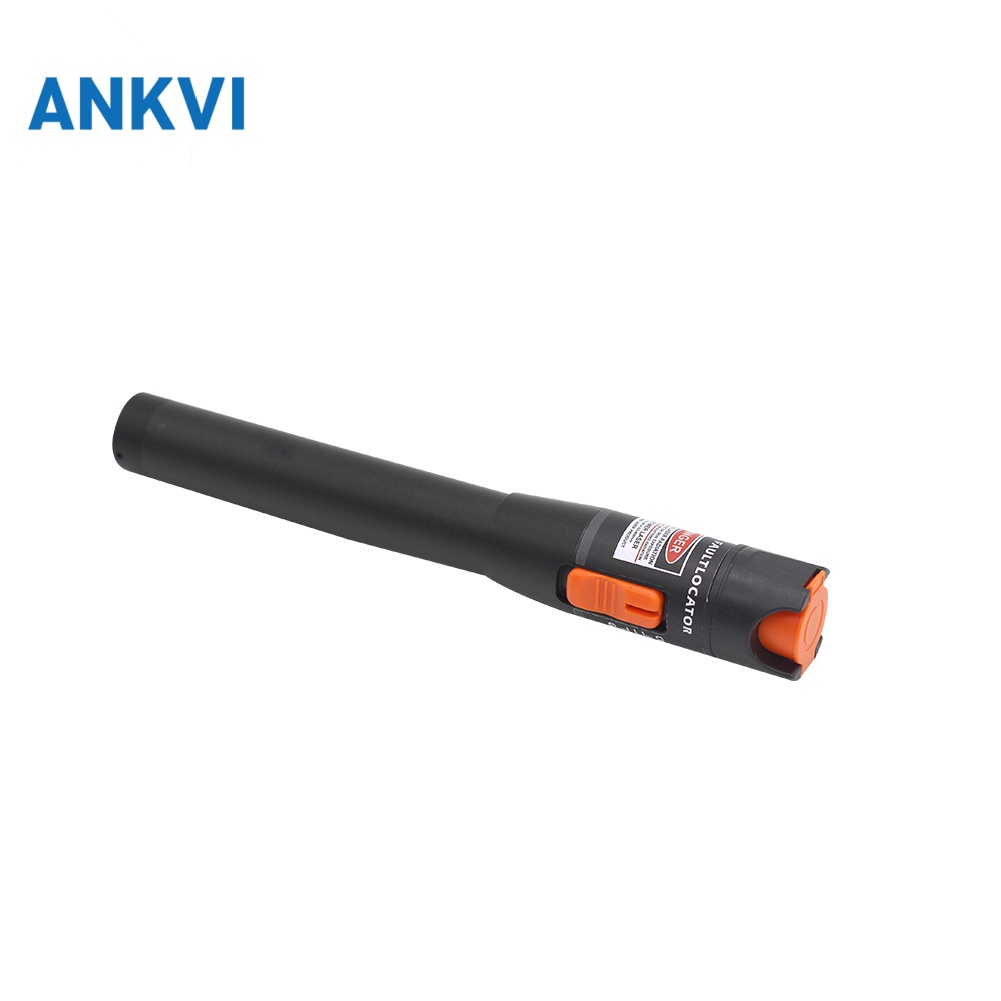

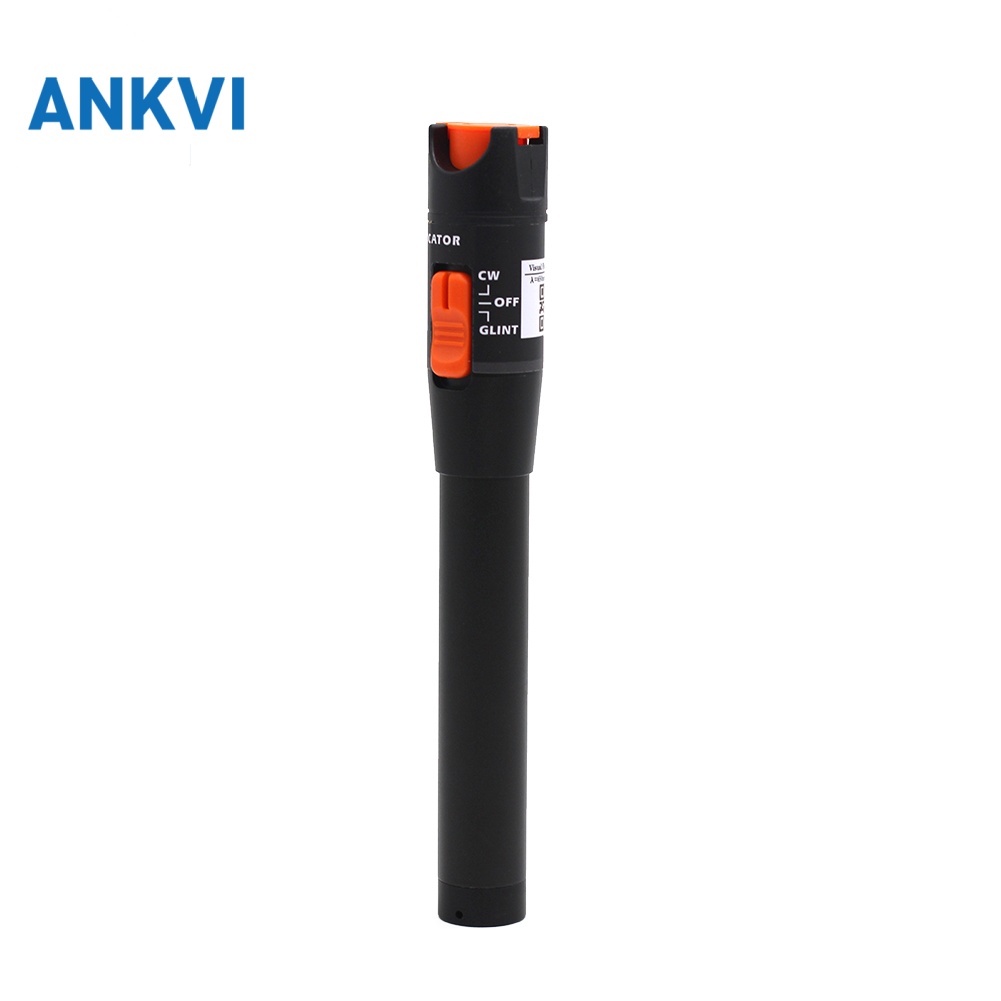

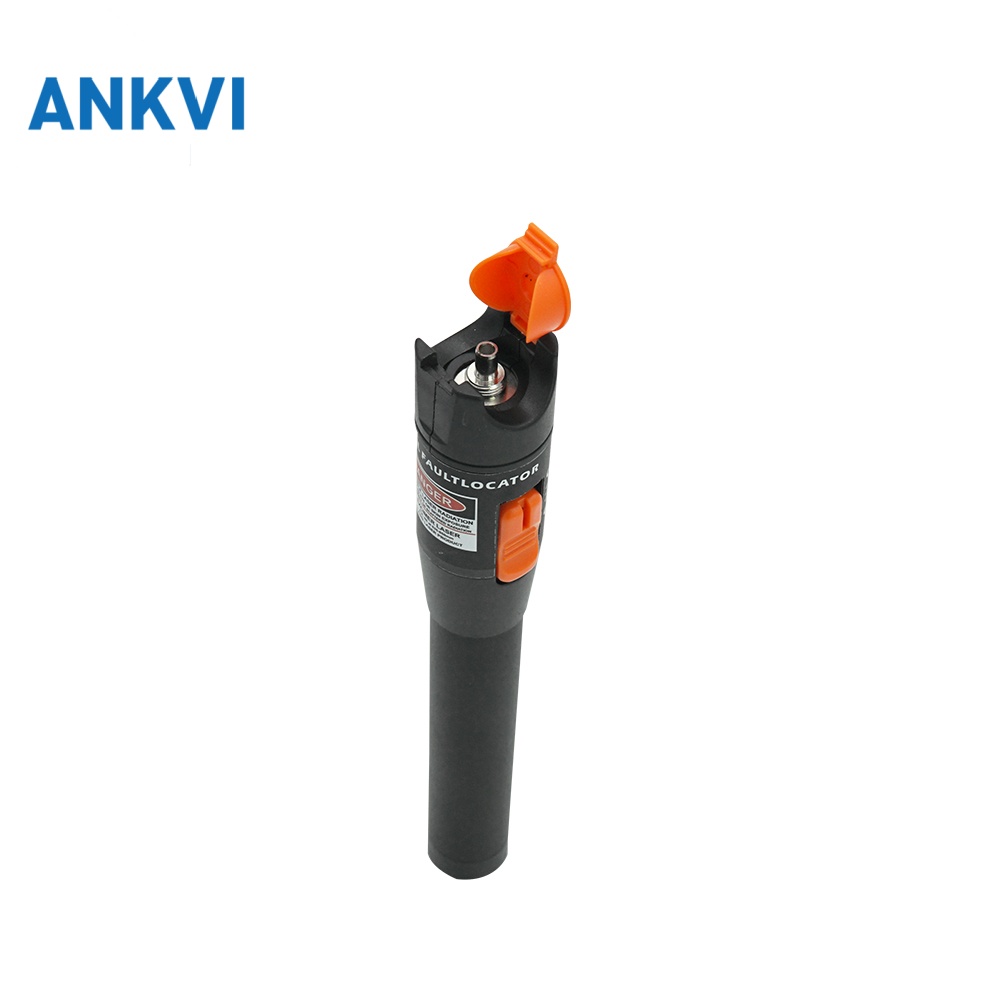

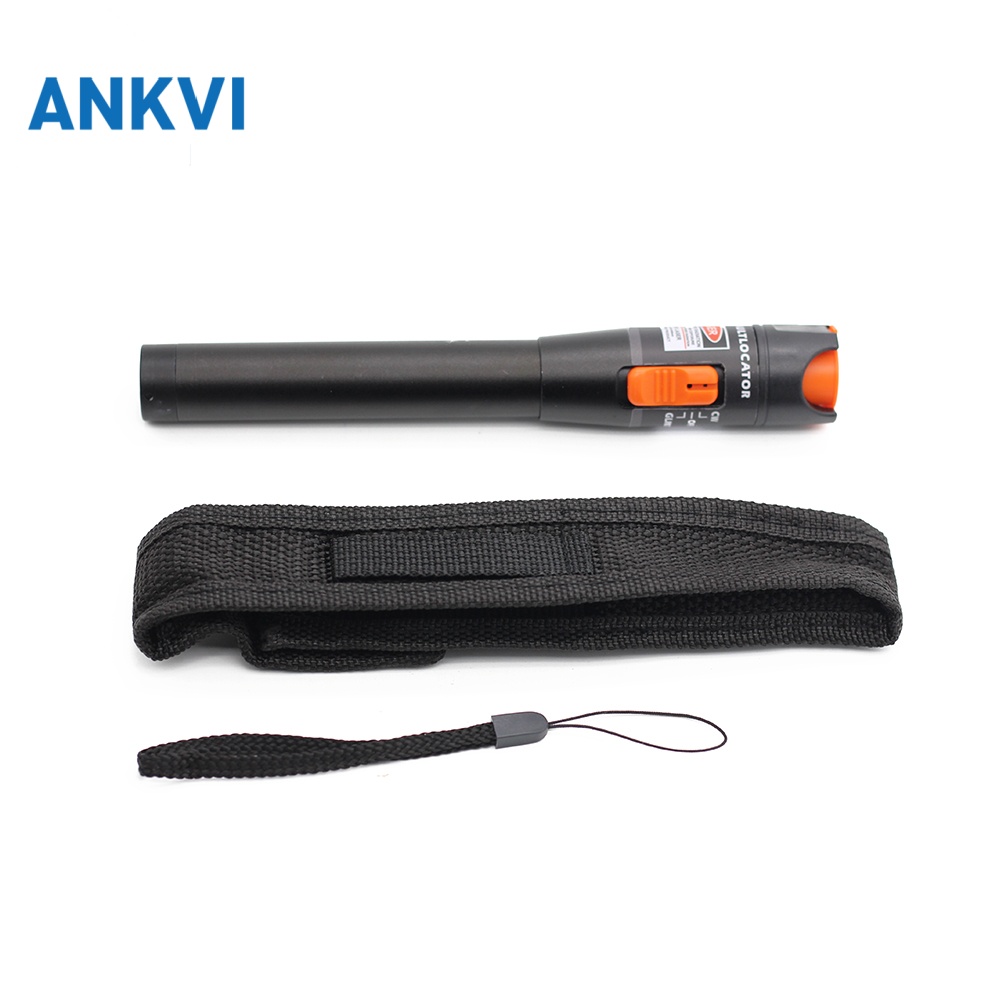

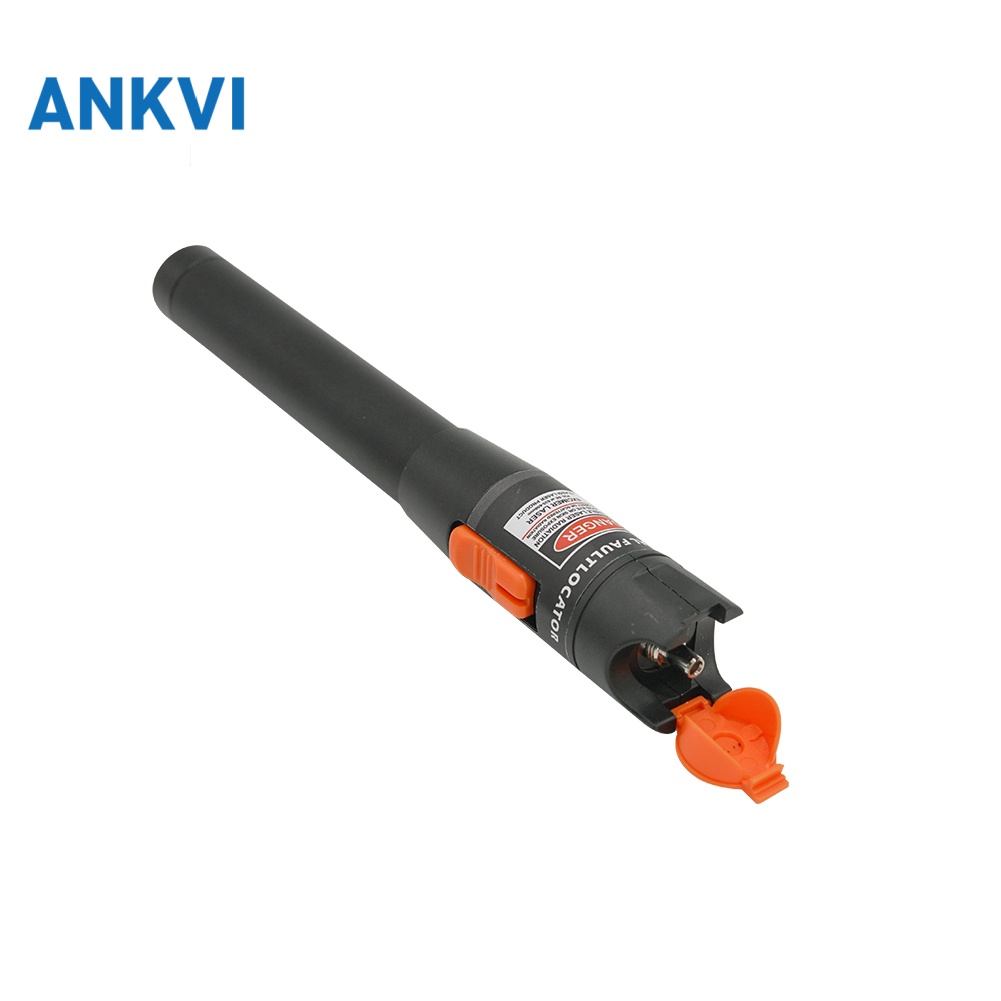

The GJ.0033, GJ.0034 and GJ.0035 are red laser pen visual fault locators (VFL) rated at 10 mW, 20 mW and 30 mW. Each has an aluminum alloy body of 175x26x26 mm weighing 35 g, a standard 2.5 mm interface, a dust cap and a battery cartridge.
They support CW and 2 Hz modulation work modes. A special laser end design avoids damage when the unit is dropped on the floor, and the laser drive circuit keeps the power output stable even on a low battery and lets the locator work continuously for more than 60 hours.
GJ.0033 Key Features
- High quality visual fault locator (VFL) with red laser output

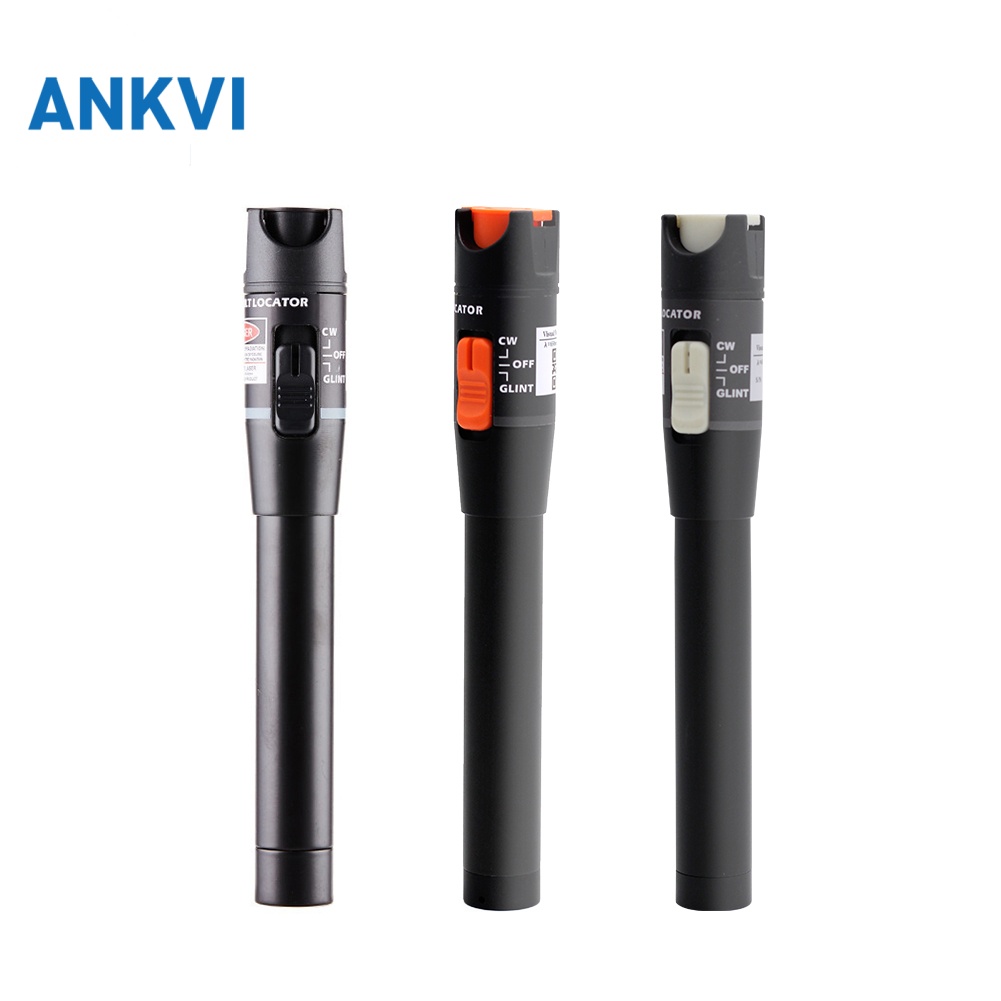

- Three power versions: 10 mW (GJ.0033), 20 mW (GJ.0034) and 30 mW (GJ.0035)
- Supports CW and 2 Hz modulation work modes
- Special laser end design avoids damage when the locator is dropped on the floor
- Effective laser drive circuit gives more than 60 hours of continuous work
- Special laser driver circuit keeps the power output stable on a low battery

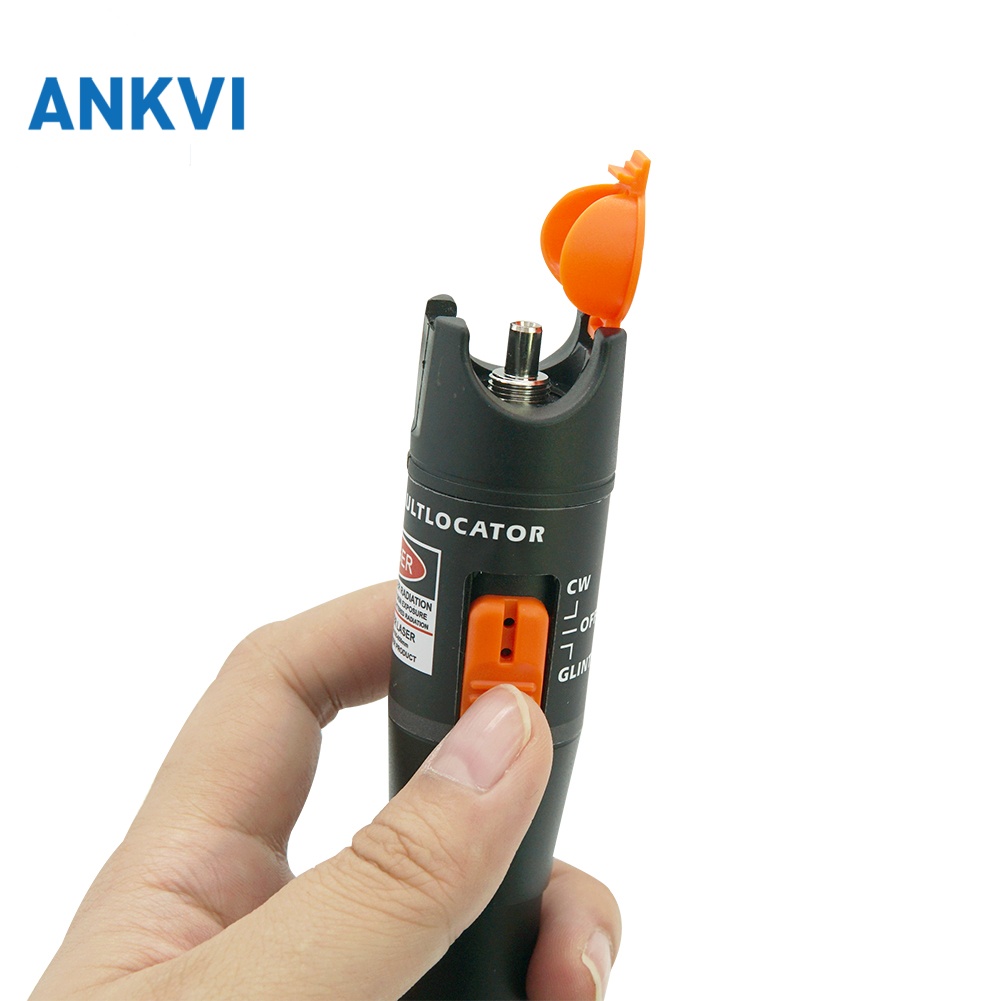

- 2.5 mm universal adapter matches SC and LC adapters
- Aluminum alloy body of 175x26x26 mm, weighing 35 g

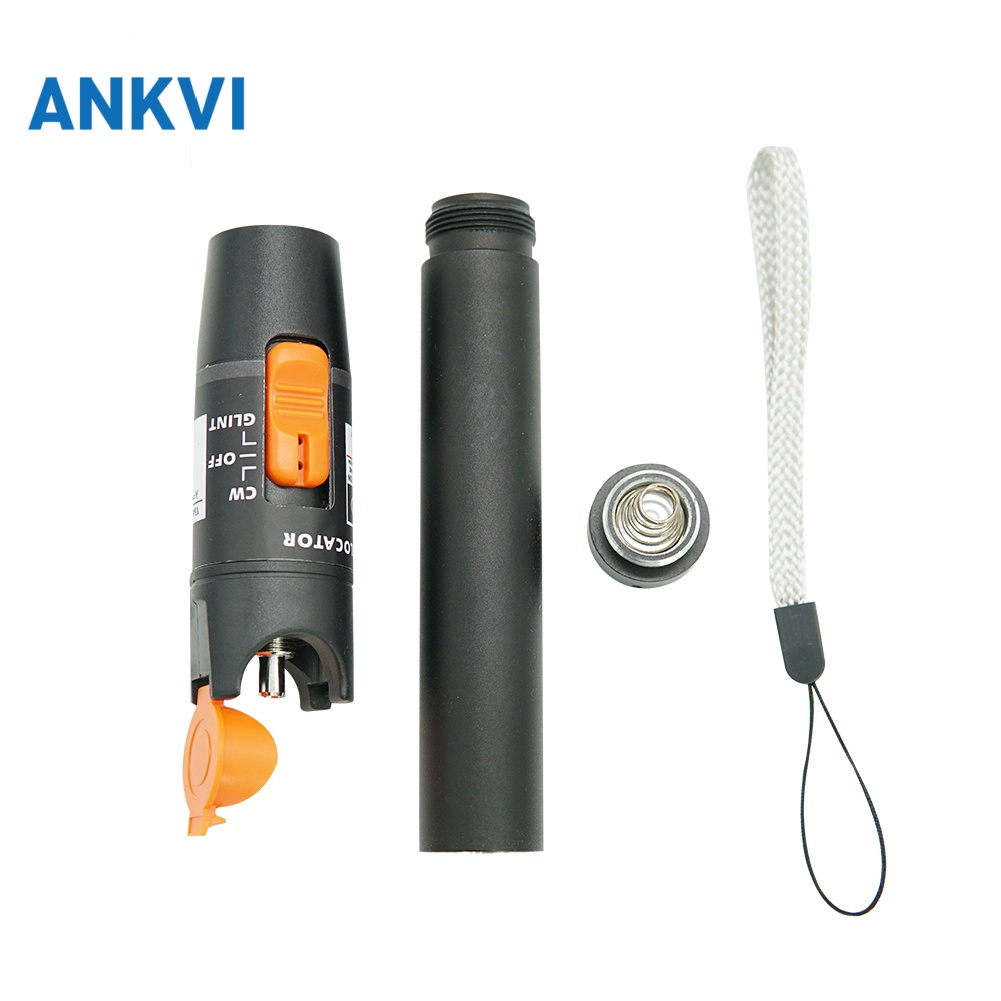

- Supplied with a dust cap and a battery cartridge
GJ.0033 Specifications
| Parameter | Specification |
|---|---|
| Model | GJ.0033, GJ.0034, GJ.0035 |
| GJ.0033 output power | 10 mW |
| GJ.0034 output power | 20 mW |
| GJ.0035 output power | 30 mW |
| Wavelength | 650 nm |
| Work mode | CW, 2 Hz modulation |
| Interface | Standard 2.5 mm |
| Adapter compatibility | SC, LC |
| Material | Aluminum alloy |
| Size | 175x26x26 mm |
| Weight | 35 g |
| Continuous working time | More than 60 hours |
| Battery | Battery cartridge |
Applications
- Visual fault location in optical fiber links and patch cords
- Checking SC and LC connections through the 2.5 mm universal adapter
- Optical fiber network installation and maintenance
- Field tracing of breaks and high loss bends in fiber cable
