Name: GJ.0039 Optical Power Meter – 800-1700 nm, -70 to +6 dBm – ANKVI
SKU: GJ.0039

Description

Overview

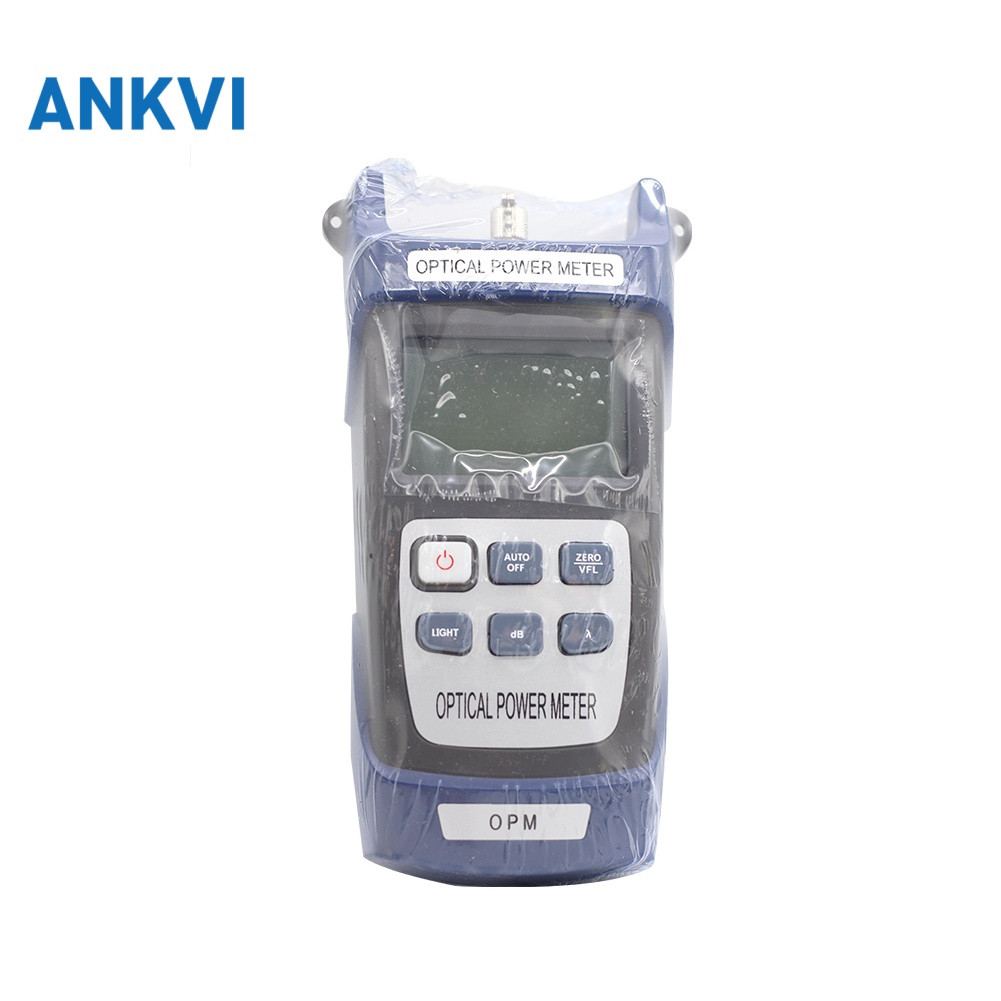

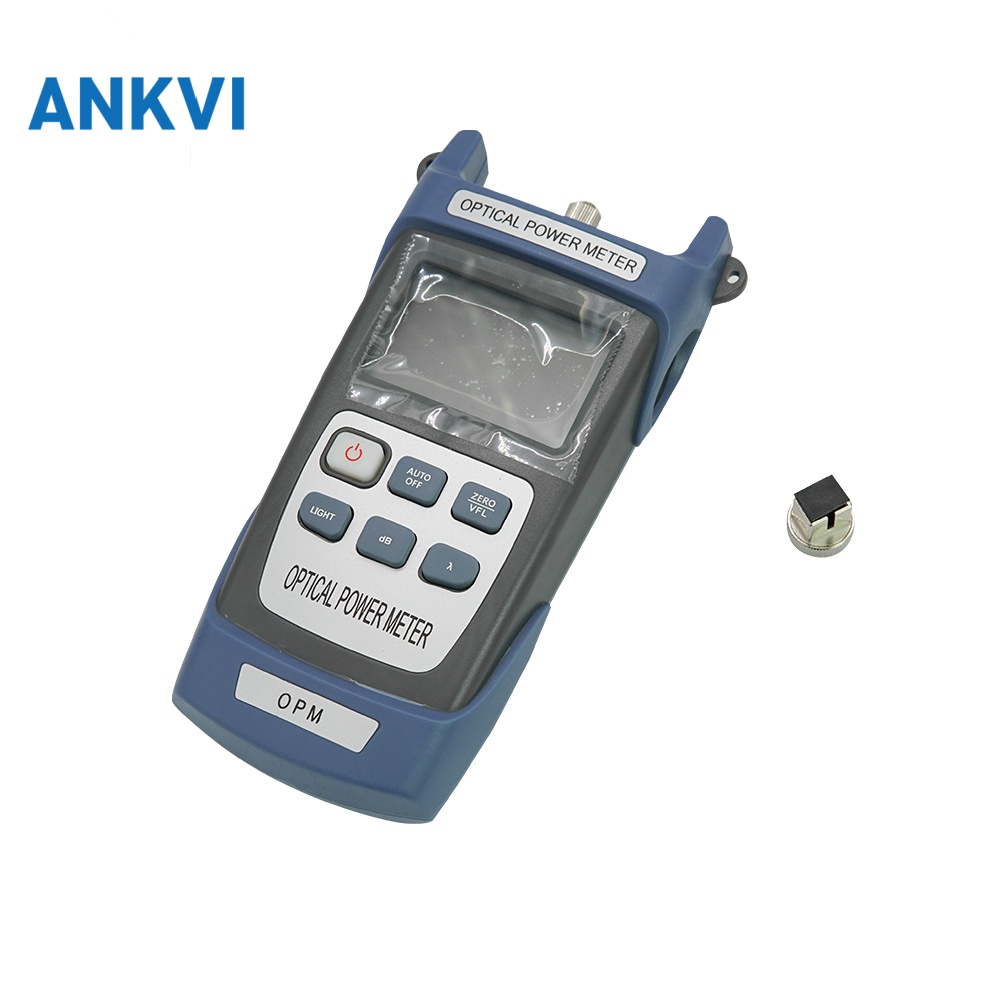

The GJ.0039 is a handheld optical power meter for continuous optical signal power measurement, built around a single chip microprocessor and an InGaAs detector. It covers an 800-1700 nm wavelength range and measures from -70 to +6 dBm or from -50 to +26 dBm.

The fuselage follows an ergonomic design made by an advanced cold molding process, and the built-in detector is well protected. Linear mW and non-linear dB values can be shown at the same time, and the meter adds automatic shutdown, background light display, user self calibration and wavelength memory.

GJ.0039 Key Features

Handheld optical power meter for continuous optical signal power measurement
Wavelength range from 800 to 1700 nm with 7 selectable wavelengths
Power measurement range of -70 to +6 dBm or -50 to +26 dBm
InGaAs detector with a +/-5% uncertainty
Simultaneous linear (mW) and non-linear (dB) index display on the LCD
SC and FC interface standard, ST interface optional

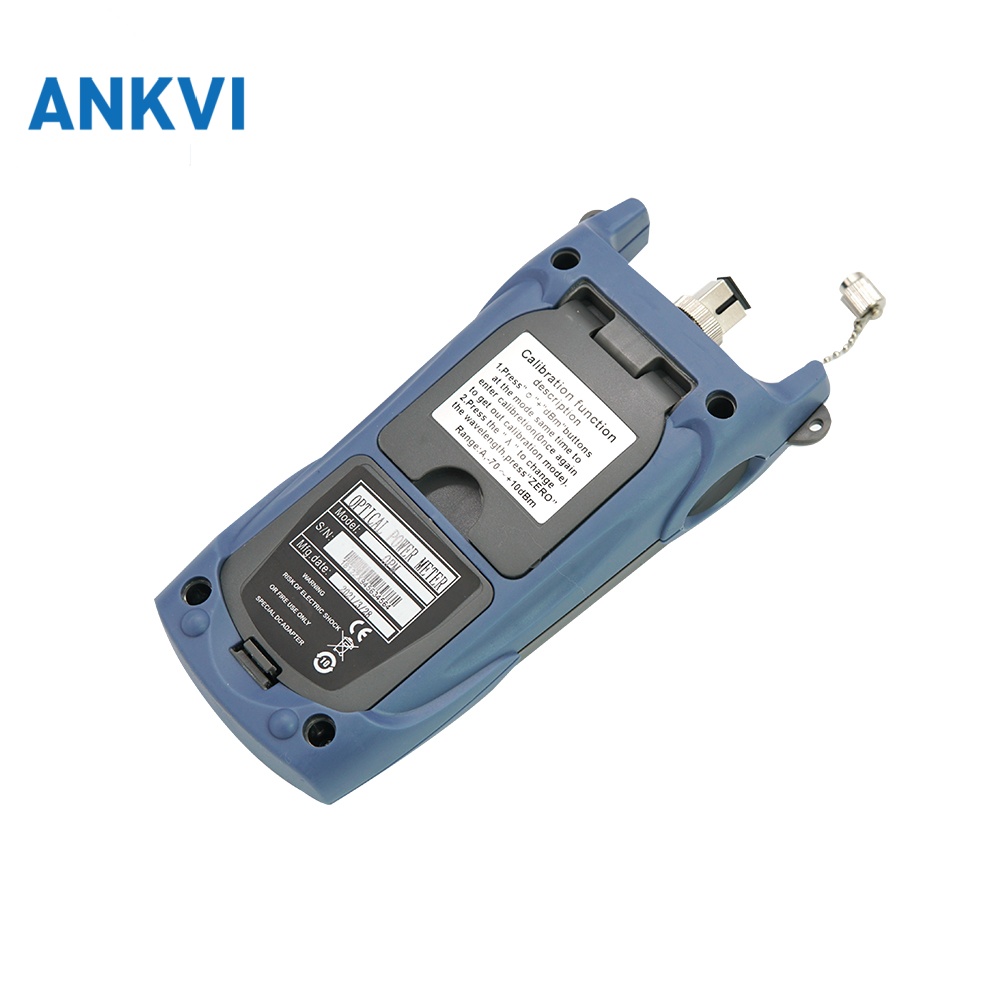

Automatic shutdown, on/off background light and user self calibration
Wavelength memory function and optical fiber work identification
48 hour unplugged working time from 3 No. 5 batteries or a lithium battery

GJ.0039 Specifications

Parameter	Specification
Model	GJ.0039
Wavelength range	800-1700 nm
Connector	FC/SC standard, ST optional
Type of detector	InGaAs
Power measurement range	-70 to +6 dBm or -50 to +26 dBm
Standard wavelength (nm)	850, 980, 1300, 1310, 1490, 1550, 1625
Display resolution (linear)	0.1%
Display resolution (logarithmic)	0.01 dBm
Uncertainty	+/-5%
Working temperature	-10 to +60 deg.C
Storage temperature	-25 to +70 deg.C
Auto off time	10 min
Battery working time	48 h
Instrument size	190 x 100 x 48 mm or 165 x 75 x 28 mm
Power supply	3 x No. 5 battery or rechargeable lithium battery
Weight	300 g / 400 g
Charging function	Optional

Standard Configuration

Host optical power meter supplied with a warranty card, certificate and instructions

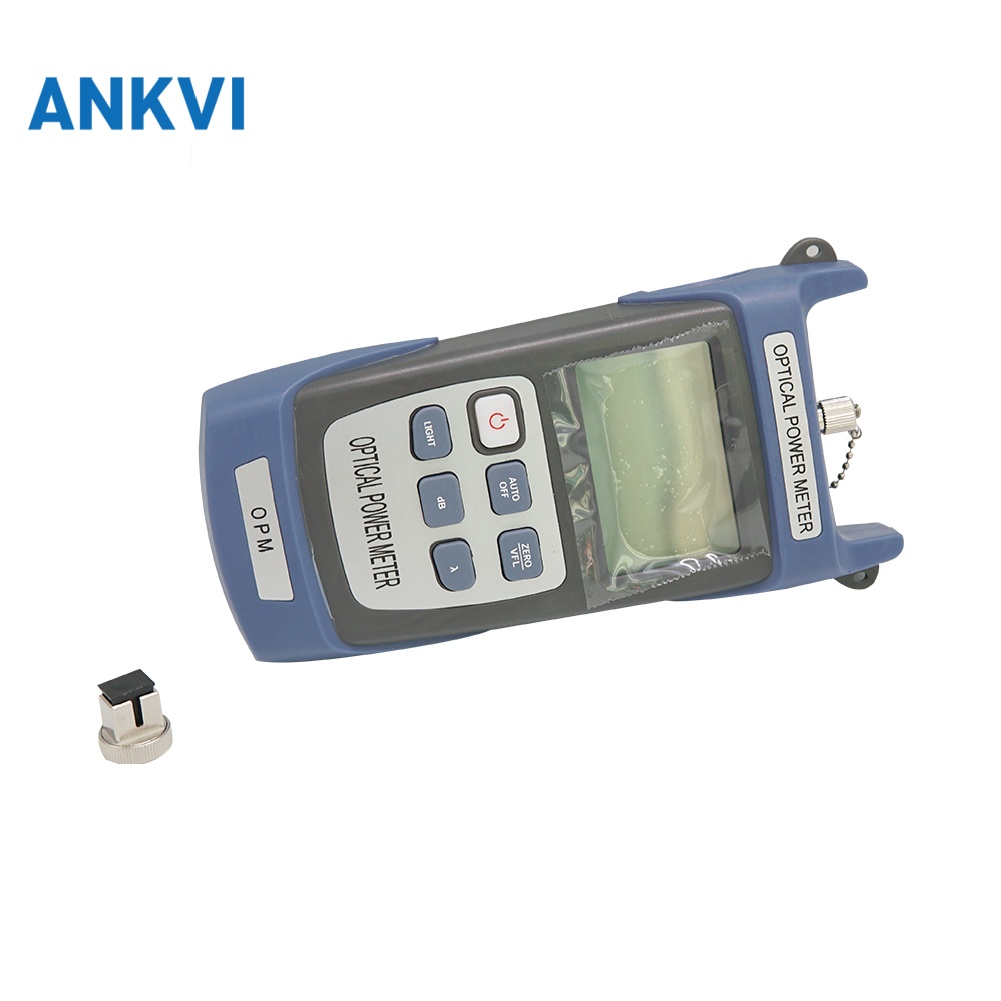

SC and FC adapters standard, ST adapter optional
Three No. 5 dry cell batteries or a lithium battery, optional
Charger and adapter on the charging version, optional
Oxford rolls available as an optional accessory

Applications

Optical fiber construction and maintenance
Optical fiber communication networks
Optical fiber sensing systems
Optical CATV installations
