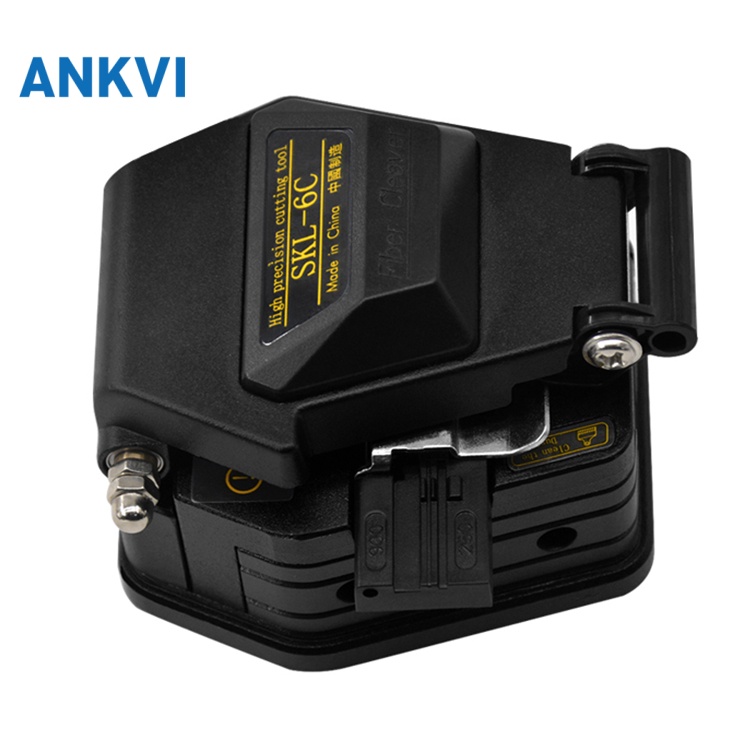

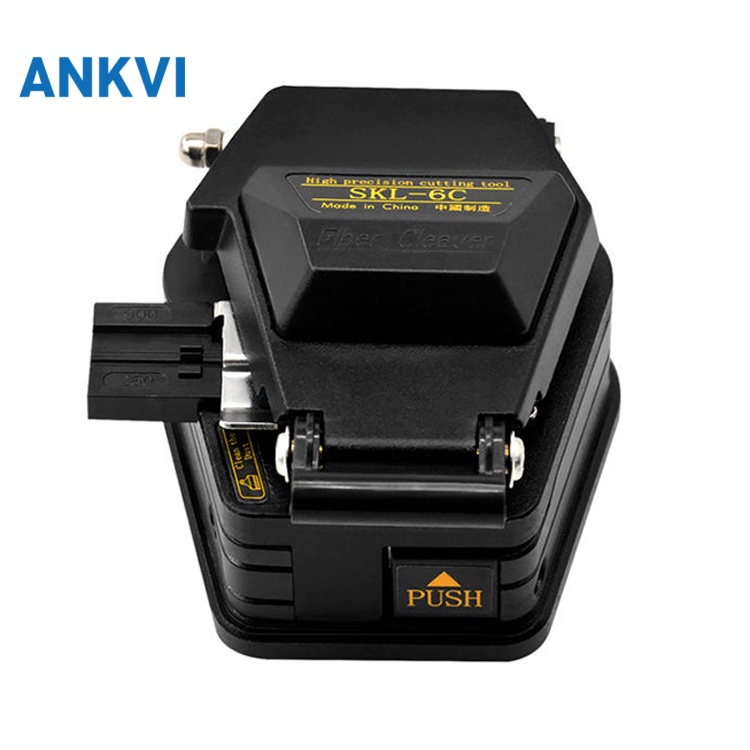

GJ.0107 Precision Cleaver – Single Core Fiber, 12 mm Minimum
GJ.0107 is a precision cleaver for single core fiber in FTTH work, using a stripped fiber length of at least 12 mm and offering blade cleaving positions 1 to 12.
Description
Overview

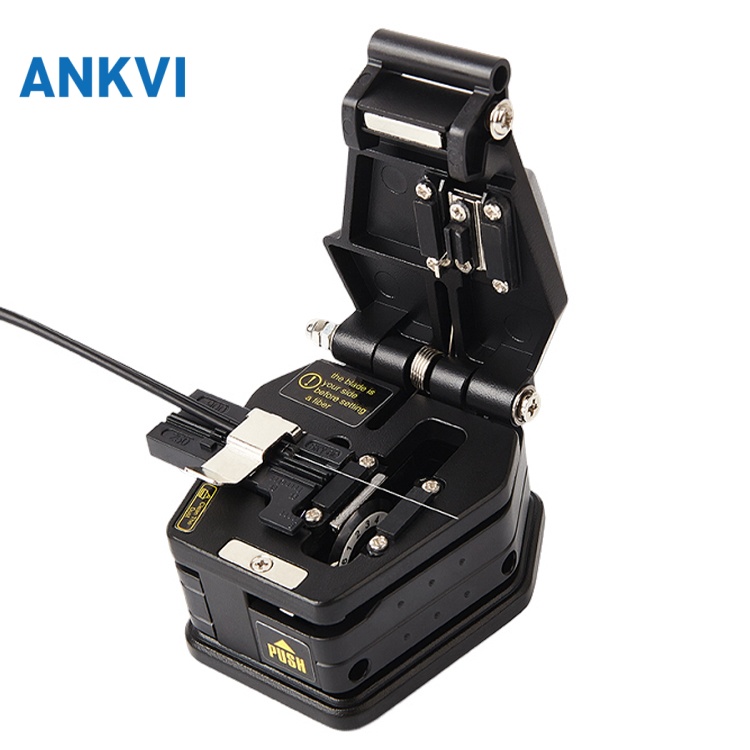

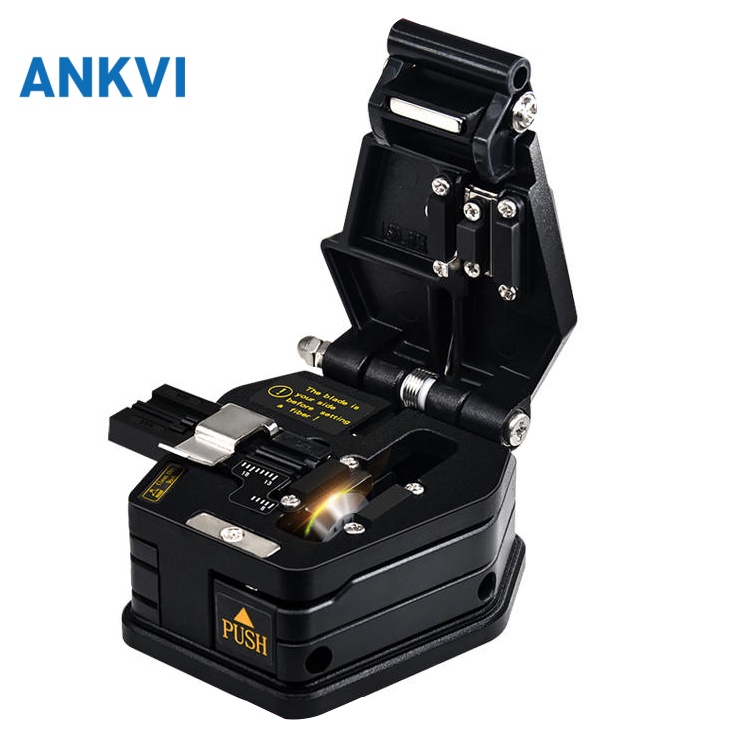

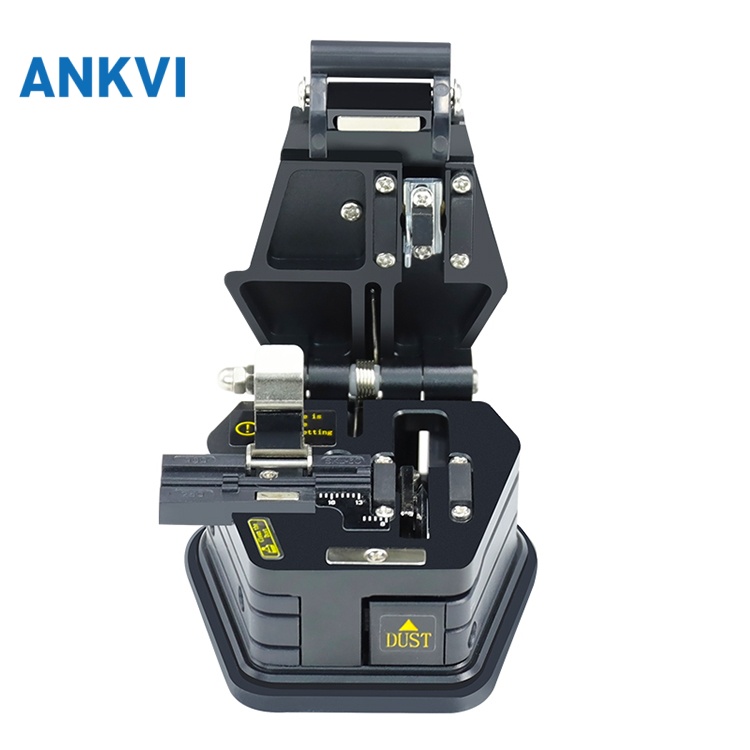

The GJ.0107 is a precision cleaver used for precision cutting of single core fiber, suitable for FTTH optical fiber to the home. The stripped fiber is placed on a v-groove and held by a fiber holder fixed on the body while the cover is closed firmly to cleave it.
The blade edge is marked with cleaving positions 1 to 12, so a worn edge can be rotated to a fresh position, and blade height can be raised in 0.05 mm steps twice before the blade is replaced. Cleaning is done with alcohol-soaked cotton, and the stripped fiber should be at least 12 mm long.
GJ.0107 Key Features
- Precision cleaver for single core fiber, suitable for FTTH optical fiber to the home
- Stripped fiber length should be at least 12 mm
- Blade edge marked with cleaving positions 1 to 12 so a worn edge can be rotated to a fresh position
- Blade height adjustable in 0.05 mm steps, two adjustments allowed before the blade is replaced
- Cleaning with alcohol-soaked cotton; never use acetone or solvent on the rubber pad
- Single mode fiber holder fixed on the body, changed to a multimode holder with the enclosed wrench
- Supplied with a carrying case, instruction manual and 1.5 mm wrench
- Keep away from water, humid or dusty places, high temperature and serious impact
GJ.0107 Specifications
| Parameter | Specification |
|---|---|
| Model | GJ.0107 |
| Function | Precision cutting of single core fiber |
| Application | FTTH optical fiber to the home |
| Minimum stripped fiber length | 12 mm |
| Cleaving positions | 1 to 12, marked on the blade edge |
| Blade height adjustment | 0.05 mm per step, two times maximum |
| Fiber holder | Single mode, fixed on the body; multimode holder change with the enclosed wrench |
| Wrench size | 1.5 mm |
| Cleaning | Alcohol-soaked cotton; no acetone or solvent on the rubber pad |
| Blade replacement | M2 bolt and two setscrews |
| Supplied with | Assembled body, fiber holder, carrying case, instruction manual, wrench |
| Storage | Away from water, humid or dusty places and high temperature |
Applications
- FTTH optical fiber to the home installation
- Precision cutting of single core fiber
- Fiber preparation where a clean cleaved end is needed
- Routine optical fiber termination work
