GJ.153 ACC Clamp – 150×110×41 mm, 1.0 KN
GJ.153 ACC clamp in PA6 or PA66, a 150*110*41 mm anchor with a 1.0 KN bearing tensile for fixing drop cable and accessories.
Description
Overview

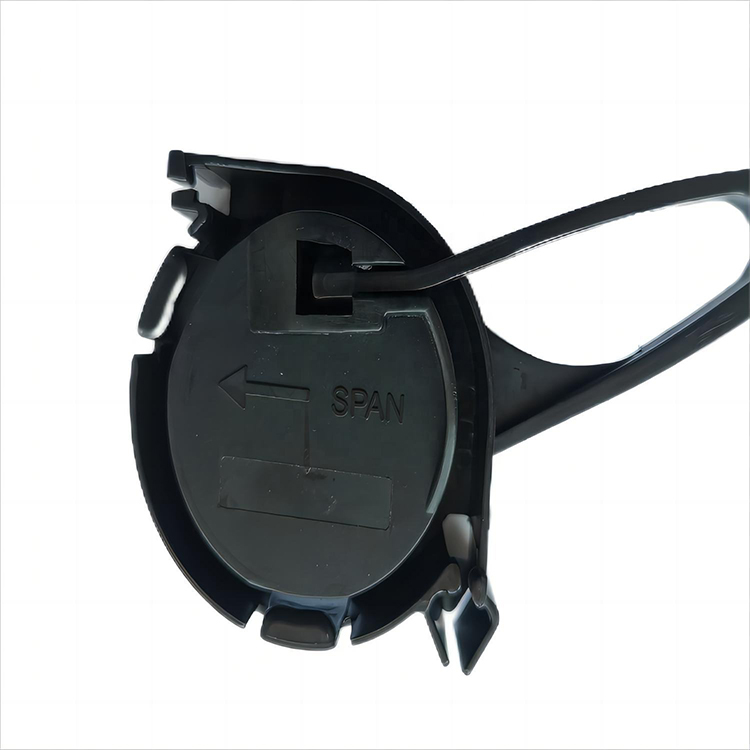

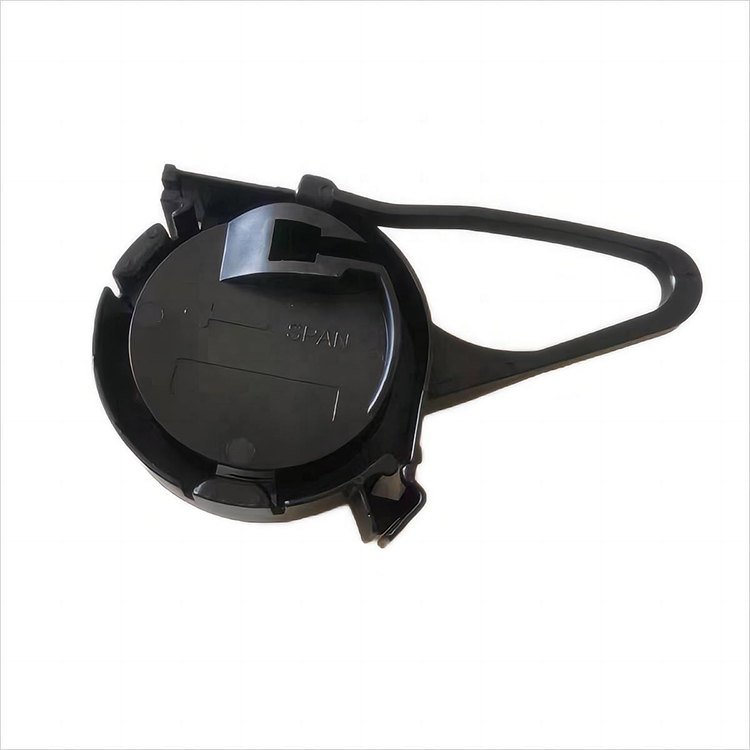

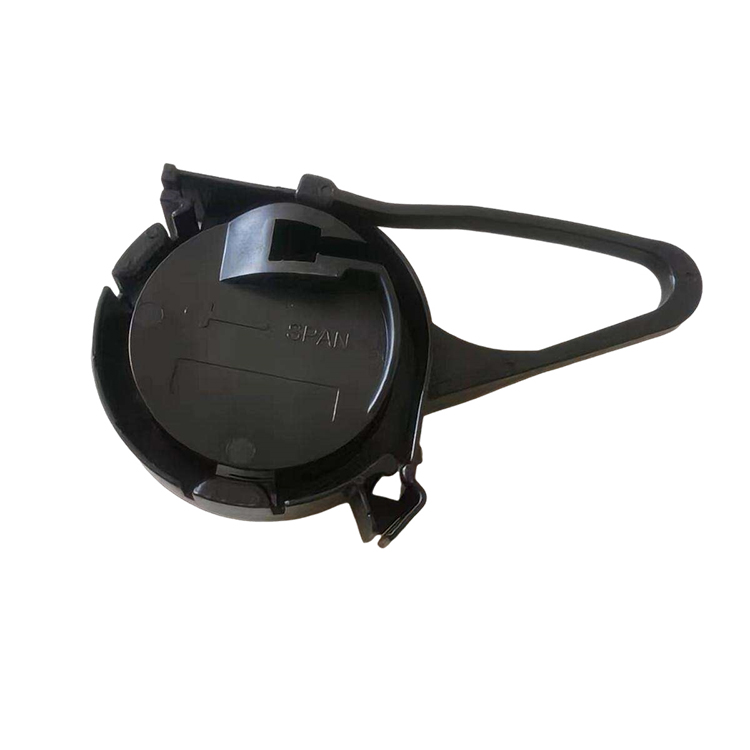

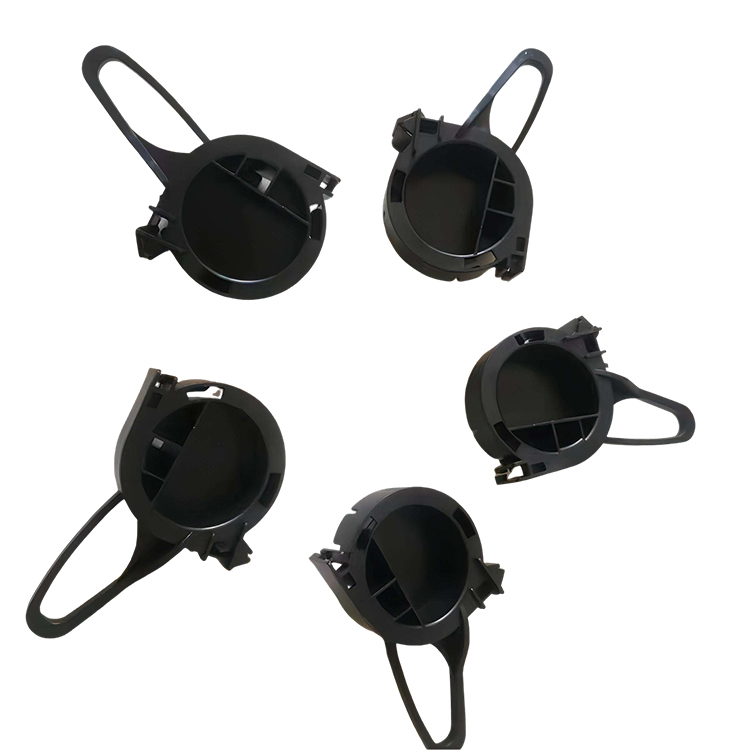

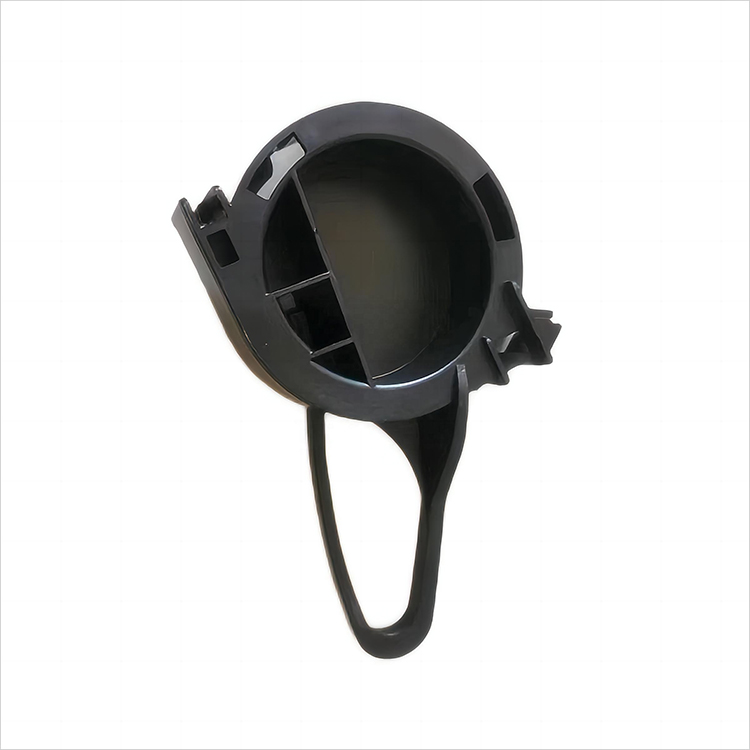

The GJ.153 is an ACC clamp moulded in PA6 or PA66. It measures 150*110*41 mm and carries a bearing tensile of 1.0 KN, sized for a cable diameter of 2-6.
The clamp combines a round clamp body with a moulded loop arm, so drop cable and fittings are held mechanically on an anchor point. It is packed 1000/Carton in a 55*41*25 cm carton weighing 12KG.
GJ.153 Key Features
- ACC clamp moulded in PA6 or PA66
- 150*110*41 mm body with a 1.0 KN bearing tensile
- Suited to a cable diameter of 2-6
- Round clamp body with an integrated loop arm for anchoring
- Supplied 1000/Carton in a 55*41*25 cm carton weighing 12KG
GJ.153 Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Product details | ACC Clamp: Applicable to cable diameter 2-6 |
| Size (mm) | 150*110*41 |
| Material | PA6 or PA66 |
| Bearing tensile | 1.0 KN |
| Applicable cable diameter | Φ2*5mm |
| Carton size (cm) | 55*41*25 |
| Carton weight | 12KG |
| Single box quantity | 1000/Carton |
Applications

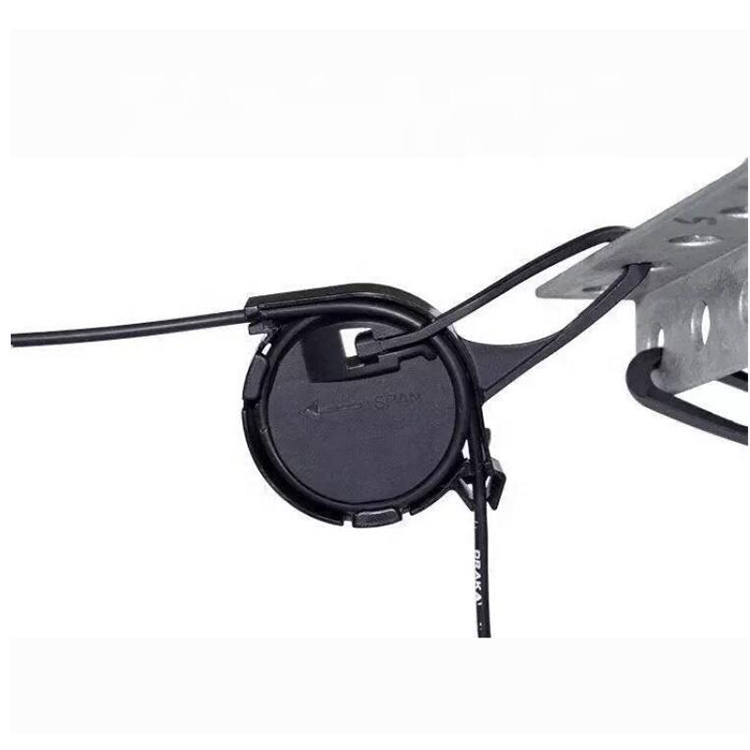

- Anchoring drop cable and accessories on FTTH runs
- Cable fixing at poles, brackets and building entry points
- Access and distribution network cable support
- Non-metallic clamping where an insulated fixing is preferred
