GJ.162 S-Type Anchor Clamp – 130×20×15 mm, 0.6 KN
GJ.162 S-type anchor clamp for 2*5 mm drop cable, moulded in PA6 or ABS with a 201 SS bail, a 0.6 KN bearing tensile and 500 pieces per carton.
Description
Overview

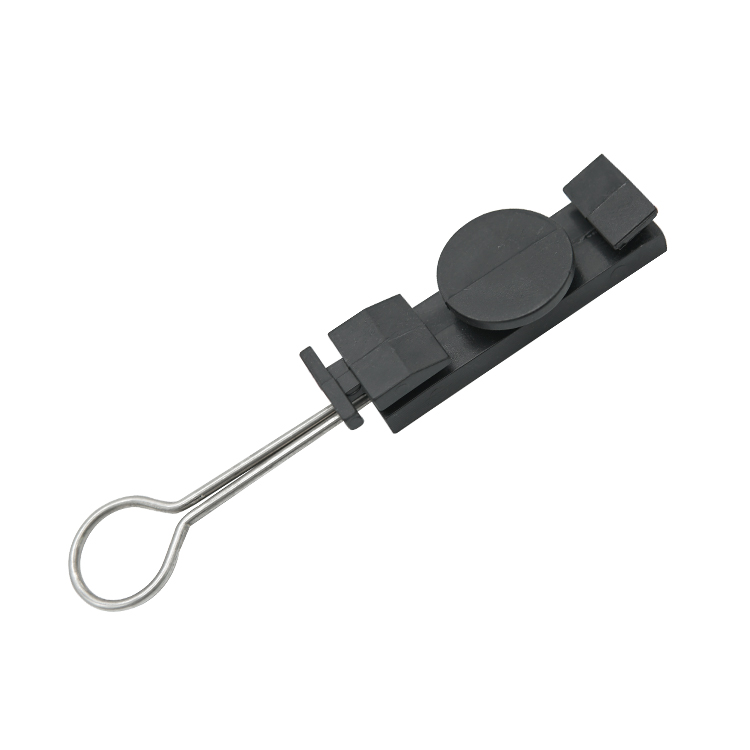

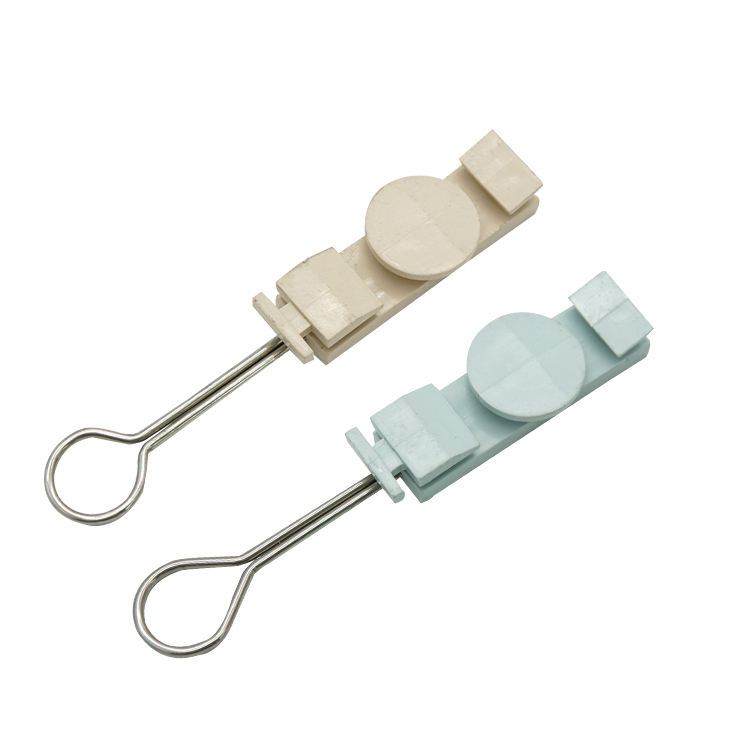

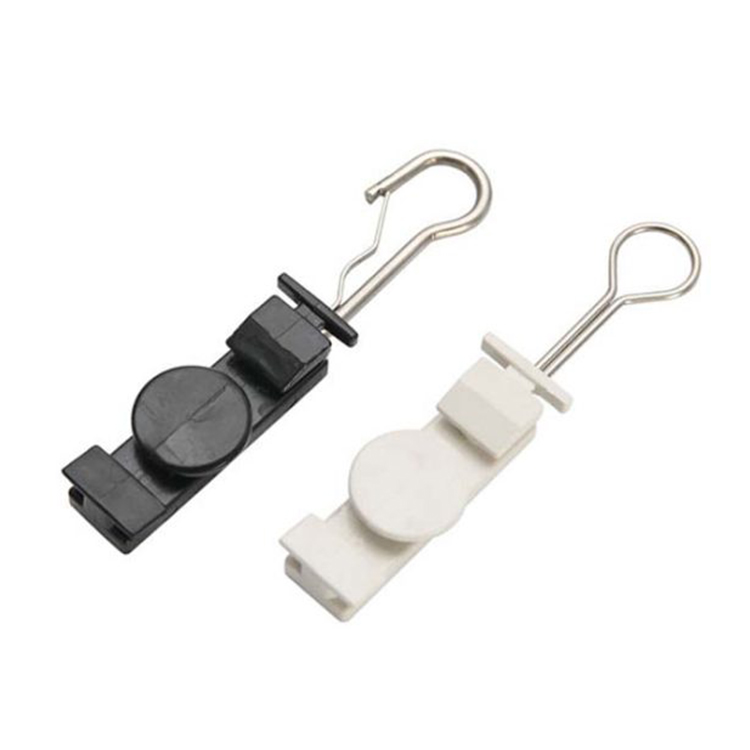

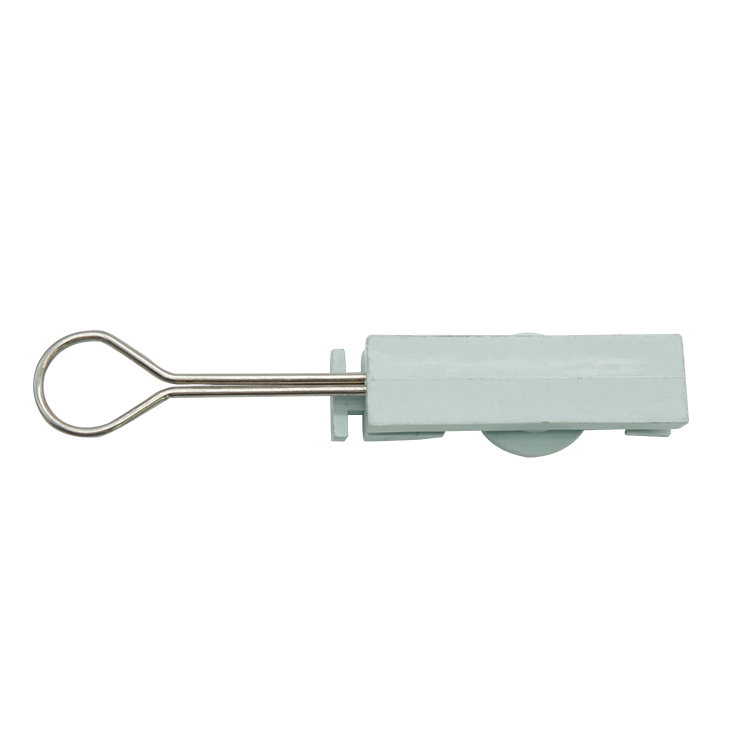

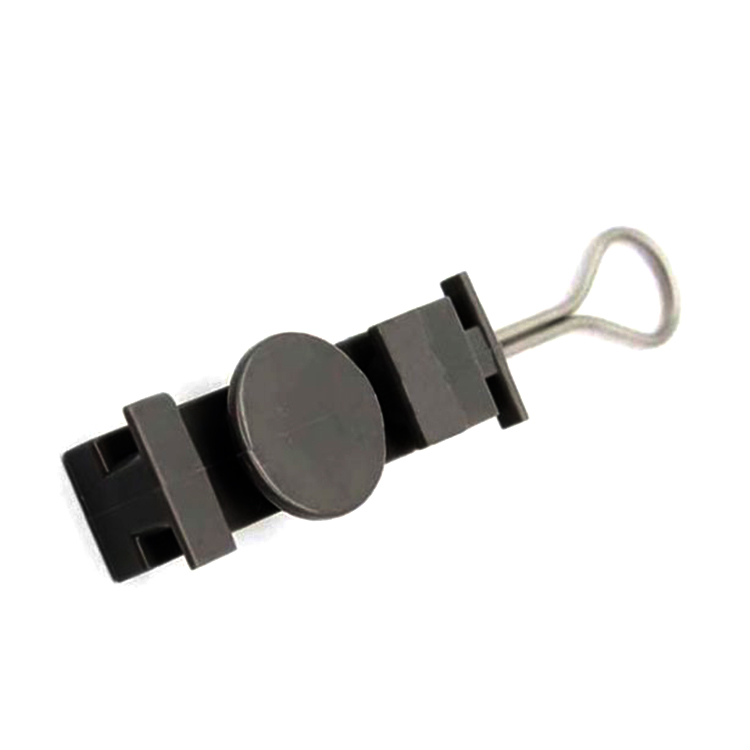

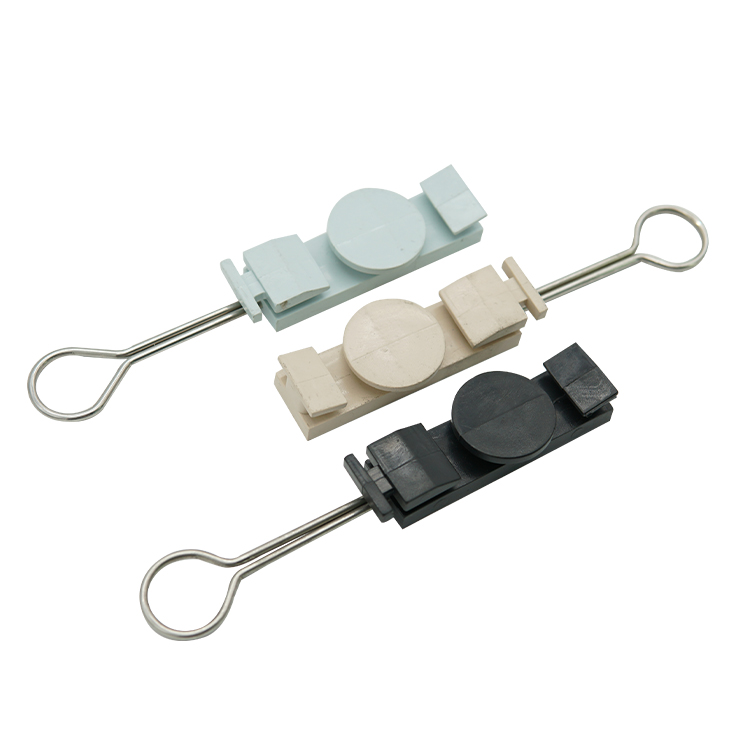

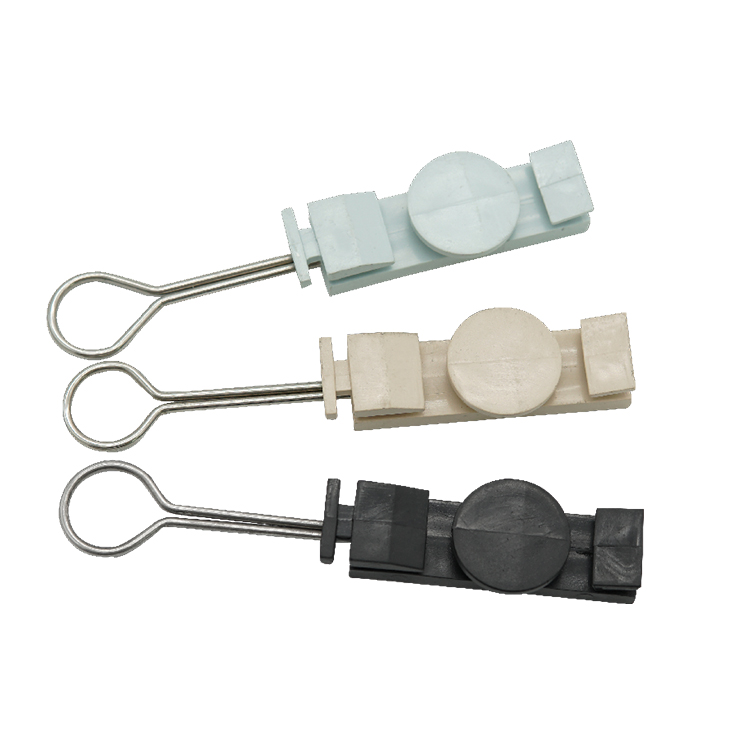

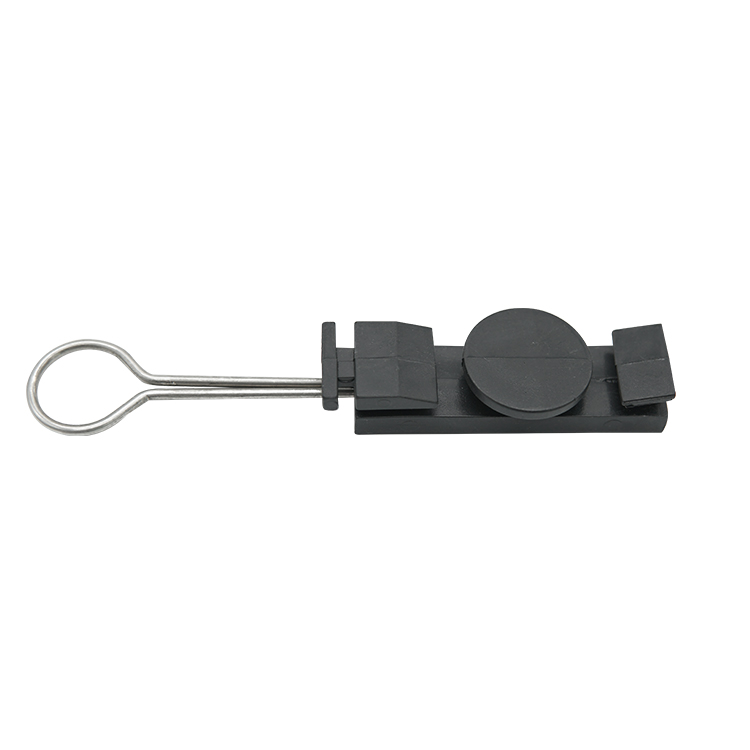

The GJ.162 is an S-type anchor clamp for 2*5 mm drop cable. The S-type fastener anchors the cable at the pole or building entry and measures 130*20*15 mm.
It is moulded in PA6 or ABS with a 201 SS bail and reaches a 0.6 KN bearing tensile, a compact anchor for drop cable termination.
GJ.162 Key Features
- S-type fastener design for anchoring 2*5 mm drop cable
- Moulded in PA6 or ABS with a 201 SS bail
- 0.6 KN bearing tensile for light drop cable loads
- Slim 130*20*15 mm body for tight pole and facade mounting
- Packed 500 pieces per carton for volume deployment
GJ.162 Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Product details | S type fastener/Anchor clamp: Applicable to cable diameter2*5 (shared row with GJ.161) |
| Size (mm) | 130*20*15 |
| Material | PA6 or ABS +201 SS |
| Bearing tensile | 0.6 KN |
| Applicable cable diameter | Φ2*5mm |
| Carton size (cm) | 40*30*25 |
| Carton weight | 13.5KG |
| Single box quantity | 500/Carton |
Applications
- Anchoring FTTH drop cable with an S-type fastener at poles and facades
- Aerial drop spans that need a very compact anchor
- High-volume access rollouts using 2*5 mm drop cable
- Indoor and outdoor cable termination where PA6 or ABS suits the environment
