HS-OR23 FTTH High Level Optical Receiver, 47~1002MHz
The HS-OR23 FTTH optical receiver covers 1100~1600nm and 47~1002MHz with 0~20dB gain adjustment, ≥51dB CNR and ≤2(250mA) at +5VDC.
Description
Overview

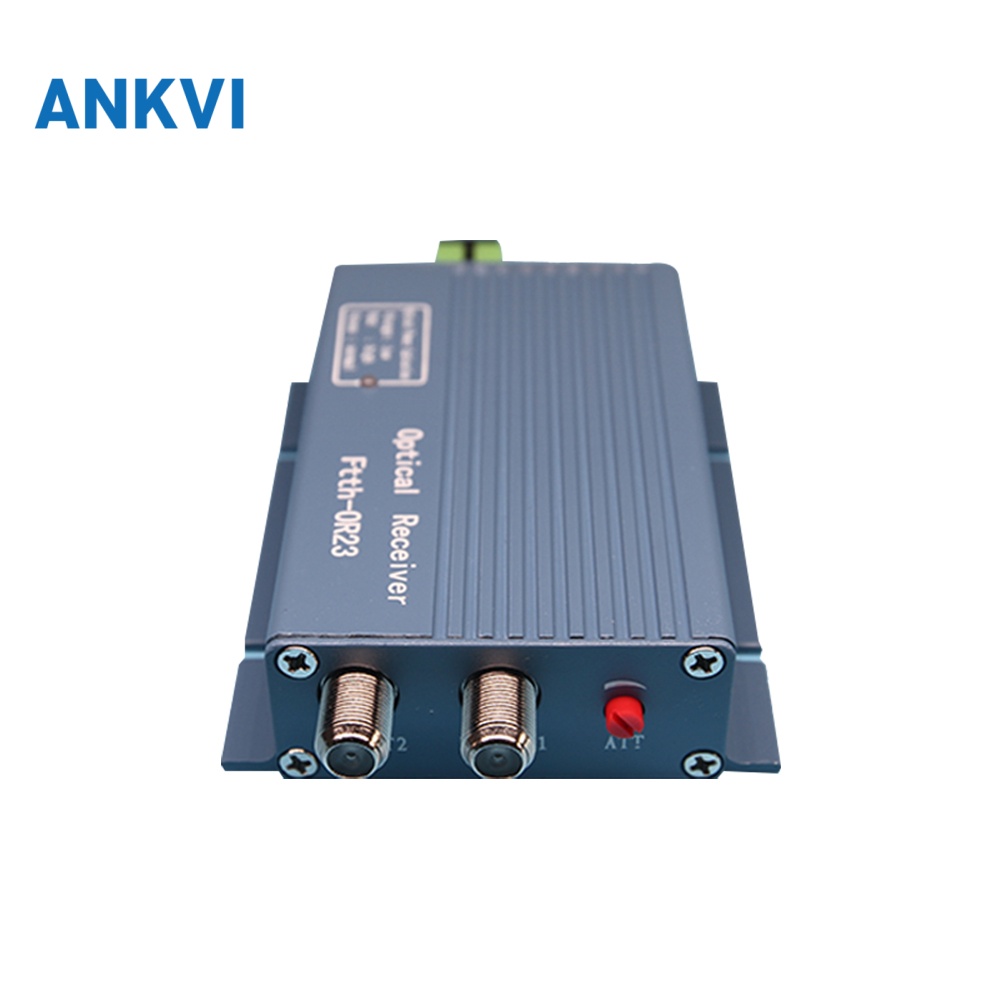

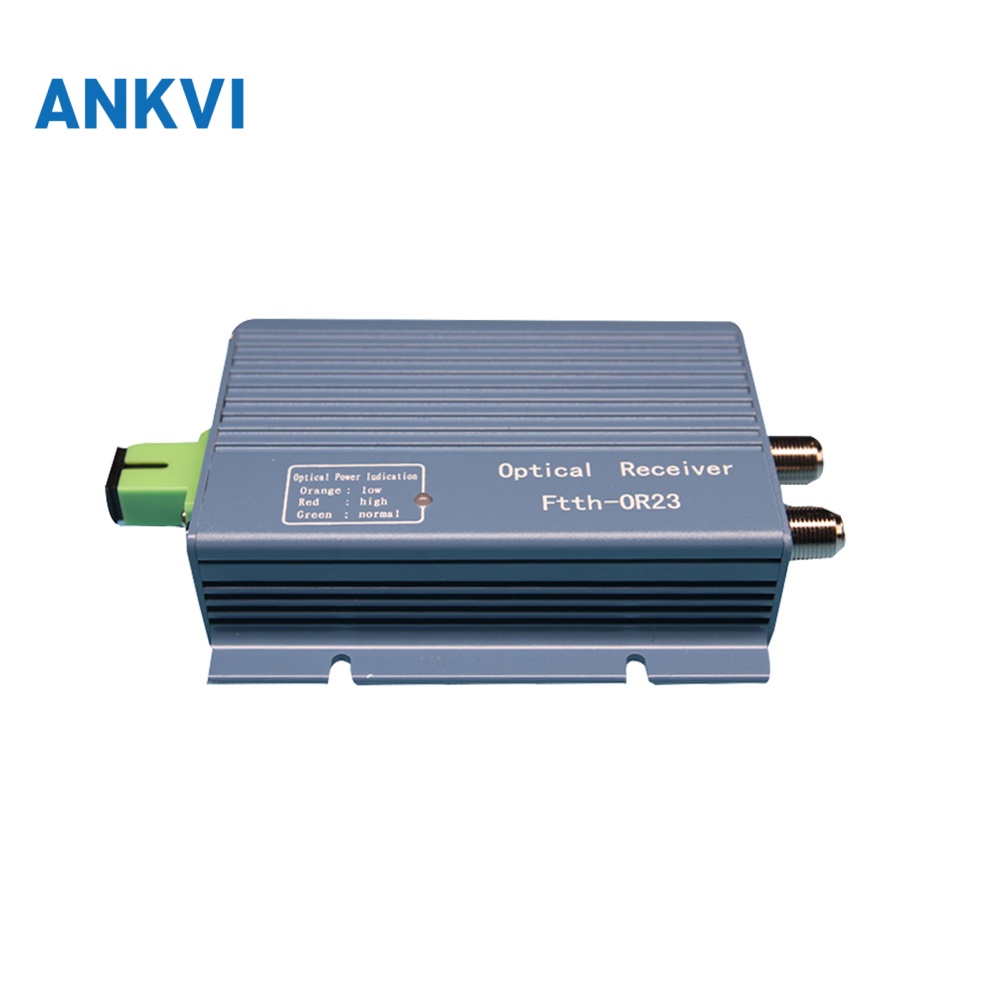

The HS-OR23 FTTH high level optical receiver is designed for CATV fibre-to-the-home networks and uses a brushed aluminium alloy shell with good heat dispersion for reliable field operation.
It turns 1100~1600nm optical signals into a 47~1002MHz RF output of ＞76dBuV into a 75Ω impedance, with 0~ -18 RF ATT range and 0~20 gain adjustment to balance the level through the network, powered by +5VDC at ≤2(250mA).
HS-OR23 Key Features
- Brushed aluminium shell with good heat dispersion in a 128*80*26mm footprint
- Optical wavelength 1100~1600 with an &1550 filter option
- Optical input range +2~ -15 for analog TV and +2~ -23 for digital TV

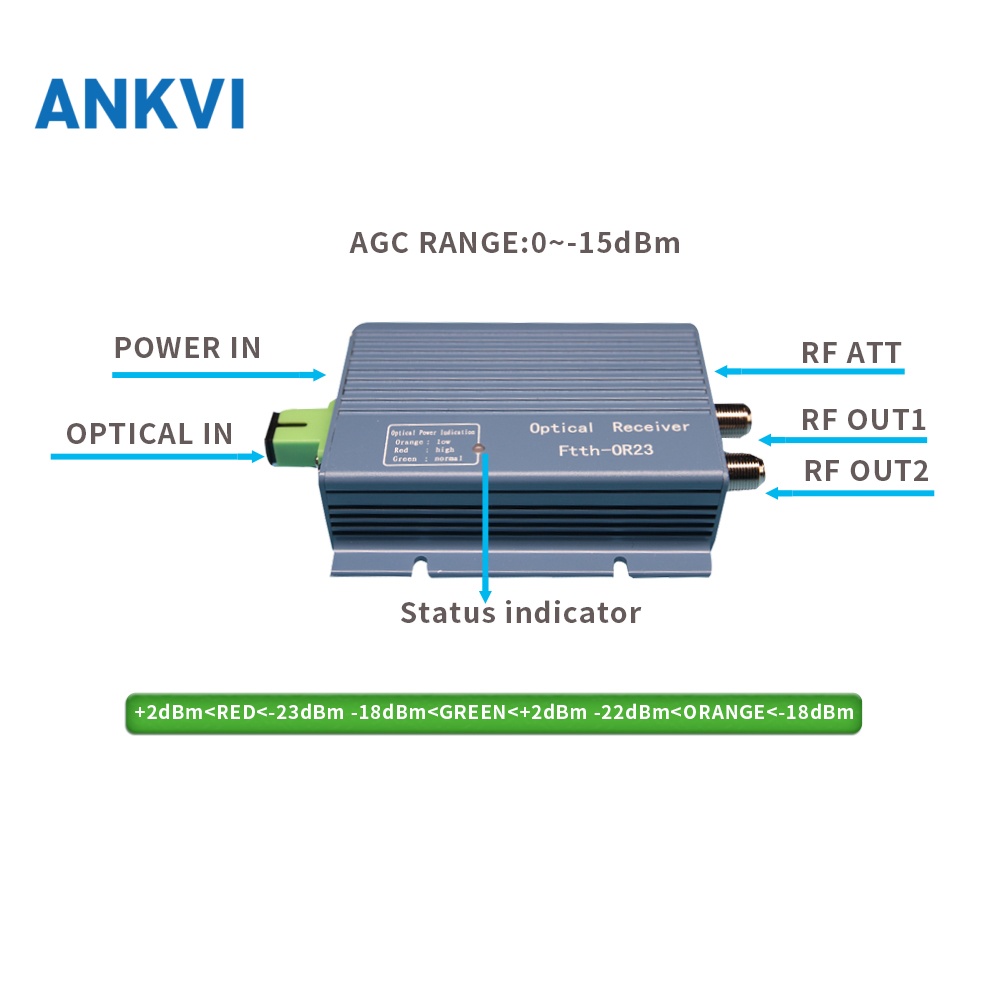

- AGC control range +2~-15dBm with AGC character ≤±0.5dB
- 47~1002MHz bandwidth, ±0.75dB flatness and ＞76dBuV RF output into 75Ω

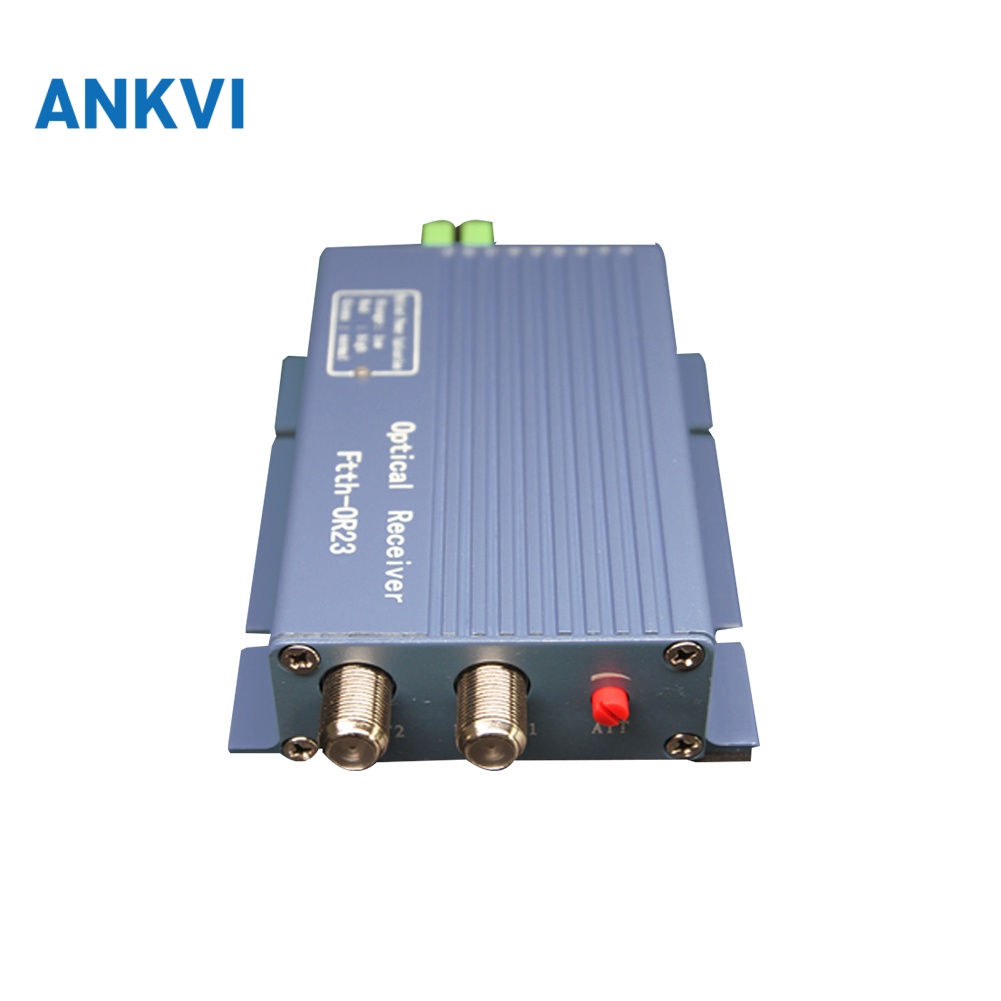

- RF ATT range 0~ -18dB and gain adjustable range 0~20dB, ≤2(250mA) at +5VDC
HS-OR23 Specifications
Specifications
| Parameter | Specification |
|---|---|
| Model | OR23B |
| Optical wavelength (nm) | 1100~1600 &1550 (With filter) |
| Optical input range (dBm) | +2~ -15 (Analog TV) +2~ -23 (Digital TV) |
| Output return loss (dB) | ≥45 |
| Bandwidth (MHz) | 47~1002 |
| Flatness (dB) | ±0.75 |
| RF ATT range (dB) | 0~ -18 |
| RF output level * (dBuv) | ＞76 (Pin:-15~+0dB) |
| AGC control range (dBm) | +2~-15 |
| AGC character (dB) | ≤±0.5 (Pin:-10~+0dB) |
| Output return loss (dB) | ≥14 (47-1000MHz) |
| Output impendance (Ω) | 75 |
| Gain adjustable rang (db) | 0~20 |
| MER (dB) | >36 (Pin:-15~+0dB) >28 (Pin:-22dBm) |
| BER (dB) | <1.0E-9 (Pin:-15-+0dB) <1.0E-9 (Pin:-22dBm) |
| CNR (dB) | ≥51 (Pin=-2dBm) |
| CTB (dB) | ≥65 (Pin=-2dBm) |
| CSO (dB) | ≥62 (Pin=-2dBm) |

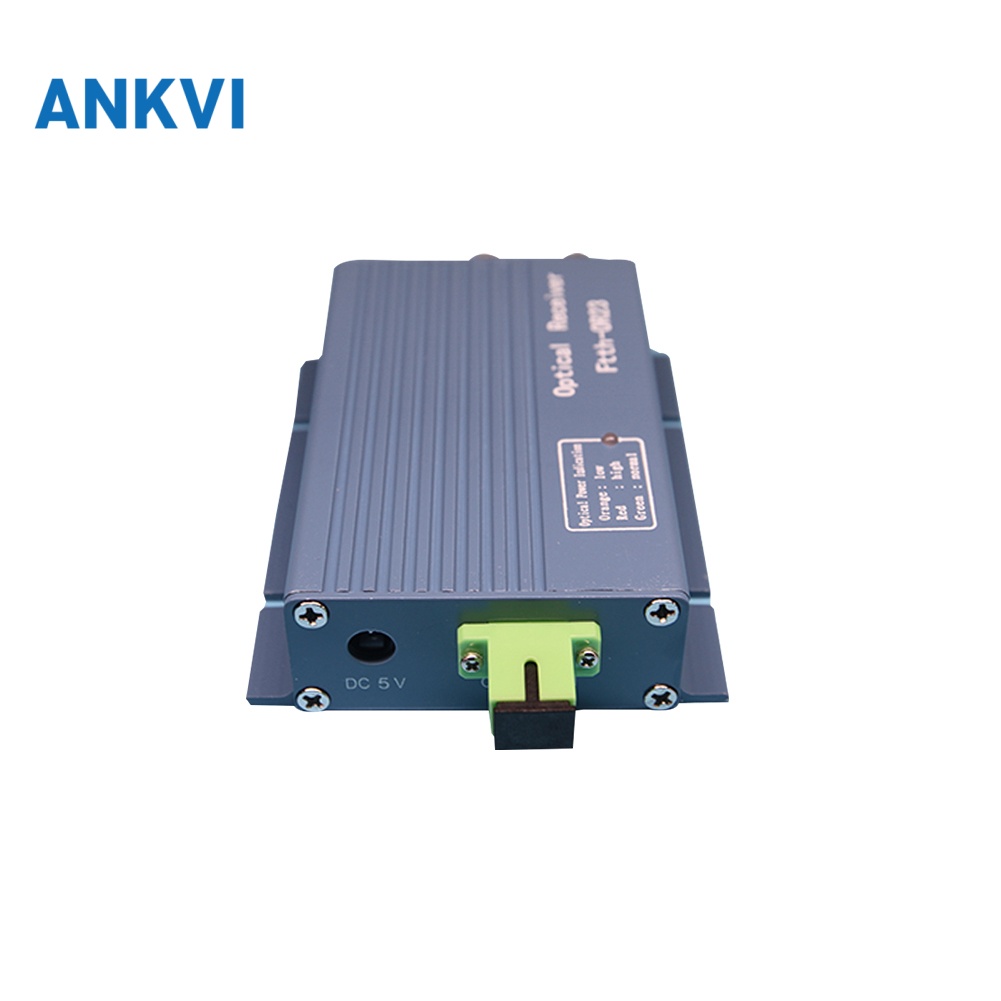

| Power supply (V) | +5VDC |
| Power consumption (W) | ≤2(250mA) (+5VDC) |
| Operating temperature (℃) | -20~+60 |
| Dimension (mm) | 128*80*26 |
Applications
- FTTH CATV networks needing a high level RF output
- Analog TV and digital TV distribution over 1100~1600nm fibre
- Optical nodes and subscriber taps with 47~1002MHz channel loading
- Outdoor cabinets and poles where the aluminium housing aids heat dispersion
