KU-6011G 11-Port Gigabit PoE Switch – 8×PoE, 1×SFP
The KU-6011G Gigabit PoE switch offers 8 PoE ports, 2 Gigabit uplink ports and 1 SFP port with a 24 Gbps switching capacity and up to 120 W.
Description
Overview

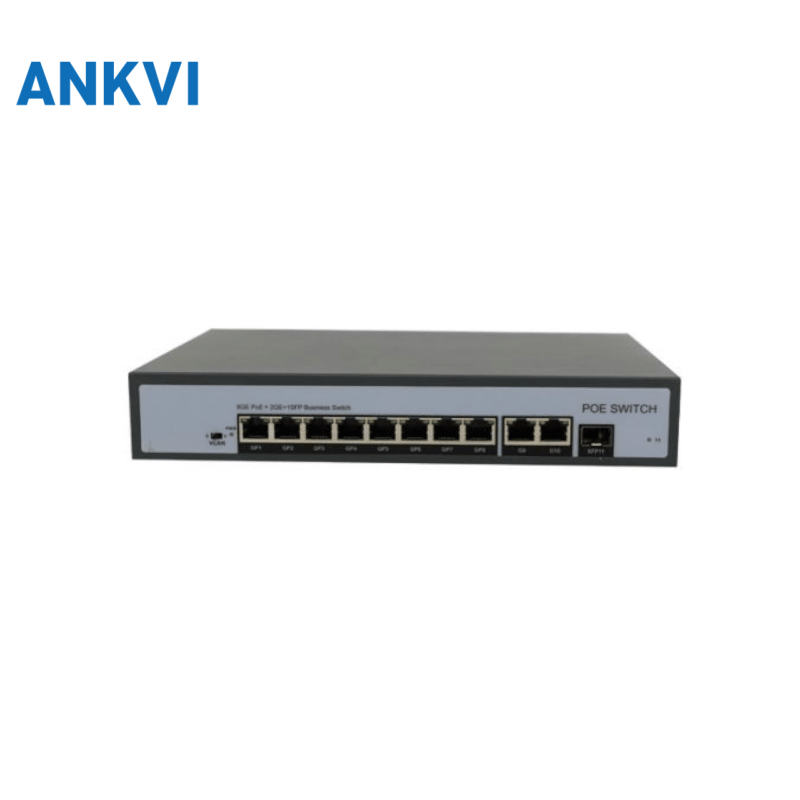

The KU-6011G is a full-Gigabit PoE switch that adds a fibre uplink to a medium camera and access point layout. It provides 8 × 10/100/1000 Mbps PoE ports, 2 × 10/100/1000 Mbps uplink ports and 1 × SFP in a 270 × 180 × 44 mm chassis.
PoE ports deliver up to 30 W each under IEEE 802.3at / 802.3af, with a total power budget of up to 120 W. The switching capacity is 24 Gbps and the unit is powered from a 52V / 2.3A DC input.
KU-6011G Key Features
- 8 × 10/100/1000 Mbps PoE ports with 2 × 10/100/1000 Mbps uplink ports and 1 × SFP
- IEEE 802.3at / 802.3af with up to 30 W per PoE port
- Total power budget of up to 120 W from a 52V / 2.3A DC input
- 24 Gbps switching capacity and support for up to 1236 VLANs
- Desktop 270 × 180 × 44 mm housing
KU-6011G Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| PoE Ports | 8 × 10/100/1000 Mbps |
| Uplink Ports | 2 × 10/100/1000 Mbps + 1 × SFP |
| DC Input | 52V / 2.3A |
| Switching Capacity | 24 Gbps |
| Power per PoE Port | ≤30 W |
| Max Power Consumption | ≤120 W |
| Number of VLANs | 1236 |
| PoE Standard | IEEE 802.3at / 802.3af |
| Dimensions | 270 × 180 × 44 mm |
| Gross Weight | 1.1 kg |
| Packing | 10pcs/ctn |
Deployment Scenarios
- Gigabit camera and access point networks that also need a fibre uplink
- Sites that connect back to the core over the SFP port instead of copper
- Desktop installations where a 270 × 180 × 44 mm unit is sufficient
